Universal Flat Screen Wall Mount with Tilt

BTV511

5 Fixed Tilt Positions




Designed to mount large sized screens the BTV511 is ideal for home installations. With 5 fixed tilt poistions up to +15° available, this mount also features a simple ‘hook-on’ installation and post installation screen alignment making screen mounting as quick and simple as possible. The BTV511 includes a security locking bar to help prevent un-authorised removal of the screen. All fixings and mounting hardware included.




   BTV511 Flat Screen Wall Mount with Tilt
  • 5 fixed tilt positions up to +15°
  • Mounts screen only 44mm from wall when flat
  • Post installation screen alignment for perfect screen positioning
  • Security locking bar to prevent unauthorised screen removal
  • Suitable for concrete, brick or stud walls up to 16”
  • Simple ‘hook-on’ installation
  • All mounting hardware included
  • Recommended screen size: Up to 55” (140cm)
  • Max load: 50kg (110lbs)
  • VESA® & non-VESA fixings: up to 425 x 400
  • Tilt: +15°
  • Distance from wall: Flat: 44mm (1.7”) / Full tilt: 153mm (6”)
  • Colour: Black

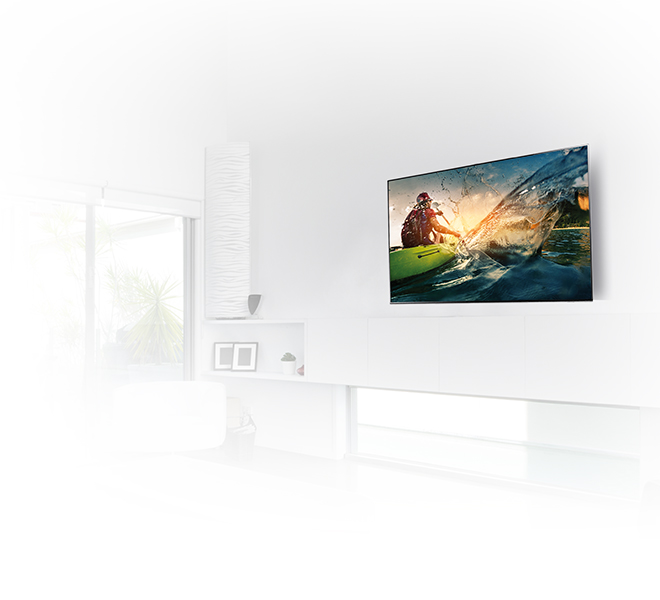

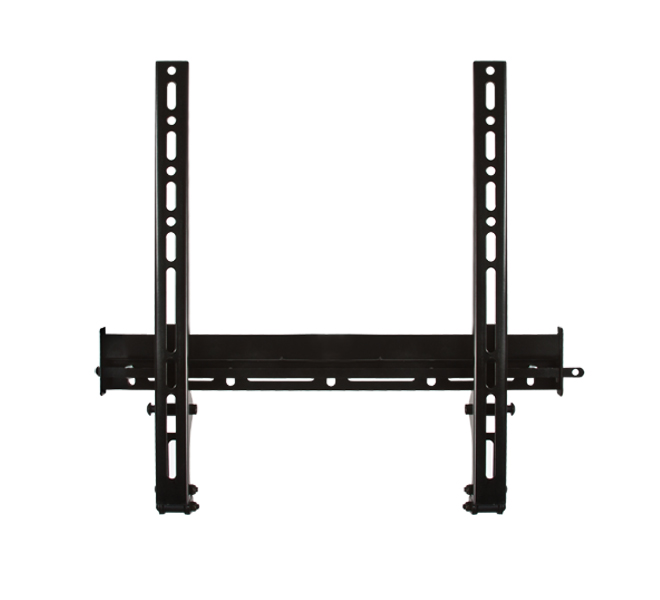

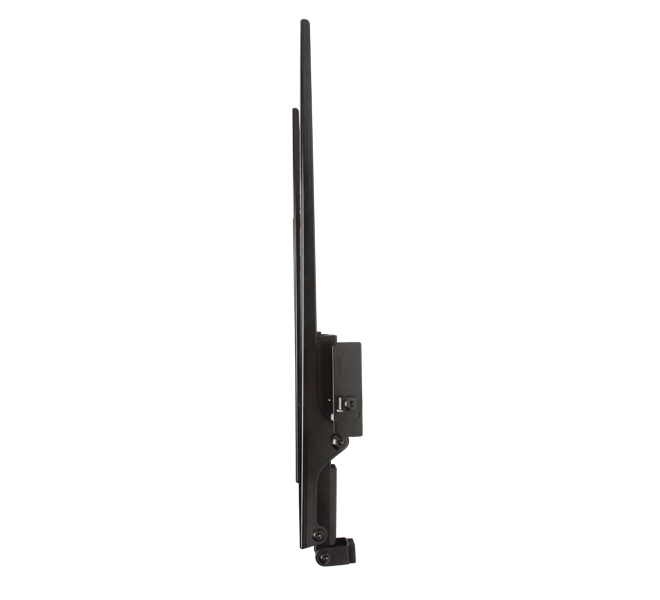

BTV511 Flat Screen Wall Mount with Tilt - Front View BTV511 Flat Screen Wall Mount with Tilt BTV511 Flat Screen Wall Mount with Tilt - Low Profile Design BTV511 Flat Screen Wall Mount with Tilt - Lifestyle Image

Specification Sheet

Specification Sheet (PDF)

Technisches Datenblatt - Deutsch (PDF)

产品规格书 — 中文（PDF)



Installation Guide

Installation Guide (PDF)

Montageanleitung - Deutsch (PDF)

Instrucciones de Instalación – Español (PDF)



Technical Drawing

Technical Drawing (DXF)
