Universal Flat Screen Wall Mount

BTV510

For Large Screens




Designed to mount large sized screens just 20mm from the wall, with its low-profile design the BTV510 is ideal for home installations. Suitable for concrete, brick or stud walls up to 16”, this mount features a simple ‘hook-on’ installation and post installation screen alignment to make screen mounting as quick and simple as possible. The BTV510 also features a security locking bar to help prevent un-authorised removal of the screen. All fixings and mounting hardware included.

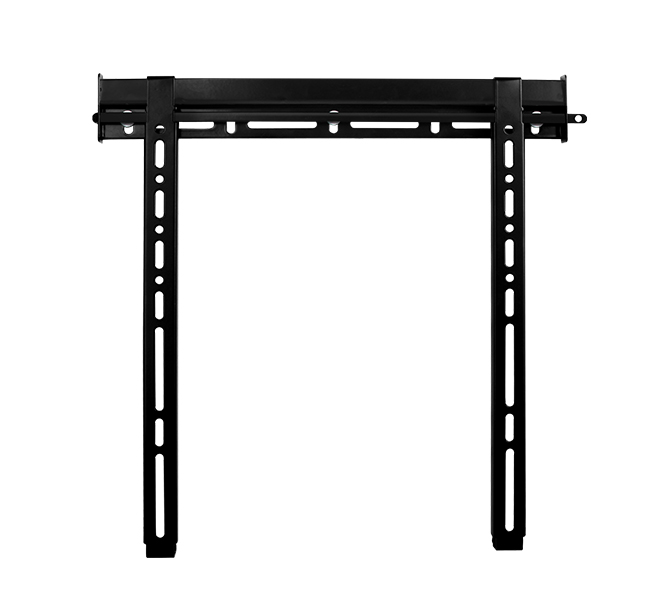

  BTV510 Flat Screen Wall Mount - Front View
  • Low profile design for a close to the wall installation
  • Lateral adjustment of screen once mounted
  • Security locking bar to prevent unauthorised screen removal
  • Suitable for concrete, brick or stud walls up to 16”
  • Simple ‘hook-on’ installation
  • All mounting hardware included
  • Recommended screen size: up to 55” (140cm)
  • Max load: 50kg (110lbs)
  • VESA® & non-VESA fixings: up to 425 x 400
  • Distance from wall: 20mm (0.8”)
  • Colour: Black

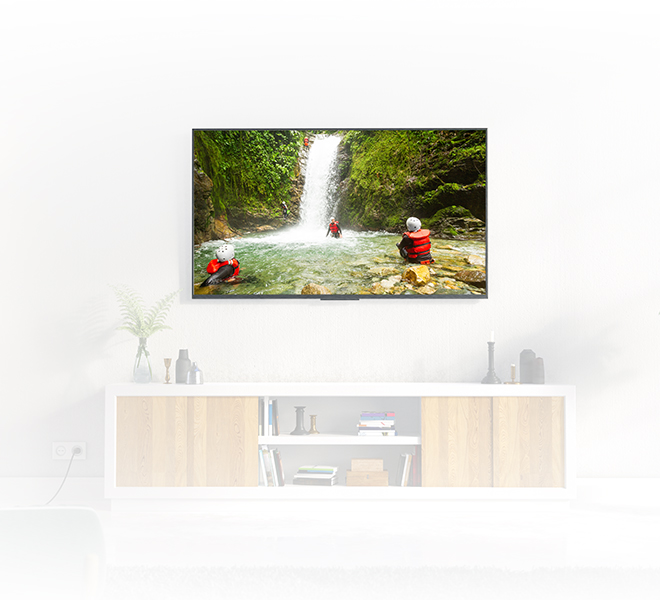

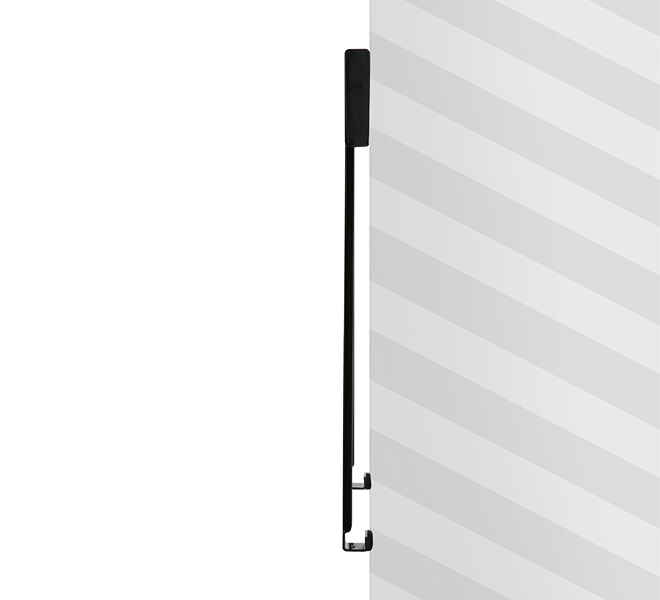

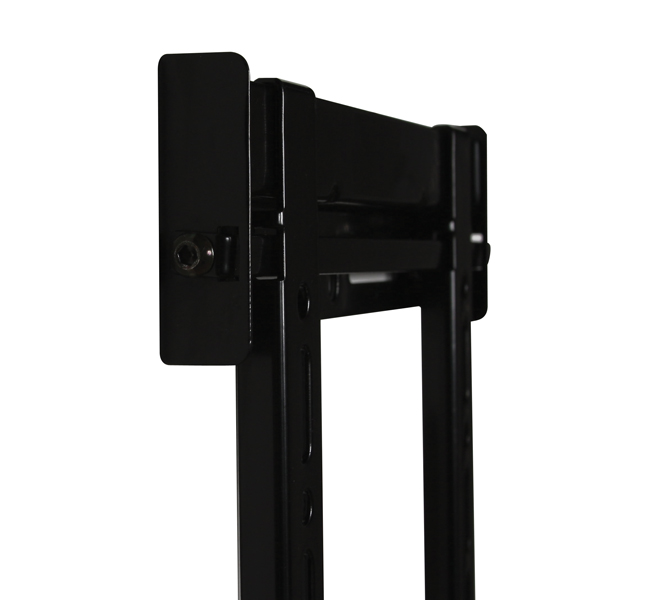

BTV510 Large Flat Screen Wall Mount - Front View BTV510 Large Flat Screen Wall Mount  - Security Locking Bar BTV510 Flat Screen Wall Mount - Low Profile Design BTV510 Large Flat Screen Wall Mount -  Lifestyle Image

Specification Sheet

Specification Sheet (PDF)

Specification Sheet - US (PDF)

Technisches Datenblatt - Deutsch (PDF)

产品规格书 — 中文(PDF)



Installation Guide

Installation Guide (PDF)

Montageanleitung - Deutsch (PDF)

Instrucciones de Instalación – Español (PDF)



Technical Drawing

Technical Drawing (PDF)

Technical Drawing (DXF)



Greensheet

Greensheet (PDF)
