Flat Screen Wall Mount with Double Arm

BTV513

Folds Flat to The Wall




Designed to mount large-sized screens, this ultra-slim wall mount with a double arm features a tilting interface and three swivel points, allowing quick and easy repositioning of the screen, whether folded flat to the wall or at maximum extension. A Cable management clip is included to help route cables along the double arm for a smart installation, ideal for home installations and commercial applications.



  Ventry™ Ultra-Slim Double Arm Flat Screen Wall Mount with Tilt and Swivel
  • Ultra-slim design allows close to the wall installation when folded flat
  • Easy tilt and swivel adjustment
  • Features three swivel points: 180° at wall, 360° at central pivot and 240° at interface
  • Lateral adjustment of screen once mounted
  • Single stud mounting for easy installation
  • Levelling screws allow adjustment of screen height
  • Integrated cable management
  • Simple ‘hook-on’ installation with all mounting hardware included
  • Recommended screen size: up to 55" (140cm)
  • Max load: 35kg (77lbs)
  • VESA® & non-VESA fixings: up to 400 x 400mm
  • Tilt: +10°/-2°
  • Swivel: 180° (at wall) & 360° (at central pivot)
  • Distance from wall: Min: 40mm (1.6”) - Max: 450mm (17.7”)

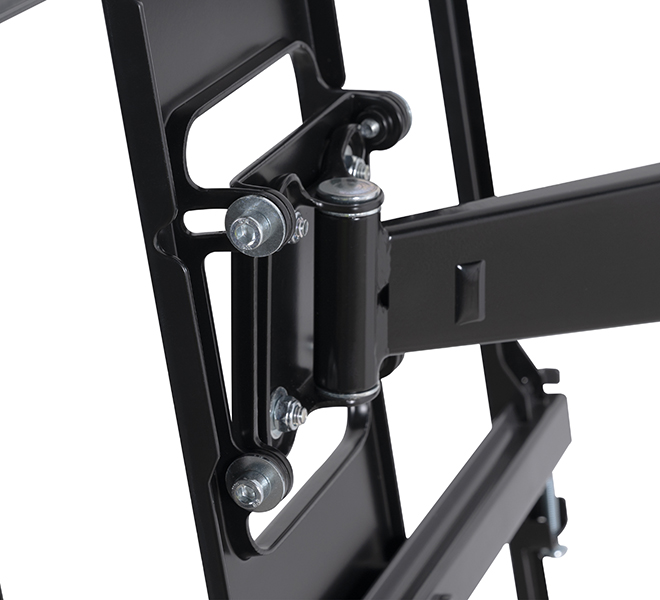

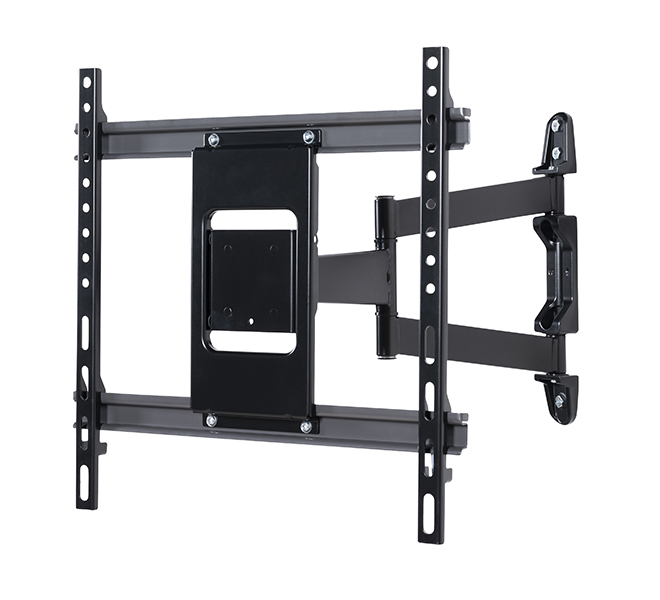

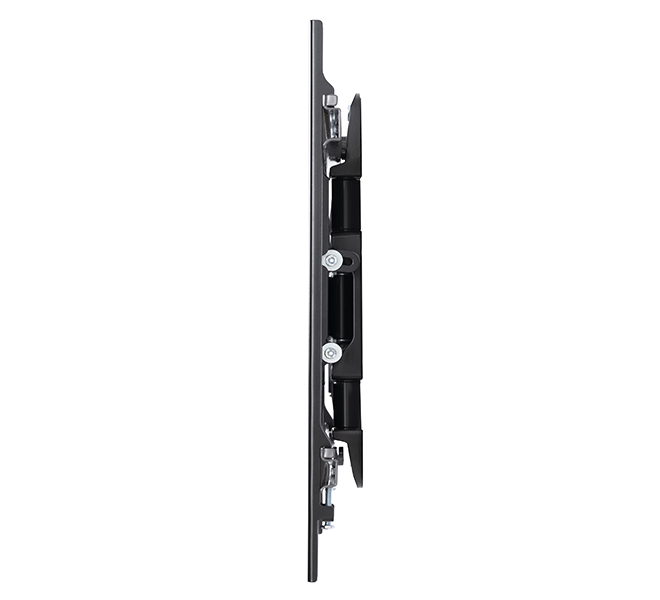

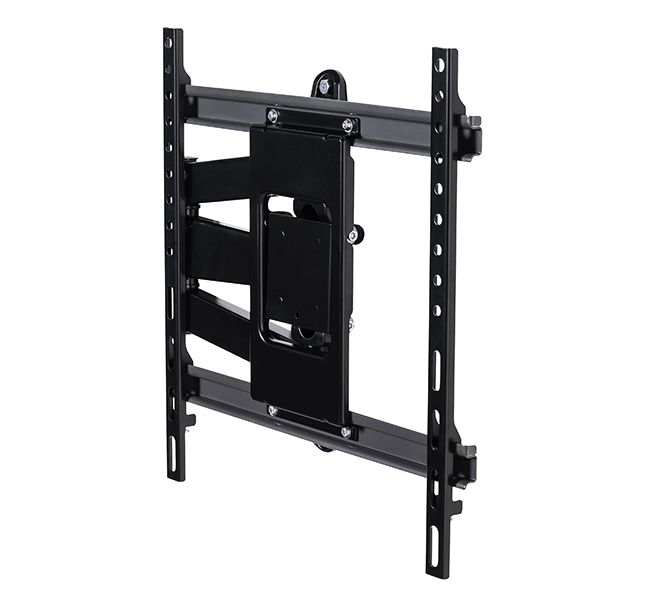

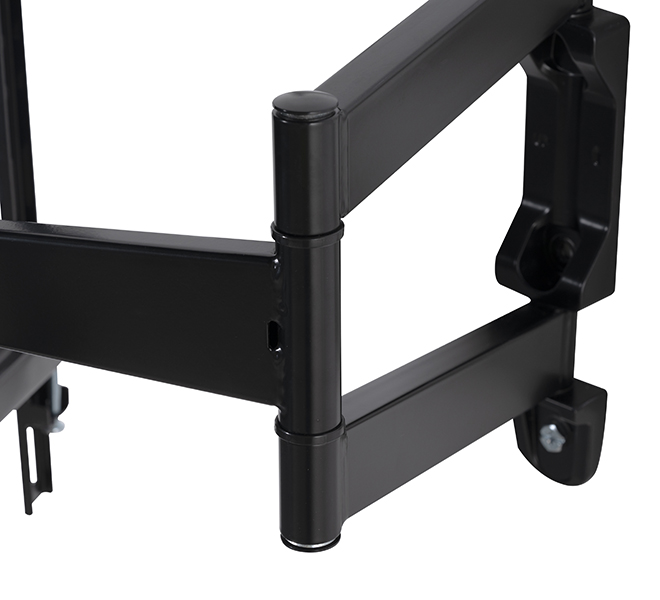

BTV513 Flat Screen Wall Mount With Double Arm BTV513 Folds flat to the wall BTV513 Ultra-slim design mounts screen only 40mm from wall when folded flat BTV513 3 pivot points for easy screen positioning

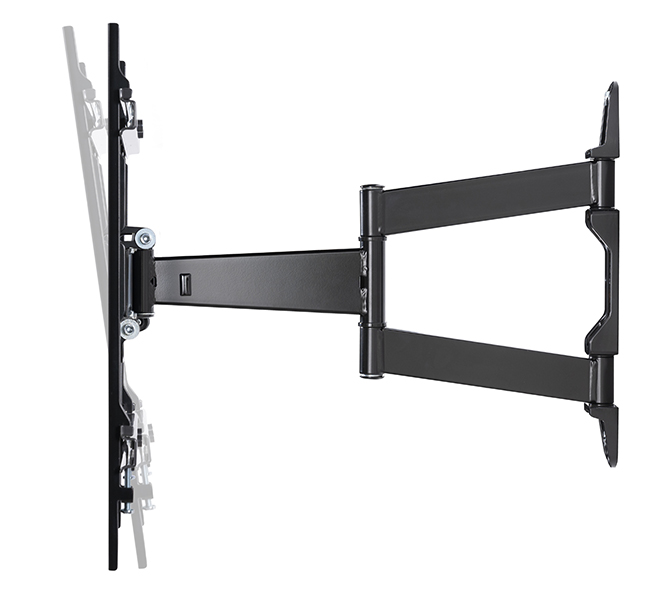

BTV513 Tilts up to + 10°/-2° BTV513 Tilts up to + 10°/-2° BTV513 Flat Screen Wall Mount With Double Arm BTV513 Full Colour Retail Box

Specification Sheets

Specification Sheet - English (PDF)

Fiche de spécifications - Français (PDF)

Hoja de especificaciones - Español (PDF)

Spezifikationsblatt - Deutsch (PDF)

Specification Sheet - US Letter (PDF)



Installation Guides

Installation Guide (PDF)

Montageanleitung - Deutsch (PDF)



Technical Drawings

Technical Drawing (PDF)
