Ultra-Slim Double Arm Flat Screen Wall Mount

BT8221

With Tilt & Swivel




Designed to mount large screens up to 65", this ultra-slim double arm wall mount features a tilting interface and three swivel points, allowing quick and easy repositioning of screens as required - whether folded flat to the wall at a depth of just 37mm or at maximum extension. Coverplates to hide fixings and integrated cable management help make this a neat and tidy mounting solution which is ideal for commercial applications as well as home installations.






  • Ultra-slim design allows close to the wall installation when folded flat
  • Easy tilt and swivel adjustment
  • Features three swivel points: 180° at wall, 360° at central pivot and 240° at interface
  • Lateral adjustment of screen once mounted
  • Integrated cable management
  • Simple ‘hook-on’ installation with all mounting hardware included
  • Attractive coverplates included to hide fixings
  • Simple ‘hook-on’ installation with all mounting hardware included
  • Recommended screen size: up to 65" (165cm)
  • Max load: 36kg (80lbs)
  • VESA® compatibility: up to 600 x 400
  • Universal fixings: up to 600 x 400mm
  • Tilt: +/-15°
  • Swivel: 180° at wall, 360° at central pivot & 180° at interface
  • Distance from wall: Min: 37mm (1.4") - Max: 560mm (22")
  • Colours: Black or White

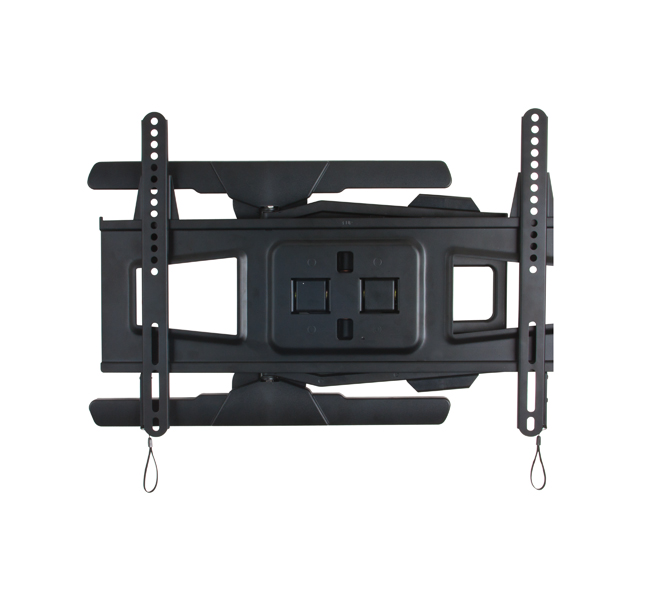

BT8221 - Ultra-Slim Double Arm Flat Screen Wall Mount - Black BT8221 - Ultra-Slim Double Arm Flat Screen Wall Mount - Folded Flat - Black BT8221 - Ultra-Slim Double Arm Flat Screen Wall Mount - Integrated cable management - Black BT8221 - Ultra-Slim Double Arm Flat Screen Wall Mount - With Screen - Black

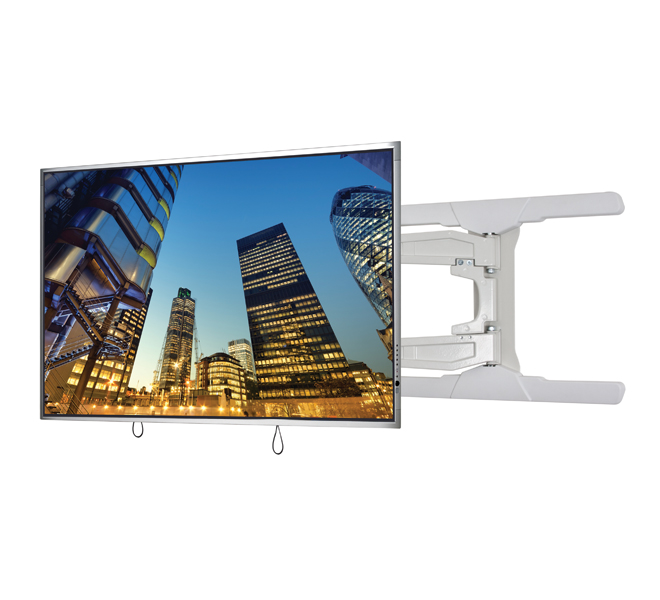

BT8221 - Ultra-Slim Double Arm Flat Screen Wall Mount - White BT8221 - Ultra-Slim Double Arm Flat Screen Wall Mount - With Screen - White BT8221 - Ultra-Slim Double Arm Flat Screen Wall Mount - Quick Release Pullstrings BT8221 - Ultra-Slim Double Arm Flat Screen Wall Mount - Lifestyle Image
