Universal Flat Screen Wall Mount

BTV501

With Tilt




Designed to mount medium sized screens the BTV501 is ideal for home installations. With 5 fixed tilt poistions up to +15° available, this mount features a simple ‘hook-on’ installation and post installation screen alignment making screen mounting as quick and simple as possible. The BTV501 also features a security locking bar to help prevent un-authorised removal of the screen. All fixings and mounting hardware included.





  BTV501 Medium Flat Screen Wall Mount with Tilt
  • 5 fixed tilt positions up to +15°
  • Lateral adjustment of screen once mounted
  • Security locking bar to prevent unauthorised screen removal
  • Suitable for concrete, brick or stud walls up to 10”
  • Simple ‘hook-on’ installation
  • All mounting hardware included
  • Available in Black
  • Recommended screen size: up to 47” (110cm)
  • Max load: 40kg (88lbs)
  • VESA® & non-VESA fixings: up to 225 x 200
  • Tilt: +15°
  • Distance from wall: Flat: 44mm (1.7”) / Full tilt: 101mm (4”)

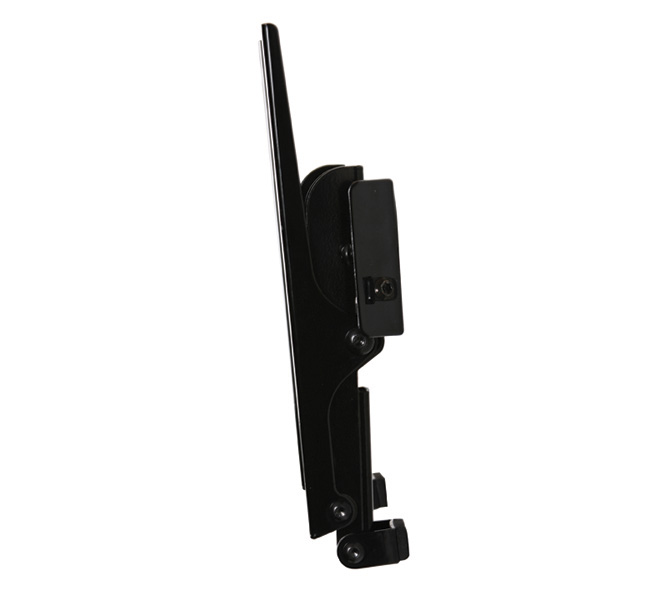

BTV501 Flat Screen Wall Mount with Tilt - Front View BTV501 Flat Screen Wall Mount with Tilt BTV501 Flat Screen Wall Mount with Tilt - Front View BTV501 Flat Screen Wall Mount with Tilt - Lifestyle Image

Specification Sheet

Specification Sheet (PDF)



Installation Guide

Installation Guide (PDF)

Instrucciones de Instalación – Español (PDF)



Technical Drawing

Technical Drawing (PDF)

Technical Drawing (DXF)



Greensheet

Greensheet (PDF)
