Universal Flat Screen Wall Mount

BTV521

With Tilt




Designed to mount extra-large sized screens the BTV521 is ideal for home installations. With 5 fixed tilt poistions up to +15° available, this mount features a simple ‘hook-on’ installation and post installation screen alignment making screen mounting as quick and simple as possible. The BTV521 also features a security locking bar to help prevent un-authorised removal of the screen. All fixings and mounting hardware included.

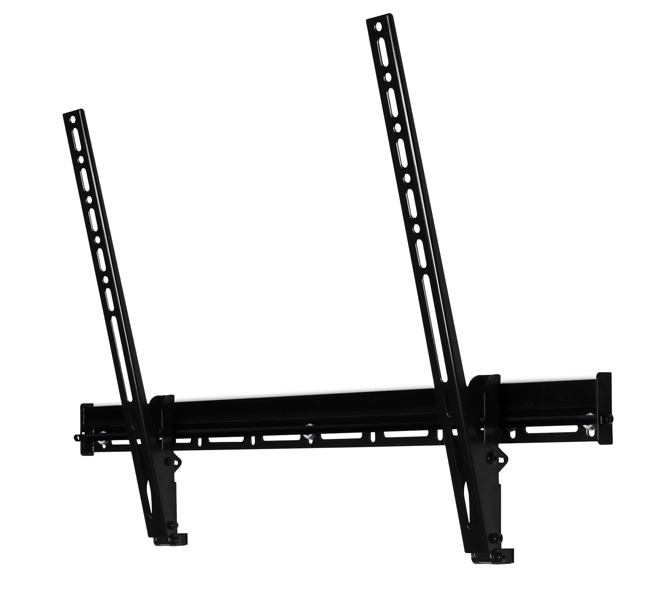

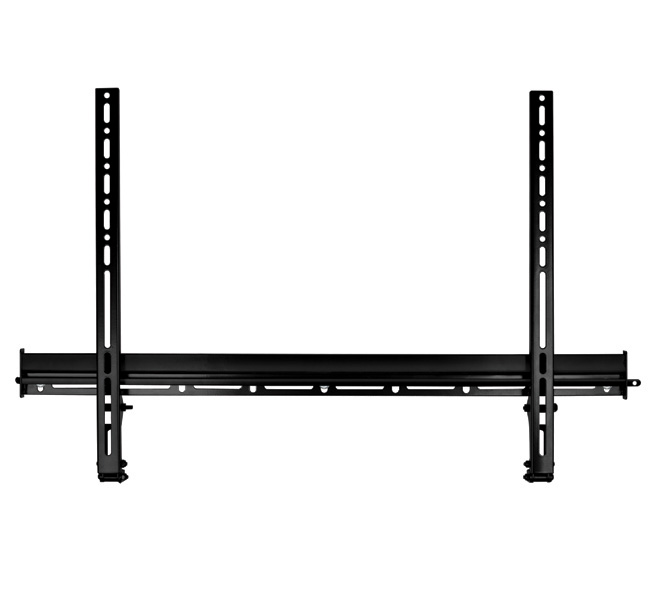

  BTV521 Flat Screen Wall Mount with Tilt - Front View
  • 5 fixed tilt positions up to +15°
  • Mounts screen only 44mm (1.7”) from wall when flat
  • Lateral adjustment of screen once mounted
  • Security locking bar to prevent unauthorised screen removal
  • Suitable for concrete, brick or stud walls up to 32” (81cm)
  • Simple ‘hook-on’ installation
  • All mounting hardware included
  • Recommended screen size: Up to 65” (165cm)
  • Max load: 70kg (154lbs)
  • VESA® & non-VESA fixings: up to 825 x 500
  • Tilt: +15°
  • Distance from wall: Flat: 44mm (1.7”) / Full tilt: 183mm (7.2”)

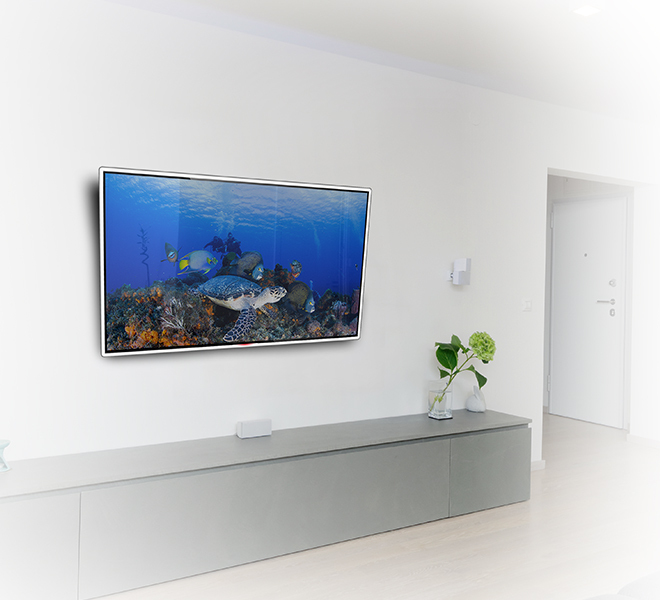

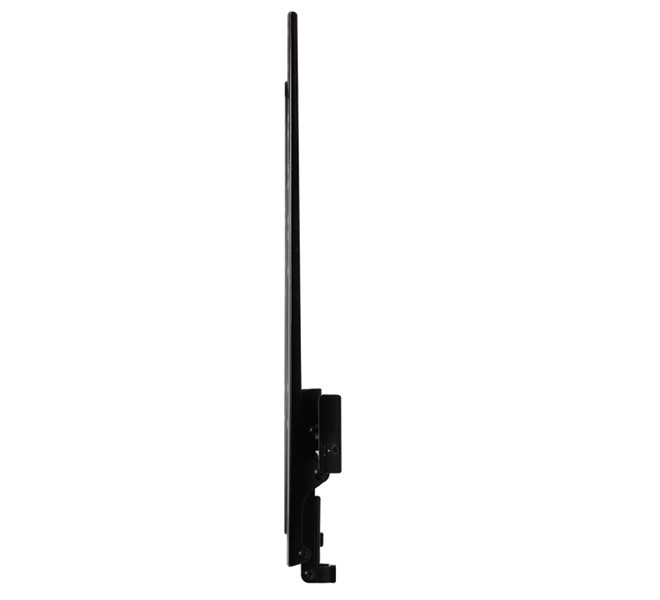

BTV521 Extra Large Flat Screen Wall Mount with Tilt - Front View BTV521 Extra Large Flat Screen Wall Mount with Tilt - Side View BTV521 Extra Large Flat Screen Wall Mount with Tilt - Low Profile Design BTV521 Extra Large Flat Screen Wall Mount with Tilt - Lifestyle Image

Specification Sheet

Specification Sheet (PDF)



Installation Guide

Installation Guide (PDF)



Technical Drawing

Technical Drawing (PDF)

Technical Drawing (DXF)
