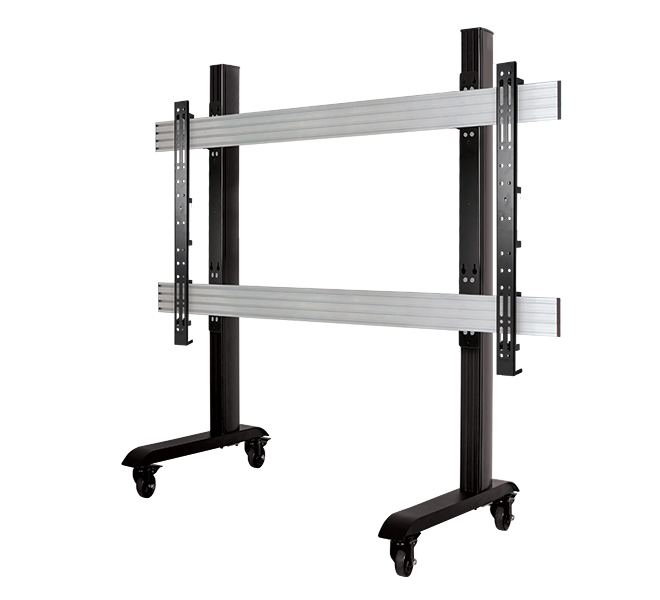

System X Touchscreen XL Trolley

BT8508

For 84" Microsoft Surface Hub™




The BT8508 is a mobile solution designed to mount extra-large interactive displays over 72", ideal for Microsoft's 84" Surface Hub. Capable of supporting heavy duty loads, the trolley has a welcome rigidity which means mounted touchscreens do not move or flex whilst in use. Levelling screws allow easy height adjustment of the screen once mounted and integrated cable management keeps finished installations neat and tidy. Non-marking 4" braked castors allow the trolley to be re-located easily and safely without marking or scuffing floor surfaces.

TUV Rhineland logo






  • Designed to mount Microsoft’s 84" Surface Hub display
  • The universal design is ideal for other standard or interactive screens 72" and over

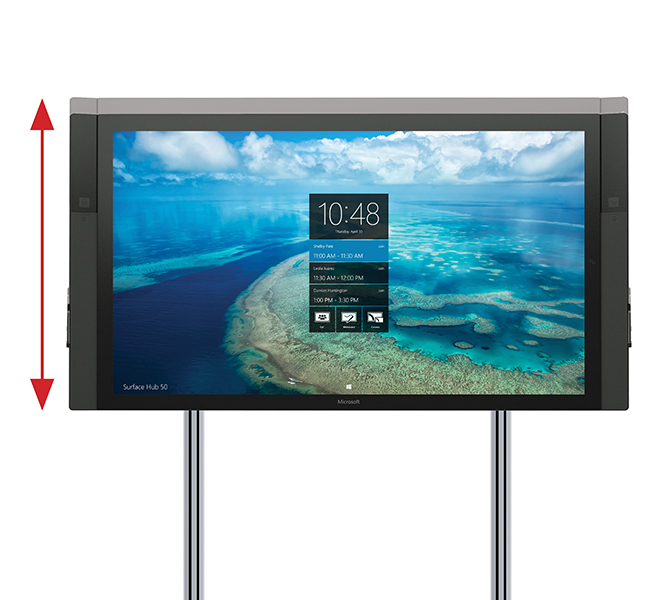

  • Interface arms include levelling screws to adjust the height of the screen
  • Safety screws help prevent unauthorised removal of screens

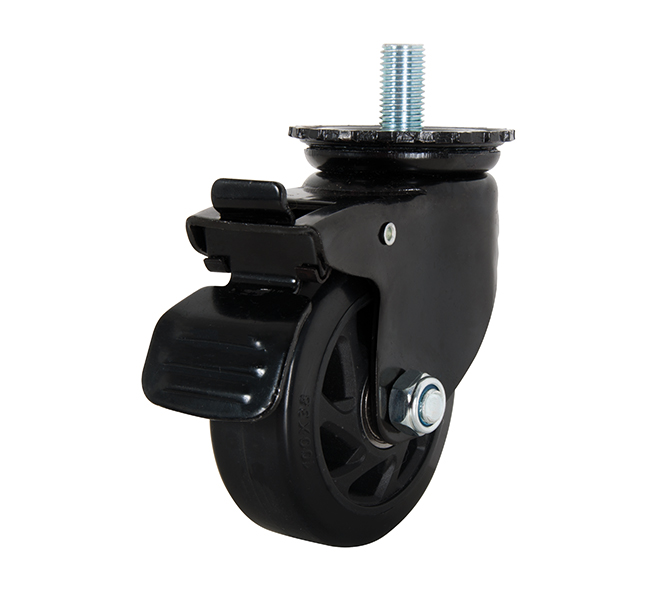

  • Includes non-marking 4” locking/braked castors & alternative levelling feet#
  • TUV Certified
  • Integrated cable management
  • Shelves and other accessories can be fitted directly to a column or to the rails using
    the BT8390-SA (available separately)
  • Recommended screen size: 72" (182.9cm) - 120" (304.8cm)
  • Recommended surface hub size: 84" (213.4cm)
  • Max load: 200kg (440.9lbs)
  • VESA® and non-VESA fixings: up to 1400mm x 800mm
  • Dimensions: W: 1505mm (59.2") H: 2002mm (78.8") D: 950mm: (37.4")
  • Colour option (columns): Black or Silver
  • Colour (base): Black
Touchscreen Trolley for Microsoft® SurfaceHub™ Simple 'hook-on' installation Interface arms include levelling screws to adjust the height of the screen Includes non-marking 4

Specification Sheet

Specification Sheet (PDF)



Installation Guide

Installation Guide (PDF)

Montageanleitung - Deutsch (PDF)



Technical Drawing

Technical Drawing (PDF)
