Motorised Height Adjustable Flat Screen Floor-to-Wall Mount


For screens up to 86"


BT8569 is a modern floor-to-wall solution designed to mount large screens up to 86". Electronic height adjustment enables effortless raising and lowering of the screen via a wired control panel, with an adjustment range of up to 650mm. BT8569 is ideal for mounting interactive touchscreens into education and corporate environments and is capable of supporting loads up to 100kg. The mount has a modern design and features a simple hook-on installation for quick and easy screen fitting.

TUV Rhineland logo

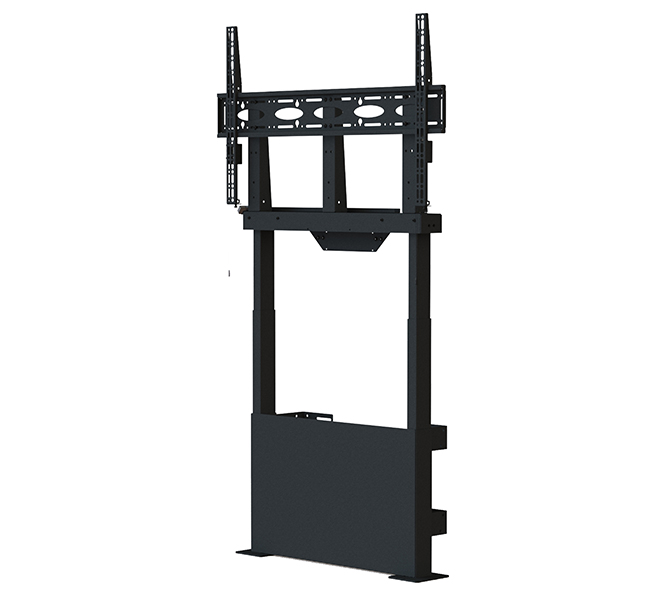

BT8569 Motorised Height Adjustable Flat Screen Floor To Wall Mount


  • Easy to use motorised height adjustment columns, moves up or down to ensure perfect
    positioning of screen
  • Universal design suitable for screens up to 86"
  • Ideal for use with large touch screens and interactive displays
  • Supplied with a wired control console
  • Features auto-stop; screen stops moving if any resistance is felt
  • Interface arms include levelling screws to adjust the height of the screen
  • Safety screws help prevent unauthorised removal of screen
  • TUV, CE and UKCA certified
  • Simple ‘hook-on’ screen installation
  • All mounting hardware included
  • Recommended screen size: 55" (140cm) up to 86" (218cm)
  • Max load: 100kg (220lbs)
  • Dimensions: H: 1220mm (48") - 1870mm (73.6") W: 1070mm (42.1")
    D: 256mm (10")- 272mm (10.7")
  • VESA® & non-VESA fixings: up to 1000 x 600
  • Height adjustment range: up to 650mm (25.6")
  • Height adjustment speed: 32mm per second

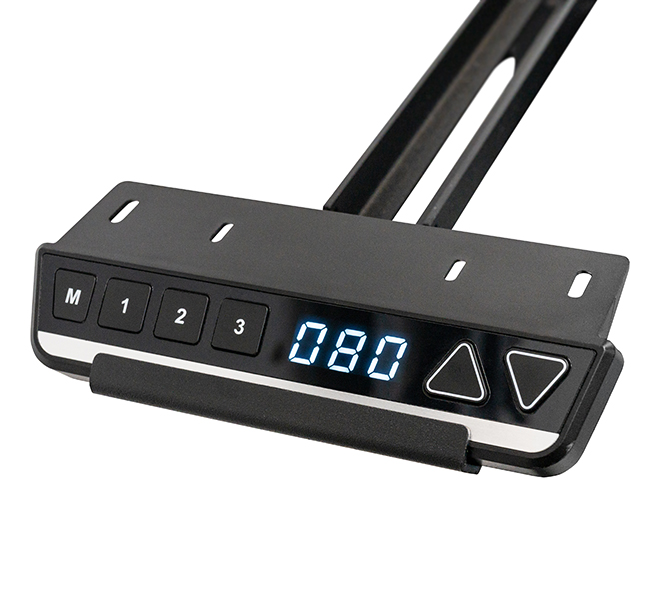

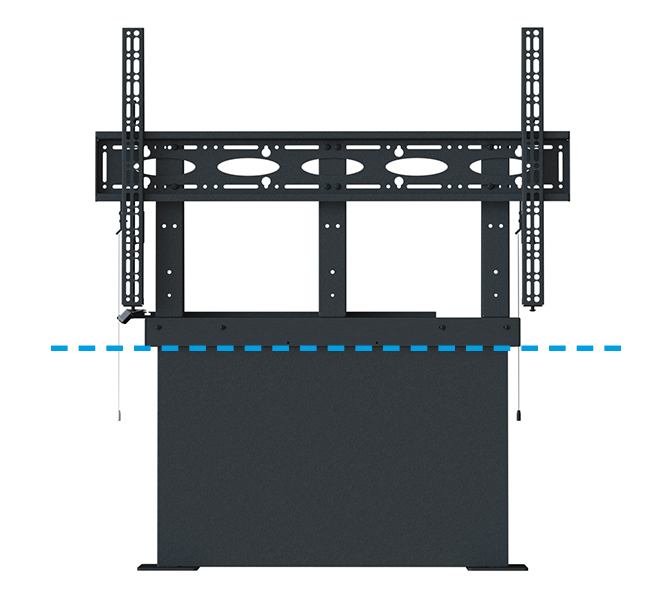

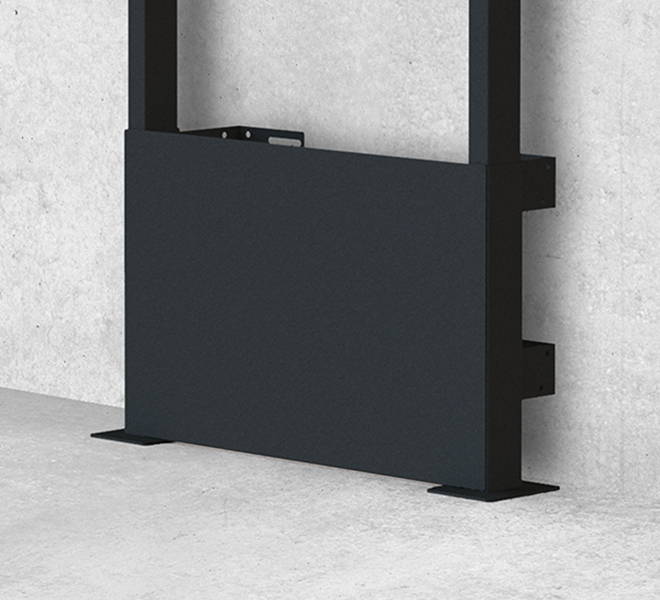

BT8569 Motorised Height Adjustable Flat Screen Floor To Wall Mount BT8569 - Supplied with a wired remote control BT8569 - Bolts securely to the floor and wall for a permanent solution BT8569 - Features an Auto-Stop safety function

Product Overview Video




Tiếng Việt




Specification Sheet

Specification Sheet (PDF)

Spezifikationsblatt - Deutsch (PDF)


Installation Guide

Installation Guide (PDF)


Technical Drawing

Technical Drawing (PDF)

Technical Drawings (DXF)
