Universal XL Flat Screen Trolley

BT8564

Universal XL Flat Screen Trolley




As part of B-Tech’s Designer Trolley range, the BT8564 is a high-end mounting solution which adds a touch of aesthetic class to any mobile display requirement. Featuring a triangular shaped column, the BT8564 has a modern, contemporary look and is universally suitable for mounting screens in both landscape and portrait orientations. Levelling screws allow post-installation screen levelling and integrated cable management keeps finished installations looking neat and tidy. Non-marking, braked castors make repositioning quick and easy without marking or scuffing floor surfaces and AV components such as shelves can be fitted directly to the column to accessorise the install.

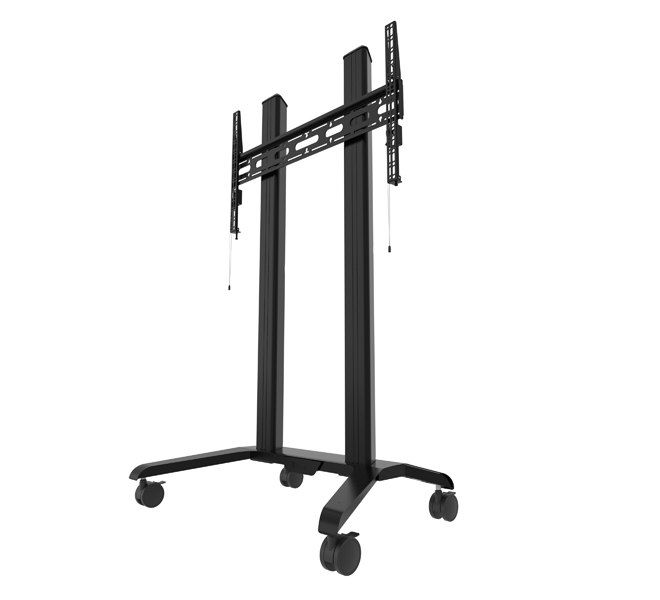

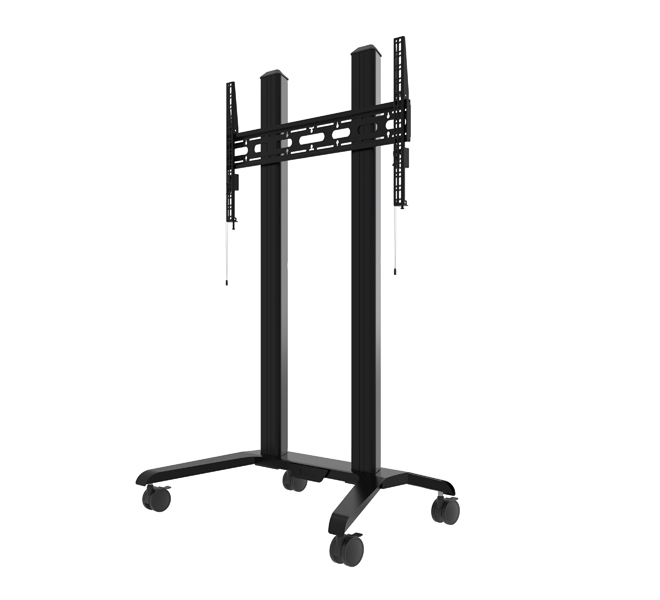

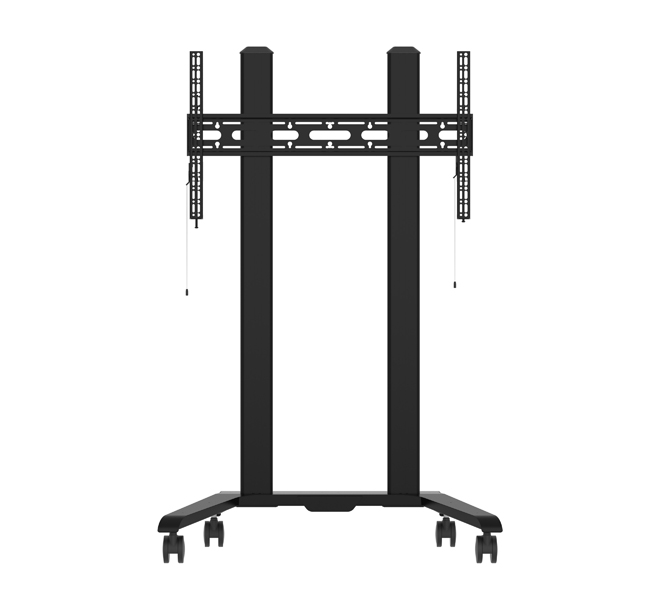

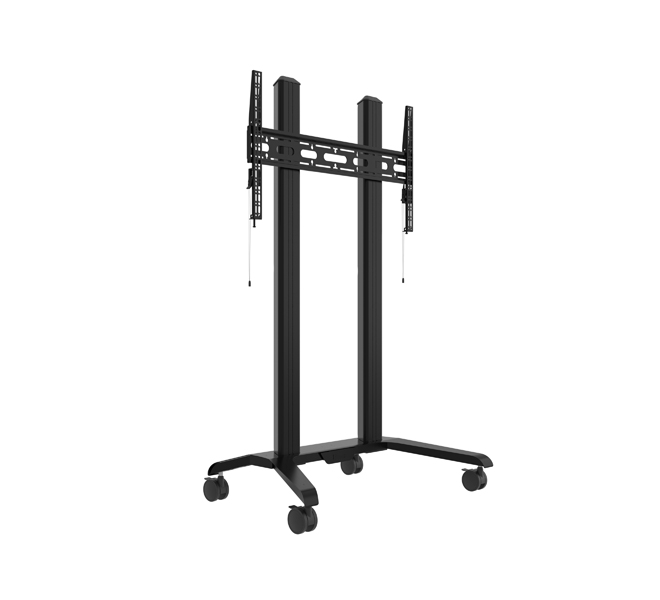

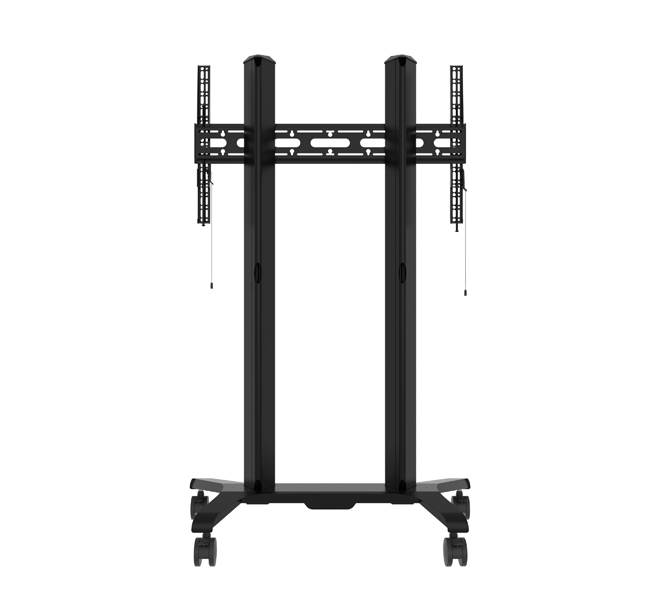

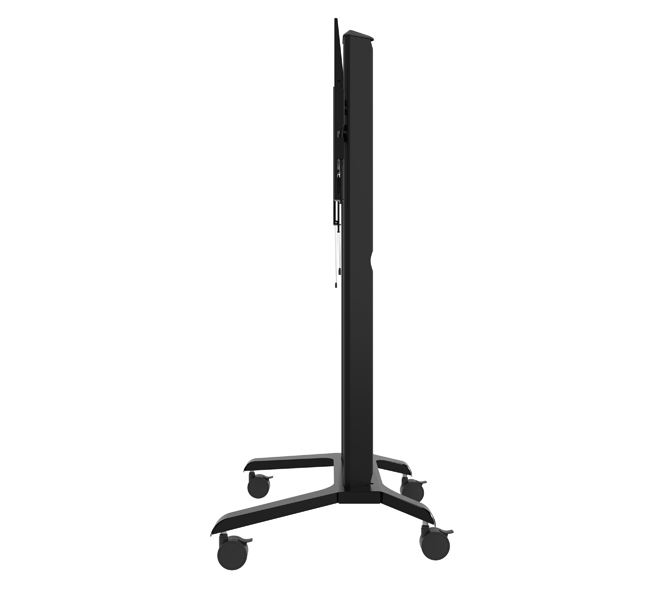

  BT8564 - Universal flat screen designer trolley
  • Universal design suitable for displaying XL screens over 65" (165cm)
  • Non-marking locking / braked castors included
  • Collar compatible accessories such as shelves (available separately)
    can be fitted directly to the columns
  • Interface arms include levelling screws to adjust the height of the screen
  • Collar compatible accessories such as shelves (available separately)
    can be fitted directly to the column
  • Integrated cable management for a smart installation

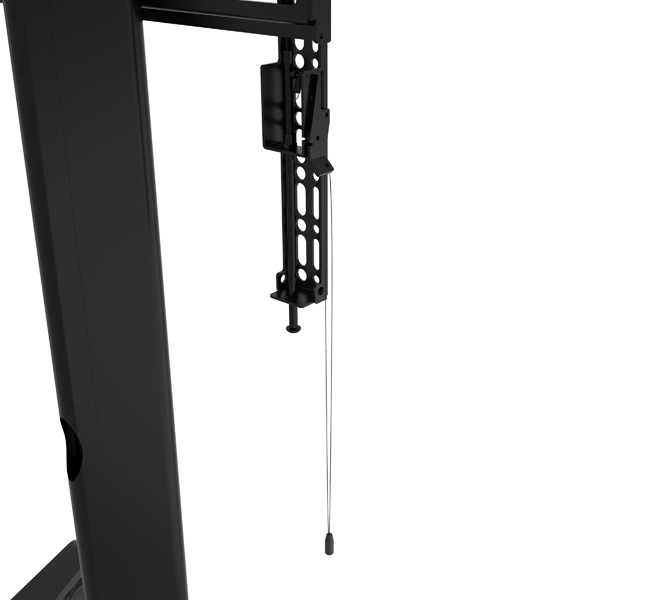

  • Safety screws help prevent unauthorised removal of screen
  • Simple ‘hook-on’ screen installation with all mounting hardware included

BT8564 V1 SPECIFICATIONS

  • Recomended screen size: 65" (165cm) - 120" (305cm)
  • Max load: 130kg (287lbs)
  • VESA® & non-VESA fixings: up to 1000mm x 600mm
  • Trolley dimensions: H:1932 (76")* W:1697 (66.8") D:991mm (39")
  • Colour options: Black, Black/Silver or White

    *Measurement from floor to top of vertical column (including end cap)



BT8564 V2 SPECIFICATIONS

  • Recomended screen size: 65" (165cm) - 120" (305cm)
  • Max load: 130kg (287lbs)
  • VESA® & non-VESA fixings: up to 1000mm x 600mm
  • Trolley dimensions: H:1906 (75")* W:1241 (48.8") D:767mm (30.2")
  • Colour options: Black
*Measurement from floor to top of vertical column (including end cap)



BT8564 - Designer trolley - Black BT8564 - Designer trolley BT8564 - Designer trolley - White BT8564 - Designer trolley

BT8564 Specification Sheets

BT8564 Specification Sheet - English (PDF)

Specification Sheet - US (PDF)



BT8564 Installation Guide

BT8564 Installation Guide (PDF)



BT8564 Technical Drawings

BT8564 Technical Drawing (PDF)



Greensheet

Greensheet (PDF)
