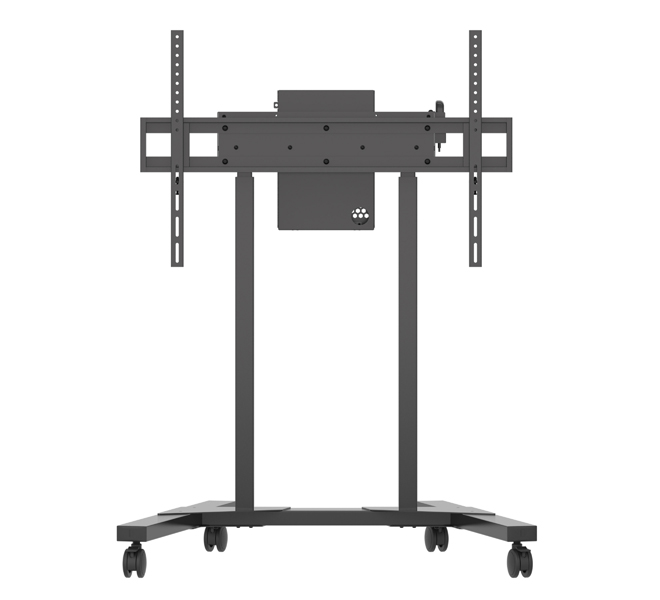

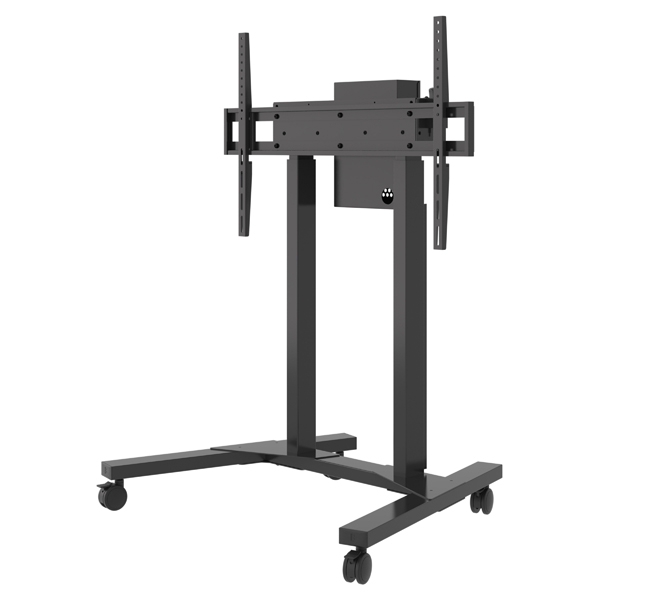

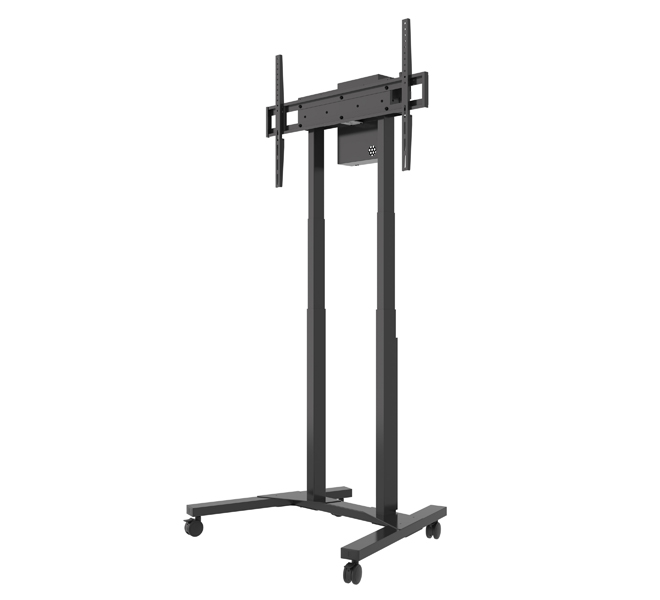

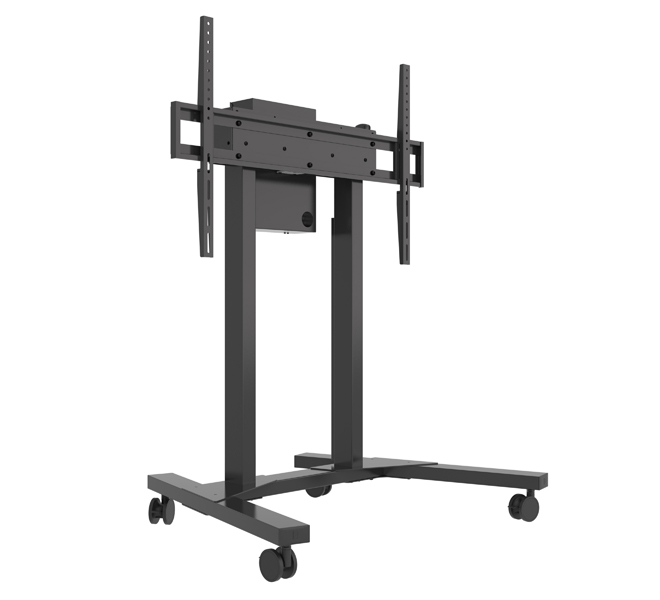

Momentum E-Lift Motorised Height Adjustable Flat Screen Trolley

BT8558

For screens up to 100"

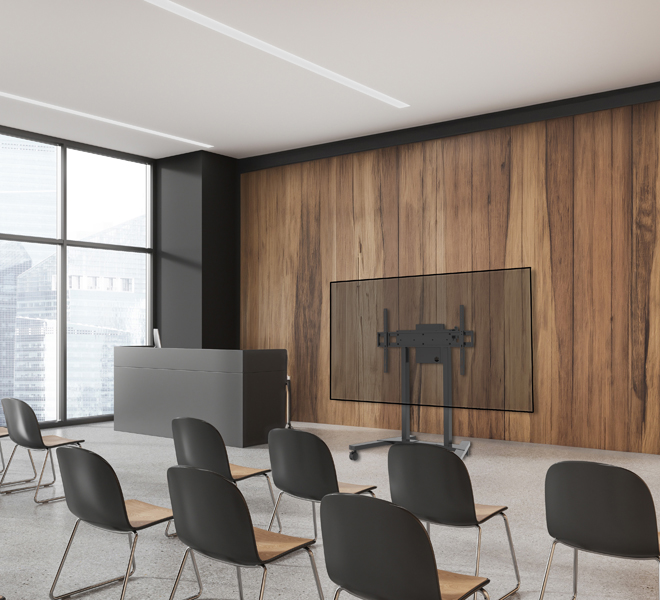

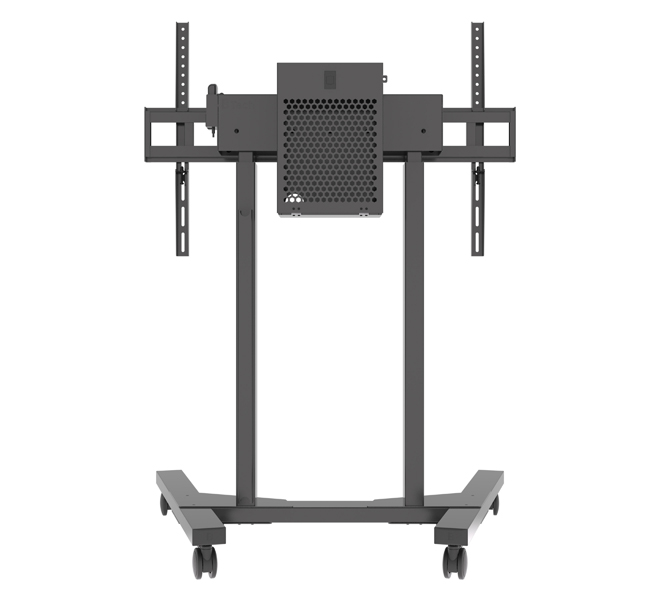

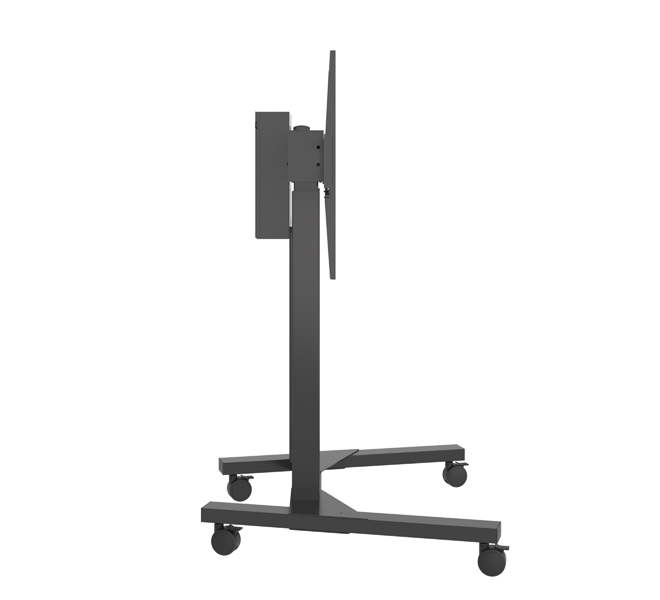

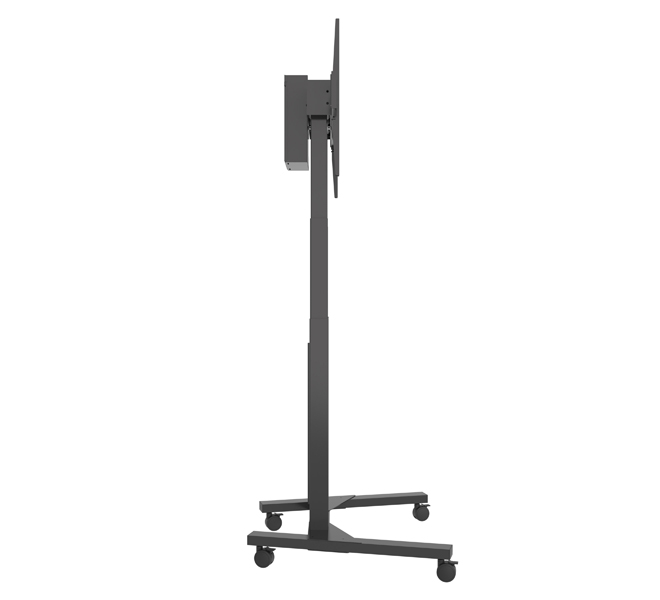

Part of B-Tech’s Momentum Range of mobile display solutions, the BT8558 Momentum E-Lift is a motorised, height-adjustable trolley designed for displays up to 100" in size. Its electronic height adjustment system allows for effortless raising and lowering of the screen via a wired control panel, with an adjustment range of up to 650mm that makes the display accessible to a variety of users. Capable of mounting interactive touchscreens of up to 100kg and featuring a sleek and modern design aesthetic, quick assembly and ease of use, the BT8558’s performance in educational and corporate settings is unmatched. An integrated storage unit at the rear provides convenient space for cable management and AV equipment, making the complete AV set up both neat and practical.







BT8558



  • Motorised height-adjustment for precise screen positioning
  • Supplied with a wired control console for easy height adjustment

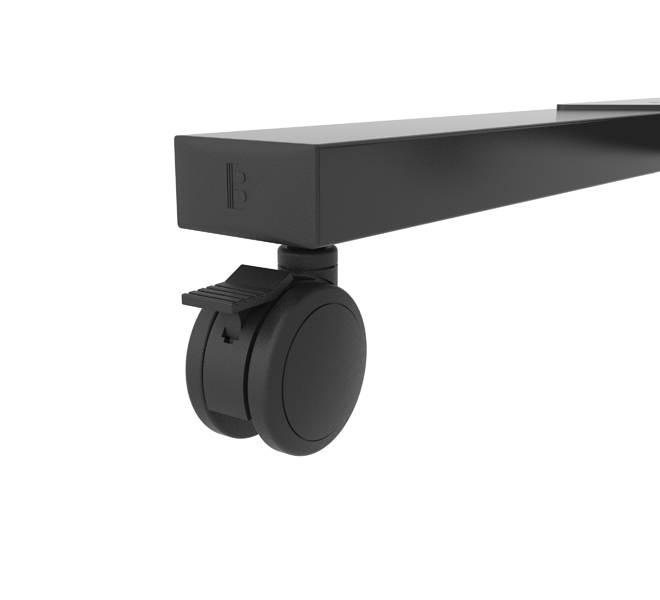

  • Non-marking locking / braked castors included

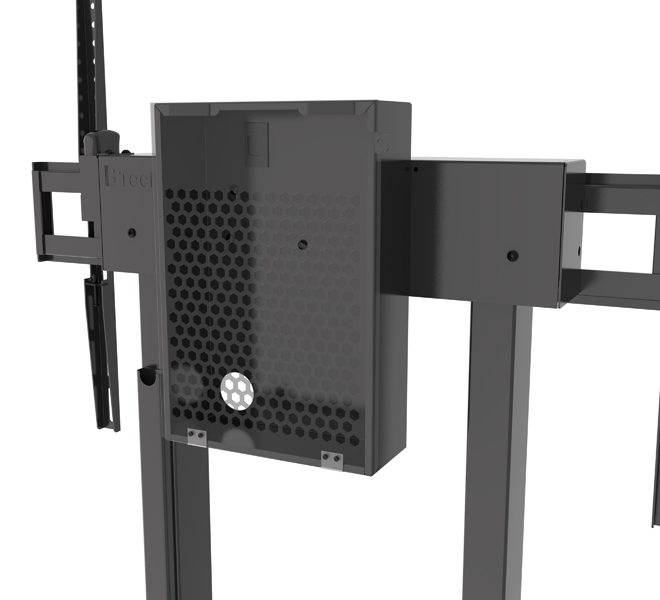

  • Storage compartment on the rear stores cables and AV equipment
  • Ideal for use with large touch screens and interactive displays
  • Safety screws help prevent unauthorised removal of the screen
  • Auto-stop; prevents screen from moving when resistance is felt
  • Levelling screws for simple post-install alignment
  • Simple hook-on screen installation
  • All mounting hardware included

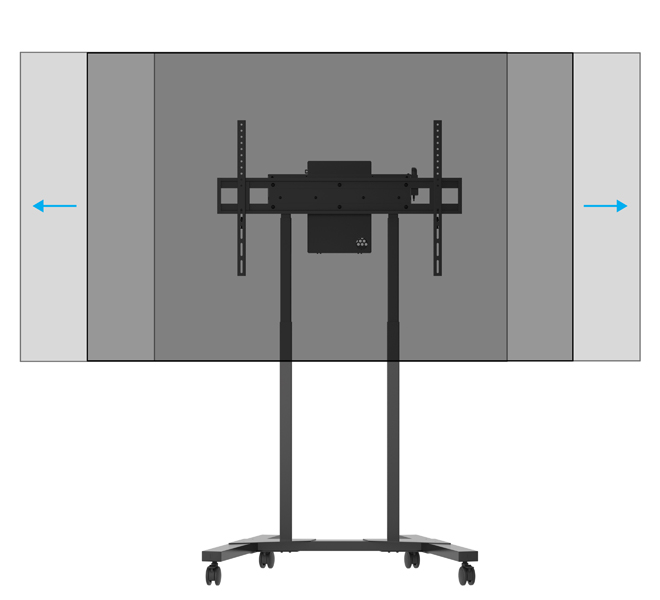

  • Recommended screen size: 55" (140cm) up to 100" (254cm)
  • Max load: 100kg (220lbs)
  • VESA® & non-VESA fixings: up to 900 x 600
  • Dimensions (Cart): H: 1415mm (55.7") - 2060mm (81.1") W: 1086mm (42.7") D: 833mm (32.7")
  • Dimensions (Inner Storage Box): H: 377mm (14.8") W: 257mm (10.1") D: 95.2mm (3.7")

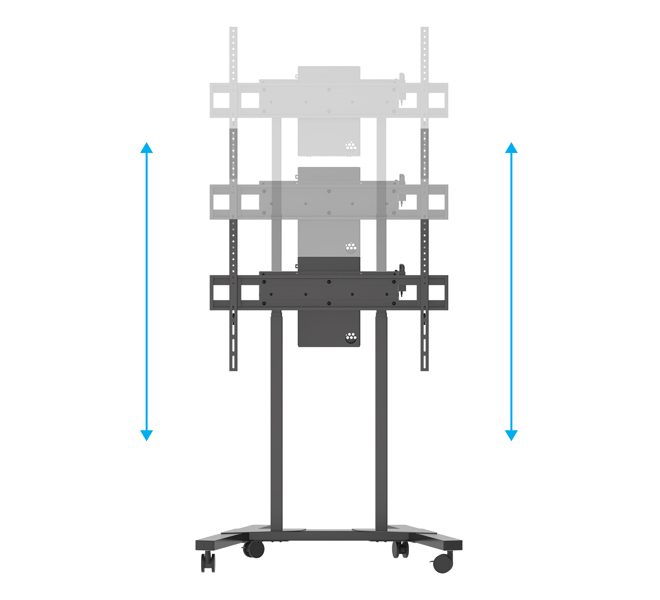

  • Height adjustment range: up to 650mm (25.6")
  • Height adjustment speed: 35mm (1.37") per second

Product Overview Video


Specification Sheet

Specification Sheet - English (PDF)

Specification Sheet - US (PDF)



Installation Guide

Installation Guide (PDF)

Installation Guide - US (PDF)



Technical Drawing

Technical Drawing (PDF)
