Flat Screen Trolley With Flip Rotation

BT8566

Flat Screen Trolley With Flip Rotation

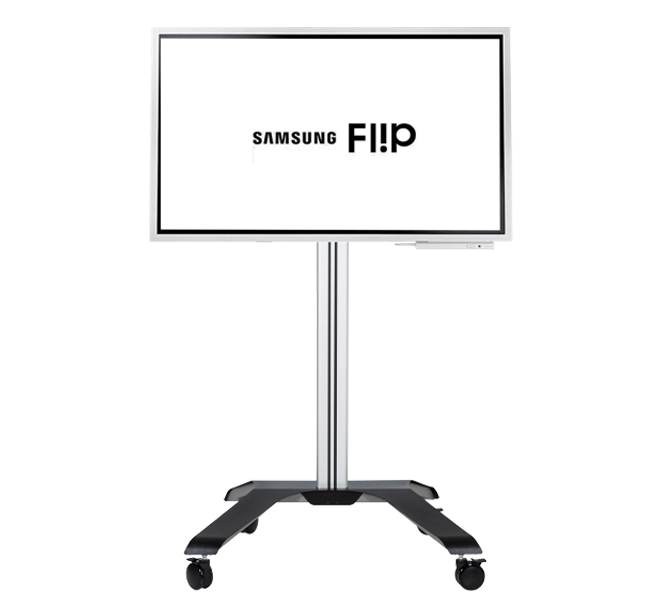

As part of B-Tech’s Designer Trolley range, the BT8566 is a high-end mounting solution ideal for the use of touchscreen displays such as the Samsung Flip®*. The mount’s rotational interface allows the user to easily rotate the display 90° for a smooth transition from landscape to portrait. Available in a choice of black, silver and white, with contrasting dual colour accents and a triangular shaped column. Cable management keeps finished installations looking neat and tidy. Non-marking, braked castors make repositioning quick and easy without marking or scuffing floor surfaces and AV components such as shelves can be fitted directly to the column to accessorise the install.

*For Samsung Flip 2 use with BT7550-SF2 adaptor arms





  BT8566 - Flat screen trolley with flip rotation

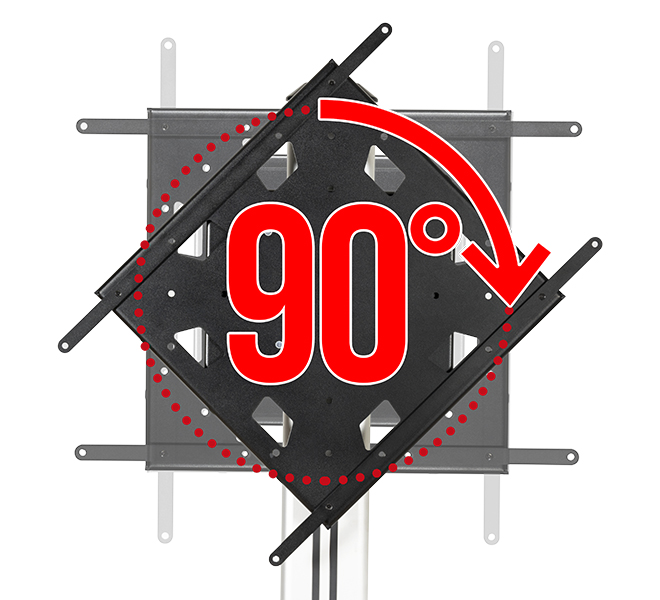

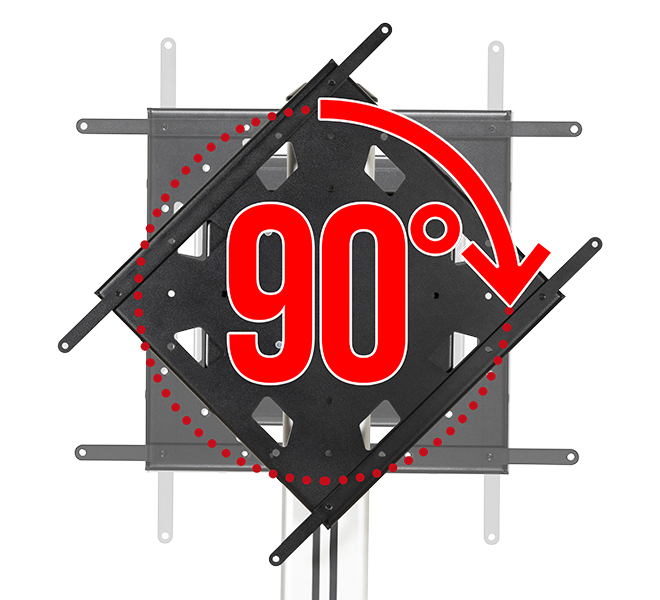

  • Rotational interface allows screens to be rotated from landscape
    to portrait (and vice versa) in one smooth transition
  • Rotation can be stopped or fixed at any angle between 0° and 90°
  • -4.5° negative tilt provides an ergonomic, natural writing surface
    (ideal for Samsung Flip)
  • Use with BT7550-SF2 adaptors for mounting Samsung Flip 2 screens
  • Non-marking locking / braked castors
  • Collar compatible accessories such as shelves (available separately)
    can be fitted directly to the column
  • Integrated cable management for a smart installation
  • Safety screws help prevent unauthorised removal of screen
  • Dual colour options available for a modern, contemporary look
  • Simple ‘hook-on’ screen installation with all mounting hardware included
  • Recomended screen size: 37" (94cm) - 75" (190cm)
  • Max load: 70kg (154.3lbs)
  • VESA® fixings: up to 600mm x 400mm
  • Trolley dimensions: H: 1932mm (76")* W: 1075mm (42.3") D: 863mm (34")
  • Rotation adjustment range: 90°
  • Tilt: -4.5°
  • Colour options: Black, Black & Silver or White

    *Measurement from floor to top of vertical column (including end cap)

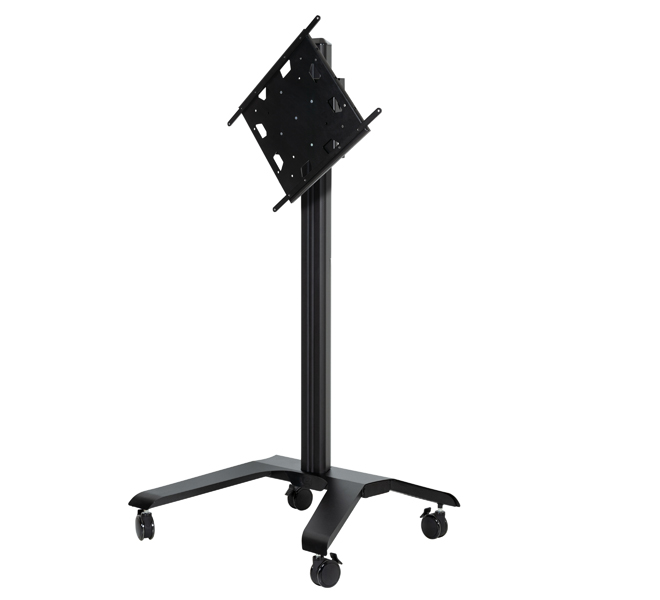

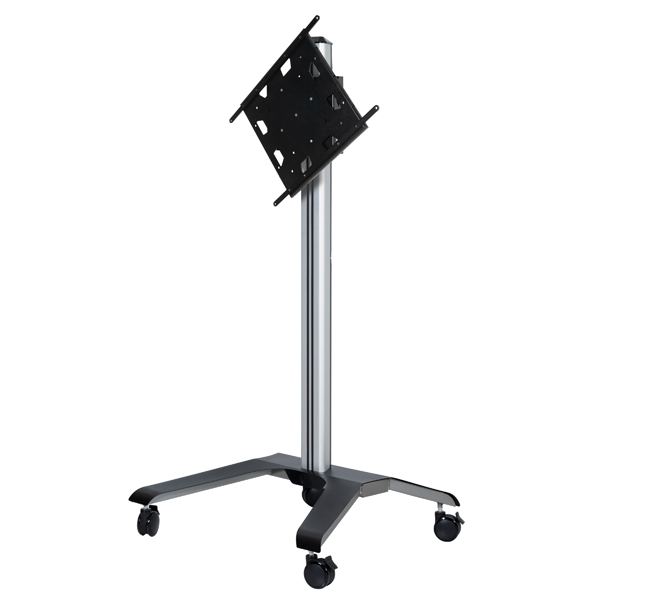

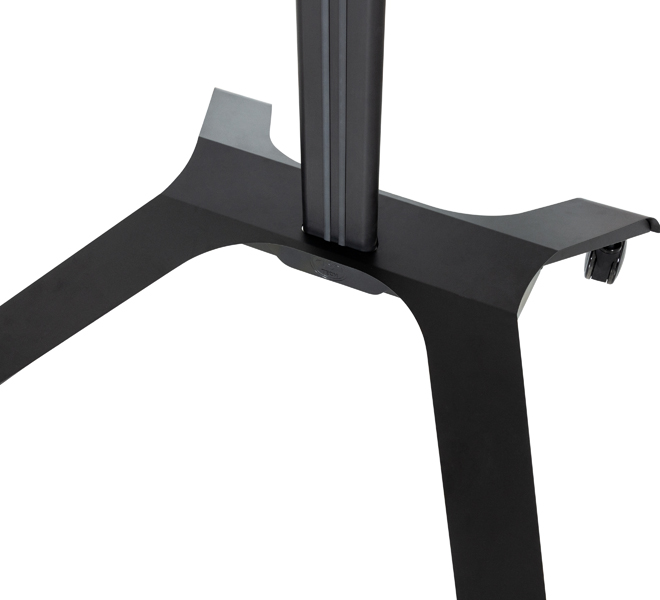

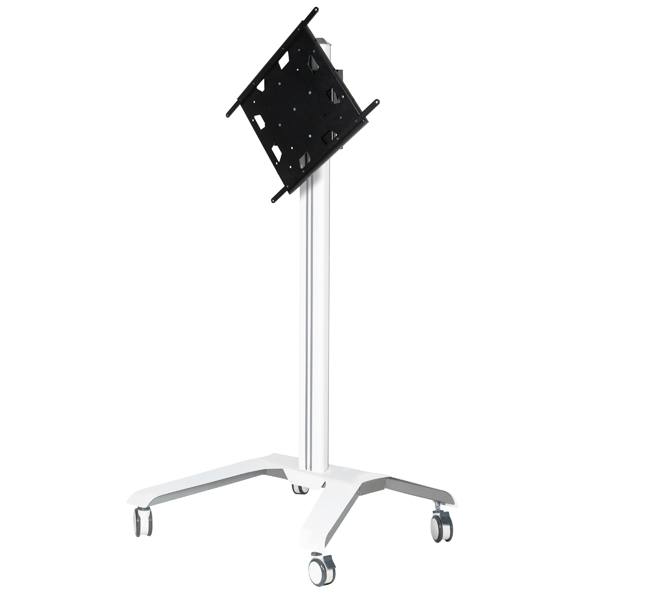

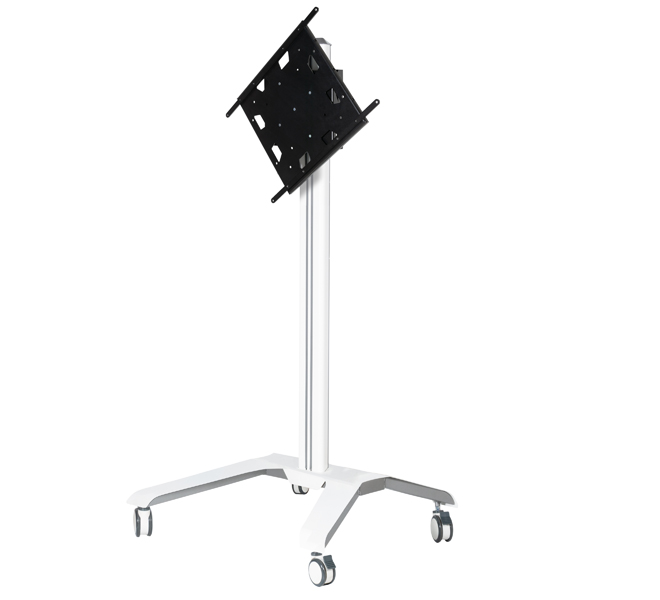

BT85656 - Designer trolley with flip rotation - Black BT8566 - Designer trolley with flip rotation - Black / Silver BT8566 - Designer trolley with flip rotation - White BT8562 - Designer trolley - Base

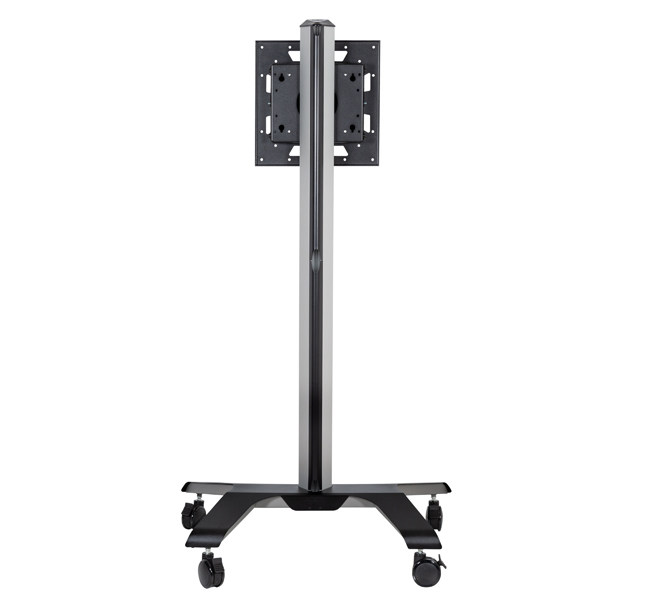

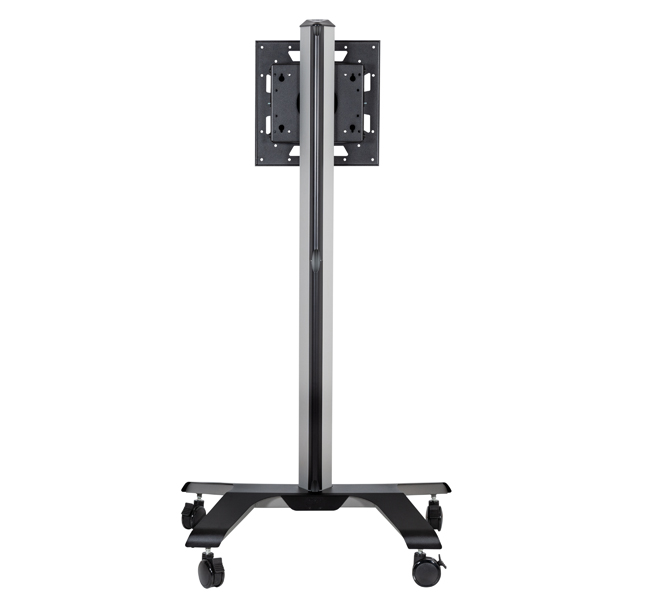

BT8562 - Integrated cable management BT8566 - Designer trolley with flip rotation - Front BT8566 - Designer trolley with flip rotation - Rear BT8566 - Designer trolley lifestyle

Designer Trolley Range

Specification Sheets

Specification Sheet - English (PDF)

Fiche de Spécifications - Français (PDF)

Specificatieblad - Nederlands (PDF)

Hoja de Especificación - Español (PDF)

Spezifikationsblatt - Deutsch (PDF)

Trang thông số kỹ thuật - Tiếng Việt (PDF)



Installation Guide

Installation Guide (PDF)



Technical Drawings

Technical Drawing (PDF)
