AV Accessory Shelf - 300 x 300mm

BT7033

 Ideal for Pole Mounting




The BT7033 is a stylish black accessory shelf that can be mounted directly to a wall or across a wide range of B-Tech products such as System X rails and columns, shelf adaptors, and also accessory collars to allow for pole mounting. The shelf can be mounted across one or two poles and includes fixing points for VC cameras using 100 x 100mm fixings.





  BT7033 - Large AV Accessory Shelf
  • Can be mounted directly to; walls and System X rails/columns, or to B-Tech accessory collars for pole mounting
  • Compatible with BT7052 / BT7841 collars for use with ø50mm or ø60mm poles (all sold separately)
  • Can be mounted on a single or double pole (use 1 collar for single poles, 2 collars for double poles)
  • Can also be used with BT8390-SA to mount above or below a screen that is mounted on a System X rail
  • Suitable for mounting a VC camera - Fits most cameras with 1/4" thread. Also features 100 x 100mm fixing points
  • Shelf dimensions: 300mm (11.8") x 300mm (11.8")
  • Max weight: 15kg (33lbs) when used with single attachment
  • Max weight: 25kg (55lbs) when used with double attachment
  • Colour: Black

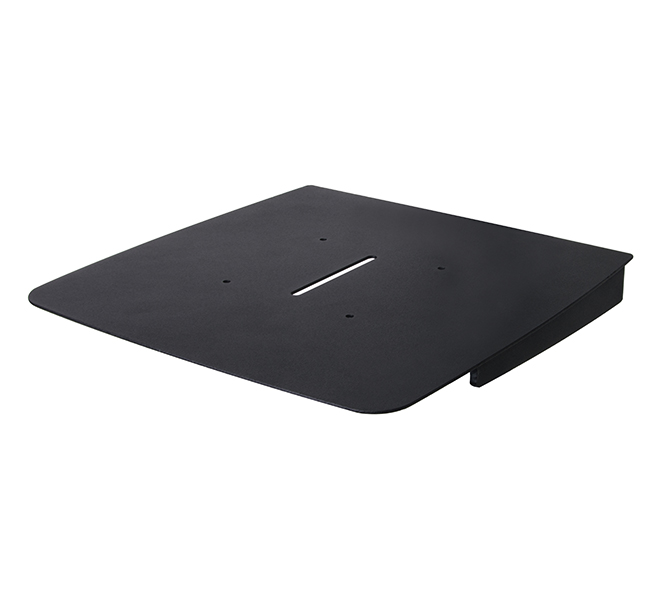

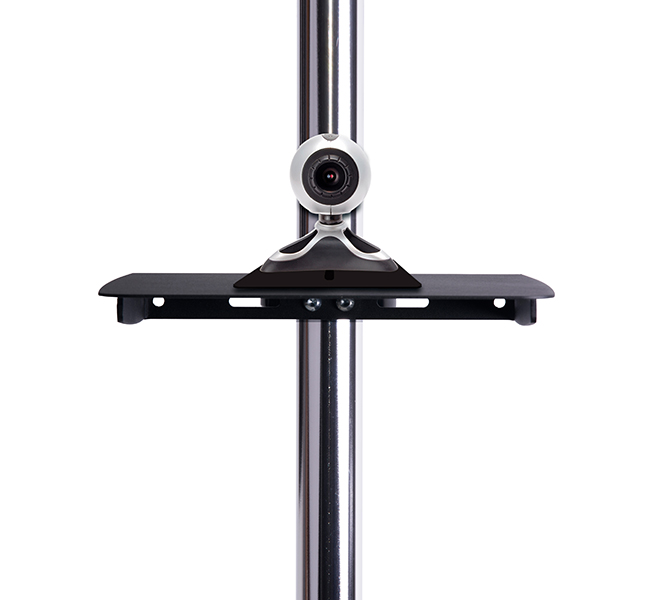

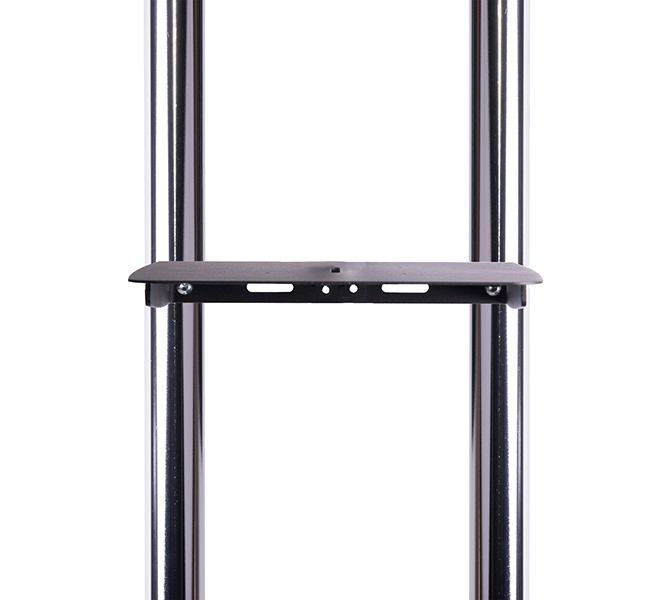

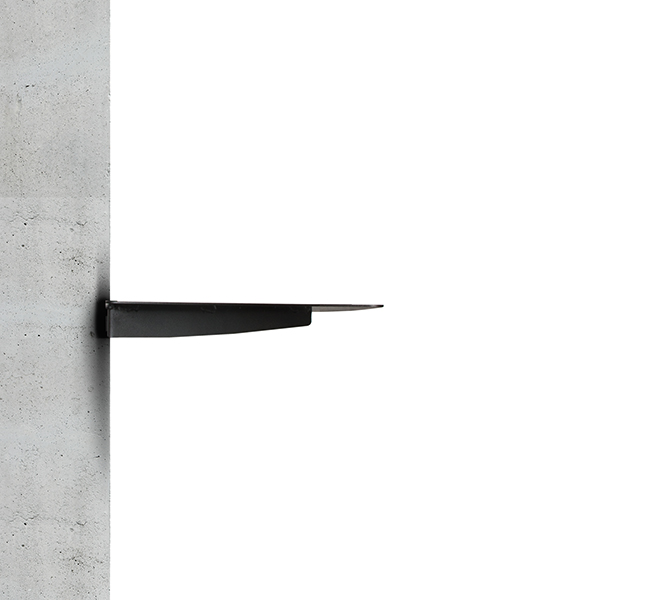

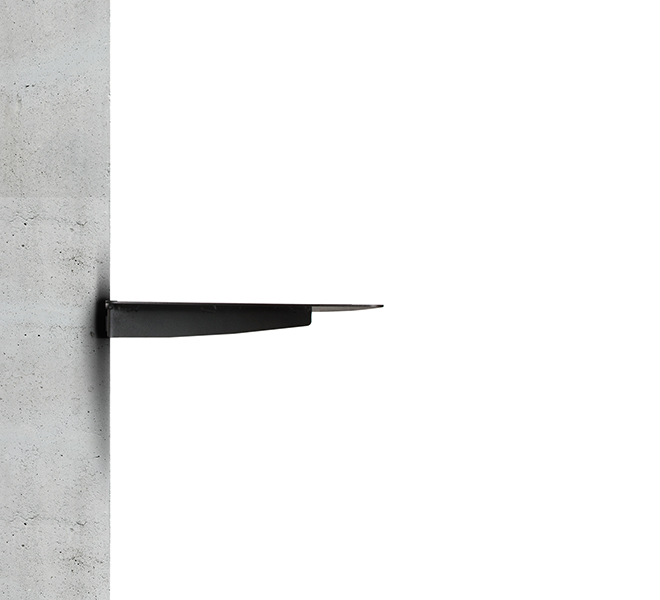

BT7033 - Large AV Accessory Shelf Shelf can be mounted onto a single pole using 1 collar Shelf can also be mounted across 2 poles using 2 collars Can also be wall mounted (Wall fixings not included)

Specification Sheet

Specification Sheet (PDF)



Installation Guide

Installation Guide (PDF)



Technical Drawing

Technical Drawing (PDF)

Technical Drawing (DXF)
