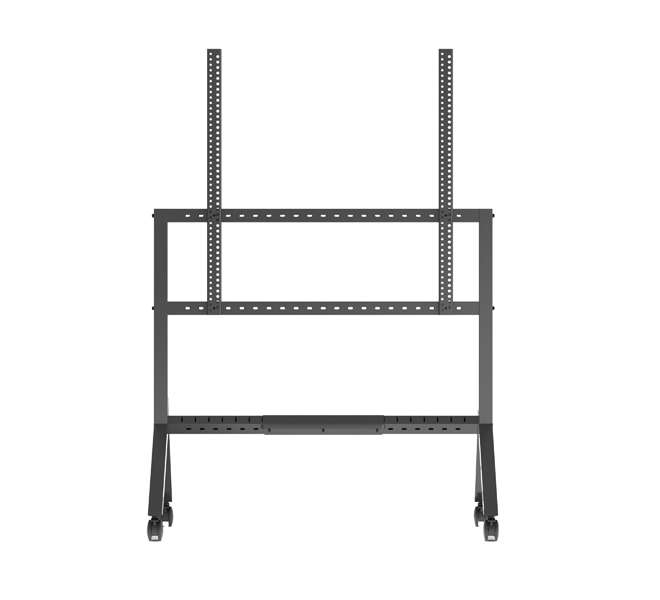

Momentum Edge XL Interactive Touch Screen Trolley

BT8546

For screens up to 110"

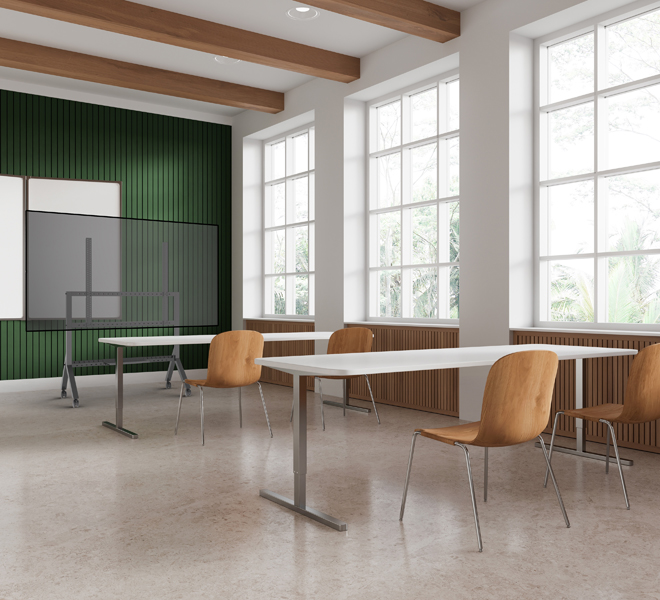

Part of B-Tech’s Momentum Range of mobile display solutions, the BT8546 Momentum Edge XL is a modern, robust and simple to use flat screen trolley that is designed to mount displays and interactive touchscreens from 65” to 110”. Braked castors with smooth and safe mobility and a rigid design allows users to effortlessly move displays of up to 125kg around the room when needed, whilst ensuring touchscreen users encounter no unintended movement when pressing against the screen. The BT8546 performs exceptionally when mounting XL displays, ensuring both installer and end user have an unparalleled mobile mounting experience for some of the largest displays on the market.









BT8546



  • Rigid steel contruction eliminates unwanted movement when pressing
    against XL touchscreens

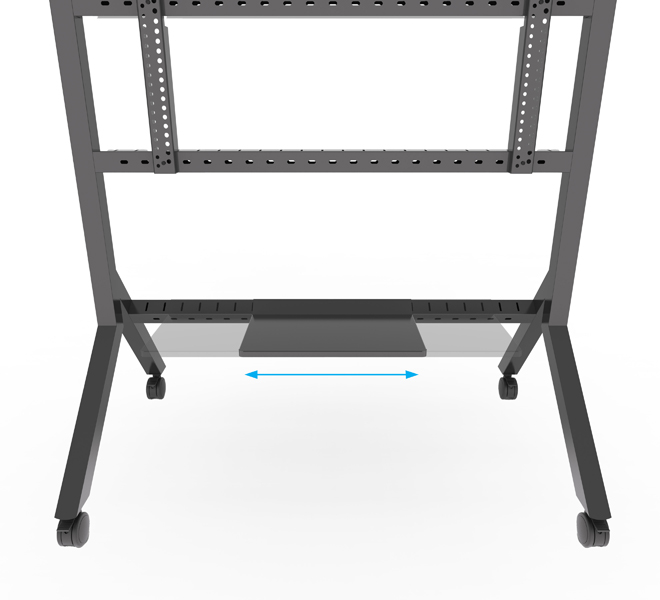

  • Includes accessory shelf that fits anywhere along the mounting bar
  • Non-marking locking / braked casters included
  • Integrated cable management
  • Safety screws help to prevent unauthorized removal of the screen
  • Hook-on install
  • All mounting hardware included
  • Recommended screen size: 65" (165cm) up to 110" (279cm)
  • VESA fixings: up to 1000 x 800
  • Max load (Screen): 125kg (276lbs)
  • Max load (Shelf): 5kg (11lbs)
  • Trolley Dimensions: W: 1778mm (70") H: 1245mm (49")  D: 772mm (30")
  • Shelf Dimensions: W: 450mm (17.71") D: 260mm (10.23")

Specification Sheet

Specification Sheet - English (PDF)

Specification Sheet - US (PDF)



Technical Drawing

Technical Drawing (PDF)

Technical Drawing (DXF)



Installation Guide

Installation Guide (PDF)
