XL Twin Screen VC Trolley

BT8517

For twin screens up to 75"

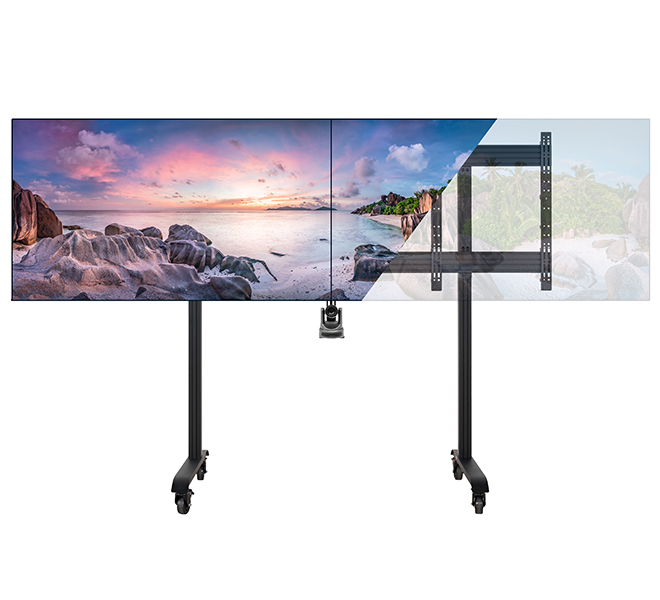

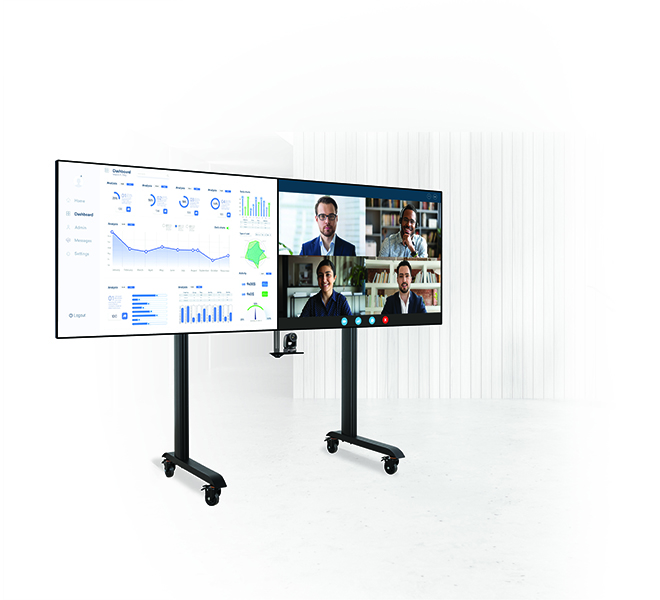

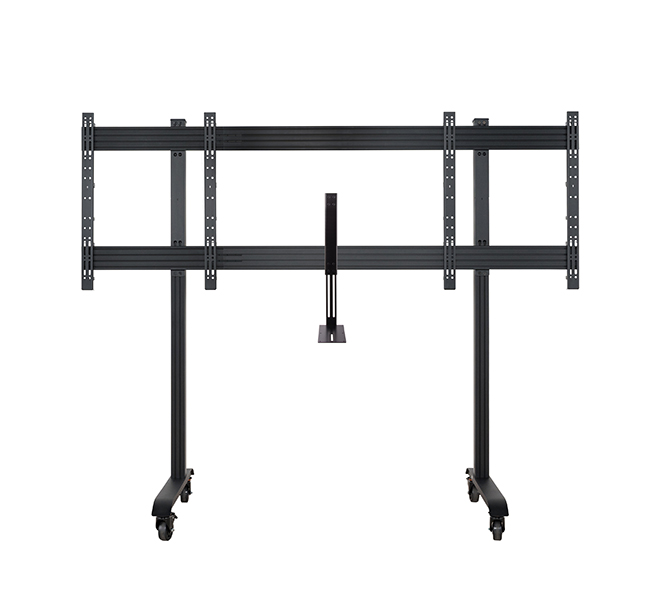

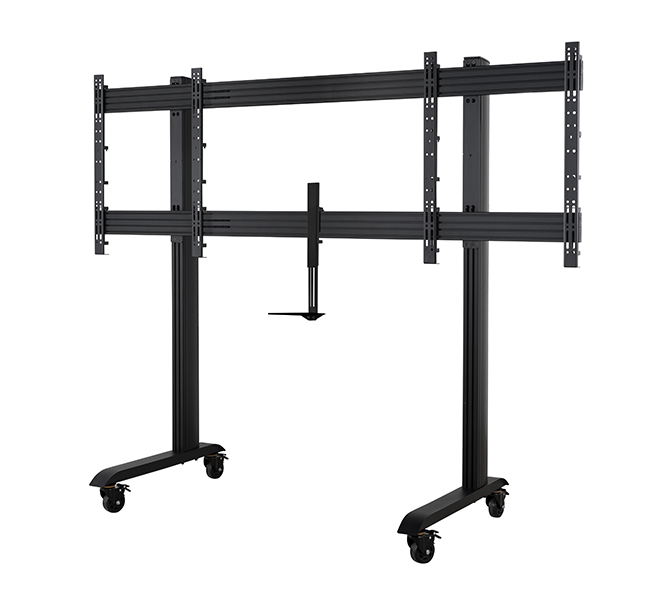

The BT8517 is a premium mobile mounting solution designed to mount two screens side-by-side for video conferencing applications. Non-marking braked castors allow the trolley to be relocated easily and safely without marking floor surfaces whilst the integrated cable management hides any connection cables for a smart installation. Interface arms feature levelling screws to help adjust and align the height of the screens and a VC shelf with adjustable mounting arm allows a camera to be fitted above or below the screens.






  • Universal design suitable for mounting two screens side by side
  • Interface arms include levelling screws to adjust the screen height
  • Includes VC shelf which can be fixed above or below the screen
  • Integrated cable management for a smart installation
  • Safety screws help prevent unauthorised screen removal
  • Simple 'hook-on' screen installation

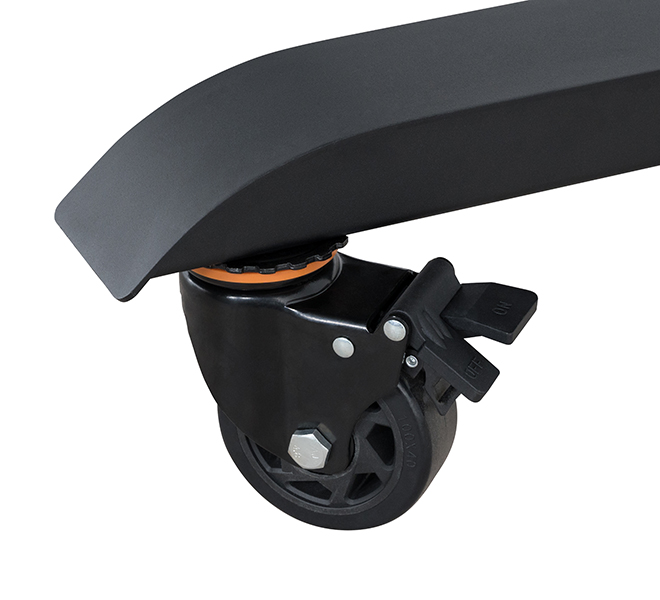

  • Lockable non-marking 4" castors
  • Alternative levelling feet also included
  • Recommended screen size: 75" (190cm)
  • Max load: 100kg (220lbs) per screen
  • VESA® and non-VESA fixings: up to 600 x 800mm
  • Dimensions (Trolley): W:2450mm (96.50") H:2000mm (78.75") D:950mm (37.40")
  • Dimensions (VC Shelf): W:120mm (4.72") H:3mm (0.11") D:235mm (9.25")
  • Colour: Black

Specification Sheets

Specification Sheet - English (PDF)

Technisches Datenblatt - Deutsch (PDF)



Installation Guide

Installation Guide (PDF)

Montage Anleitung - Deutsch (PDF)



Technical Drawings

Technical Drawing (PDF)
