Twin Screen VC Wall Mount

BT8416

Includes VC Shelf

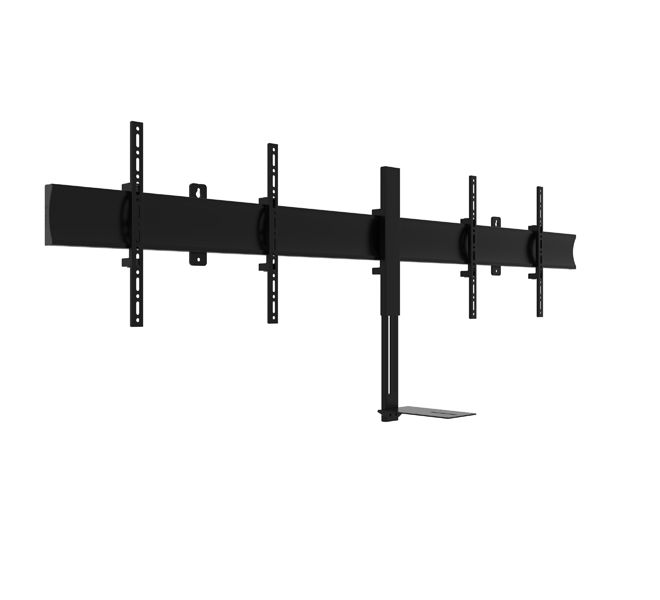

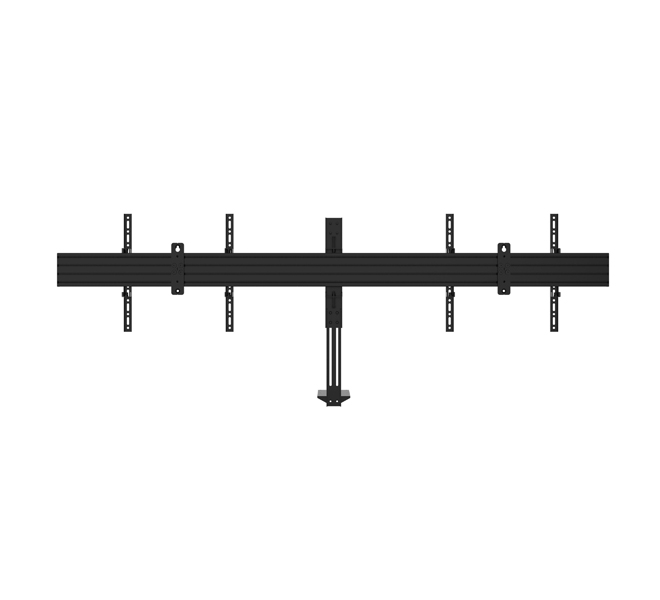

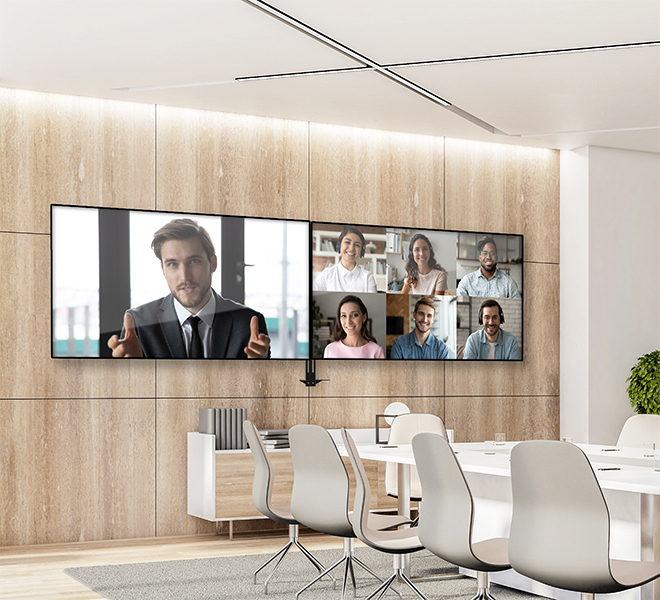

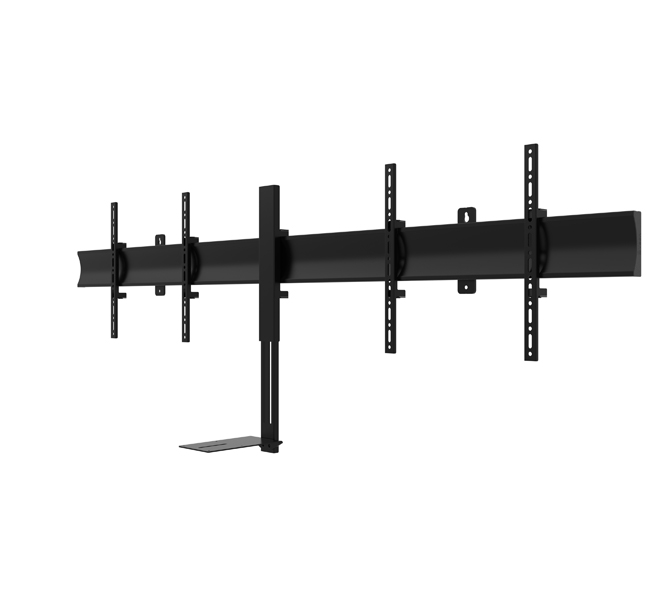

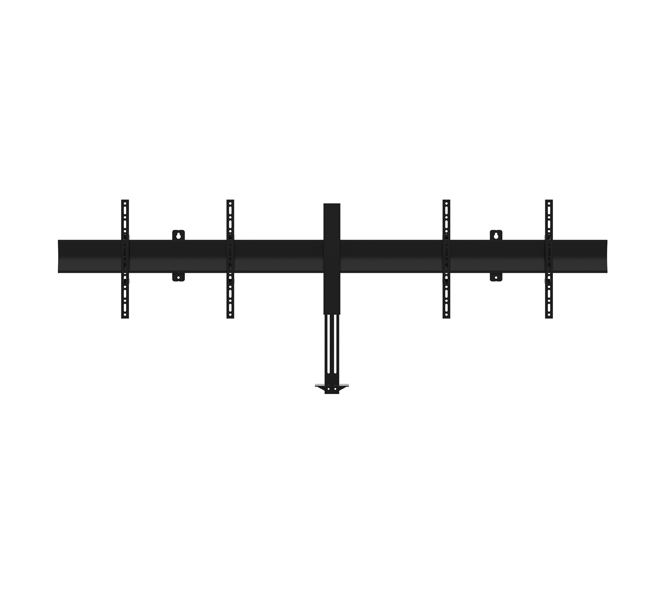

BT8416 is a premium wall mounting solution designed to mount two screens side by side for video conferencing applications. The mount features an adjustable VC shelf that gives the user the flexibility of mounting a VC camera above or below the screens. Additional features include adjustable levelling screws for easy height adjustment of the screen once mounted, cable management clips and safety screws that help to prevent un-authorised removal of the screen.






  • Universal design suitable for mounting two screens side by side
  • High-end aesthetic quality

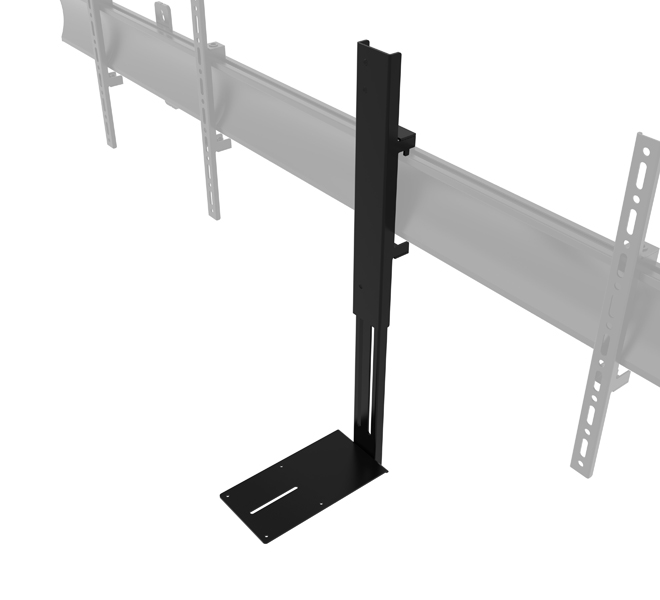

  • Includes VC shelf which can be fixed above or below the screen
  • VC shelf fits most cameras with 1/4" thread with 100 x 100mm fixing points

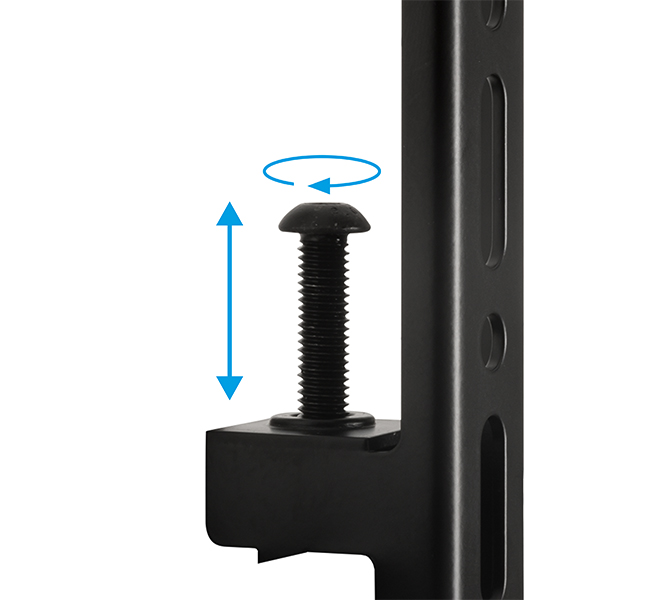

  • Interface arms include levelling screws to adjust the screen height
  • Cable management clips are included to hide cables
  • Safety screws help prevent unauthorised screen removal
  • Simple 'hook-on' screen installation with all mounting
    hardware included
  • Recommended screen size: 46" (116.8cm) - 65" (165cm)
  • Max load: 70kg (154.3lbs) per screen
  • VESA® and non-VESA fixings: up to 600mm x 400mm
  • Dimensions: W:2004mm (78.9") H: Min:445mm (17.5") Max:842mm (33.1") D:290mm (11.4")
  • Dimensions (VC Shelf): W:120mm (1.7") H:3mm (0.11") D:235mm (9.2")
  • Colour (Mounting Rail) Silver or Black

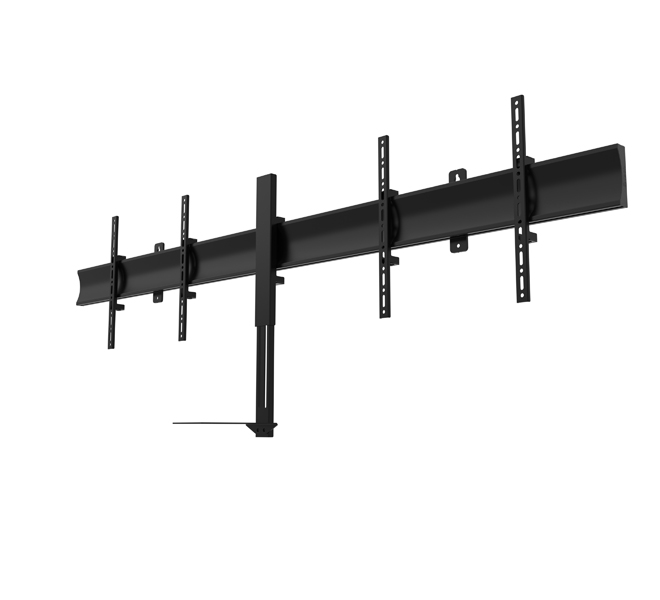

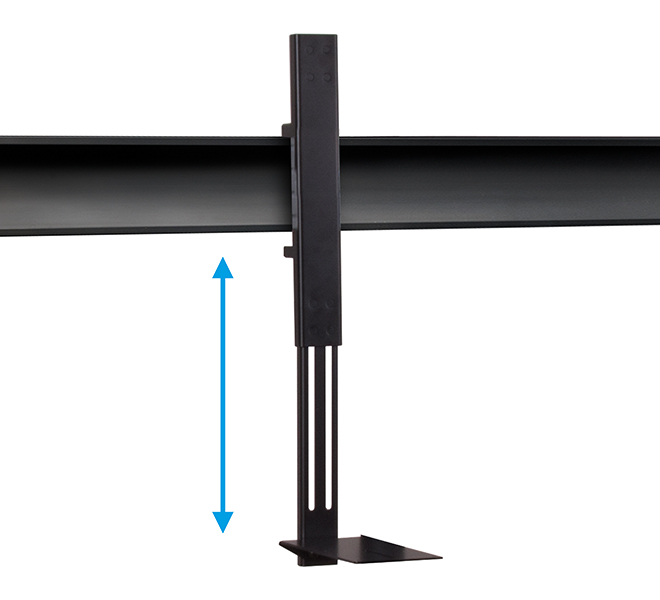

BT8416 - Silver Universal Twin Screen VC Wall Mount BT8416 - Adjustable Height Accessory Shelf

BT8416 - Height Adjustable Mounting Arms

BT8416 - Silver Universal Twin Screen VC Wall Mount

Specification Sheet

Specification Sheet - English (PDF)



Technical Drawing

Technical Drawing - PDF
