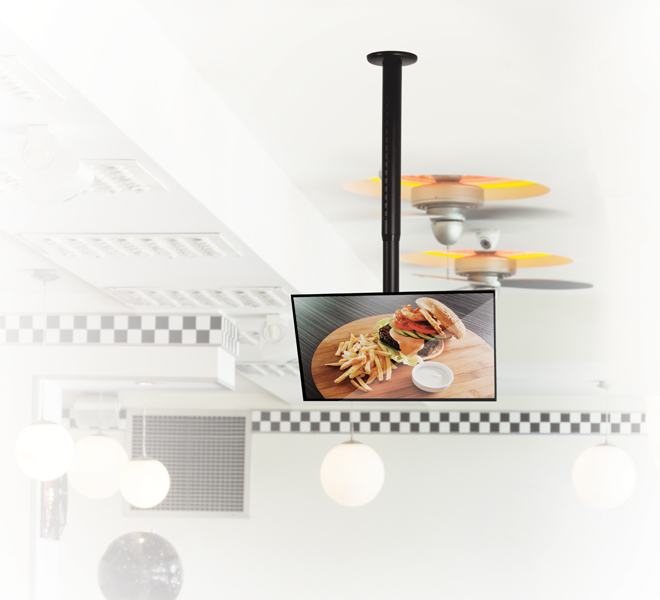

Adjustable Drop Universal Flat Screen Ceiling Mount

BT8423

With Tilt




Designed to ceiling mount screens up to 50kg, the BT8423 features an adjustable drop of 625mm - 950mm in increments of 25mm. The mount uses B-Tech's unique 'Torsion-Tilt' mechanism for easy tilt up to +/-15°. Levelling screws are included on the interface arms to finely adjust the screen height and locking screws help prevent unauthorised removal of the screen. Cover plates are supplied for a neat and tidy installation.




















  • Unique ‘Torsion-tilt’ mechanism for tool-less tilt adjustment
  • Tool-less adjustable ceiling drop in increments of 25mm
  • Suitable for landscape or portrait mounting
  • Arms feature levelling screws to adjust the screen height
  • Lateral adjustment of screen once mounted
  • Security screws help prevent unauthorised removal of screens

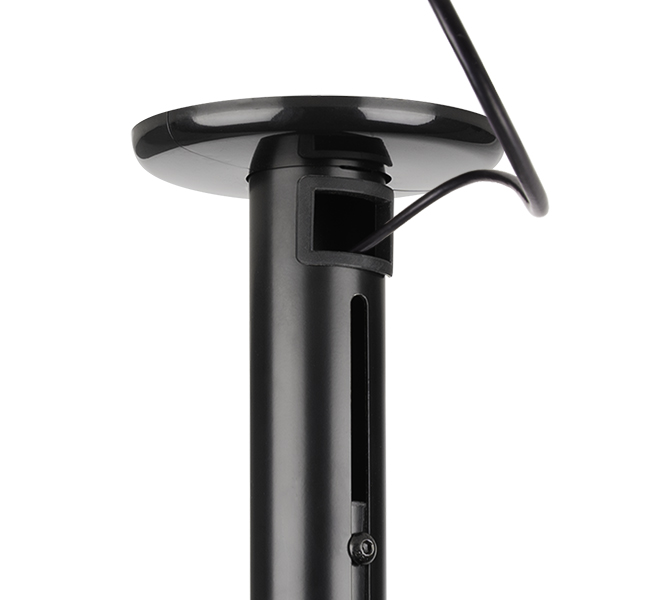

  • Integrated cable management
  • Cover plate included for a smart installation
  • Simple ‘hook-on’ installation with all mounting hardware included
  • Recommended screen size: up to 47" (119cm)
  • Max load: 50kg (110lbs)
  • VESA® & non-VESA fixings: up to 327mm x 200mm
  • VESA® compatibility: up to 200mm x 200mm
  • Tilt: +/-15°
  • Ceiling drop: Min. 625mm (24.6")  - Max. 950mm (37.4")*
  • Colour: Black

    *From the ceiling to the centre of the mount
BT8423 - Adjustable Drop Universal Flat Screen Ceiling Mount Quick and easy 'push button' height adjustment Integrated cable management BT8423 - Adjustable Drop Universal Flat Screen Ceiling Mount
