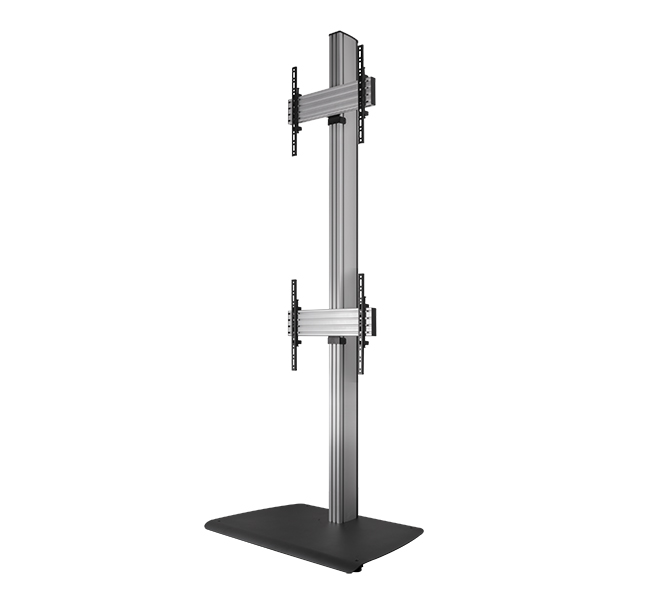

System X™ Universal Dual Stack Flat Screen
Floor Stand - 2.4m

BTF842

For portrait mounting




The BTF842 is a premium mounting solution designed to mount two screens in portrait orientation, one above the other. A heavy duty steel base eliminates the need to bolt to the floor and adjustable levelling feet are included to accommodate uneven surfaces. The high-end aesthetic with an anodised aluminium finish and integrated cable management ensures finished installations are neat and tidy, making the BTF842 ideal for use in professional or commercial applications.






  • Universal design suitable for screens in a portrait orientation
  • Heavy duty steel base construction provides stability, eliminating the need to bolt to the floor
  • Can also be bolted to the floor to help prevent unauthorised relocation of the display

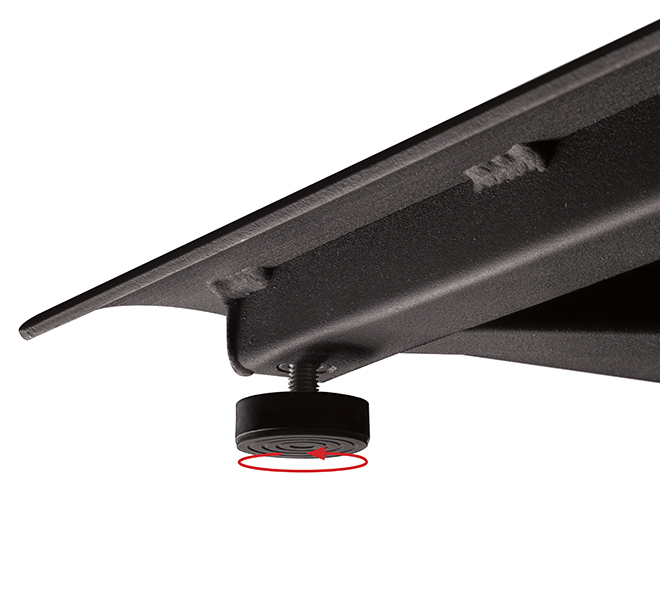

  • Supplied with adjustable levelling feet to accommodate uneven floor surfaces
  • Arms feature levelling screws to adjust the screen height

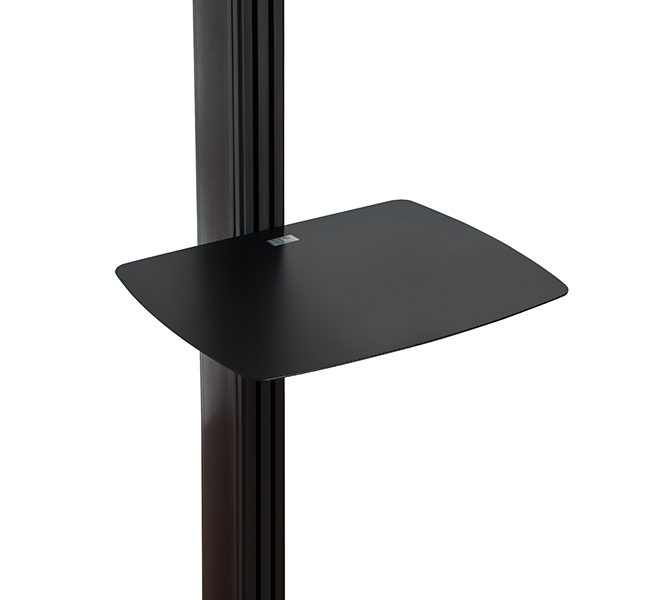

  • Collar compatible accessories such as shelves (available separately) can be
    fitted directly to the column

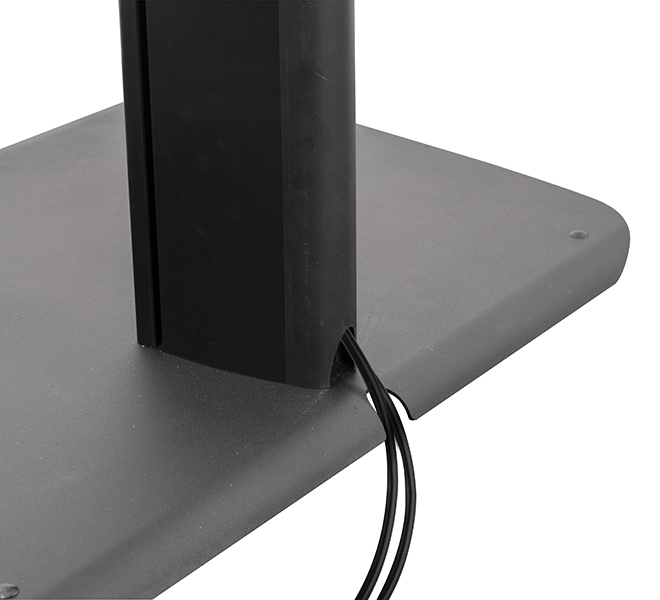

  • Integrated cable management for a neat and tidy installation
  • Safety screws help prevent unauthorised screen removal
  • Simple ‘hook-on’ screen installation
  • Recommended screen size: 47" (113.4cm) to 65" (165cm)
  • Max load: 35kg (77lbs) per screen
  • VESA® & non-VESA fixings as standard: up to 472mm x 400mm*
  • VESA® & non-VESA fixings with adaptors: up to 600mm x 400mm*
  • Dimensions: W: 890mm (35") H: 2441mm (96") D: 604mm (23.8")
  • Colour options (column and rails): Black or Silver

    *As standard the maximum fixing dimension is 400mm (15.7"). Increase the
    horizontal fixing
    to 600mm (23.6") using the included interface adaptor arms.
System X™ Universal Dual Stack Flat Screen Floor Stand - 2.4M Maximum VESA fixing can be increased to 600mm using the included  adapter arms Supplied with adjustable levelling feet to accommodate uneven floor surfaces Collar compatible accessories such as shelves (available separately) can be fitted directly to the column

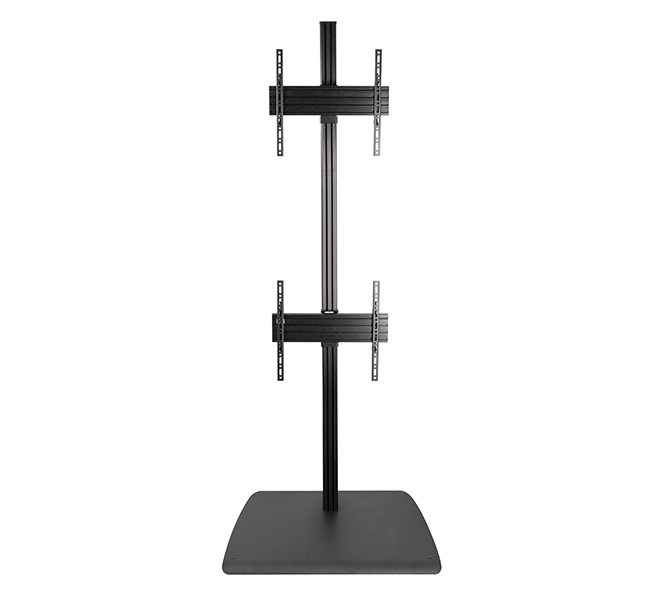

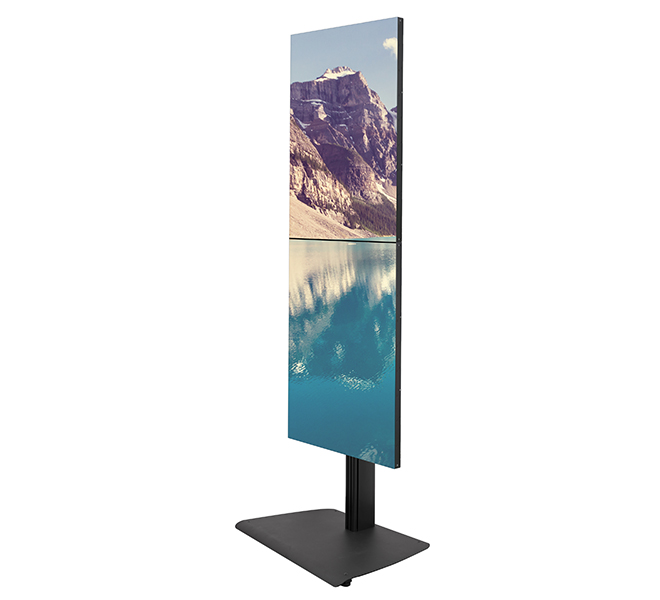

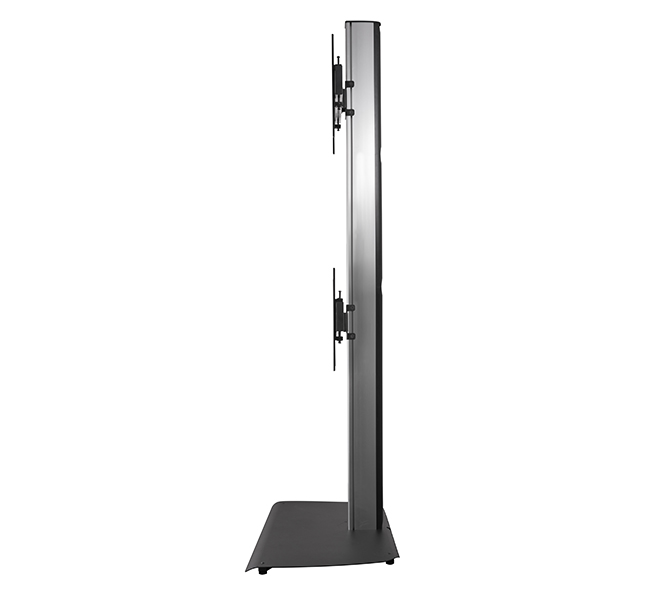

Integrated cable management for a neat and tidy finish BTF842 - Front View (Available in Black) BTF842 - Side View BTF842 - With Screens

Specification Sheet

Specification Sheet (PDF)

Fiche de Spécifications - Français (PDF)



Installation Guide

Installation Guide (PDF)



Technical Drawing

Technical Drawing (PDF)

Technical Drawing (DXF)
