Adjustable Drop Heavy Duty Projector Ceiling Mount

BT893-AD

With Micro-Adjustment




The BT893-AD is a ceiling mounted, universal projector mount designed to mount projectors up to 70kg. The BT893-AD allows the projector to be lowered or raised in 25mm increments & securely fastened at the desired height. Featuring easy adjustment of tilt, yaw, roll & additional micro-adjustment at each corner makes alignment of projections quick & simple. The projector fixes to a mounting plate that can be extended to accommodate large fixing patterns using the included extension legs, ideal for large scale & precision applications such as events & staging or for edge-blending & projection mapping.

BT893 - AV Awards 2019 Finalist

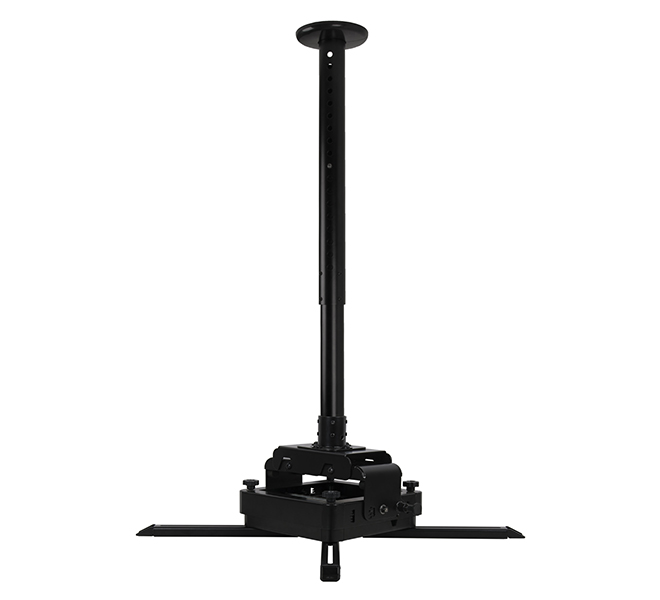

BT893-AD Adjustable Drop Heavy Duty projector ceiling mount with micro-adjustment

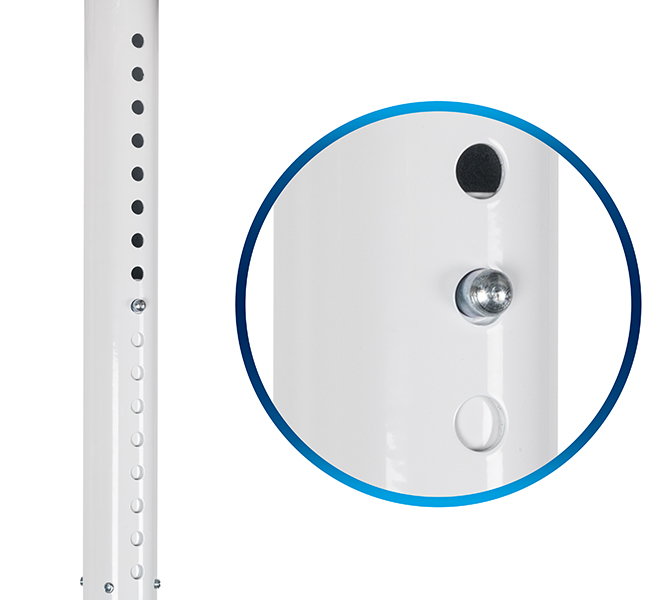

  • Adjustable drop in 25mm increments for the perfect positioning of projector height

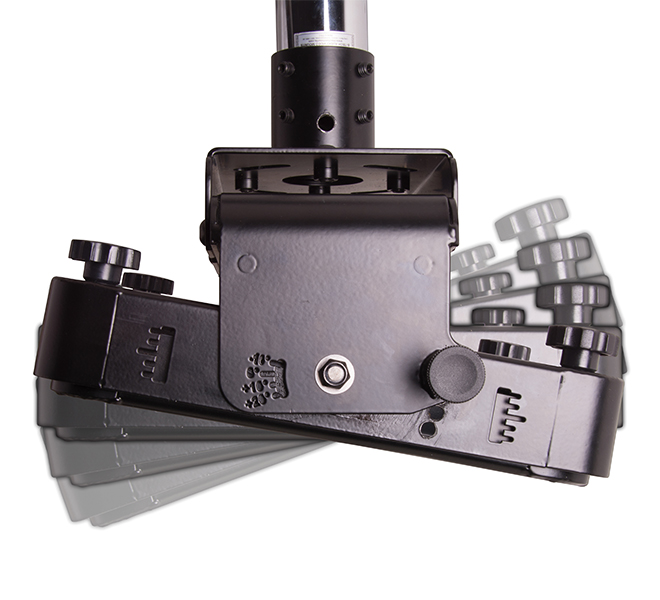

  • Features easy, incremented tilt adjustment
  • Extendable mounting plate features 4-point micro-adjustment for perfect
    alignment of the projected images
  • Micro-adjustment is altered using thumbwheels for better grip and a more
    controlled adjustment
  • Poles are internally unobstructed for cables to pass through easily

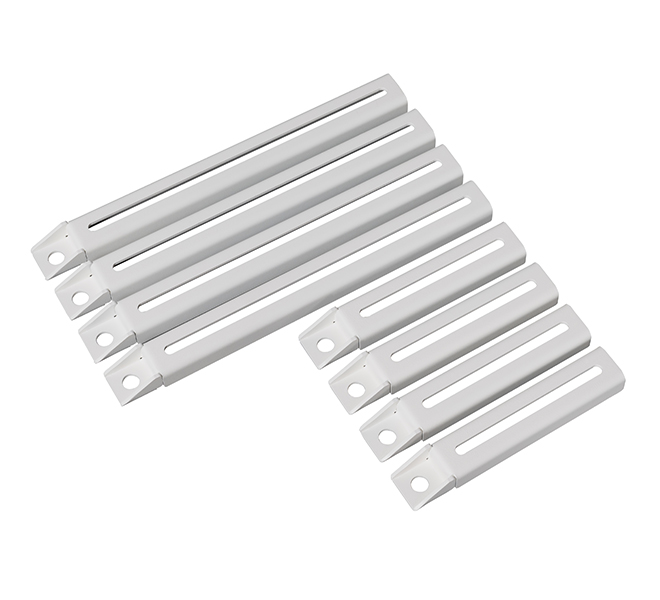

  • Optional extension legs can be used to accommodate larger fixing patterns
  • Suitable for projectors using M6, M8, M10 and M12 fixings
  • Maximum load: 70kg (155lbs)
  • Tilt (pitch): +20°/-10° (+/-5° with micro-adjustment)
  • Yaw: +/-45°
  • Roll: +/-5°
  • Adjustable ceiling drop: 766mm (30.1") - 1186mm (46.7")* (+/-10mm)
  • Maximum distance between fixings: 873mm (34.4")
  • Max distance (square fixing pattern): 618mm (24.3")
  • Colour: Black or White
BT893-AD Adjustable Drop Heavy Duty projector ceiling mount with micro-adjustment BT893-AD Adjustable Drop Heavy Duty projector ceiling mount with micro-adjustment Features easy, incremented tilt adjustment Optional extension legs can be used to accommodate larger fixing patterns

Specification Sheet

Specification Sheet (PDF)

Specification Sheet - US (PDF)



Installation Guide

Installation Guide (PDF)

You must log in to view this content
