Adjustable Drop Extra Large Projector Ceiling Mount with Micro-Adjustment

BT899XL-AD

For Projectors up to 25kg (55lbs)

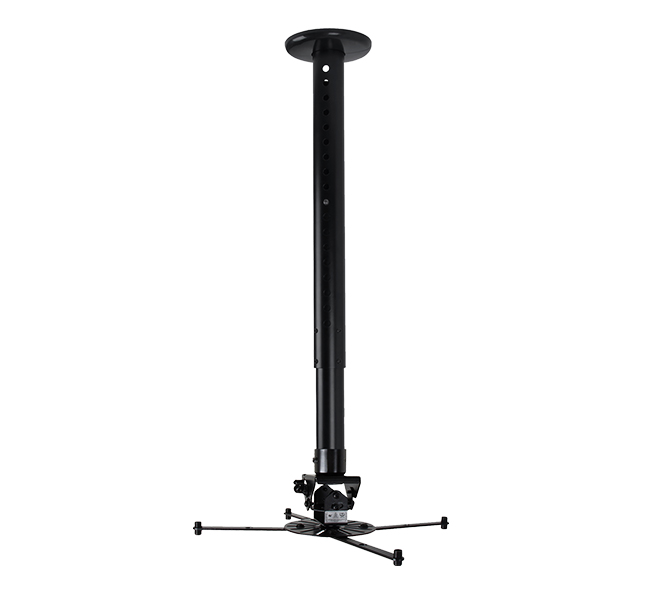

The BT899XL-AD is a universal projector ceiling mount which can be used to mount projectors up to 25kg. On installs where an adjustable height is required for quick and easy positioning, the BT899XL-AD allows the install to be lowered or raised in 25mm (1") increments and can be securely fastened with safety bolts to hold the solution at the desired height. The BT899XL-AD has a maximum drop of up to 1m and is designed with easy adjustment of tilt, roll and swivel with optional micro-adjustment for short throw projectors making this mount the ideal solution for installing heavy duty projectors.







BT899XL-FD Extra Large Projector Ceiling Mount with Micro-Adjustment












  • Adjustable drop in 25mm increments for the perfect positioning of projector height
  • Integrated cable management for a smart installation
  • Security locking screws and Allen key provided for a secure installation

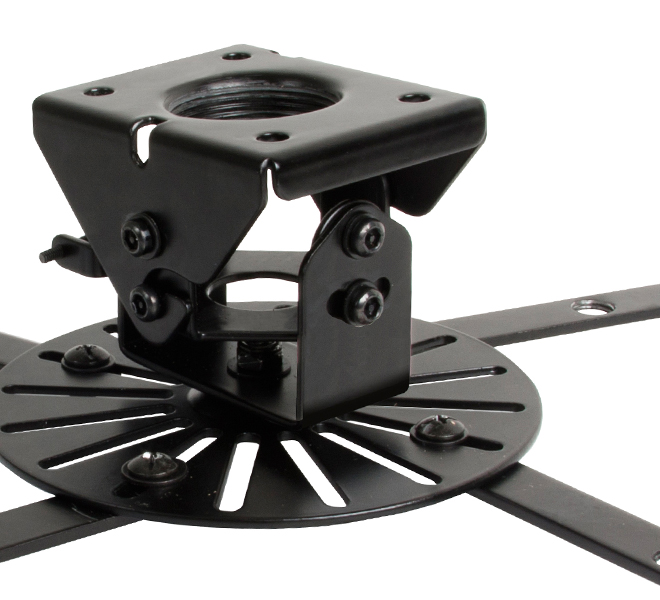

  • Unique ‘Carousel’ mounting plate for universal compatibility
  • Suitable for projectors using M2.5, M3, M4, M5 and M6 fixings
  • Maximum load: 25kg (55lbs)
  • Tilt adjustment: +/-13°
  • Roll adjustment: +/-6°
  • Swivel: 360°
  • Maximum distance (between fixings): 493mm (19.4")
  • Adjustable celing drop: 722-1122mm
  • Original designs by B-Tech AV Mounts - registered designs & patents apply
BT899XL-AD Adjustable Drop Extra Large Projector Ceiling Mount with Micro-Adjustment Unique ‘carousel’ mounting plate for universal compatibility Optional micro-adjustment feature for short throw projectors BT899XL-AD Adjustable Drop Extra Large Projector Ceiling Mount with Micro-Adjustment
