Heavy Duty Projector Ceiling Mount
with Micro-Adjustment

BT893

For Projectors up to 70kg (155lbs)




Designed to mount projectors up to 70kg, this heavy duty projector mount can be fixed directly to the ceiling or can be mounted to any B-Tech Ø50mm pole (ideal for installing in areas with high ceilings where a larger ceiling drop is required). The projector fixes to an extendable mounting plate, with optional extension legs included to accommodate larger fixing patterns. The mounting plate of the BT893 uses 4-point micro-adjustment for added flexibility, so that a perfectly aligned projection can be achieved.







BT9340 - Universal Direct View LED Video Wall Mount














  • Designed to mount heavy duty projectors from the ceiling
  • Features easy, incremented tilt adjustment
  • Extendable mounting plate features 4-point micro-adjustment for perfect
    alignment of the projected images
  • Micro-adjustment is altered using handwheels for better grip and a
    more controlled adjustment
  • Ideal for use with projection mapping projectors
  • Quick and easy assembly

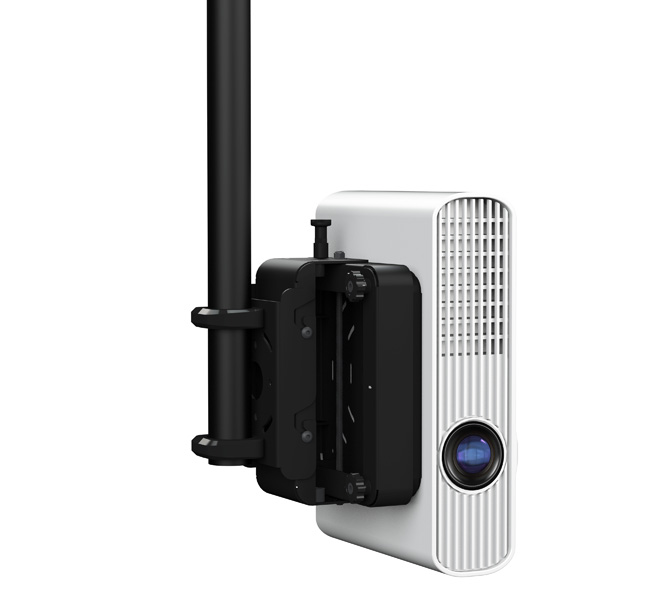

  • Can be mounted from the ceiling directly or from any B-Tech Ø50mm pole

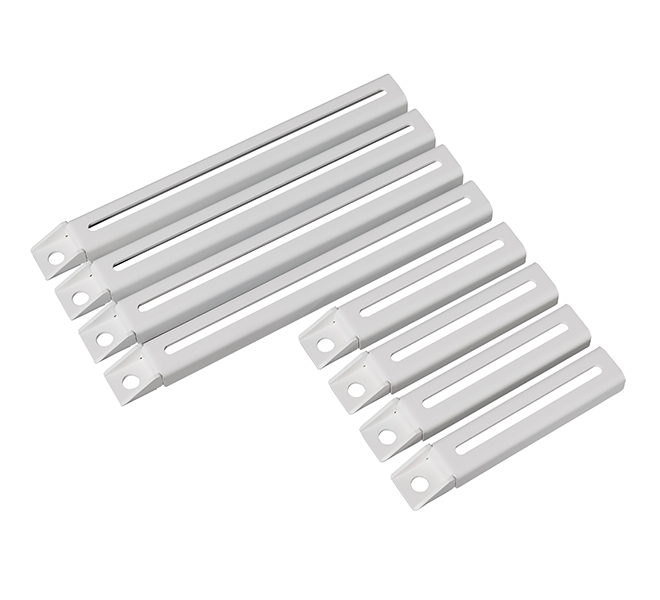

  • Optional extension legs can be used to accommodate larger fixing patterns
  • Suitable for projectors using M6, M8, M10 and M12 fixings
  • All mounting hardware included
  • Maximum load: 70kg (155lbs)

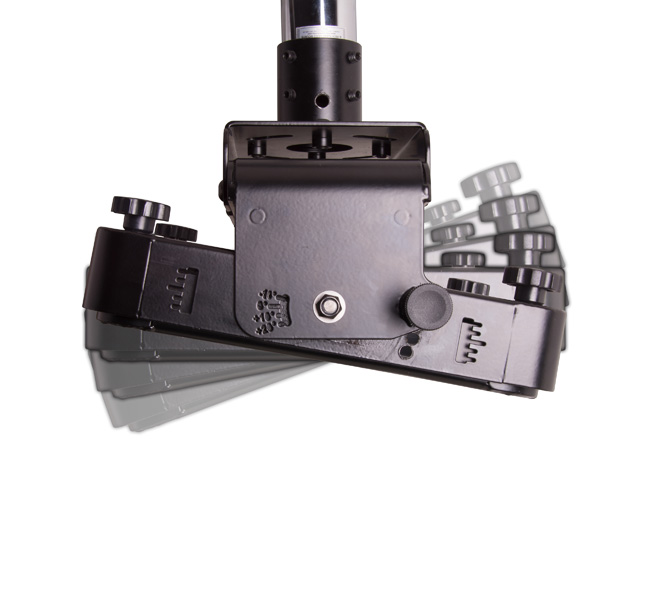

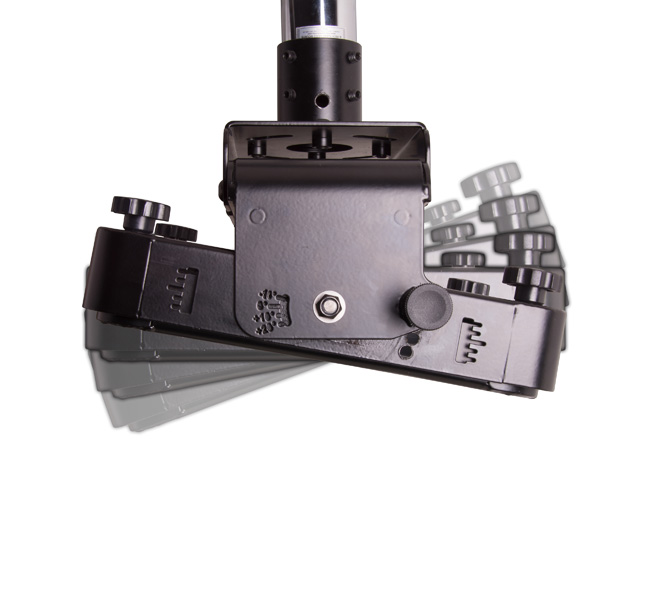

  • Tilt adjustment: +20°/-10° (+/- 5° with micro-adjustment)
  • Roll adjustment: +/-5°
  • Yaw: 25° (celing mounted) / 45° (pole mounted)
  • Maximum distance between any two fixing points: 873mm (34")
  • Maximum square fixing pattern that can be mounted: 790mm (31")
  • Colours available: Black
  • Community design number: 0045277224-001

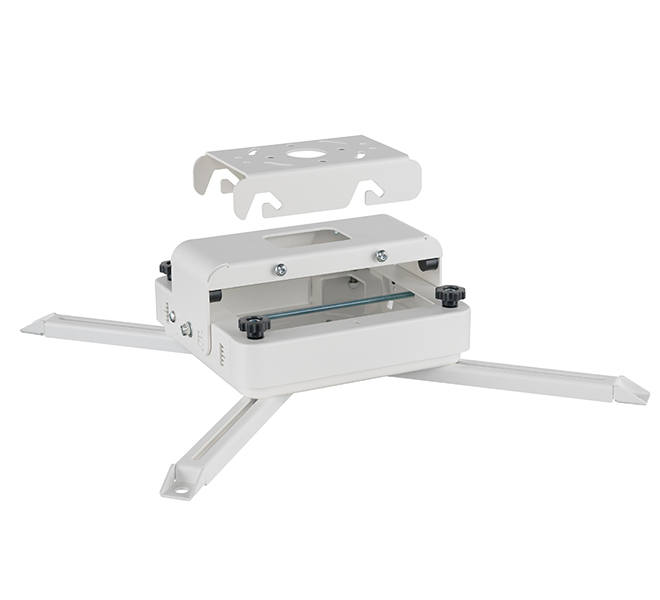

BT893 heavy duty projector ceiling mount with micro-adjustment BT893 heavy duty projector ceiling mount with micro-adjustment - Top View BT893 Universal Heavy Duty Projector Mount with Micro Adjustment - Side View BT893 heavy duty projector ceiling mount with micro-adjustment
BT893 heavy duty projector ceiling mount with micro-adjustment
