Interactive Flat Screen Trolley

BT8530

Ideal for touch screens



BT8530 is a modern easy-to-use flat screen trolley designed to support displays and interactive touchscreens from 55" up to 86". The trolley's braked castors provide smooth, safe mobility, while the sturdy design ensures stable use, preventing unintended movement when using the touchscreen. Capable of holding displays up to 76kg with multiple screen mounting heights available, the BT8530 has versatile display options including an AV equipment shelf and an optional AV accessory rack. This versatile solution is ideal for both installers and end users, delivering flexibility and performance across a range of applications.





   BT8530 Interactive Flat Screen Trolley
  • Ideal for large interactive / touch screens

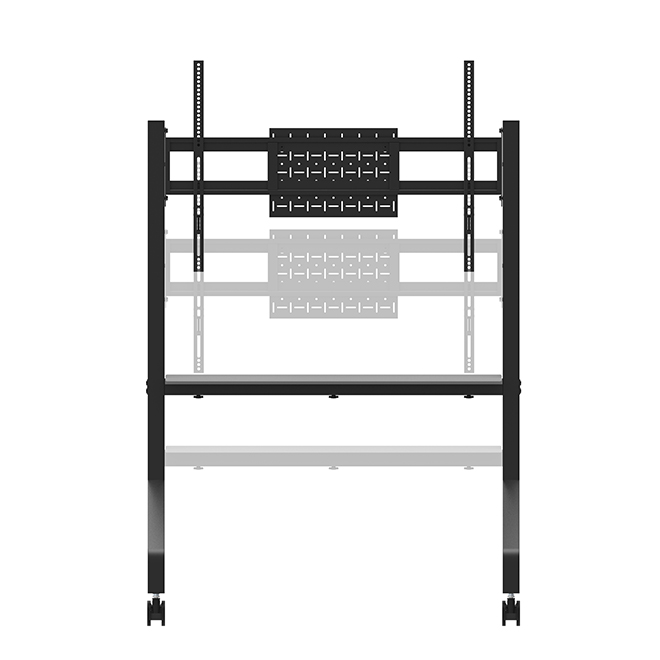

  • 4 height pre-set height positions from 106cm to 136cm to centre of screen

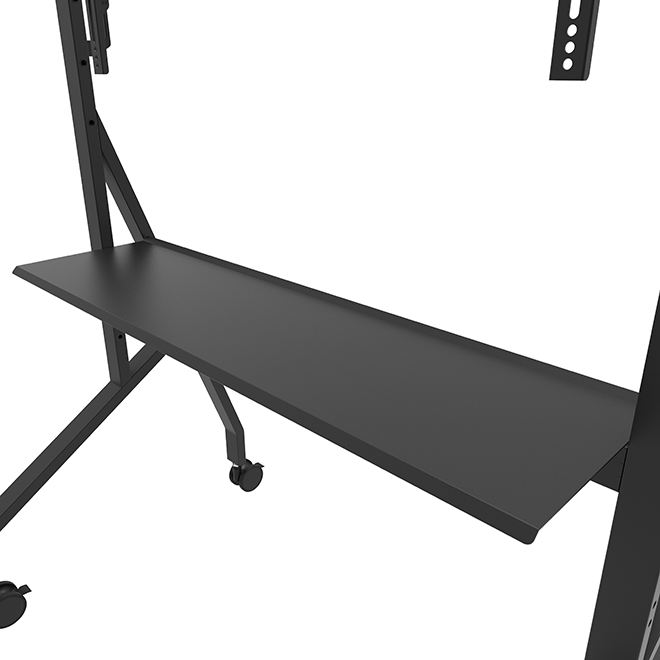

  • Large multi-media shelf included

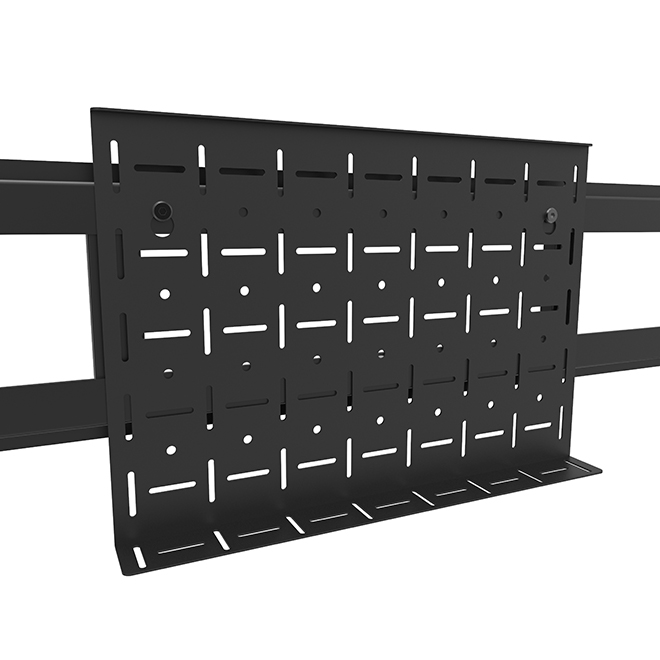

  • AV Hardware Rack included

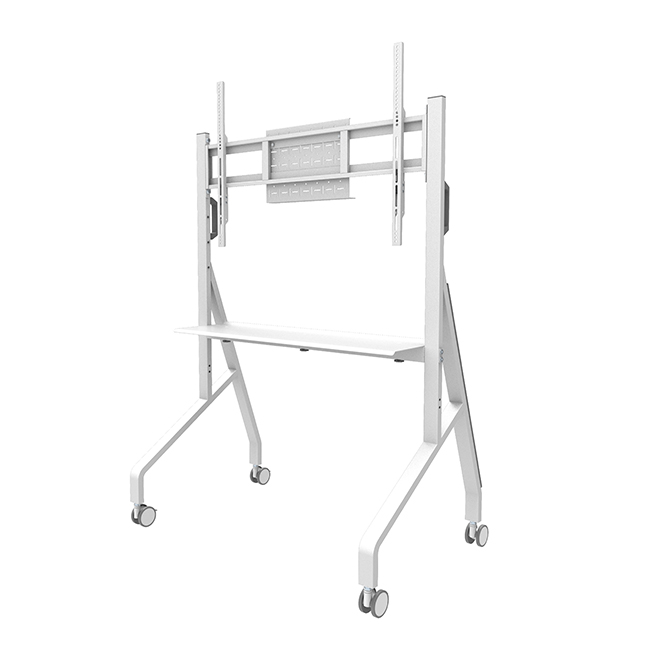

  • Also available in white
  • Adjustment screws to help perfectly align and level the screen
  • Non-marking locking / braked castors included
  • Handles for easy movement
  • Safety screws help prevent unauthorised removal of screen
  • Simple ‘hook-on’ screen installation
  • All mounting hardware included
  • Recomended screen size: 55" - 86"
  • Max load: 76kg (168lbs)
  • VESA® & non-VESA fixings: up to 900mm x 600mm
  • Trolley dimensions: H:1500  W:1100  D:660mm
  • Shelf dimensions: W:995 D:271mm
  • Shelf max load: 10kg (22lbs)
  • Colour options: Black or white


BT8530 - 4 height pre-set height positions from 106cm to 136cm to centre of screen BT8530 - Large multi-media shelf included BT8530 - AV hardware rack included BT8530 - Also available in white

Specification Sheets

Specification Sheet - English (PDF)



Installation Guide

Installation Guide (PDF)



Technical Drawings

Technical Drawings (PDF)

You must log in to view this content
