Adjustable Drop Universal Flat Screen Ceiling Mount

BT8426

With Tilt




Designed to ceiling mount screens up to 50kg, the BT8426 features an adjustable drop of 625mm - 950mm in increments of 25mm.The mount uses B-Tech's unique 'Torsion-Tilt' mechanism for easy tilt up to +/-15°. Levelling screws are included on the interface arms to finely adjust the screen height and locking screws help prevent unauthorised removal of the screen. Cover plates are supplied for a neat and tidy installation.

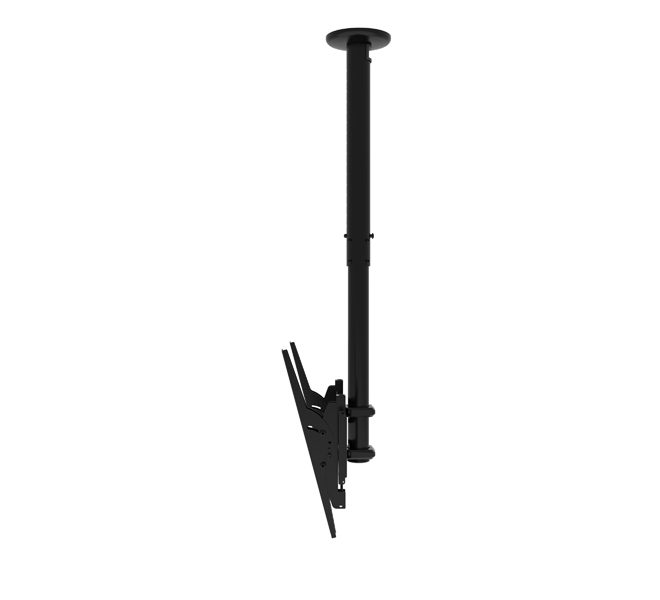

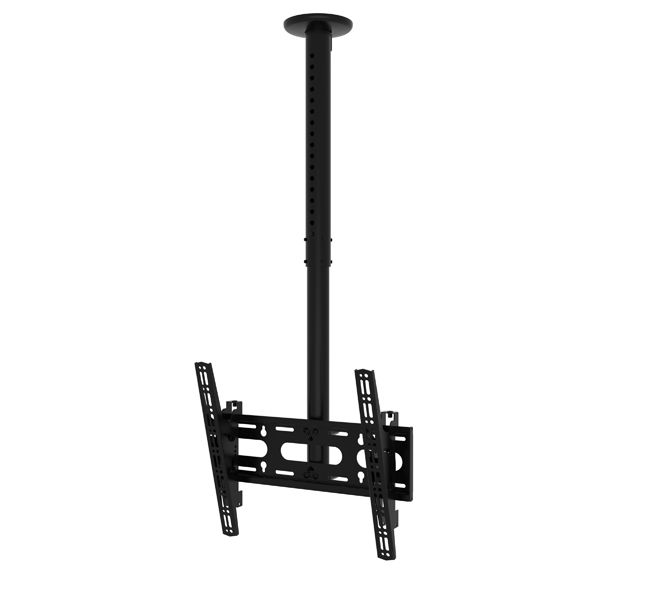

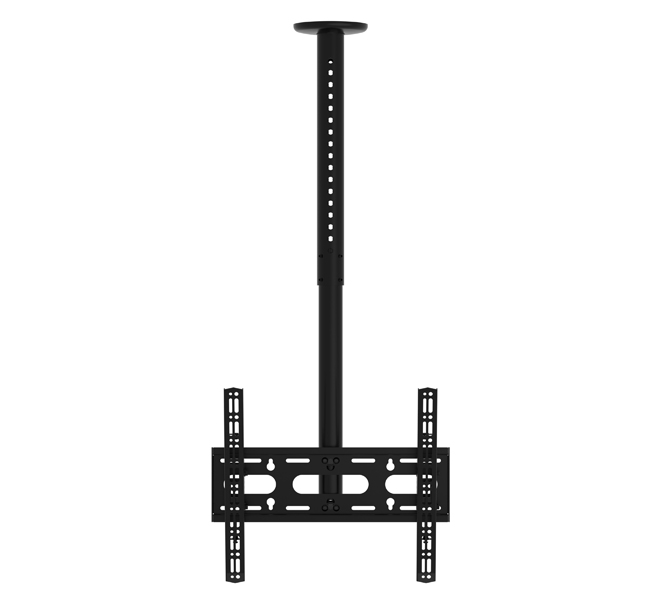

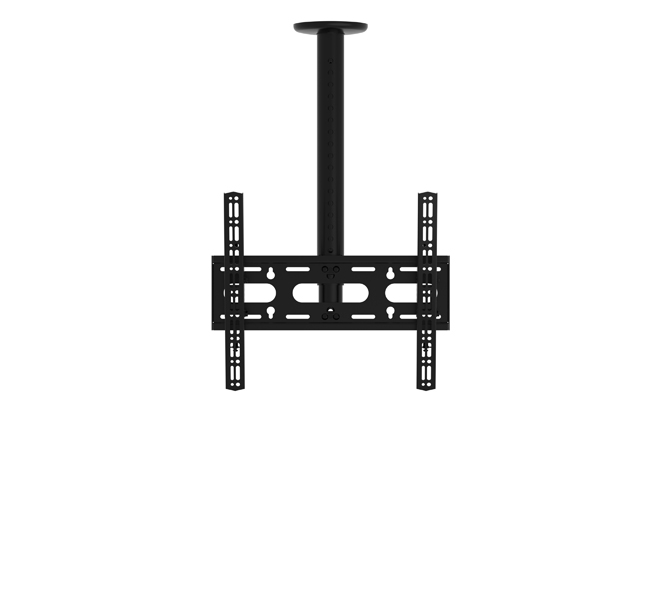

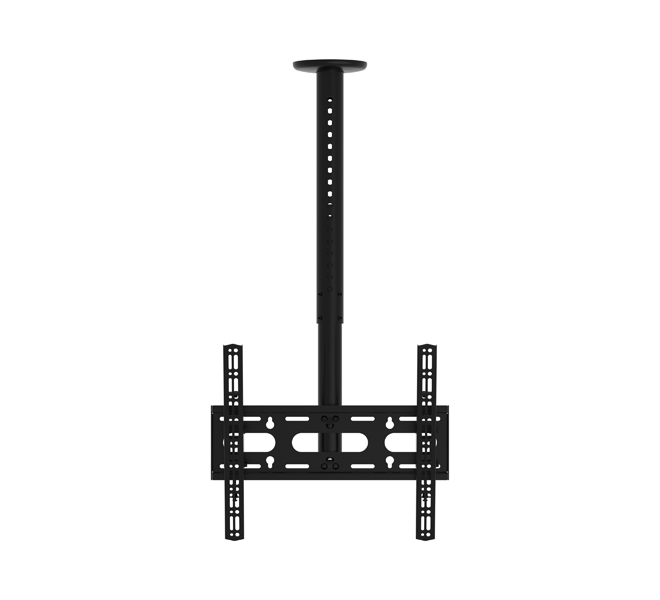

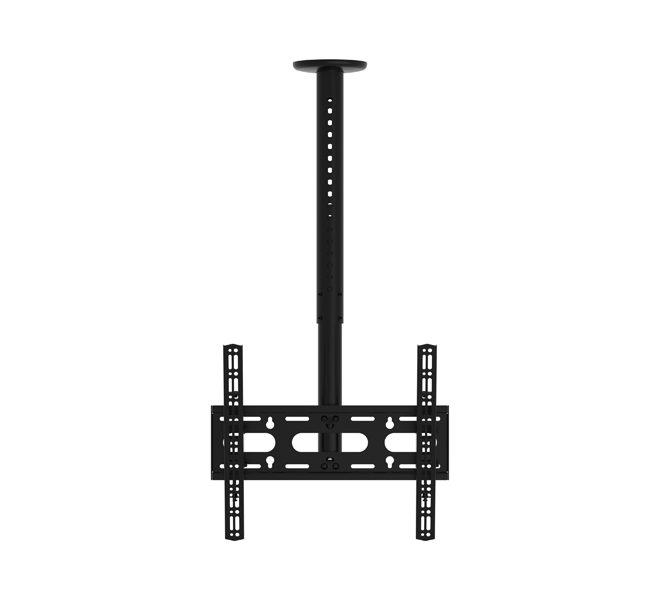

  BT8426 Telescopic Universal Flat Screen Ceiling Mount with Tilt

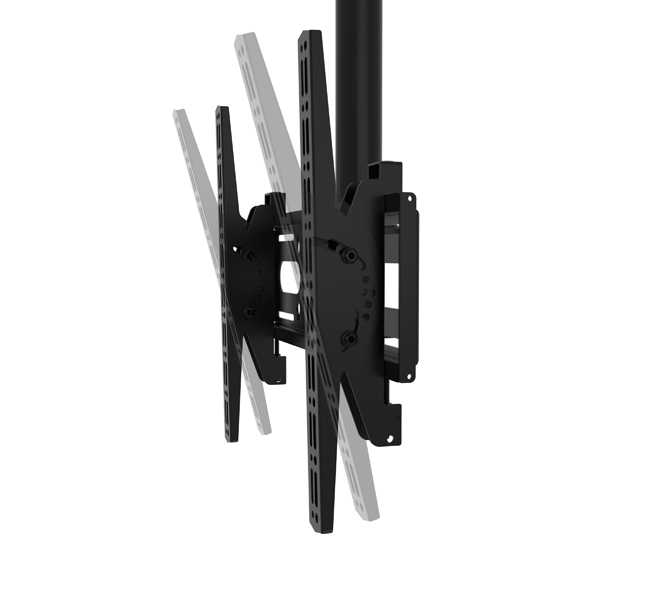

  • Unique ‘Torsion-tilt’ mechanism for tool-less tilt adjustment

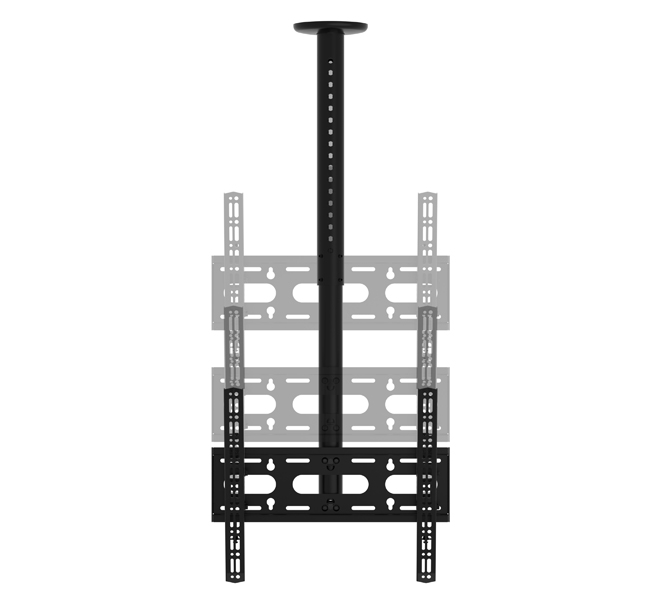

  • Tool-less adjustable ceiling drop in increments of 25mm (1")
  • Suitable for landscape or portrait mounting
  • Arms feature levelling screws to adjust the screen height
  • Lateral adjustment of screen once mounted
  • Security screws help prevent unauthorised removal of screens
  • Integrated cable management
  • Cover plate included for a smart installation
  • Simple ‘hook-on’ installation with all mounting hardware included
  • Recommended screen size: up to 65" (165cm)
  • Max load: 50kg (110lbs)
  • VESA® compatibility (as standard): up to 468mm x 400mm
  • VESA® compatibility (with included adaptors): up to 600mm x 400mm
  • Tilt adjustment: +/-15°
  • Ceiling drop: Min. 625mm (24.6") - Max. 950mm (37.4")*
  • Colour: Black
     *From the ceiling to the centre of the mount
BT8426 Telescopic Universal Flat Screen Ceiling Mount with Tilt Levelling screws allow adjustment of  the screen height once mounted Security locking screws and Allen key provide a secure installation Maximum VESA fixing can be increased to 600mm using the included adaptor arms
