Back-to-Back Universal Flat Screen Ceiling Mount with Tilt

BT8428

Choice of Four Pole Lengths




Designed to ceiling mount two screens in a back-to-back configuration, the BT8428 is available in a choice of four different drop lengths; 1m, 1.5m, 2m and 3m. The mount uses B-Tech's unique 'Torsion-Tilt' mechanism for easy tilt up to +/-15°. Levelling screws are included on the interface arms to finely adjust the screen height and locking screws help prevent unauthorised removal of the screen.

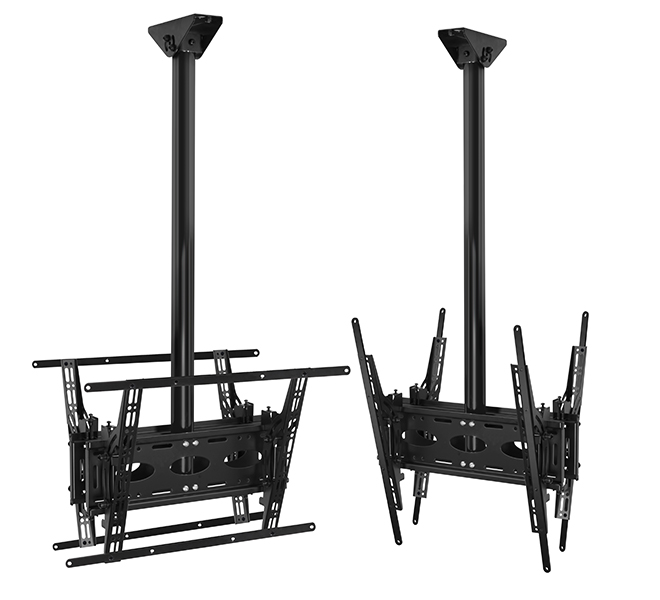

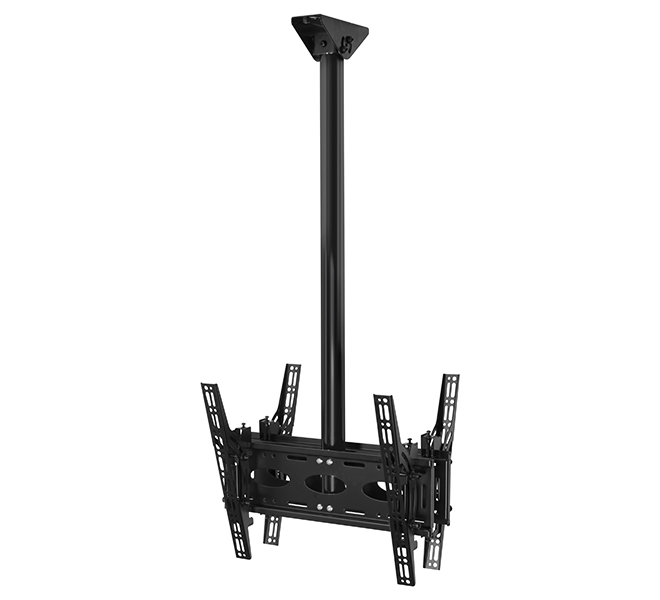

  BT8428 Back-to-Back Flat Screen Ceiling Mount with Tilt
  • Mounts two screens back-to-back
  • Ceiling bracket can be tilted for mounting on angled ceilings
  • Unique 'Torsion-Tilt' mechanism for easy tilt adjustment
  • Post installation screen alignment for perfect screen positioning
  • Arms feature levelling screws to adjust the screen height
  • Suitable for landscape or portrait mounting
  • Security screws help prevent unauthorised removal of screens
  • Poles are supplied with safety bolt and grub screws for a secure installation
  • Available in four pole lengths for more mounting flexibility
  • Integrated cable management
  • Simple ‘hook-on’ installation
  • All mounting hardware included
  • Recommended Screen Size: 39" - 65"
  • Max Load: 50kg (per screen)
  • VESA® compatibility (as standard): up to 400 x 400mm
  • VESA® compatibility (with included adaptors): up to 600 x 400mm
  • Tilt Adjustment (at screen): +/-15°
  • Tilt Adjustment (at ceiling): +90°
  • Ceiling Drop: 960mm, 1460mm, 1960mm or 2960mm*
  • Colour (Poles): Black or Chrome

*From the ceiling to the centre of the mount

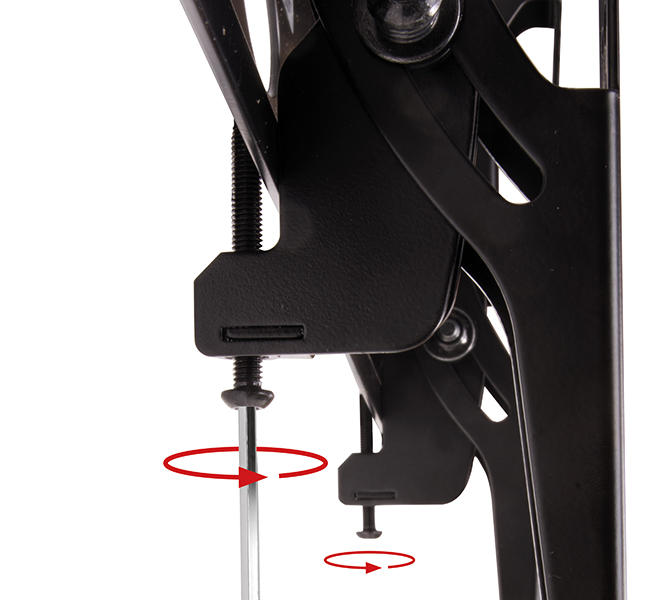

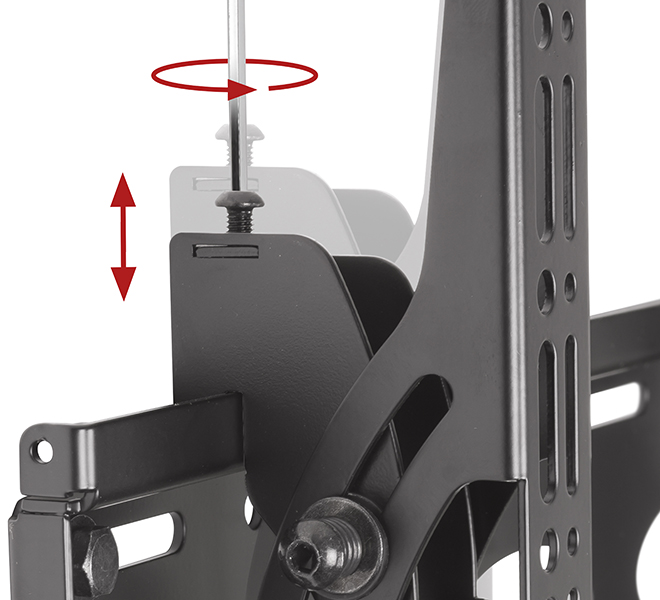

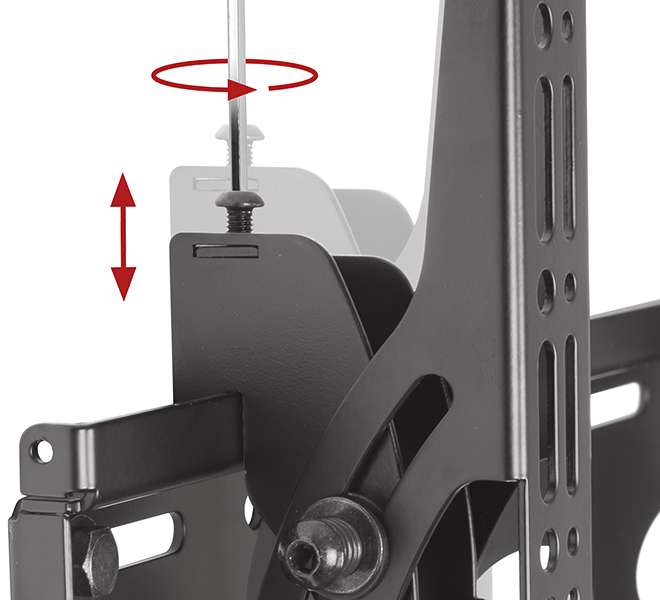

BT8428 Back-to-Back Flat Screen Ceiling Mount with Tilt Levelling screws allow adjustment of  the screen height once mounted Security locking screws and Allen key provide a secure installation Maximum VESA fixing can be increased to 600mm using the included adaptor arms

Product Specification Sheet (PDF)

Assembly Leaflet (PDF)

Technical Drawing (PDF)

Technical Drawing (DXF)
