Mounting Plate for Yealink A30 / MeetingEye 600 & VC Cameras

BT7878

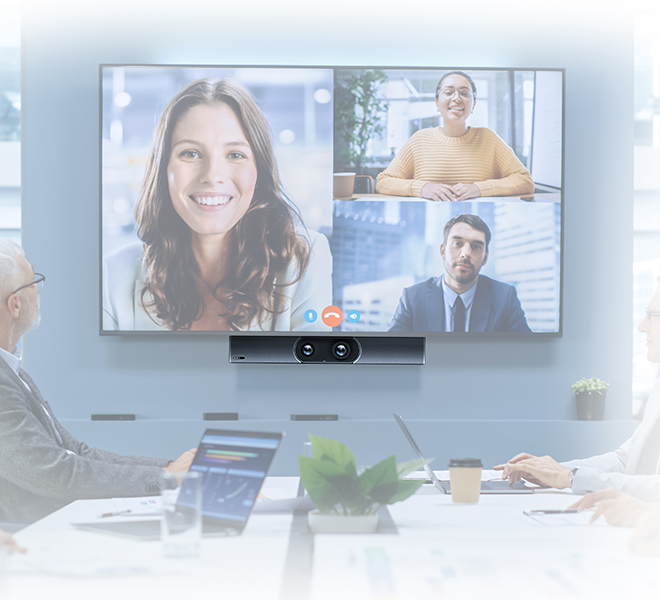

Ideal for Video Conferencing




The BT7878 is a mounting plate designed for mounting a Yealink A30 or MeetingEye 600 video conferencing camera to a variety of B-Tech products. Using an Accessory Mounting Arm, the BT7878 can be positioned above or below a screen mounted on a compatible B-Tech Flat Screen Wall Mount or to a System X BT8390 Rail. The mounting plate can also be pole mounted using Ø50mm Collars, or alternatively can attach directly to a B-Tech Column. The BT7878 platform is also suitable for mounting VC cameras.

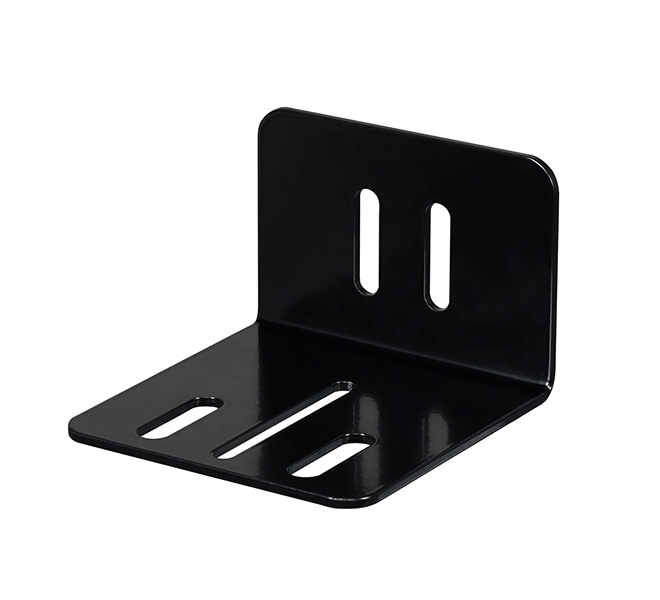

  BT7878 - Adaptor Plate
  • Designed to mount Yealink A30 and Yealink MeetingEye 600 to a range of B-Tech products
  • Universal mounting slot for VC cameras
  • Mounts directly to a BT8380 / BT8381 Column
  • Compatible with BT7052 / BT7841 Collars for use with Ø50mm Poles
  • Use with a BT7031 Accessory Mounting Arm to mount on to a BT8431 / BT8432 / BT8441 / BT8442 / BT9901 / BT9903 Flat Screen Wall Mount
  • Use with a BT8390-SA Accessory Mounting Arm to position camera above or below a screen mounted on a BT8390 System X Rail
  • Simple installation
  • All mounting hardware included
  • Max load: 4kg (8.8lbs)
  • Dimensions: W: 100mm (3.9") x H: 70mm (4.1") x D: 103mm (2.8")
  • Steel thickness: 3mm (0.12")
  • Colour: Black

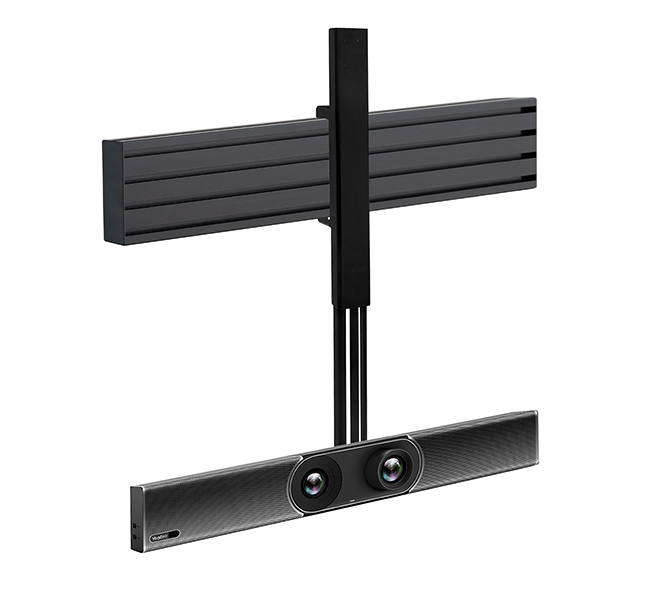

BT7878 - Fits above or below a screen when used with BT8390-SA

Product Specification Sheets

Specification Sheet - English (PDF)

Specification Sheet - US (PDF)

Technisches Datenblatt - Deutsch (PDF)



Installation Guide

Assembley Leaflet (PDF)

Montageanleitung - Deutsch (PDF)



Technical Drawings

Technical Drawing (PDF)
