Adjustable Accessory Mounting Arm

BT7031

Designed for accessory mounts




The BT7031 allows B-Tech AV accessory shelves to be fitted onto a B-Tech flat screen mount, making it the ideal solution for adding a VC camera or other accessible media above or below the screen. The adaptor arm can hook onto a range of B-Tech flat screen wall mounts or onto a BT8390 System X Rail and is suitable for use with a large range of screen sizes, featuring an adjustable extension arm that can be freely positioned anywhere along the mount. The BT7031 can also be used as a pair to mount larger shelves such as the BT7032.






  • Mounts a B-Tech shelf / accessory to a flat screen wall mount
  • Suitable for use with a BT8431, BT8432, BT8441, BT8442, BT9901, BT9903 flat screen
    mount or a System X BT8390 rail
  • Use with any single collar compatible B-Tech accessory
  • Ideal for VC cameras when used in conjunction with a BT7863 shelf
  • Use as a pair to mount heavier equipment with a BT7032 / BT7033 shelf
  • Features an adjustable extension arm to fit different size screens and for optimal positioning
    of the mounted accessories
  • Designed so mounted accessories can be positioned above or below the screen
  • Simple ‘hook-on’ design for quick and easy installation & removal
  • Max load (single adaptor): 4kg (8.8lbs)
  • Max load (when two BT7031 are used for large shelves): 15kg (33lbs)
  • Extension (from centre of screen): Min:458mm (18") - Max:850mm (31.5")
  • Colour: Black

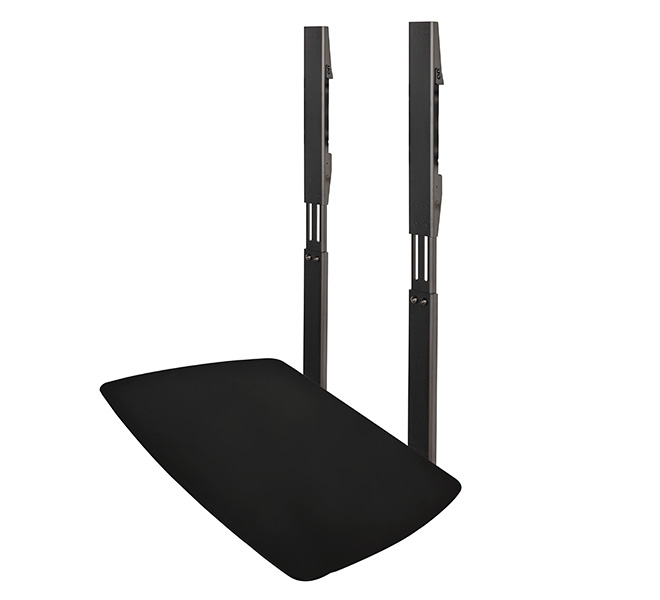

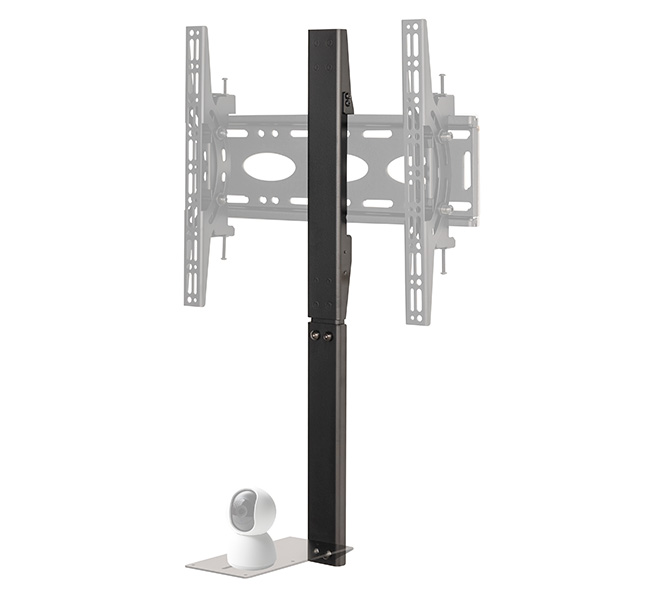

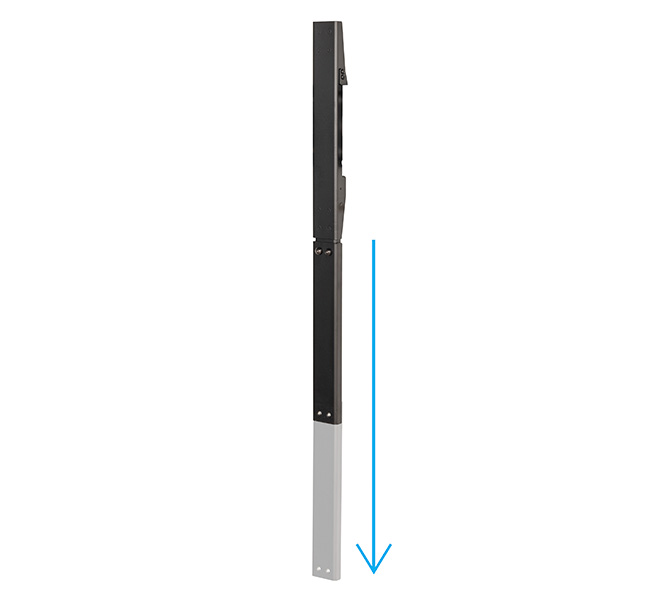

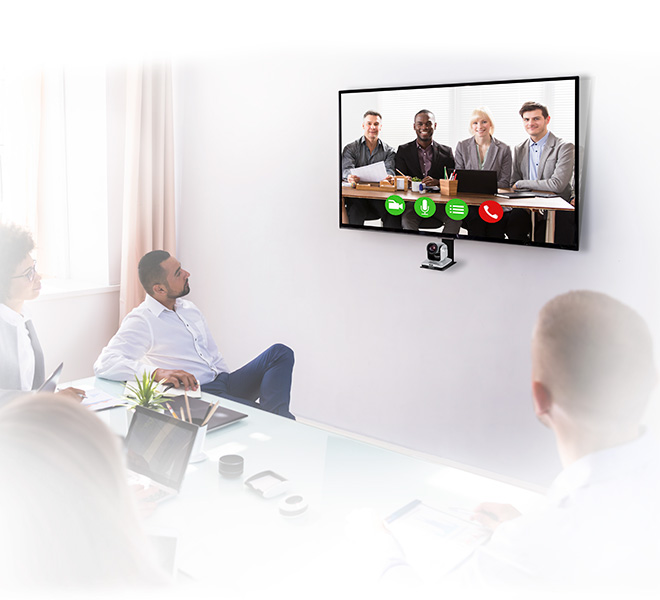

BT7031 - Adjustable Accessory Mounting Arm for Wall Mounts BT7031 - Extension (from centre of screen): Min:450mm (17.7 BT7031 - Use two units together for larger shelves BT7031 - Perfect for wall mounted VC solutions

Specification Sheet

Specification Sheet English (PDF)

Specification Sheet US (PDF)

Spezifikationsblatt - Deutsch (PDF)



Installation Guide

Installation Guide (PDF)



Technical Drawing

Technical Drawing (PDF)
