Heavy Duty Twin Pole Ceiling / Floor Mount

BT7807

For Ø50mm Poles




Made from heavy duty steel, the BT7807 is a robust, twin pole mounting solution designed to mount Ø50mm poles to the floor or ceiling. Capable of supporting heavy loads, it is the ideal solution for heavy duty flat screen installations or complex configurations that feature multiple screens or AV components. Finished installations look neat and tidy thanks to plastic cover plates which are included as standard.







BT7807 Heavy Duty Twin Floor / Ceiling for 50mm poles

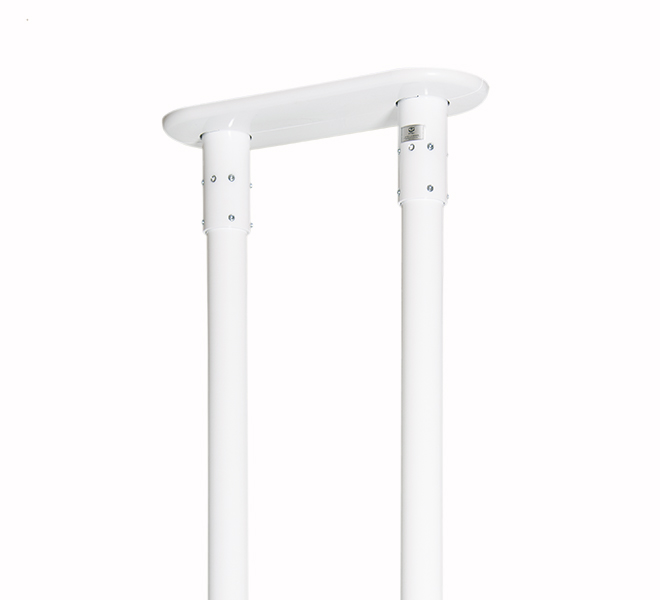

  • Can be used to mount two Ø50mm poles to the ceiling or to the floor
  • Heavy duty steel capable of supporting substantial loads
  • Multiple grub screws allow micro-adjustment of the pole to ensure a perfectly
    angled drop, even with heavy loads attached
  • Speeds up twin pole installations by eliminating the need to measure the
    distance between pole centres
  • Integrated cable management through the top or side of the mount
  • Includes cover plate for a neat and tidy installation
  • Max load: 200kg (440.9lbs)*
  • Elevation / drop: 141mm (5.5")
  • Plate dimensions: 426mm (16.8") x 150mm (5.9")
  • Colours: Black or White

    *Max load can be increased when used as part of a floor to ceiling installation

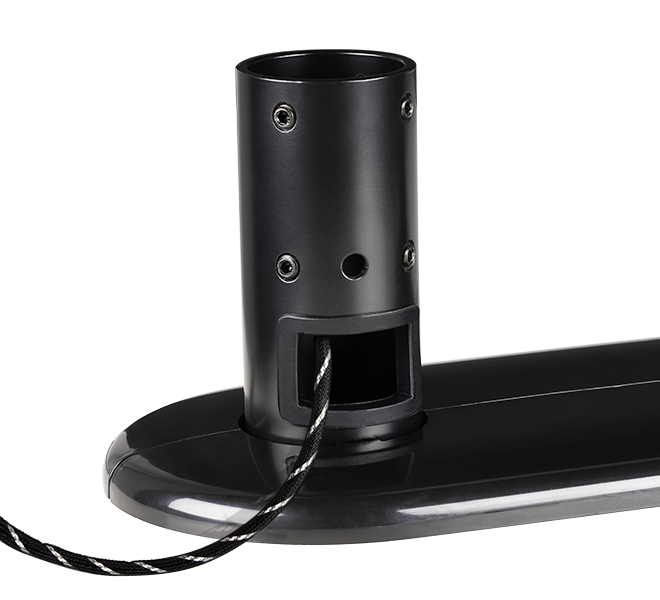

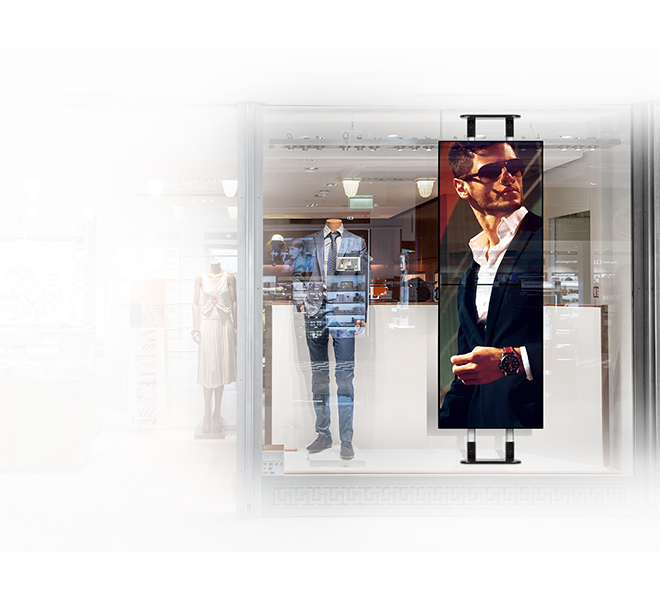

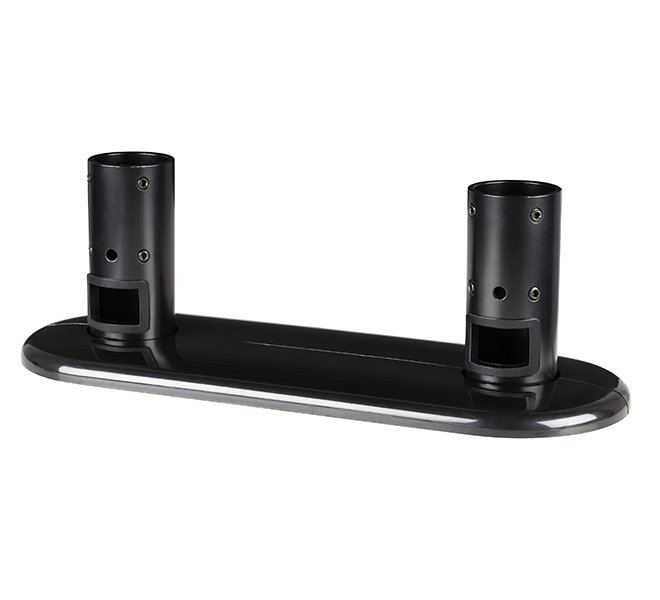

BT7807 - Heavy Duty Twin Floor / Ceiling for Ø50mm poles BT7807 - Integrated cable management to hide unsightly cables BT7807 - Ideal for creating multi-screen pole mounted installations

Specification Sheet

Specification Sheet (PDF)



Installation Guide

Installation Guide (PDF)



Technical Drawings

Technical Drawing (PDF)



Greensheet

Greensheet (PDF)
