Flat Screen Ceiling Mount

BT7553

With Tilt & Swivel




The BT7553 is a flat screen mounting solution which can be used to mount screens up to 23kg from the ceiling, floor, or to a desktop. With easy tool-less adjustment of tilt, swivel and screen rotation, this mount is ideal for landscape or portrait screen mounting and makes it quick and simple to switch between the two. The BT7553 is available with a choice of Black or Chrome poles in a variety of different lengths to suit your need.





  BT7553 - Flat Screen Ceiling / Desk Mount
  • Mounts screens from the ceiling, floor or desktop
  • Tool-less tilt and swivel adjustment
  • Screen rotation allows screen to be positioned in a landscape or portrait orientation
  • Supplied with a safety bolt for secure pole mounting
  • Included grub screws allow micro-adjustment of pole angle
  • Integrated cable management
  • Simple ‘hook-on’ installation
  • Recommended screen size: up to 32" (81.3cm)
  • Max load: 23kg (50lbs)
  • VESA® compatibility: 75mm x 75mm and 100mm x 100mm
  • Tilt as a ceiling mount: +90° / -15°
  • Tilt as a desk / floor mount: +15° / -90°
  • Swivel: 360°
  • Screen rotation: 360°
  • Pole lengths available: 0.25m, 0.5m, 1m, 1.5m, and 2m
                                        (9.8", 19.7", 39.4", 59", 78.7")
  • Colour poles / ceiling plate: Black, White or Chrome
  • Colour interface plate: Black

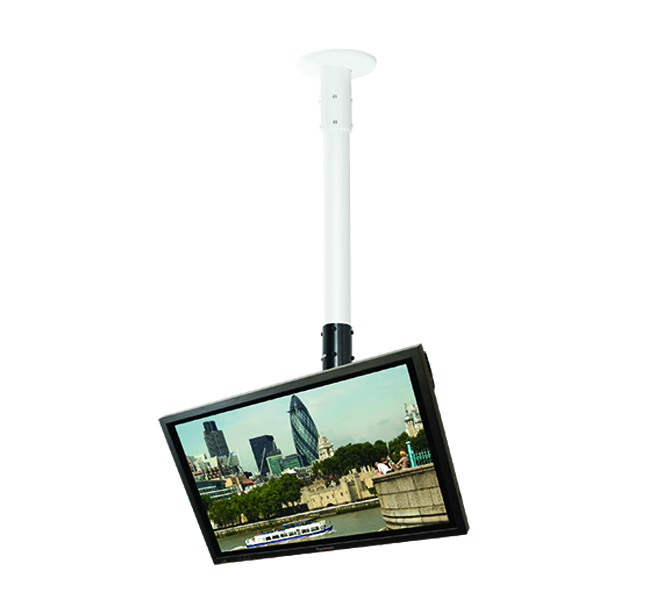

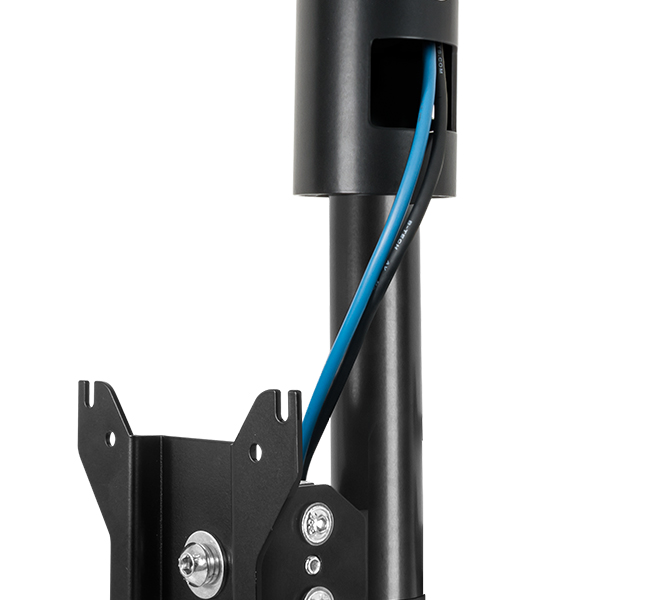

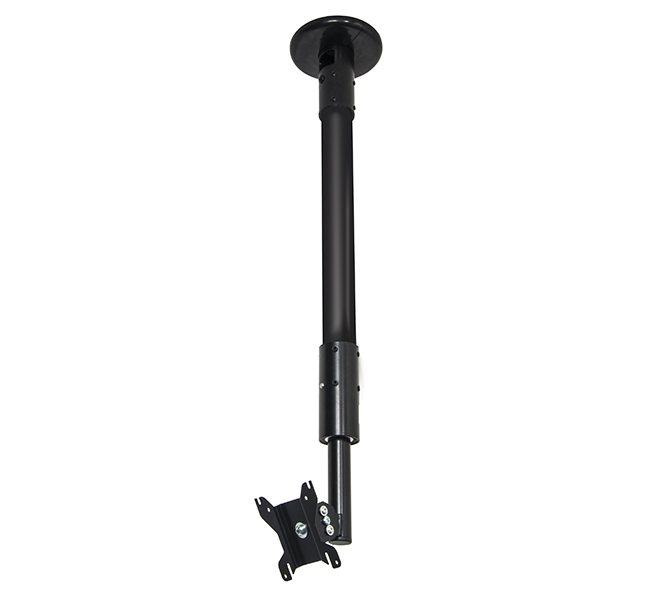

BT7553 - Flat Screen Ceiling / Desk Mount - Ideal for mounting screens from the ceiling, floor or to a desktop BT7553 - Flat Screen Ceiling / Desk Mount - Ideal for mounting screens from the ceiling, floor or to a desktop BT7553 - Flat Screen Ceiling / Desk Mount - Integrated Cable Mangement throughout the mount for a neat and tidy installation BT7553 - Flat Screen Ceiling / Desk Mount - Ceiling Mounted with Screen

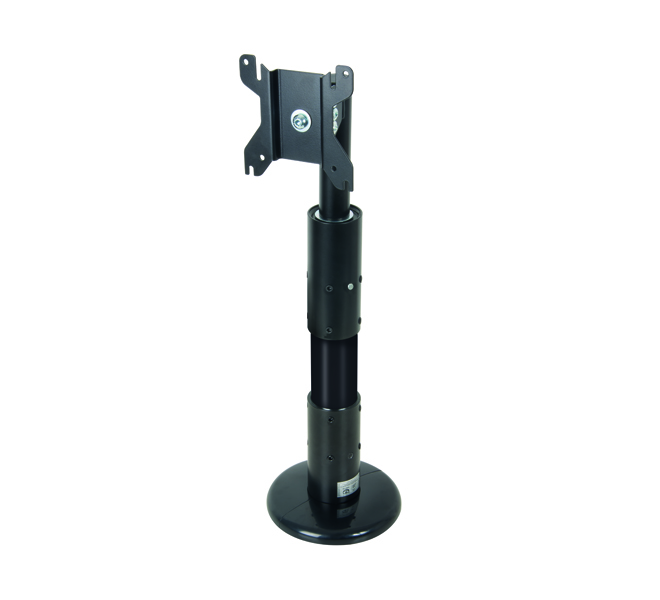

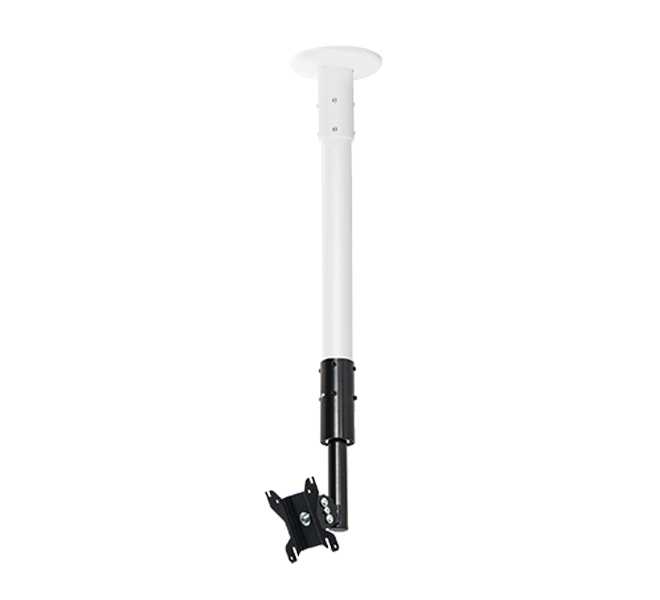

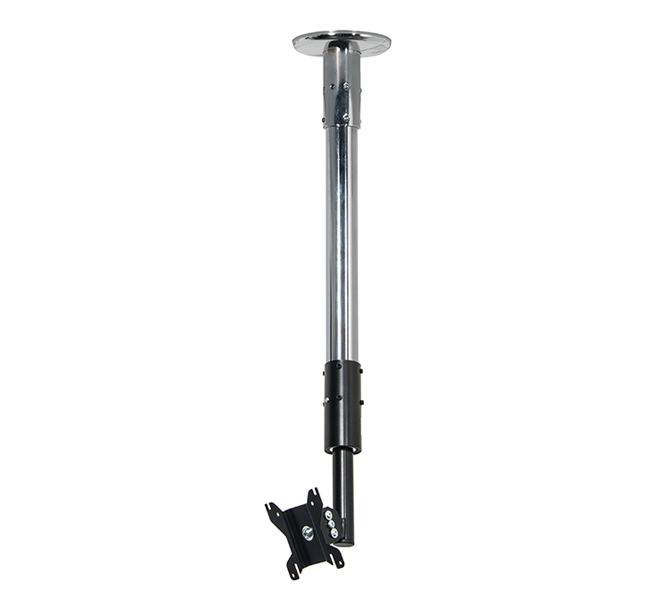

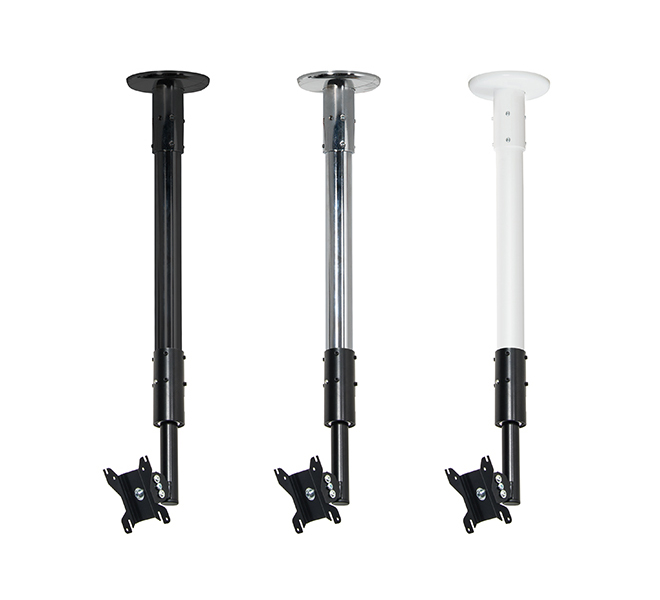

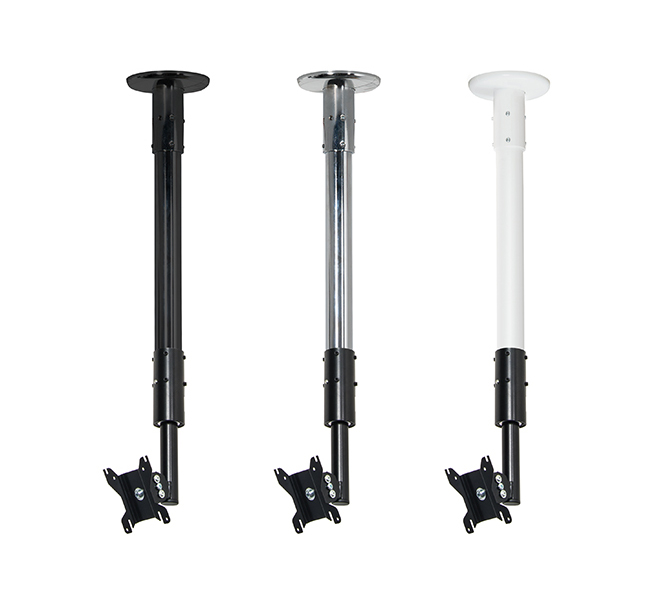

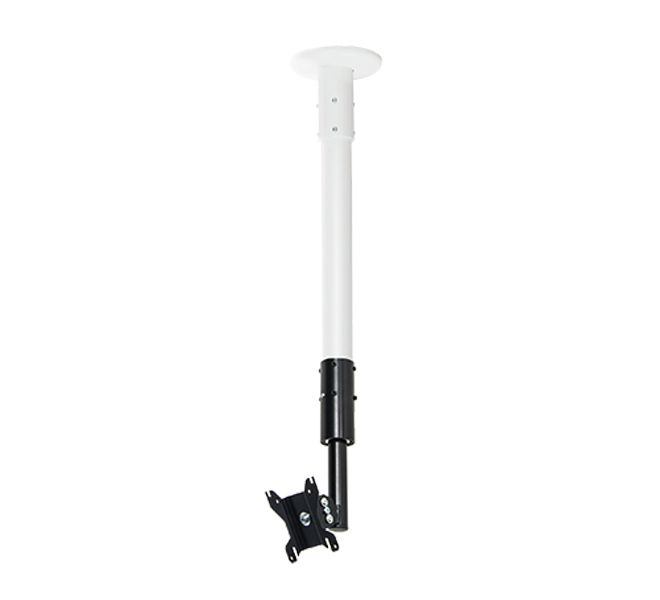

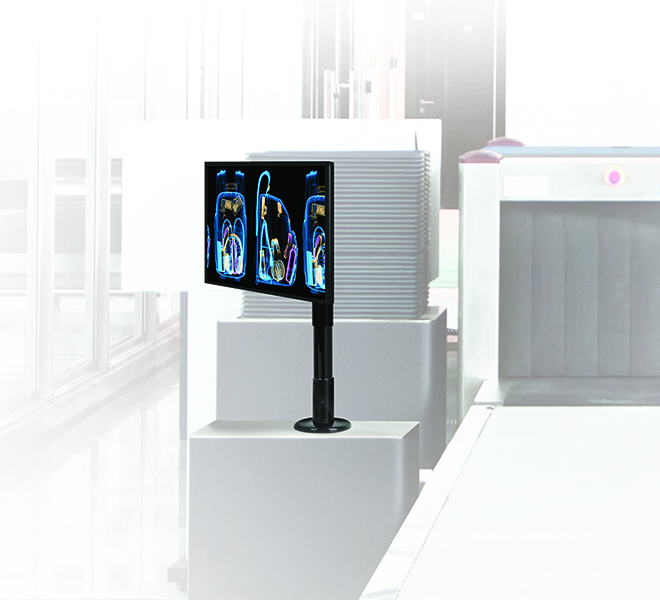

BT7553 - Flat Screen Ceiling / Desk Mount - Ideal for mounting screens from the ceiling, floor or to a desktop BT7553 - Flat Screen Ceiling / Desk Mount - Ideal for mounting screens from the ceiling, floor or to a desktop Available in Black, Chrome or White Suitable for desk mounting

Specification Sheet

Specification Sheet (PDF)

Specification Sheet - US (PDF)



Installation Guide

Installation Guide (PDF)



Technical Drawing

Technical Drawing (PDF)

Technical Drawing (DXF)
