Wall Mounted Fixed AV Storage Tray

BT7889

Easy Storage of AV Equipment




The BT7889 is the ideal solution for discreet fixing of AV equipment, such as power supplies, media players and video conferencing equipment behind a screen. The storage tray can be wall mounted by the side or underneath the screen mount,  if space is limited, the tray can be positioned over the top of the mount. AV accessories are easily fitted to the removable storage tray using the supplied cable ties which can also be used for cable management.

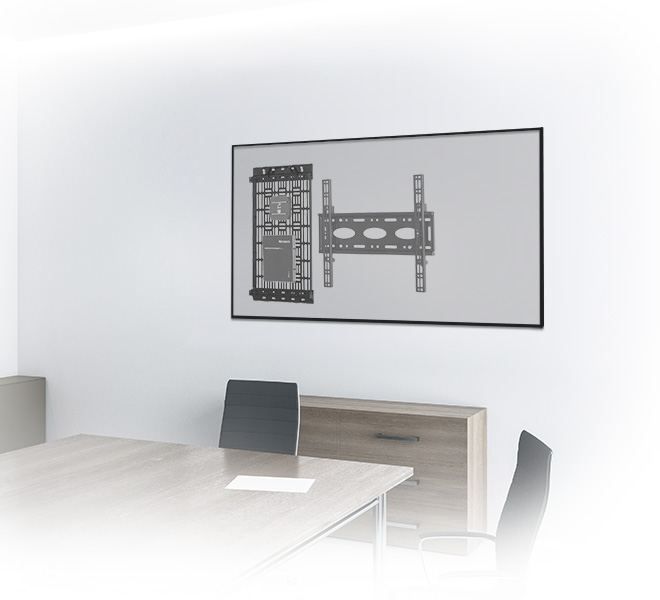

  • Wall mount designed for storing AV equipment behind a screen
  • Suitable for a variety of different sized AV devices
  • Low profile design

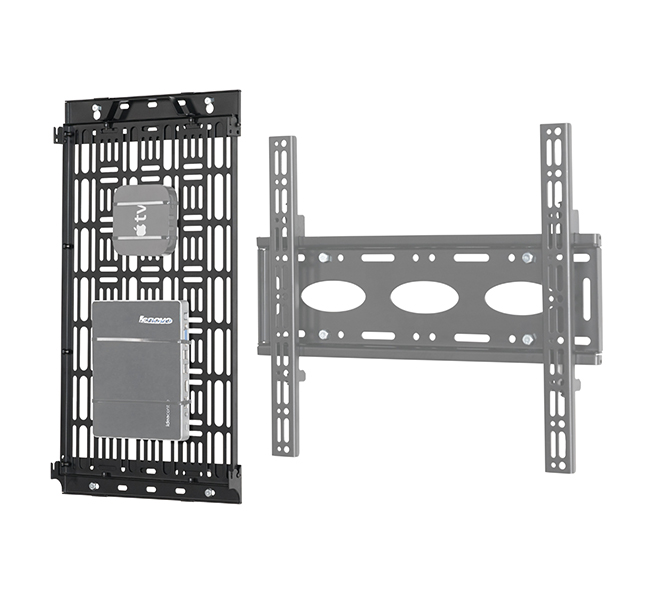

  • Mounts to the side, above or below a flat screen wall mount
  • In limited spaces the tray can be mounted directly over the top of a compatible screen wall mount*    *Min. width of screen interface arms 400mm / Max. depth of flat screen wall plate 18mm

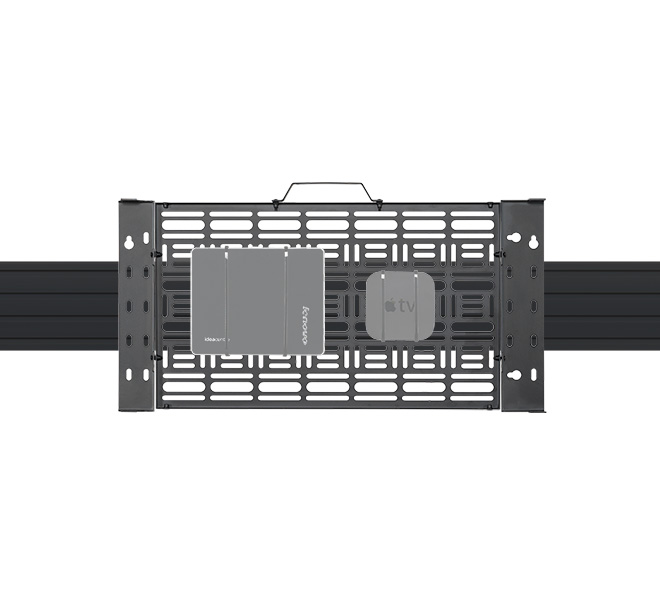

  • Also mounts to System X BT8390 Rails
  • Suitable for a landscape or portrait installation

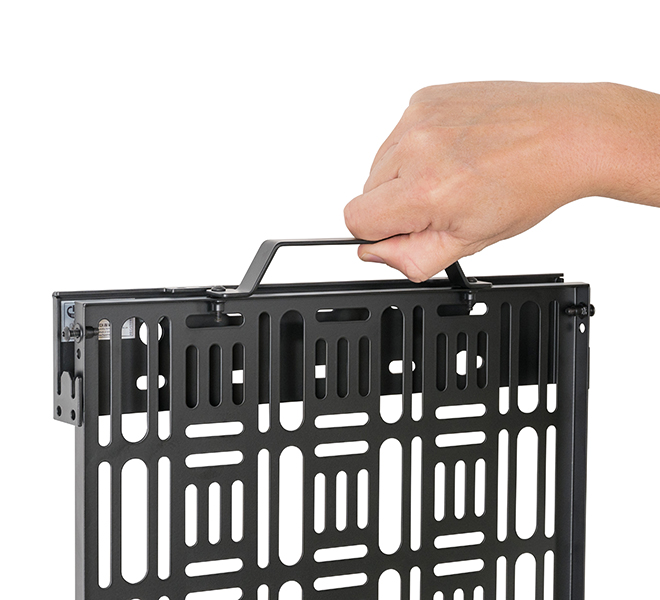

  • Features a handle for quick access to and easy handling**

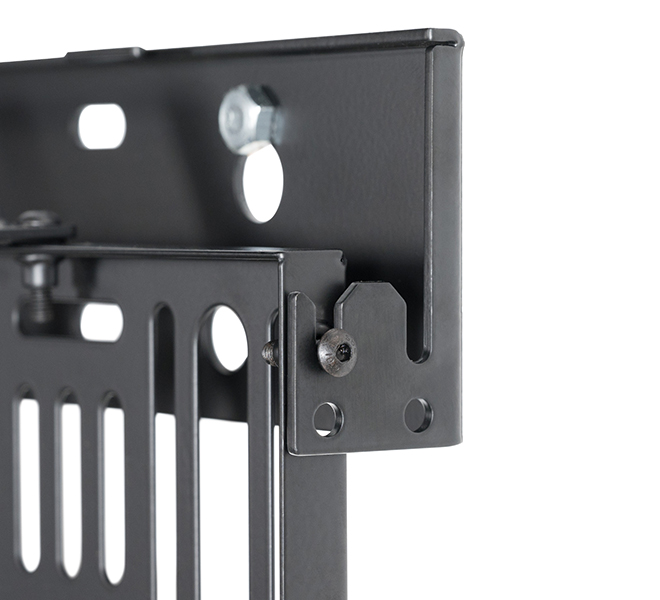

  • Hook-on functionality, allows the tray to be accessed without screen removal

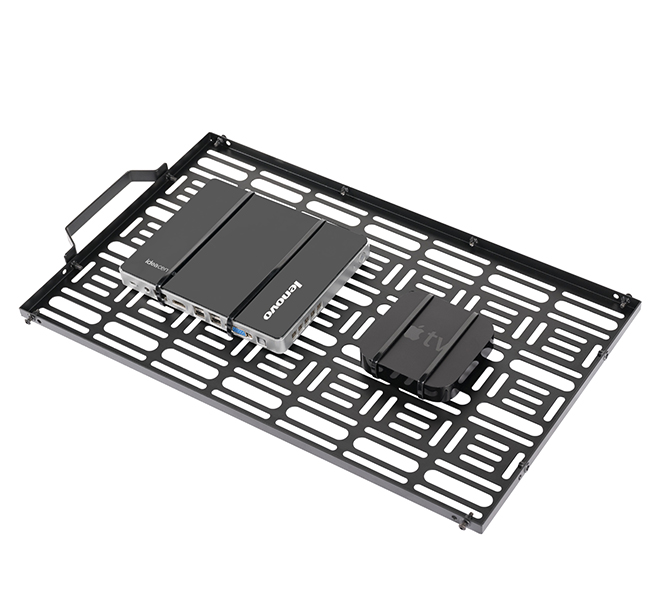

  • Selection of cable ties included to secure AV equipment to tray and for cable management

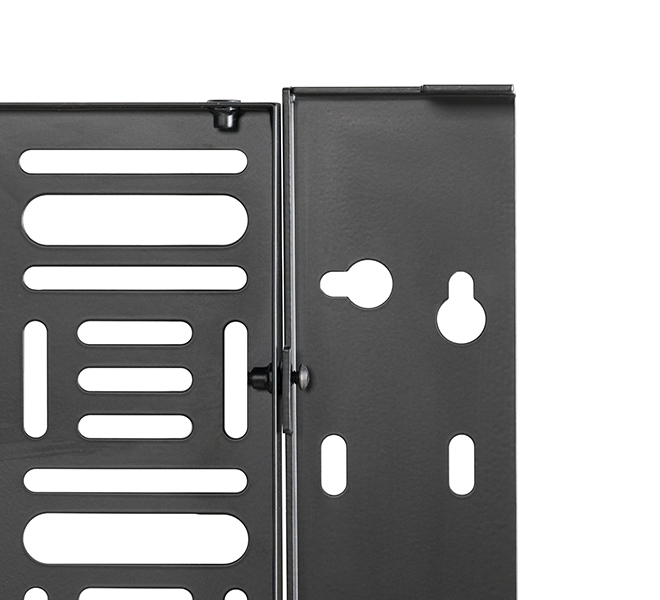

  • Keyhole wall mounting for an easy installation

    ** Optional: A padlock (not supplied) can be added to mount to prevent easy removal of the tray from the wall mount
  • Max load: 10kg (22lbs)
  • Max AV equipment size: 450 x 280mm (18.9" x 11")
  • Depth from wall: 32mm (1.25")
BT7889 - Interchangeable trays

Specification Sheets

Specification Sheet - English (PDF)

Technisches Datenblatt - Deutsch (PDF)

Specification Sheet - US Letter (PDF)



Installation Guide

Installation Guide (PDF)

Montageanleitung - Deutsch (PDF)



Technical Drawing

Technical Drawing (PDF)
