Flat Screen Wall Mount With Slide-Out AV Storage Tray

BT7883

Easy Access to AV Equipment

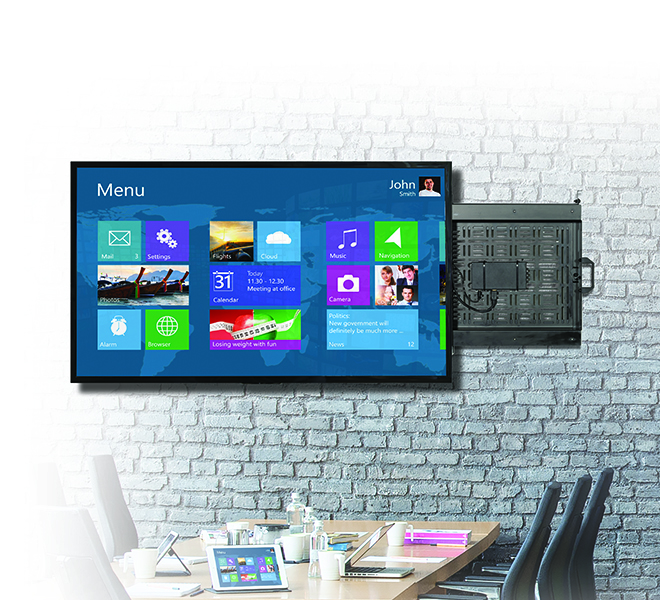

The BT7883 is a screen mounting solution with an integrated slide-out tray for storing AV equipment behind the screen. Featuring a quick release equipment interface plate which can be separated from the mount, AV equipment can be easily added or removed from the install without needing to remove the screen first. The tray mechanism is tool-less for ease and speed of use, with the option to add a padlock (not included) to help prevent unauthorised access to the equipment. To ensure cables do not get tangled or pinched when the tray is opened and closed, an integrated cable management track moves in unison with the tray. The BT7883 is suitable for wall mounting as well as to B-Tech’s System 2 poles and System X/Mode-AL columns.







  • Flat screen mount designed to hold & hide AV accessories behind a screen
  • Can be mounted so tray slides open on the left or right side of the screen
  • Tool-less operation of tray movement
  • Interface Arms includes levelling screws to adjust the screen height
  • All accessories can be accessed, removed or added when in open position without  screen removal
  • Quick release function of tray so equipment can be easily removed from tray & serviced
  • Locks in closed & open positions & can be secured with a padlock (padlock not included)
  • Compatible with B-Tech's System X / Mode-AL columns & with B-Tech collars for pole mounted installations
  • Additional trays available for purchase to allow for fast change over of AV equipment
  • All mounting hardware included
  • Recomended Screen Size: 46" (116.84cm) - 75" (190cm)
  • Max screen weight: 70kg (154lbs)
  • VESA fixings: up to 200 x 200 - 600 x 400
  • Depth from wall: 100mm (4")
  • Max equipment dimensions: H:424mm (16.7") W:335mm (13.2") D:65mm (2.5")
  • Max tray extension (from wall mount): 850mm (33.4")

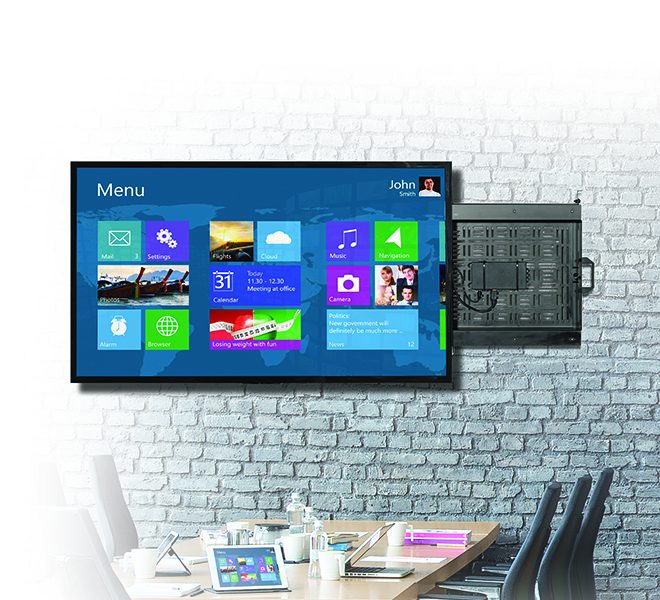

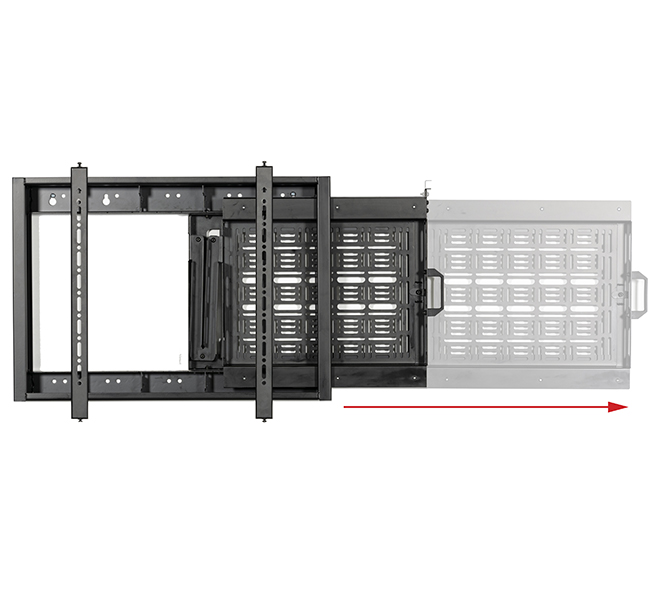

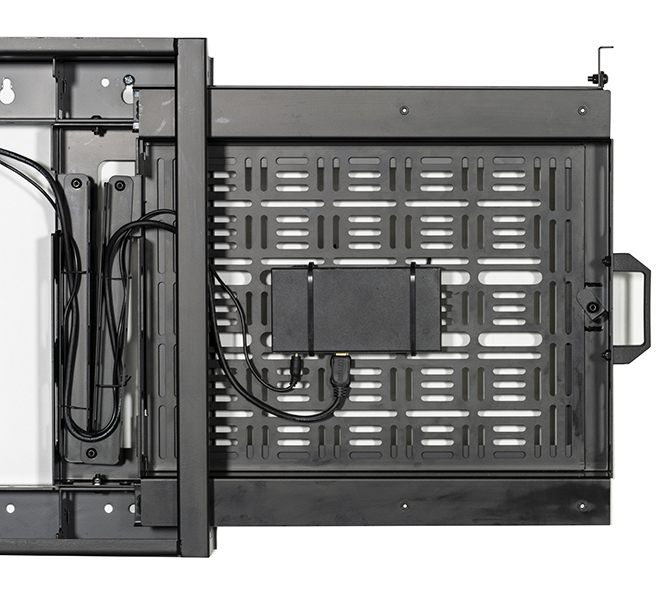

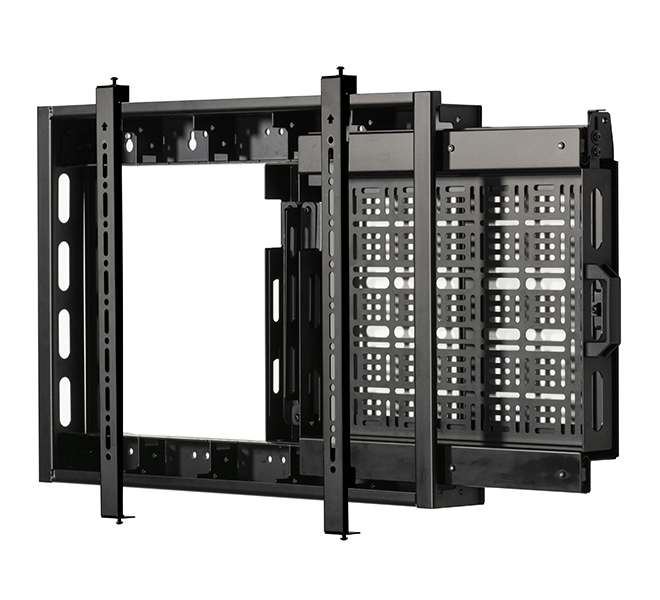

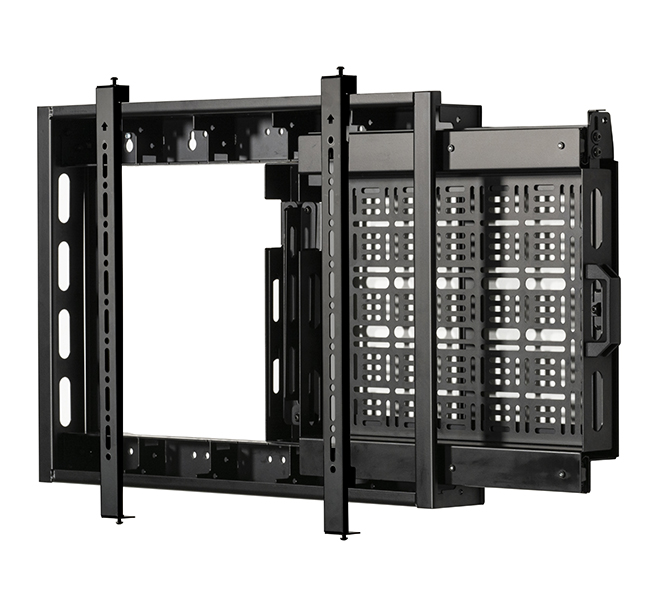

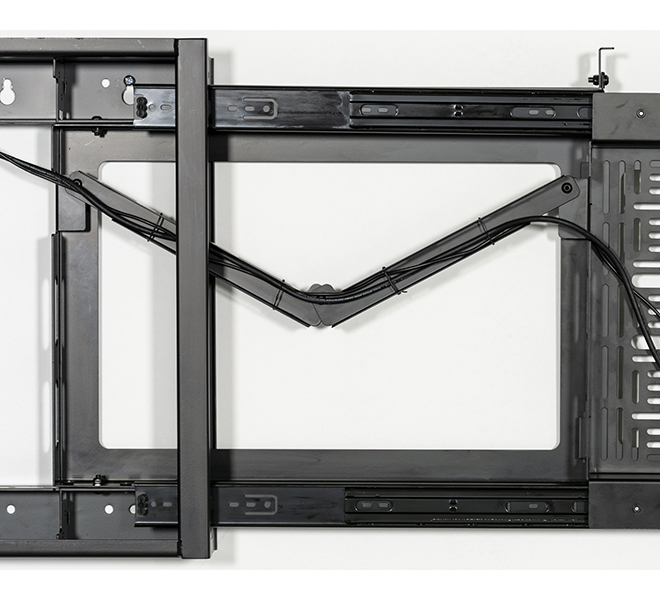

BT7883 - Flat Screen Wall Mount With Side-Out AV Storage Tray BT7883 - Side-Out AV Storage Tray Retracted BT7883 - Side-Out AV Storage Tray Extended BT7883 - Side-Out AV Storage Tray Cable Management

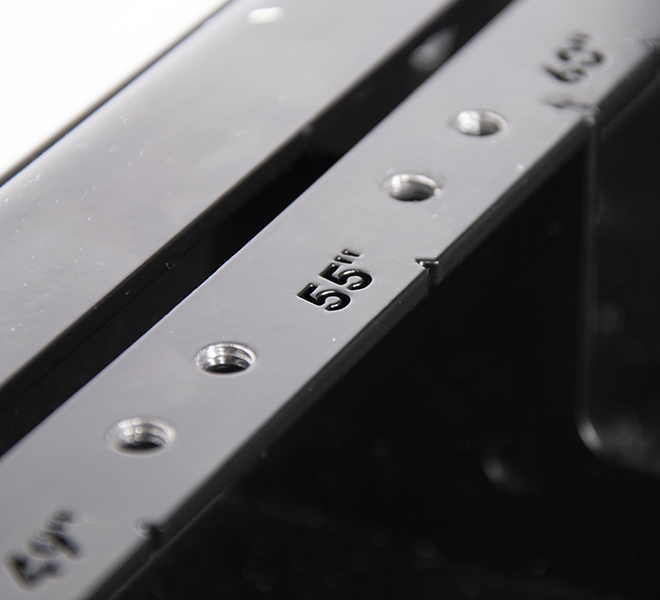

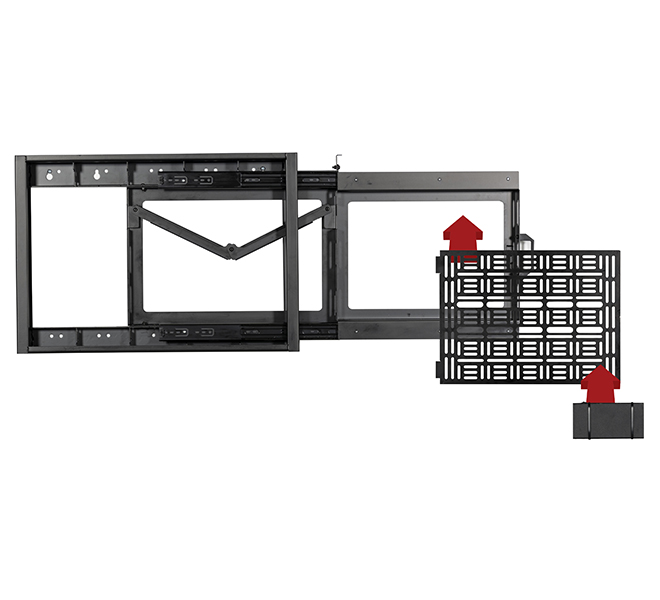

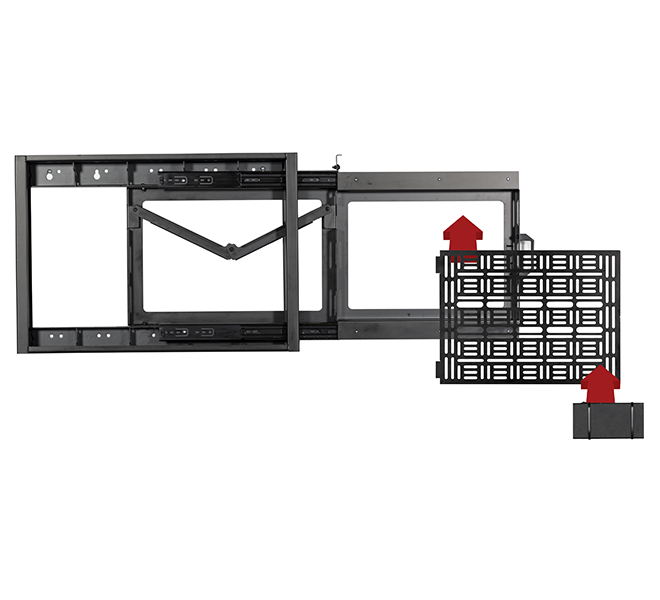

BT7883 - Service AV equipment without screen removal BT7883 -  Adjusts to fit screens from 32 inches BT7883 - Quick release equipment tray BT7883 - Flat Screen Wall Mount With Side-Out AV Storage Tray

Product Overview Video
