Floor-To-Ceiling Mounting Kit

BT8385-FTC

Mode-AL Component Range

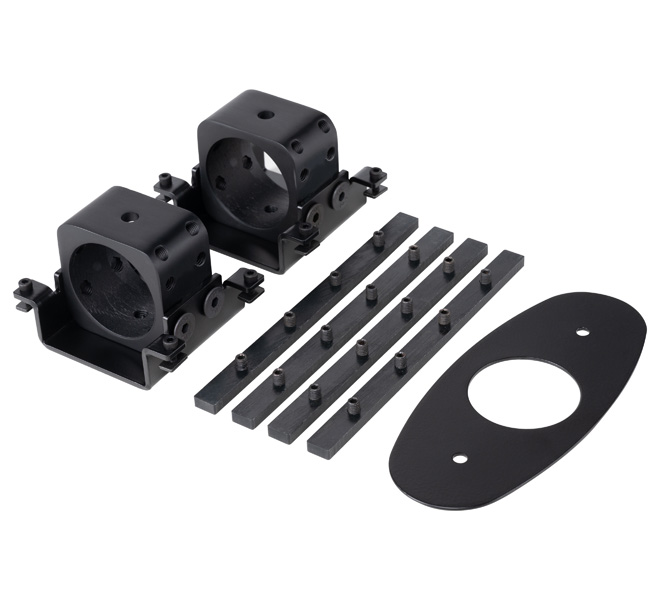

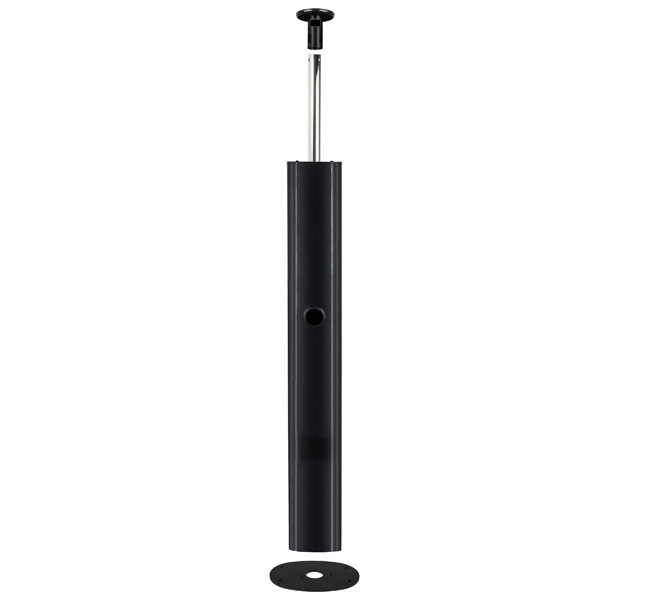

	BT8385-FTC is a floor-to-ceiling mounting kit that allows Mode- AL installations the capability of being mounting from the floor to the ceiling with the additional use of a B-Tech 50mm diameter pole and ceiling mount. The mounting kit is easily installed by removing the BT8385 column’s back plate and fixing onto the slots within the column. The column should be fixed to the floor using a BT8385-BDB Bolt Down Base and secured to the ceiling using a suitable ceiling mount, such as BT7822. Extension bars are included so vertical columns can be joined together if required.

For use with BT8385 Vertical Column, BT7850 Pole,
BT7822 Ceiling Mount & BT8385-BDB Bolt Down Base

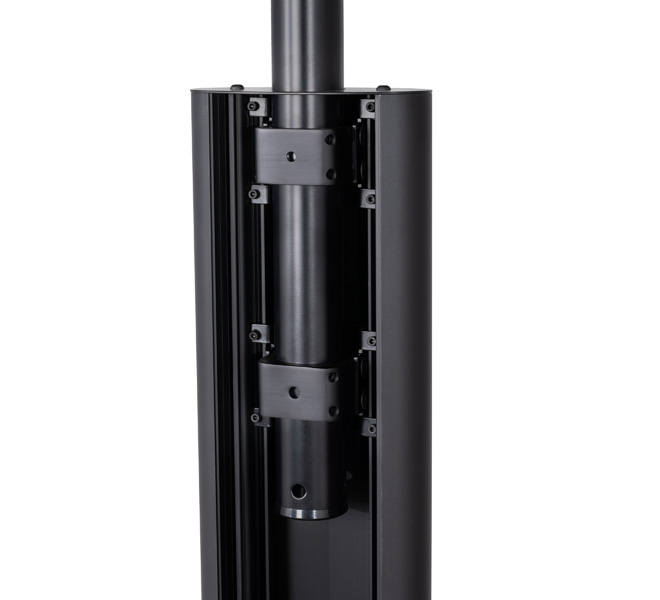

Fitted easily to the inside of a BT8385 Vertical Column

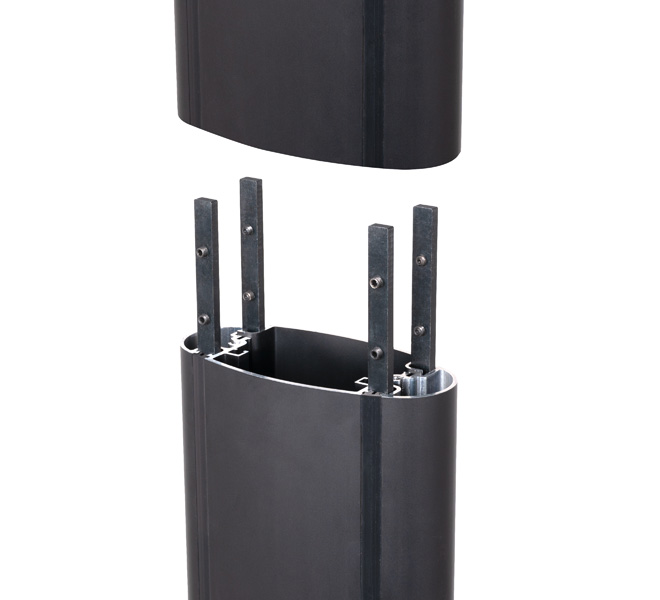

Supplied with Extension Bars for joining Vertical Columns together
for extended heights if required
End cap supplied for a smart finish
Integrated cable management allows cables to run through the
end cap and through the centre of the pole and column
Can be used to create large scale videowall installations - ideal for
applications such as control rooms
