Horizontal Wall Plate

BT5226-HWL

For use with BT5226

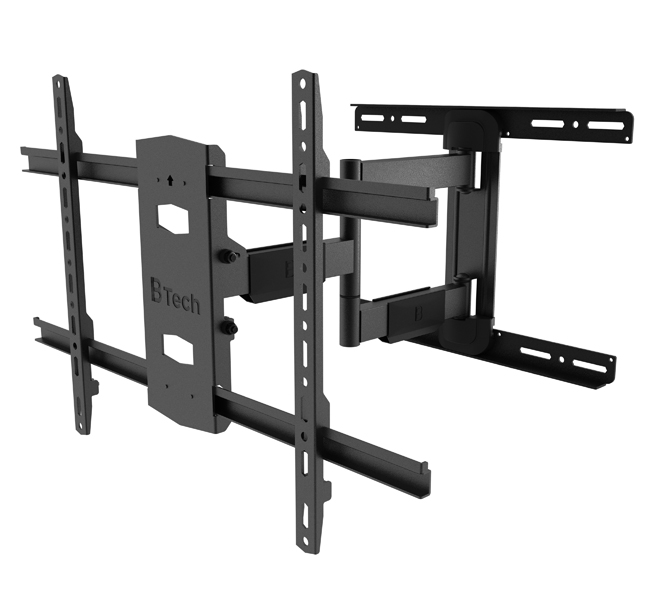

BT5226-HWL is an adaptor designed to mount the BT5226 double arm wall mount onto 16" stud walls. The horizontal plates offer a wider wall fixing option, converting the BT5226 from a single stud mount to a dual stud mount, simply add the adaptors onto the back of the BT5226 wall plate and continue with the screen installation.








  • Use wall plate adaptors with a BT5226 flat screen mount
  • Ideal for mounting across 16" stud walls
  • Simple assembly and installation

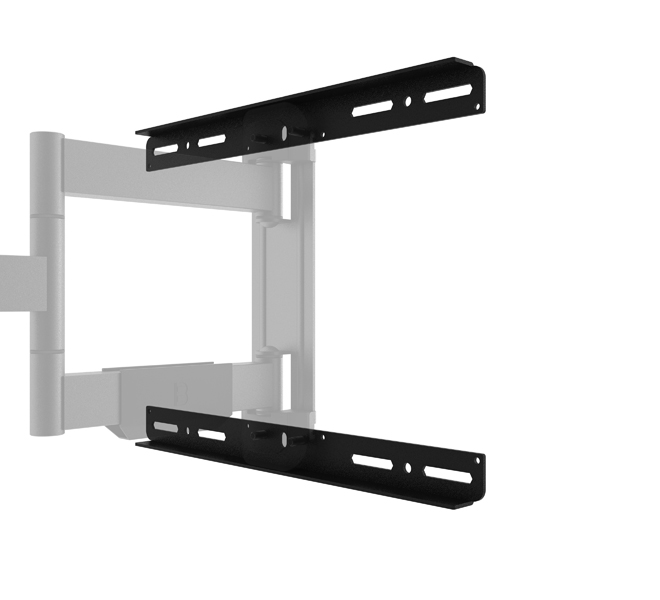

  • Mounts to the top and bottom of the BT5226 wall plate
  • All mounting hardware included
  • 100% plastic free packaging

(When attached to the BT5226 max load and screen size specifications remain the same as stated on the BT5226)

  • Recommended Screen Size: up to 65" (165cm)
  • Max load: 35kg (77lbs)
  • VESA® compatibility: up to 600 x 400
  • Tilt: 12° downward / 2° upward
  • Screen levelling: +/-5°
  • Swivel: 180°
  • Distance from wall: Min: 57.6mm (2.3") - Max: 497.8mm (19.6")
  • Colour: Black



BT5226-HWL - Horizontal Wall Plate BT5226-HWL - Horizontal Wall Plate BT5226-HWL - Horizontal Wall Plate  BT5226-HWL - Horizontal Wall Plate
BT5226-HWL - Horizontal Wall Plate BT5226-HWL - Horizontal Wall Plate BT5226-HWL - Horizontal Wall Plate BT5226-HWL - Horizontal Wall Plate

Specification Sheet

Specification Sheet - English (PDF)



Installation Guide

Installation Guide (PDF)



Technical Drawing

Technical Drawing (PDF)
