Universal Portrait Flat Screen Floor Stand - 1.8m

BTF843

For extra-large screens




The BTF843 is a premium mounting solution designed to mount extra-large screens in a portrait orientation. A heavy duty steel base eliminates the need to bolt to the floor and adjustable levelling feet are included to accommodate uneven surfaces. The high-end aesthetic with an anodised aluminium finish and integrated cable management ensures finished installations are neat and tidy, making the BTF843 ideal for use in professional or commercial applications.






  • Universal design suitable for XL screens mounted in a portrait orientation
  • High-end aesthetic quality
  • Heavy duty steel base construction provides stability, eliminating the need to bolt to the floor
  • Can also be bolted to the floor to help prevent unauthorised relocation of the display
  • Supplied with adjustable levelling feet to accommodate uneven floor surfaces
  • Arms feature levelling screws to adjust the screen height
  • Collar compatible accessories such as shelves (available separately) can be fitted
    directly to the column
  • Integrated cable management for a neat and tidy installation
  • Safety screws help prevent unauthorised screen removal
  • Simple ‘hook-on’ screen installation
  • All mounting hardware included
  • Recommended screen size: 60" (152cm) to 85" (216cm)
  • Max load: 70kg (154lbs)
  • VESA® and non-VESA fixings: up to 600mm x 800mm
  • Dimensions W: 890mm (35") H: 1841mm (72.5") D: 604mm (23.8")
  • Colour (column): Black or Silver
  • Colour (rails): Silver
  • Colour (base & arms): Black

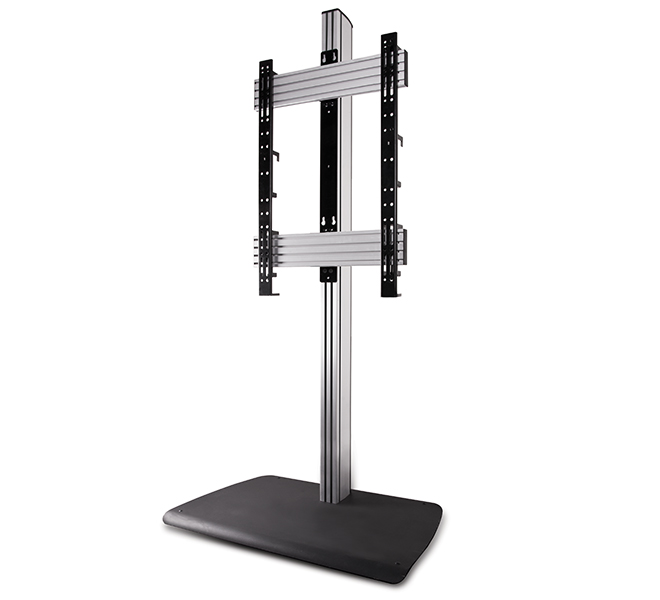

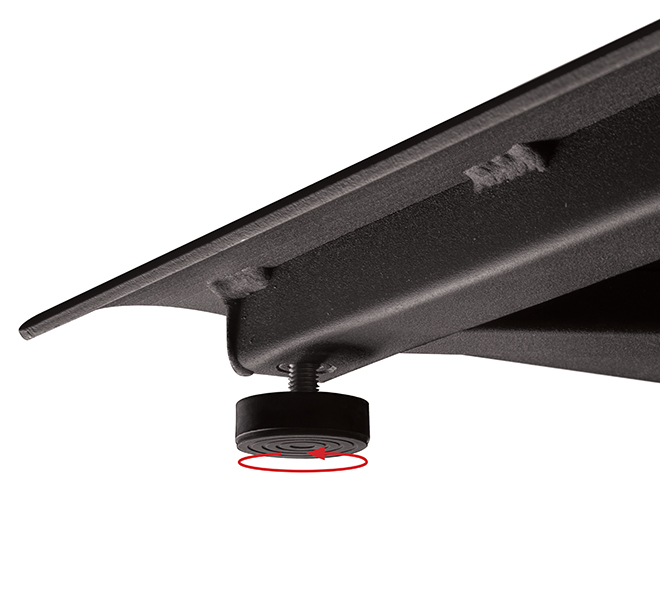

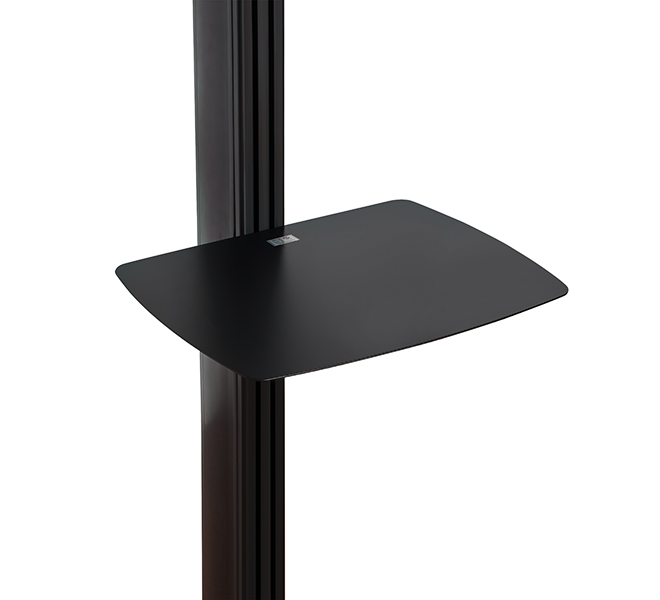

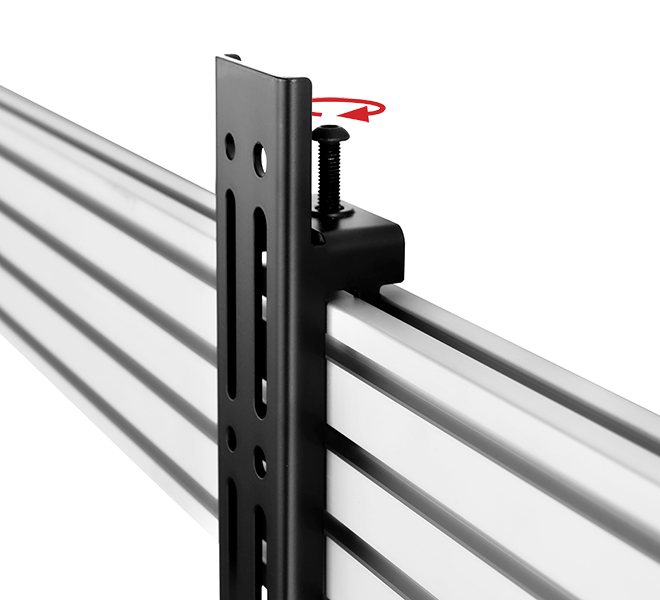

System X™ Universal Portrait Flat Screen Floor Stand - 1.8m Supplied with adjustable levelling feet to accommodate uneven floor surfaces Collar compatible accessories such as shelves (available separately) can be fitted directly to the column Arms feature levelling screws to adjust the screen height

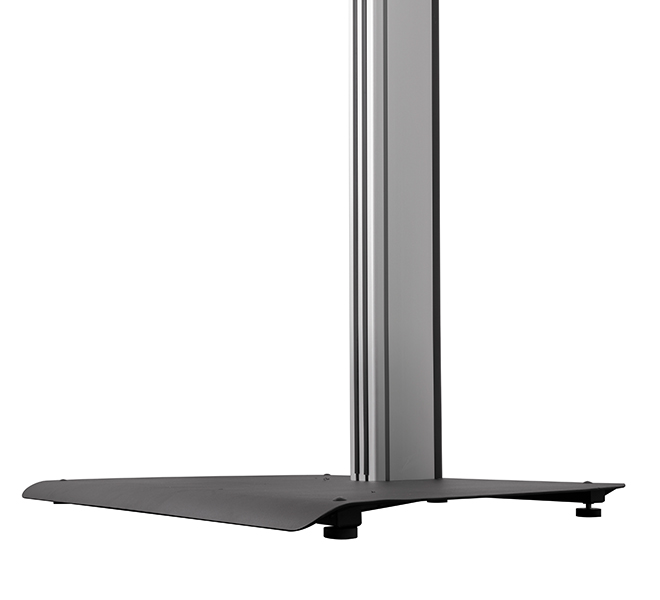

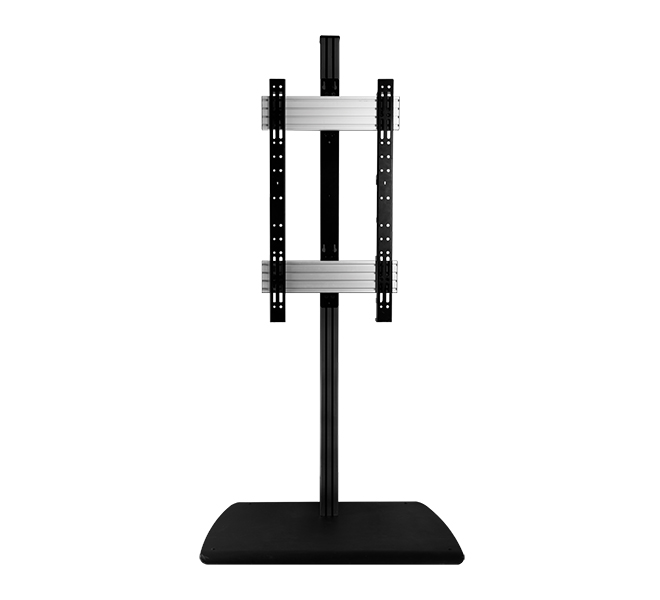

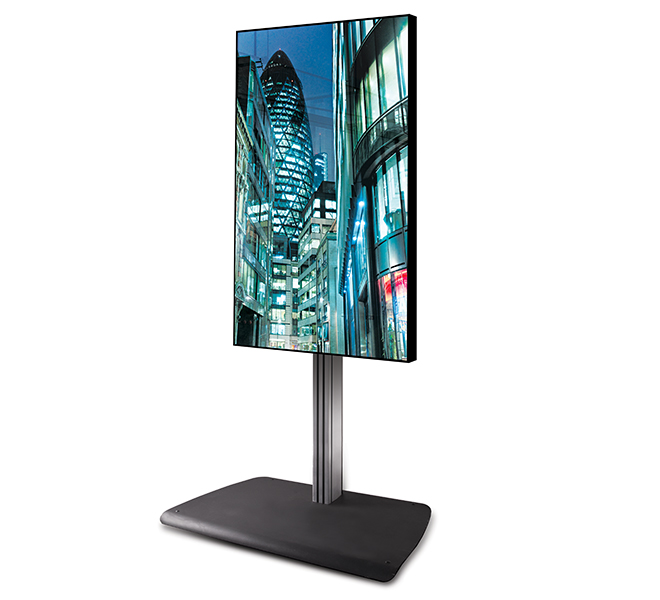

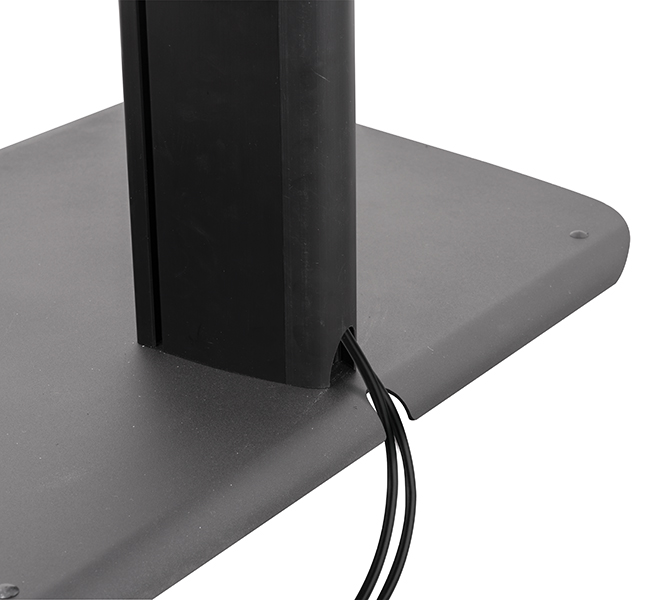

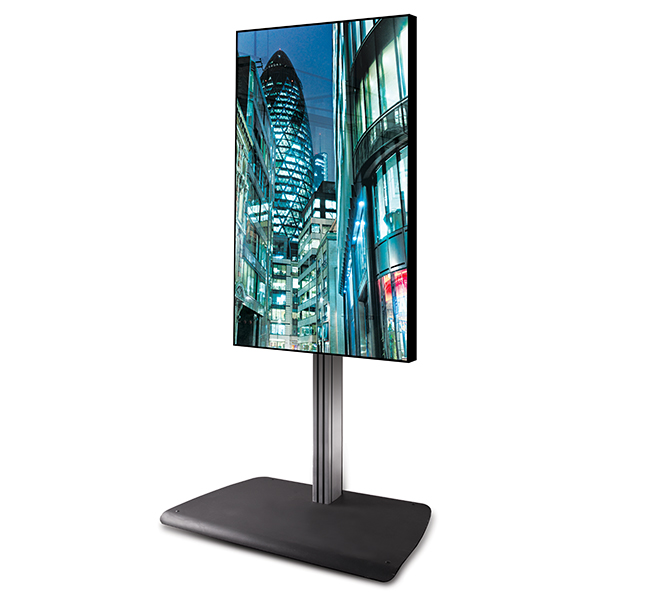

Integrated cable management for a neat and tidy finish BTF843 - Base with adjustable levelling feet BTF843 - Front View (Available in Black) BTF843 - With Screens
