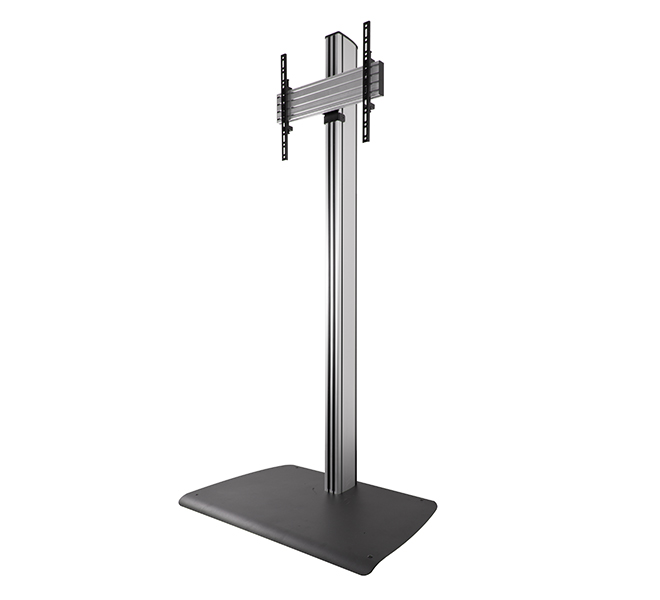

System X™ Universal Flat Screen Stand

BTF840

For portrait and landscape mounting




The BTF840 is a premium mounting solution designed to mount screens up to 75" in either landscape or portrait orientation. A heavy duty steel base eliminates the need to bolt to the floor and adjustable levelling feet are included to accommodate uneven surfaces. The high-end aesthetic with an anodised aluminium finish and integrated cable management ensures finished installations are neat and tidy, making the BTF840 ideal for use in professional or commercial applications.






  • Universal design suitable for mounting screens in a landscape or portrait orientation
  • Heavy duty steel base construction provides stability, eliminating the need to bolt to the floor
  • Can also be bolted to the floor to help prevent unauthorised relocation of the display
  • Supplied with adjustable levelling feet to accommodate uneven floor surfaces
  • Arms feature levelling screws to adjust the screen height
  • Collar compatible accessories such as shelves can be fitted directly to the column
  • Integrated cable management for a neat and tidy installation
  • Safety screws help prevent unauthorised screen removal
  • Simple ‘hook-on’ screen installation
  • Recommended screen size: 39" (99cm) -75" (190cm)
  • Max load: 70kg (154lbs)
  • VESA® & non-VESA fixings (as standard): up to 430mm x 400mm*
  • VESA® & non-VESA fixings (with included adaptors): up to 600mm x 400mm*
  • Dimensions: W: 890mm (35") H: 1841mm (72.5") D: 604mm (23.8")
  • Colour (column and rail): Black or Silver

    *As standard the maximum fixing dimension is 400mm. Increase either the
    horizontal or vertical fixing to 600mm using the included interface adaptor arms.

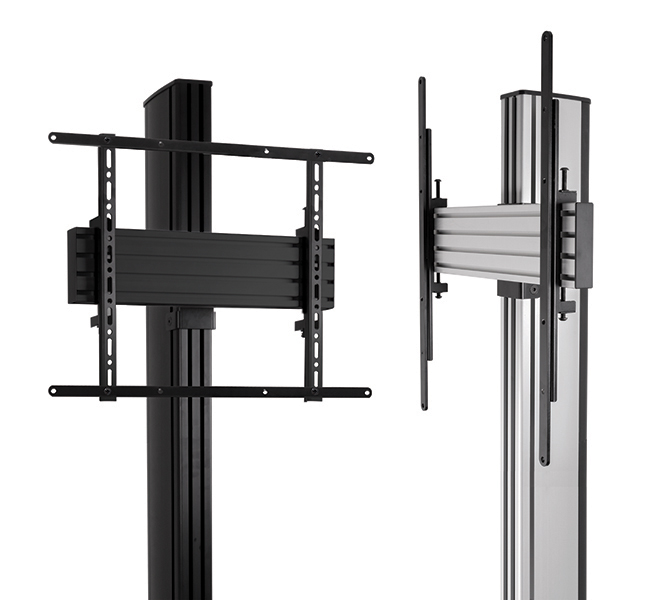

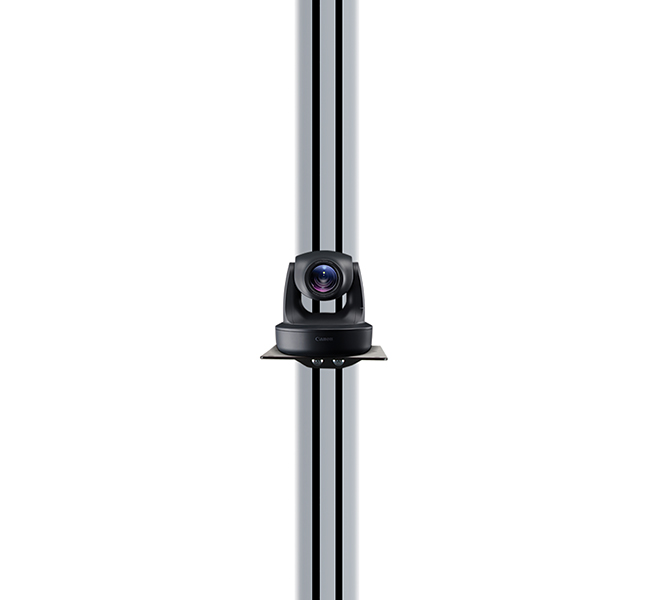

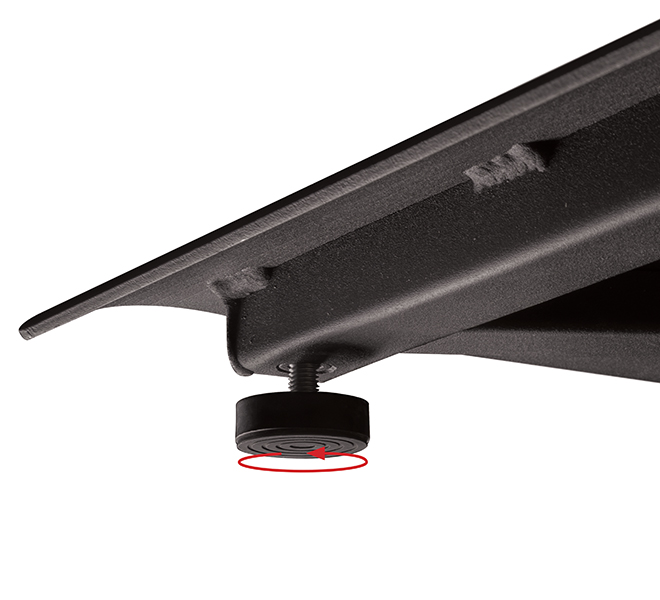

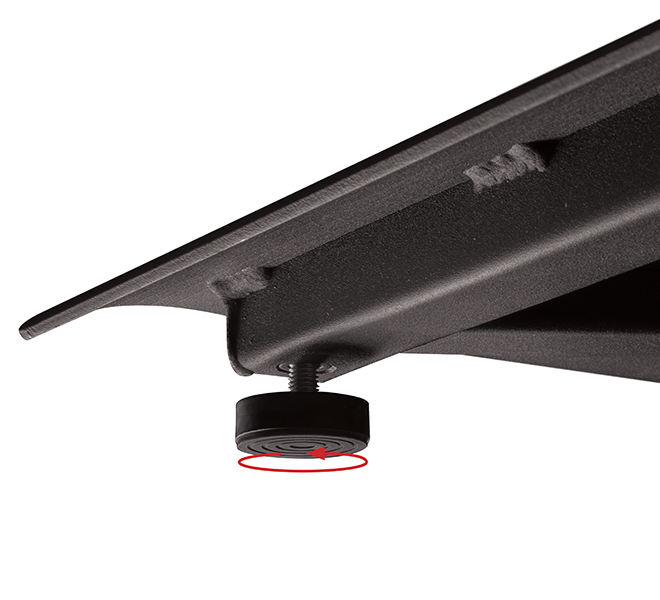

System X™ Universal Flat Screen Floor Stand - 1.8M Maximum VESA fixing can be increased to 600mm using the included  adapter arms Supplied with adjustable levelling feet to accommodate uneven floor surfaces Collar compatible accessories such as shelves (available separately) can be fitted directly to the column

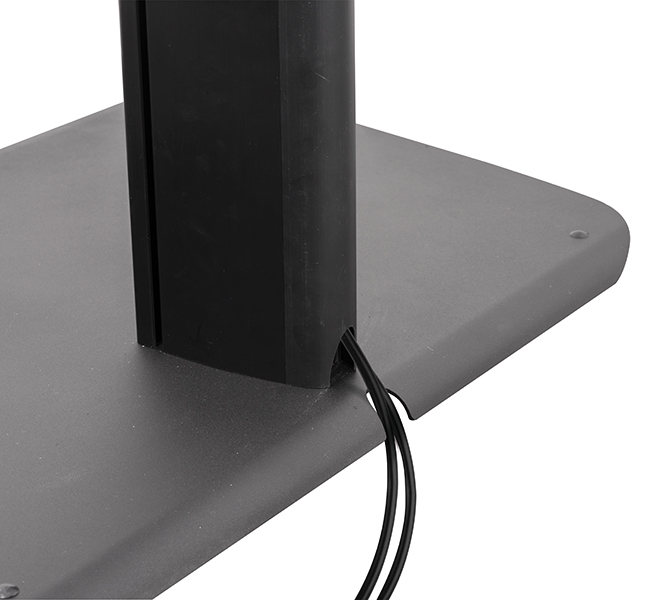

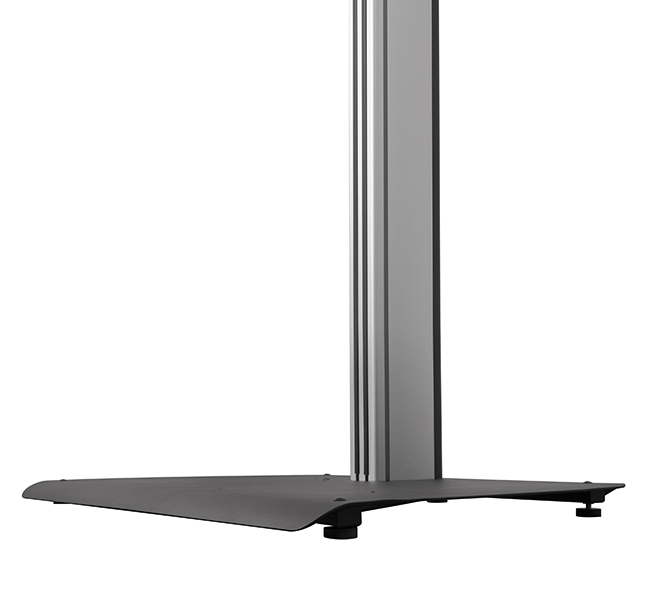

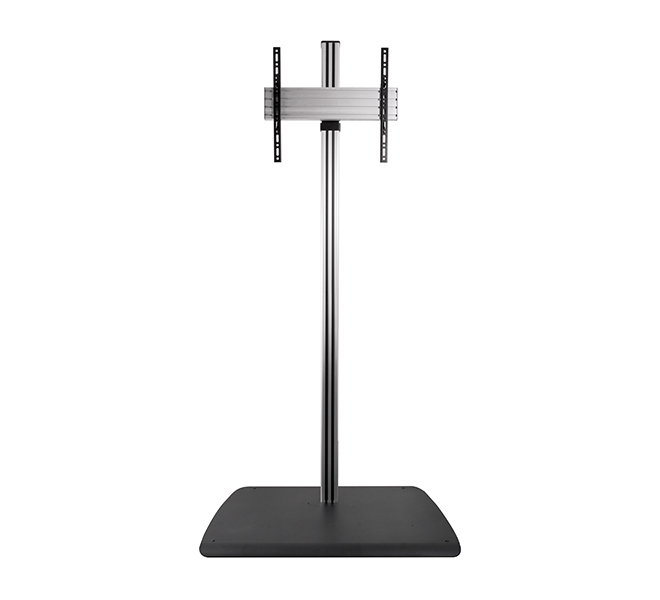

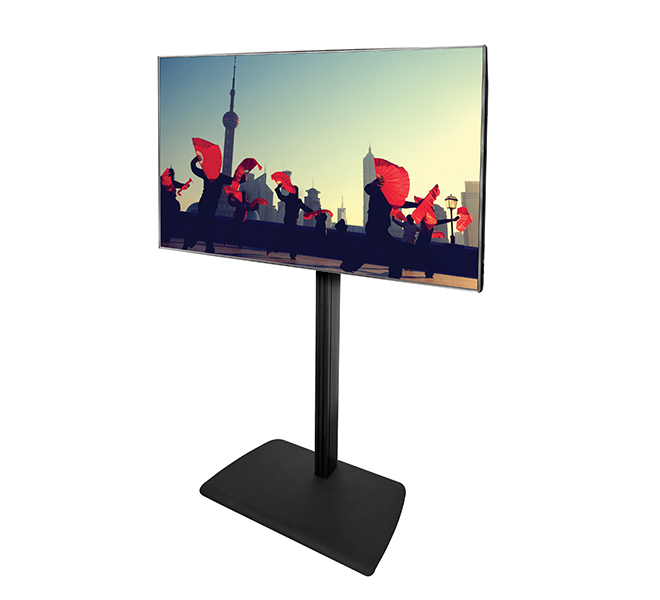

Integrated cable management for a neat and tidy finish BTF840 - Base with adjustable levelling feet BTF840 - With Screen (Available in Black) BTF840 - Front View

Specfication Sheets

Specification Sheet - English (PDF)

Fiche de Spécifications - Français (PDF)



Installation Guide

Installation Guide (PDF)



Techinal Drawings

Technical Drawing (PDF)

Technical Drawing (DXF)
