System X™ Rail Mounting Bracket

BT8390-WFK1

 For use with BT8390 rails

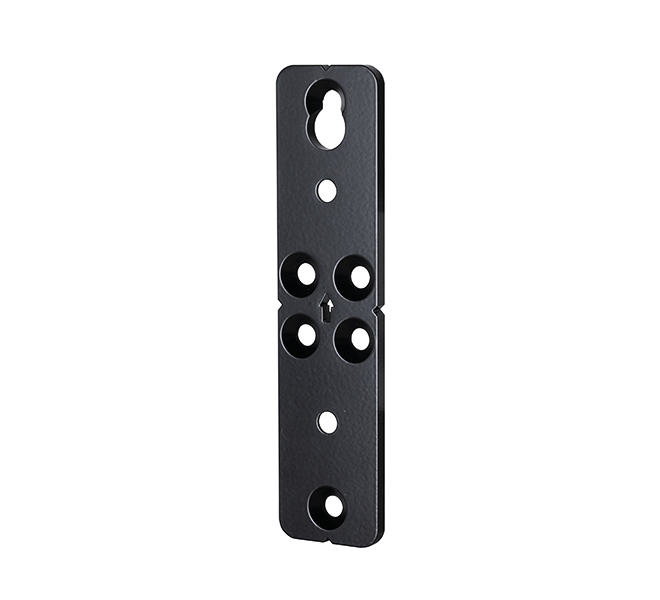

The BT8390-WFK1 is a bracket designed to fix BT8390 mounting rails onto walls and poles, for the installation of menu boards and other multi-screen configurations. The slim yet sturdy 5mm thick plate is designed for installations using the System X range and keeps the profile of finished installations to a minimum.



TUV Logo

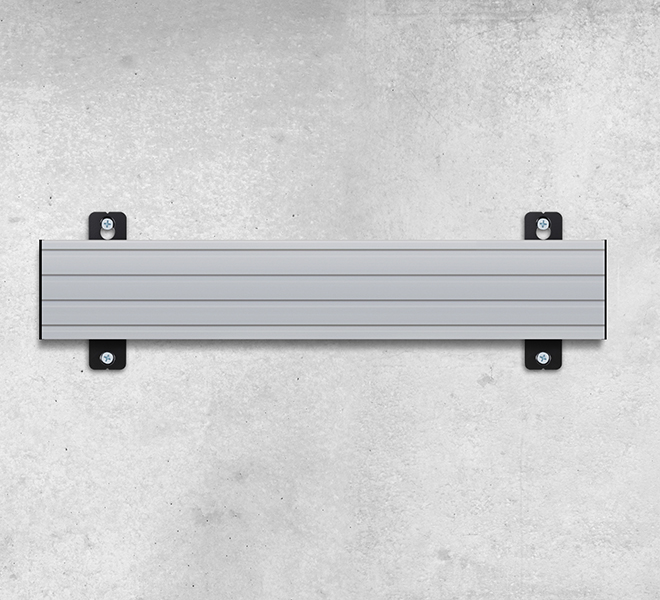

  • Designed to allow BT8390 horizontal rails to be mounted to the wall and poles

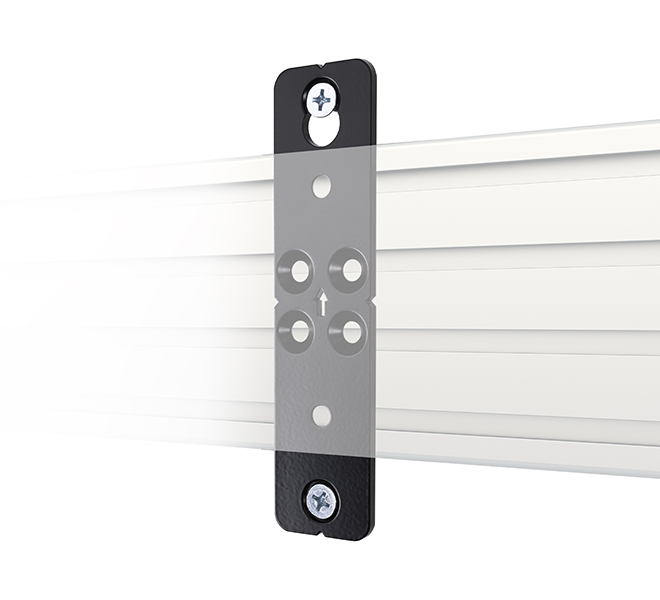

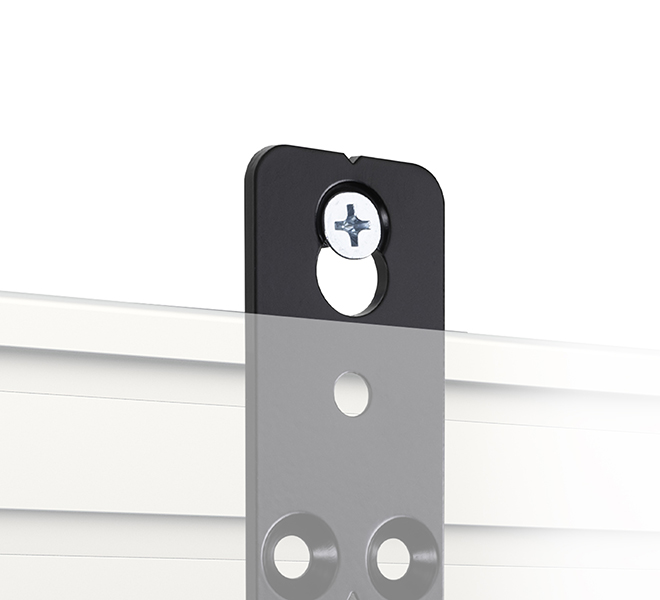

  • Keyhole mounting for easy installation

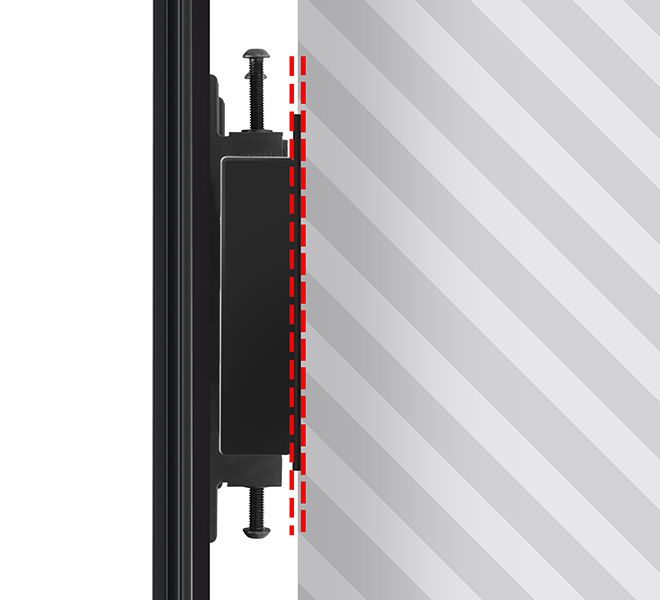

  • Ideal for close-to-the-wall installations, mounting rails only 5mm from the wall
  • Countersunk screws sit flush with the plate for a neat installation
  • Vertical and Horizontal Centre Guides make positioning easy

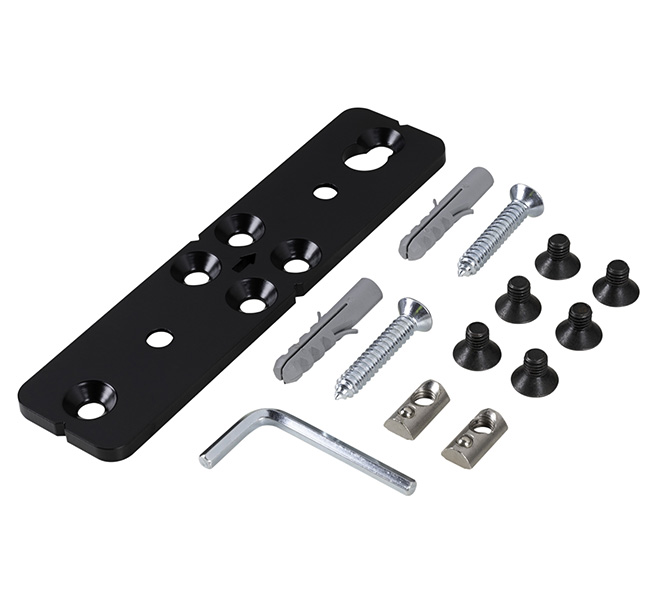

  • All mounting hardware included
  • TUV certified
  • Distance from wall (to front of rail): 36mm (1.4")
  • Colour: Black
  • Brackets supplied (per pack): 1
  • Quantity of brackets required per rail length (landscape installs):*
    Rail Length              Qty
    0 - 2000mm             2pcs
    2001 - 3500mm       3pcs
    3501 - 5500mm       4pcs
    5501 - 7750mm       5pcs
    7751 - 8500mm       6pcs

    *Use B-Tech's online configuration tool to automatically calculate the quantity required based on your configuration.
BT8390-WFK1 - System X Rail Mounting Bracket - 5mm BT8390-WFK1 - System X Rail Mounting Bracket - 5mm BT8390-WFK1 - System X Rail Mounting Bracket - 5mm BT8390-WFK1 - Keyhole Mounting for Easy Installation

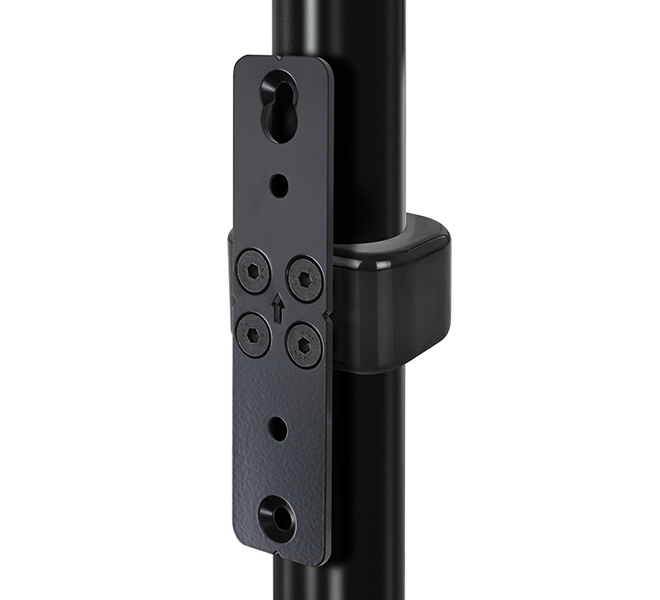

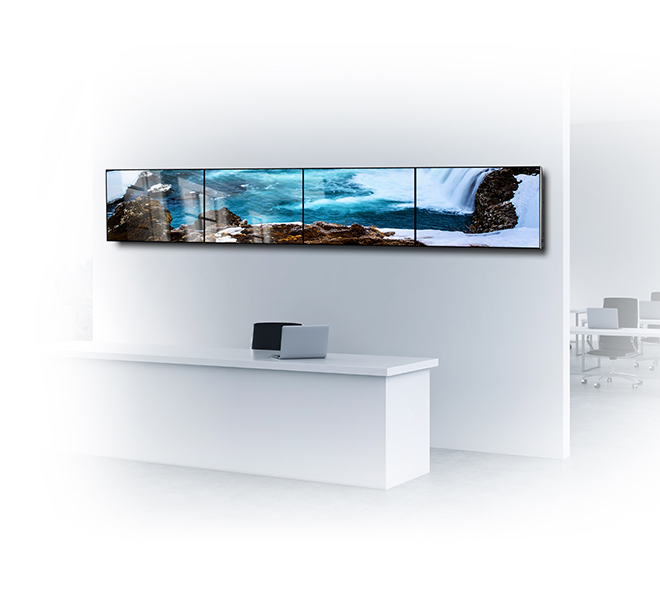

BT8390-WFK1 - Ideal For Mounting Rails Only 5mm From The Wall BT8390-WFK1 - Suitable for Pole Mounting BT8390-WFK1 - All mounting hardware included BT8390-WFK1 - Suitable for Mounting Menu Boards

Specification Sheets

Specification Sheet (PDF) - English

Karta Specyfikacji (PDF) - Polskie

Specification Sheet - US Letter (PDF)



Installation Guide

Installation Guide (PDF)



Techical Drawing

Technical Drawing (PDF)



Greensheet

Greensheet (PDF)
