System X™ Wall-To-Wall Rail Mounting Brackets

BT8390-WFK4

 Mounts between opposing walls

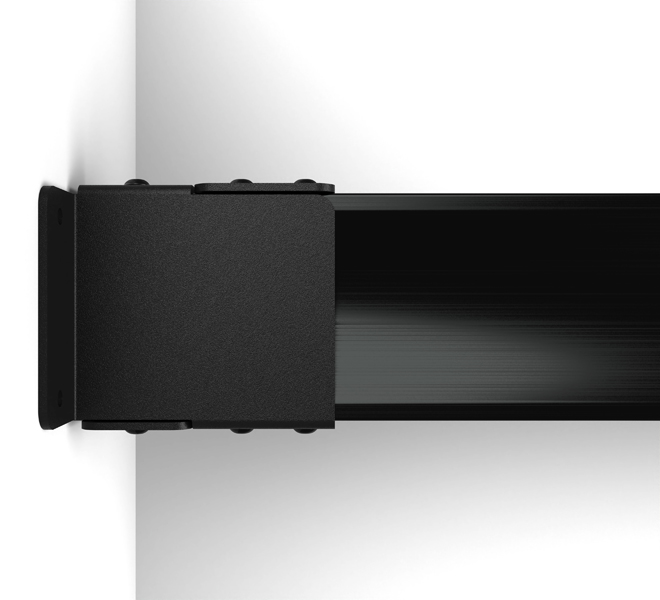

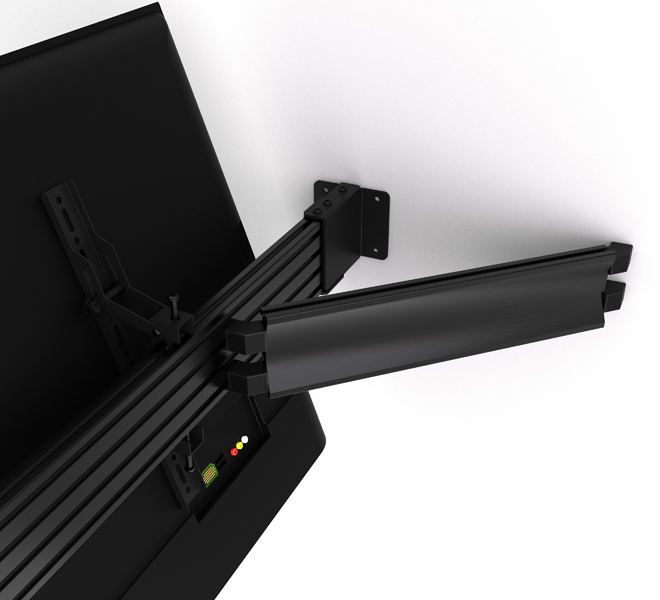

The BT8390-WFK4 is a bracket designed to fix BT8390 mounting rails between opposing walls, for the installation of menu boards and other multi-screen configurations. The plates fix the ends of the rail to the wall at a 90° angle, and are ideal for installations where the back wall is not present or is unsuitable for mounting.






  • Designed to allow BT8390 horizontal rails to be mounted between walls
  • Ideal for mounting between opposing walls, where the wall behind the rail is
    not present or is unsuitable for mounting
  • 2m rail length can be exceeded with the use of corner supports*

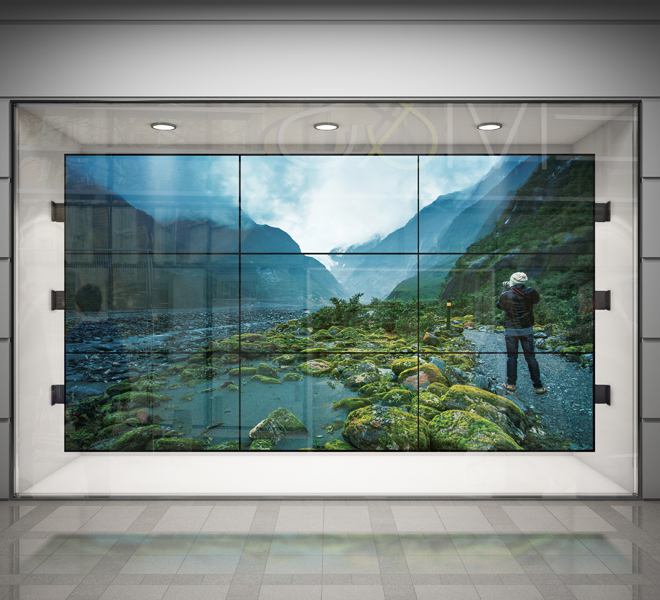

  • When creating video walls, bracing the horizontal rails together is recommended,
    using an additional rail (mounted vertically)*

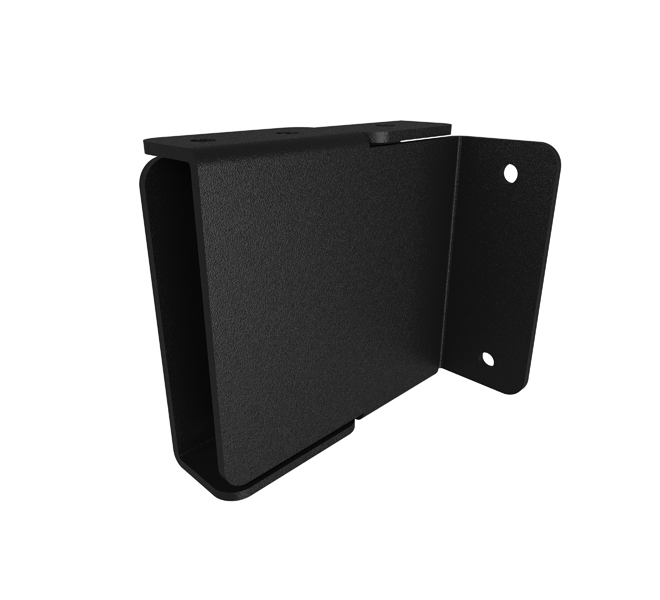

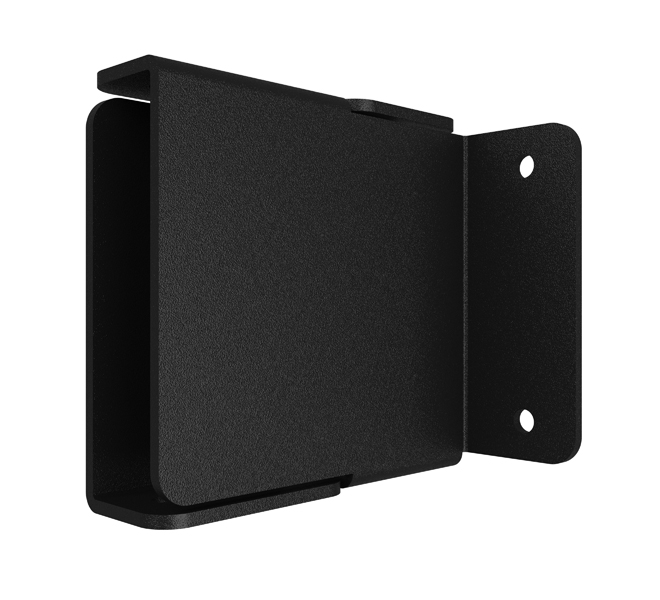

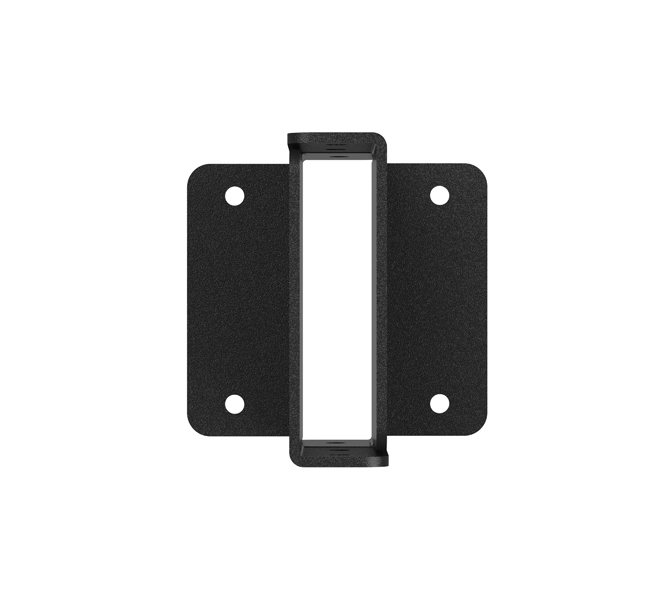

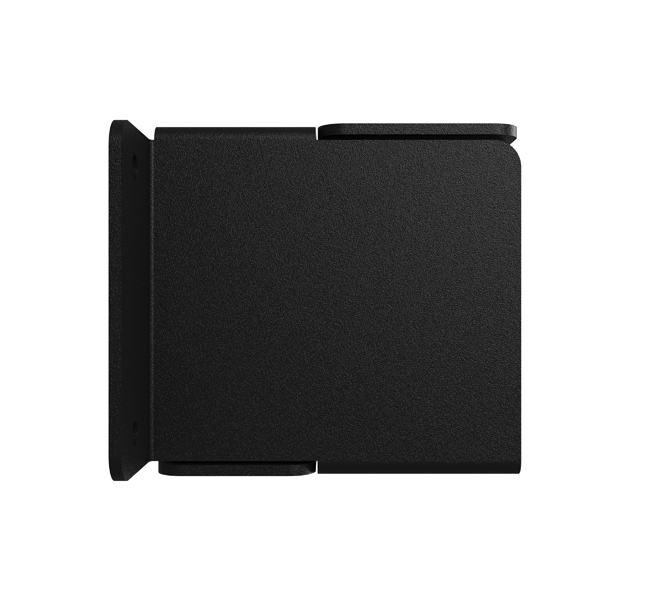

  • 4 mounting plates supplied per kit, 2 plates are used at each end of the rail

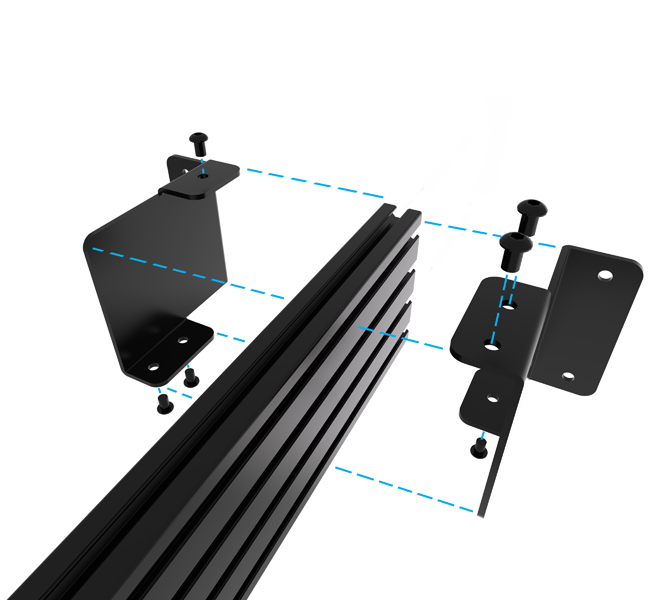

  • All mounting hardware included

    *For larger installs, up to 4.5m corner supports must be used, contact your
    account manager for further details
  • Compatible interface arms: Any System X arms
  • Max load when used with rails under 2m (78.7"): 120kg (265lbs)
  • Max load with rails from 2m (78.7") up to Max. 4m (157"): 50kg (110lbs)
  • Distance from wall to front of rail: 35mm (1.4")
  • Brackets supplied per pack: 4
  • Max distance between walls: 4m* (157")

    *For larger installs, with over 2m+ rails corner supports must be used, contact your
    account manager for further details
