Modular Free Standing Video Wall Mount

BT8350

For Screens up to 50kg (110lbs)

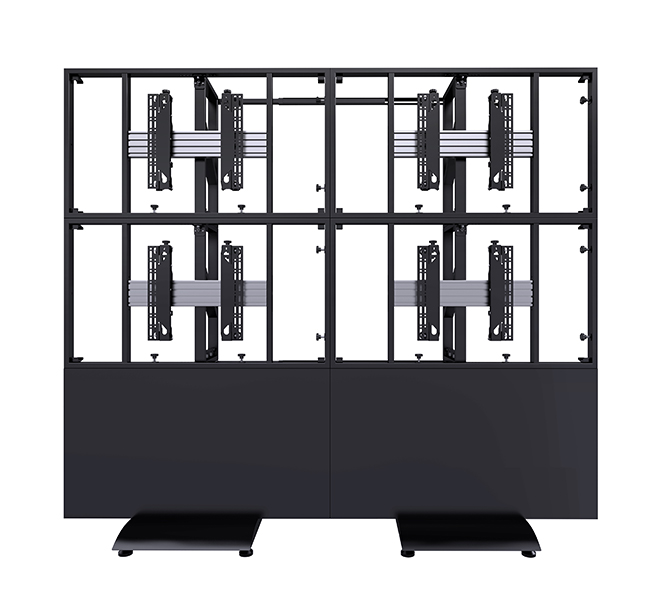

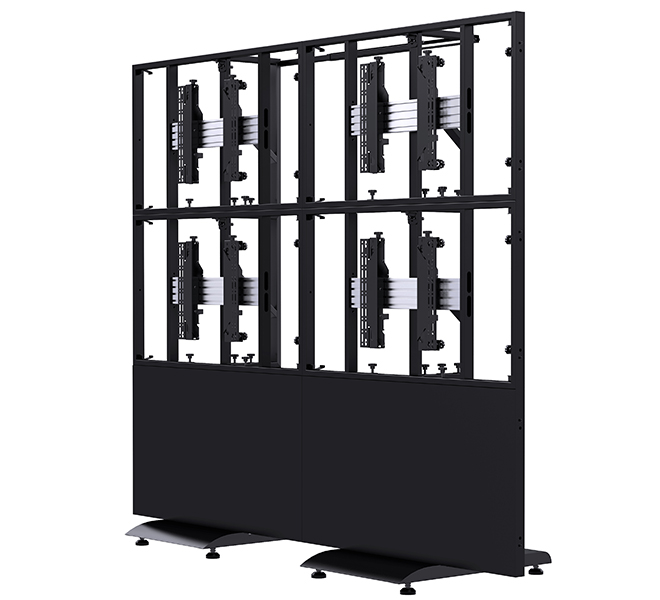

The BT8350 is a modular freestanding video wall mounting system. Available for use in both landscape and portrait configurations, the BT8351 can be used for installations up to 7 rows high and as many columns wide as desired. The modular design and captive, fast-fit connectors make assembly and disassembly of video walls extremely quick and easy whilst 8 point tool-less micro-adjustment allows screens to be perfectly aligned with ease.

Modular design allows for multiple configurations. Order to your specific requirements - anything from a 2x2 to a 7x70 configuration! Click the video wall configurator button below for more information





Video Wall Configurator





bt8350 Professional Free Standing Video Wall Mount with Multiple Configurations














  • Available for 3 screen sizes: 46" 49" and 55"
  • Modular design allows quick and easy assembly and disassembly of videowalls - perfect for rental applications
  • Designed for narrow bezel monitors up to 50kg (110lbs) Order to your exact requirements, anything from 2x2 to 70x7!
  • Available in both landscape and portrait orientation

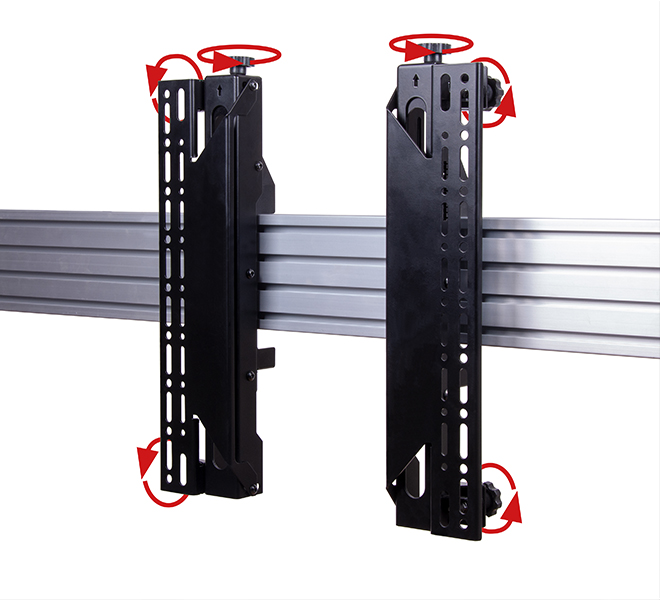

  • Tool-less micro-adjustments at 8 points for seamless display alignment
  • System X mounting interface allows use of different interface arms to suit your needs - micro adjustment or tilt. For pop-out or curved (see BT8351 / BT8352 / BT8353)
  • Floor spacers with cosmetic covers included for smart installation

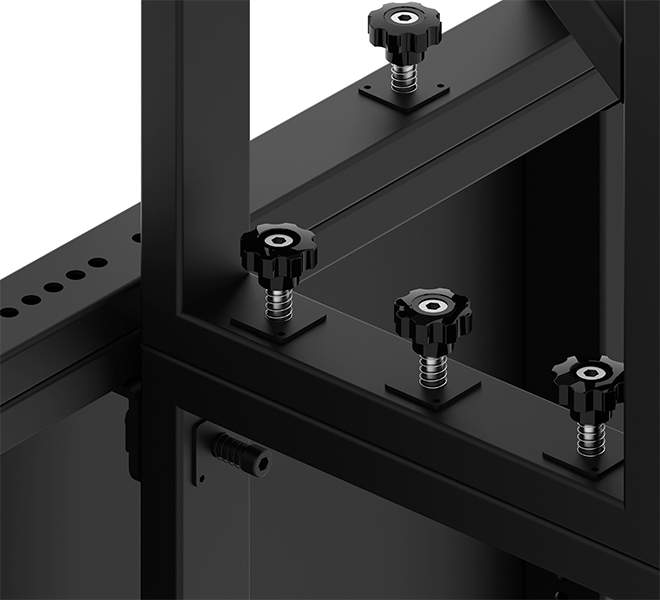

  • Captive handwheels and screws make assembly and disassembly quick and easy
  • Durable Epoxy powder coated frame is ideal for repeated assembly
  • Safety screws help prevent unauthorised removal of screens
  • Base sections can be reversed if desired (ballast support BT8350-WP or BT8350-WB must be added)

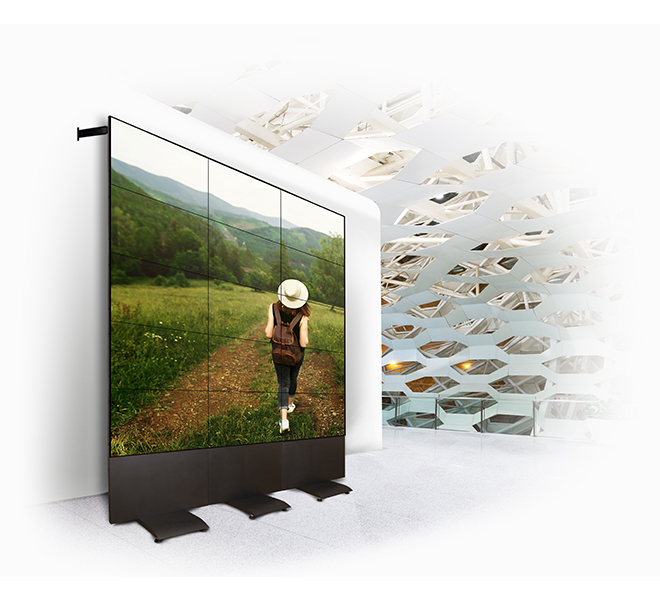

  • Wall tie-back accessories (BT8350-EB and BT8380-WTB) available separately
  • All mounting hardware included

**Landscape / portrait must be specified when ordering, a landscape kit can be used in portrait
orientation with a few additional parts


  • Available for 3 Screen Sizes: 46" 49" and 55"
  • Max Weight: 50kg (110lbs) per monitor
  • VESA Compatibility: 200 x 200 up to 600 x 400*
  • Maximum structure limits
    Columns: Unlimited
    Rows:
    7 with 46" screens in landscape
    6 with 49" or 55" screens in landscape
    3 with 46", 49" or 55" screens in portrait

*BT7564 Adapter will be supplied when the VESA pattern is 600. This will add 6mm to depth of interface arms

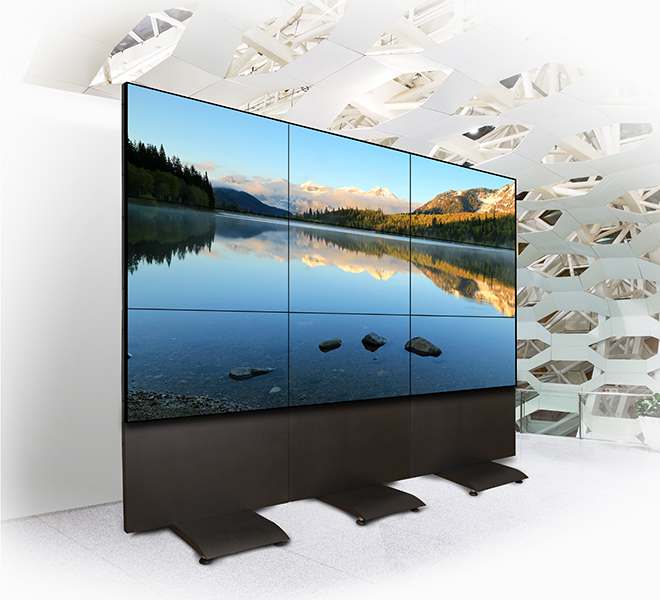

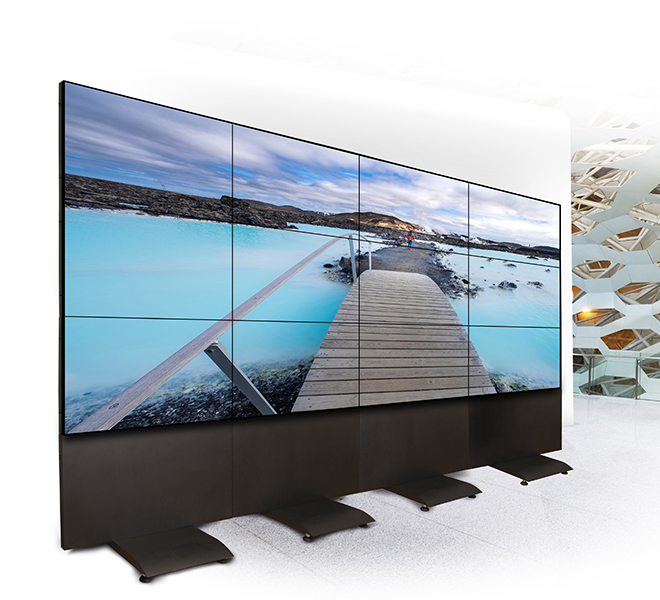

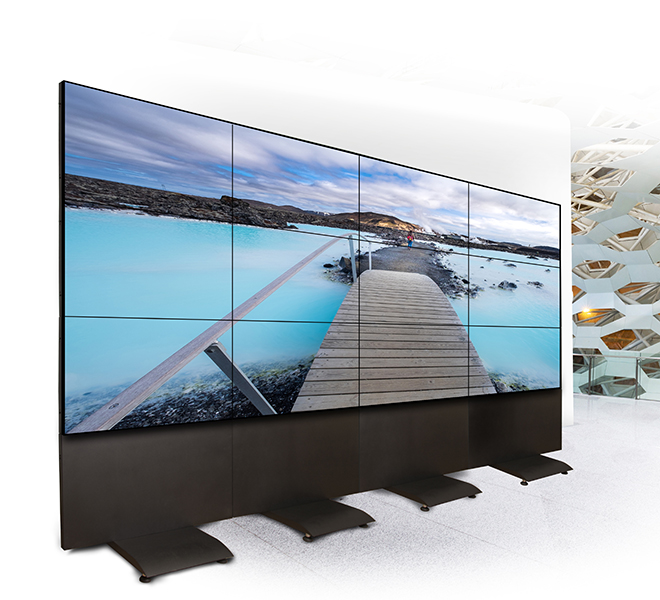

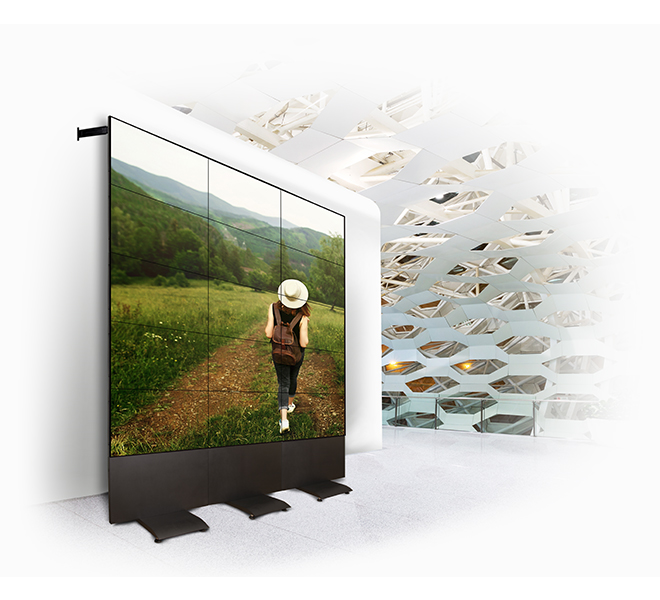

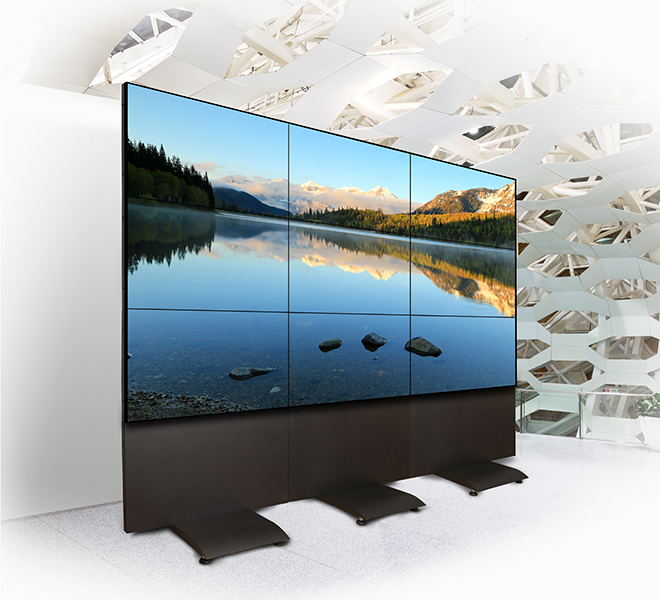

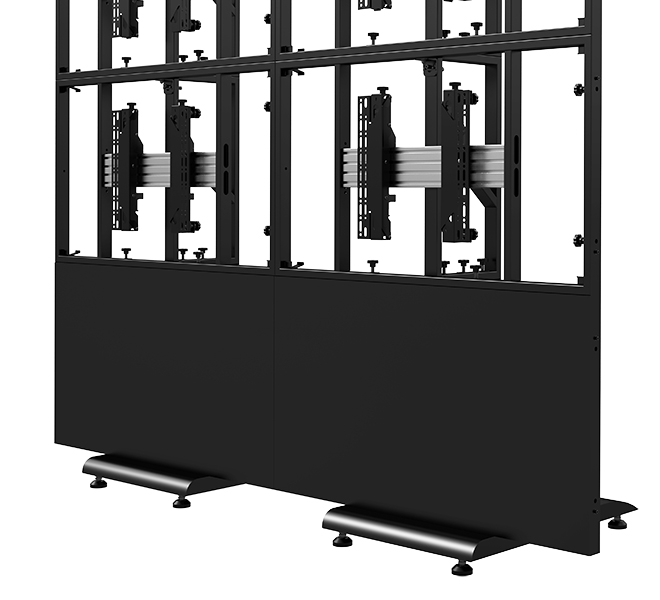

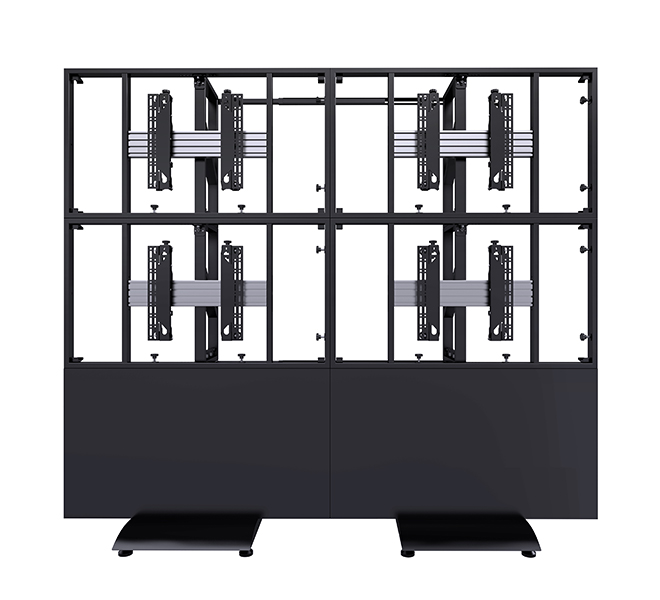

BT8350 - Professional Free Standing Video Wall Mount with Multiple Configurations BT8350 - Professional Free Standing Video Wall Mount with Monitors BT8350 - Professional Free Standing Video Wall Mount with Monitors
BT8350 - Professional Free Standing Video Wall Mount with Monitors BT8350 - Professional Free Standing Video Wall Mount with Monitors BT8350 - Professional Free Standing Video Wall Mount with Monitors mounted close to floor BT8350 - Professional Free Standing Video Wall Mount - Captive Wingnuts and Screws - No Loose Bolts
