Universal Ceiling Mounted Videowall Mounting System

BT8342

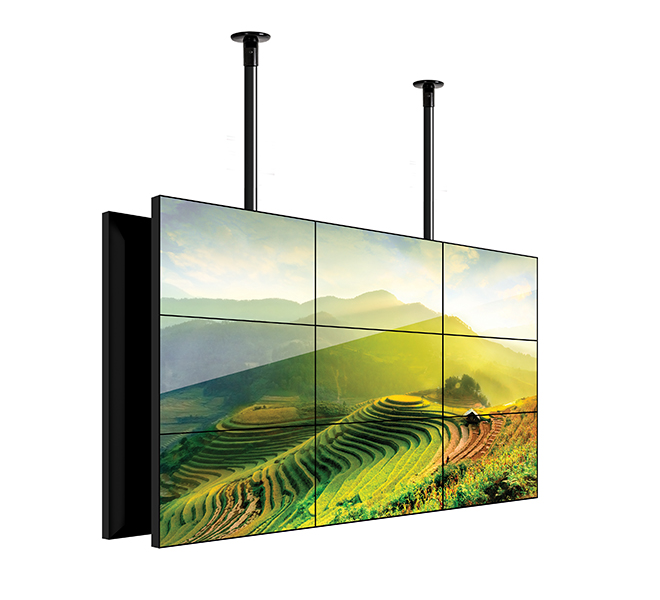

Capable of back-to-back mounting




The BT8342 is a modular ceiling mounting system for video wall installations of any size. The BT8342 can mount screens from the floor or ceiling in landscape or portrait orientations - perfect for digital signage that needs to stand out. As part of the System X range, the BT8342 can be used in thousands of different configurations and is ordered according to your requirements using B-Tech's online configuration tool.

tuv logo





















Configure a BT8342

  • Configurable mounting solution available to order to your requirements from stock -
    see configurator info

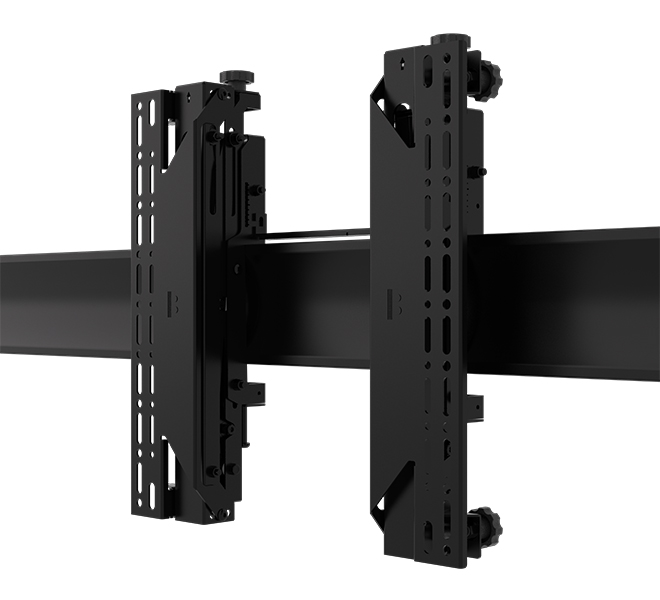

  • Tool-less micro-adjustments for seamless display alignment
  • Suitable for landscape, portrait and back-to-back mounting
  • Capable of mounting from the ceiling or in floor-to-ceiling configurations
  • Safety screws help prevent unauthorised removal of screens

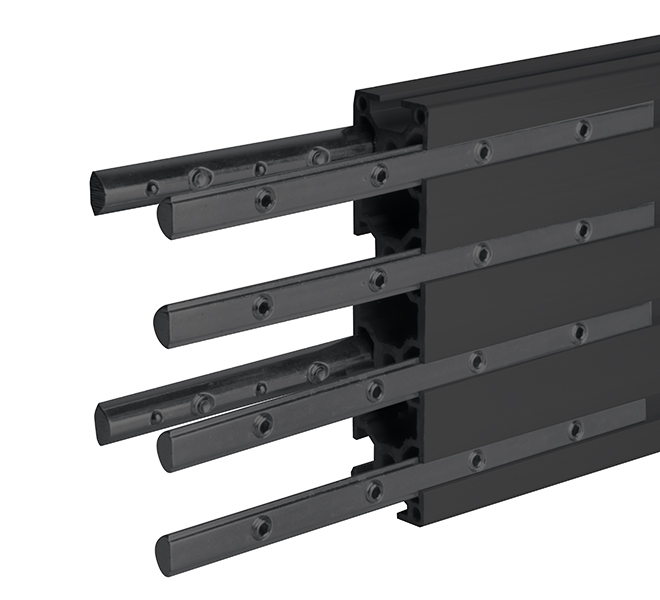

  • Multiple rail and pole lengths available
  • Heavy Duty poles will be automatically supplied with larger installs to cope with
    increased load (heavy duty option only available in black in 2m or 3m lengths)
  • Multiple rail and pole lengths available
  • Simple installation with all mounting hardware included
  • TUV certified
  • Recommended screen size: 39" (81cm) - 75" (190cm)
  • Max load: 50kg (110lbs) (per screen)
  • VESA® & non-VESA fixings: up to 900mm (35")*
  • Pole length: 0.5m (19.7") up to 3m (118.1") (can be cut or joined)
  • Colour (interface arms): Black
  • Colour (horizontal rail): Black or Silver
  • Colour (poles & ceiling mount): Black, White or Chrome

    *Refers to maximum vertical fixing dimension for a typical configuration. Correctly sized interface
    arms and adaptors will be supplied as necessary to suit the mounting pattern you require.

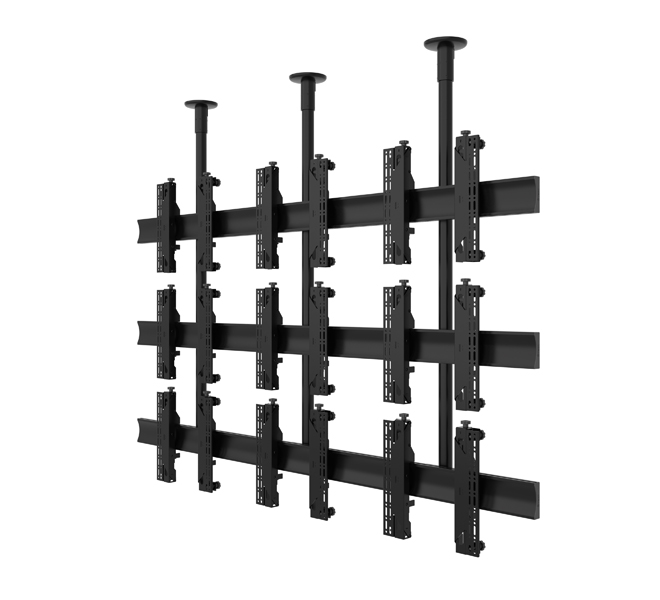

BT8342 - Universal Ceiling Mounted Video Wall Mounting System Tool-less micro-adjustment at 8 points for seamless display alignment Suitable for landscape, portrait and back-to-back mounting Multiple rail lengths available (rails can also be joined to create larger installs)

System X Overview Video


Specification Sheets

BT8342 Specification Sheet - English (PDF)

BT8342 Fiche de Spécifications - Français (PDF)

BT8342 Specificatieblad - Nederlands (PDF)

BT8342 Hoja de especificación - Español (PDF)

BT8342 Spezifikationsblatt - Deutsch (PDF)

BT8342- US Specification Sheet (PDF - Imperial Units)



Assembly Leaflet

Installation Guide (PDF)

Montageanleitung - Deutsch (PDF)



You must log in to view this content
