Videowall Mount

BT8311

For Screens up to 75kg

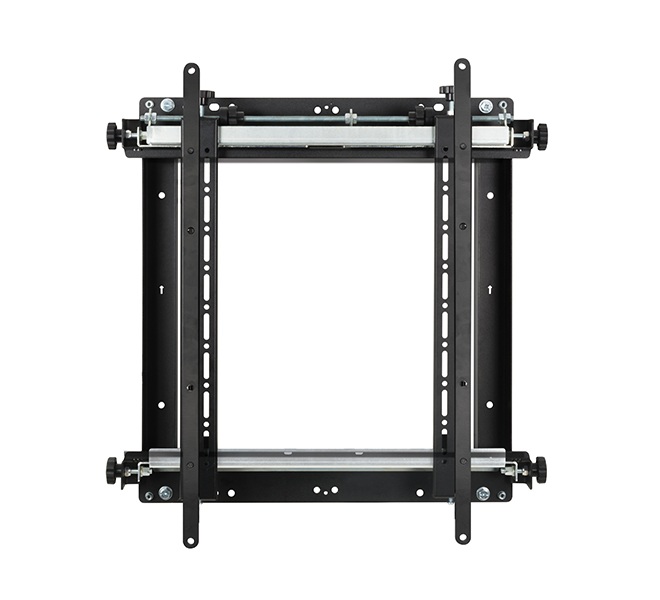

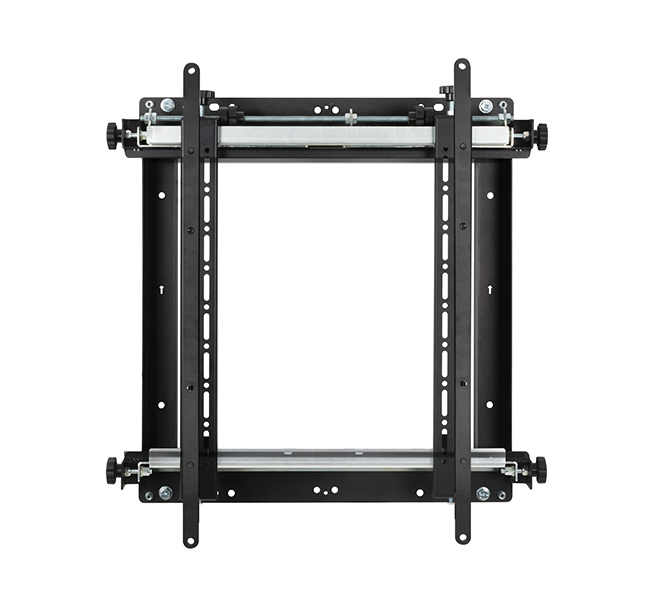

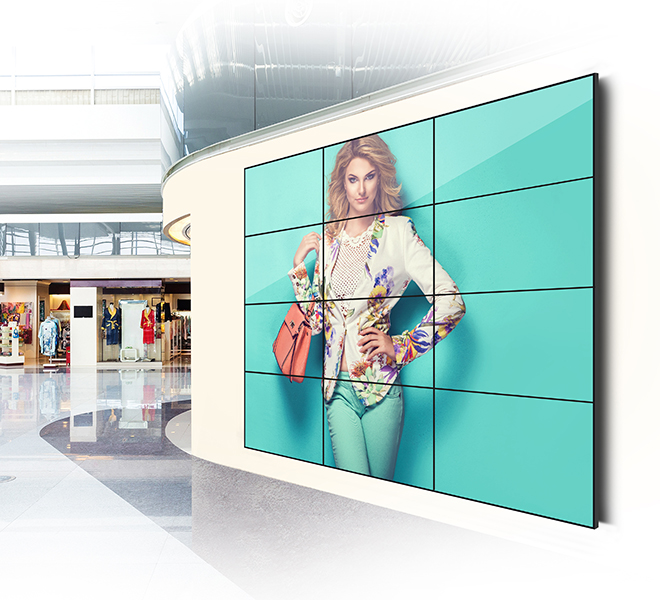

Designed to make video wall installations as quick and simple as possible, this modular video wall mount can be used to create unlimited video wall configurations in both landscape and portrait format. The tool-less 8 point micro-adjustment makes accurate screen alignment quick and easy. The BT8311 can also be used in conjunction with the BT8310 pop-In, pop-out video wall mount to allow easier access behind screens for maintenance.










BT8310 Professional Video Wall Mount with Quick Lock Push System


  • Modular mount for unlimited wall display configurations
  • Suitable for landscape or portrait screen mounting
  • Can be used in conjunction with the BT8310 pop-in, pop-out videowall mount to allow access to micro-adjustment in configurations with more than two rows

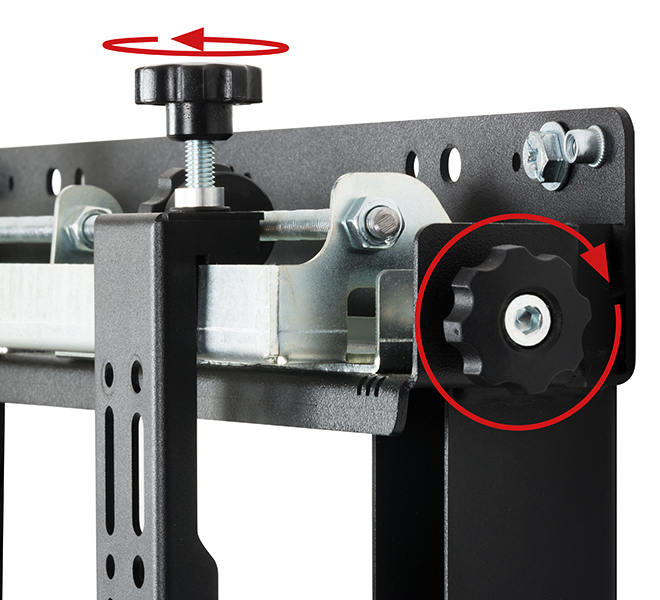

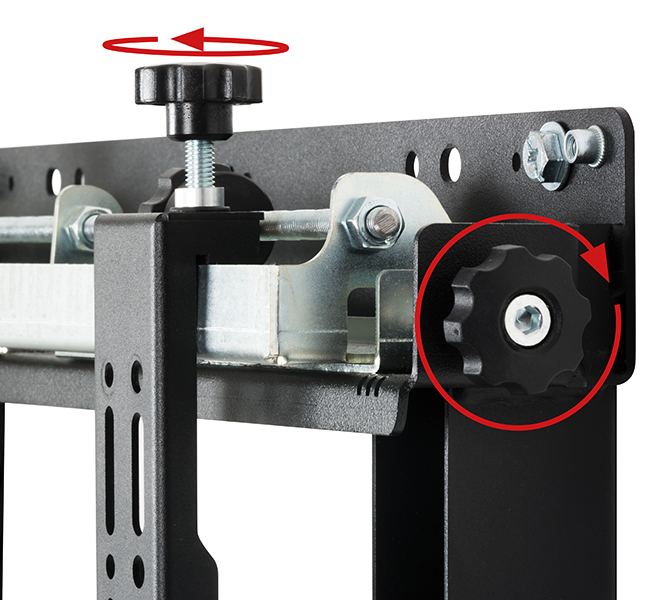

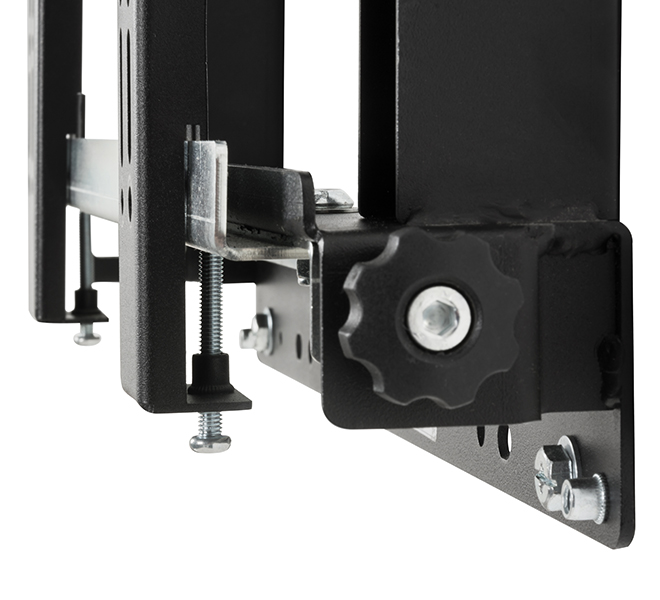

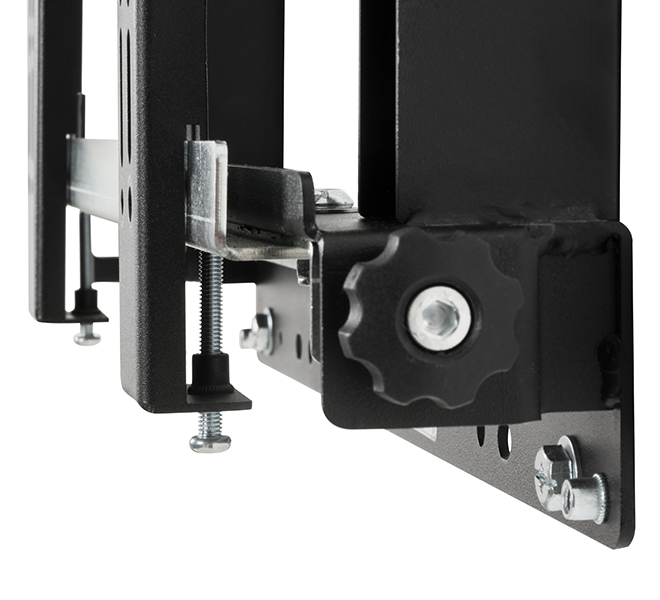

  • Tool-less micro-adjustments at 8 points for seamless display alignment
  • Suitable for both wall or pole mounting
  • Integrated cable management for a neat and tidy installation
  • Screen specific wall plate spacer kits (available separately) dramatically shorten install times by eliminating guesswork and on-site calculations
  • Safety screws help prevent unauthorised removal of screens

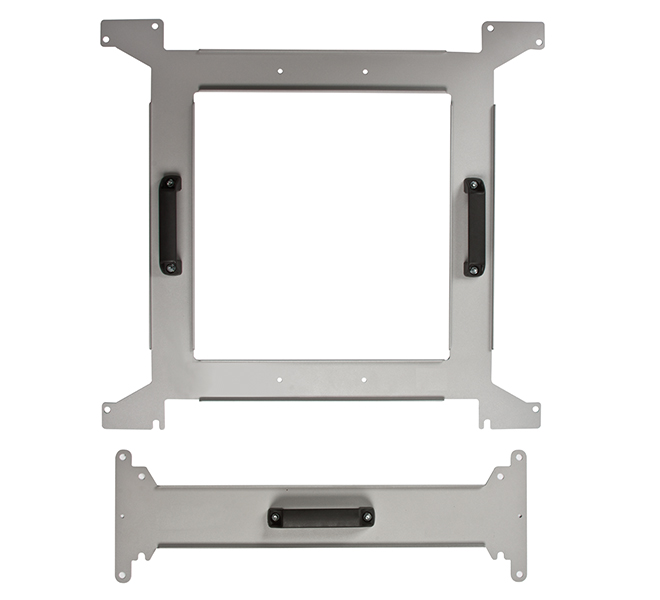

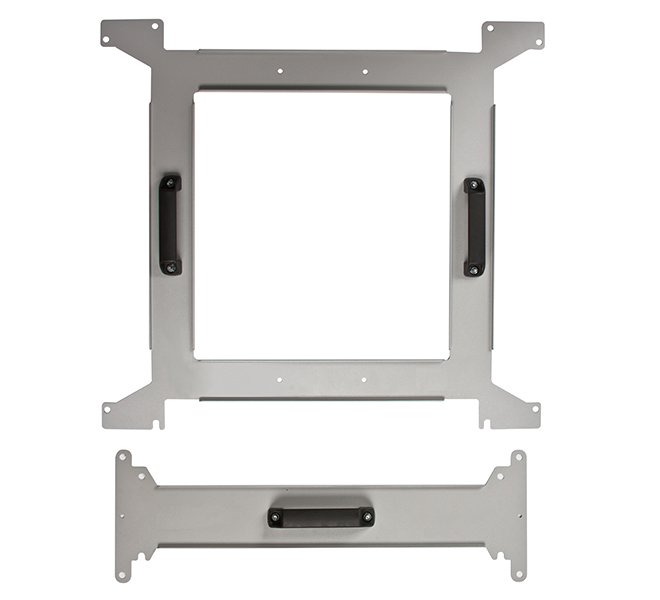

  • Includes Interface Adaptor Arms as standard for use with screens with VESA 600 x 400 fixings
  • Adaptor arms for VESA 800 x 400 fixings (BT7565) available separately
  • Recommended screen size: 42" (106.6cm) - 70" (177.8cm)
  • Max load: 75kg (165lbs)
  • VESA® Compatibility: 200mm x 200mm up to 400mm x 400mm
  • VESA® compatibility with included adaptors: up to 600mm x 400mm*
  • Distance from wall: 97.5mm (3.83") (+/- 7.5mm (0.29") with micro-adjustment)
  • Screen height adjustment: +15mm (0.59")

    *Please note using the included interface adaptor arms to mount VESA 600 x 400 screens will increase the total depth of the product by 6mm, for a total depth of 103mm

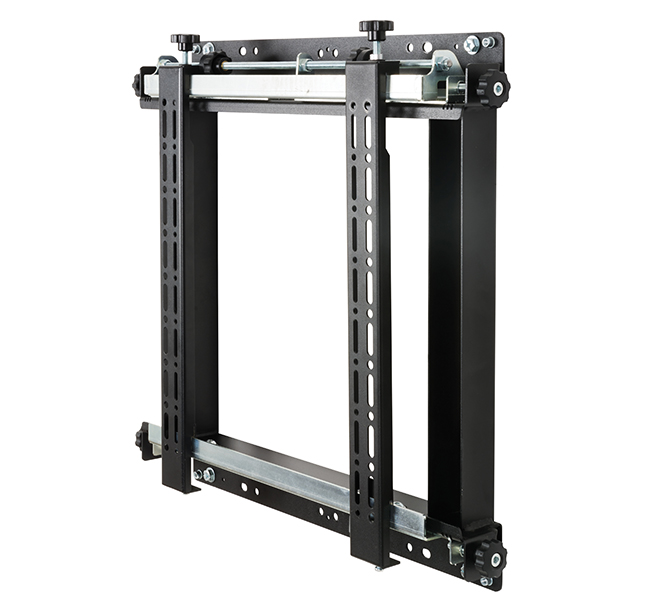

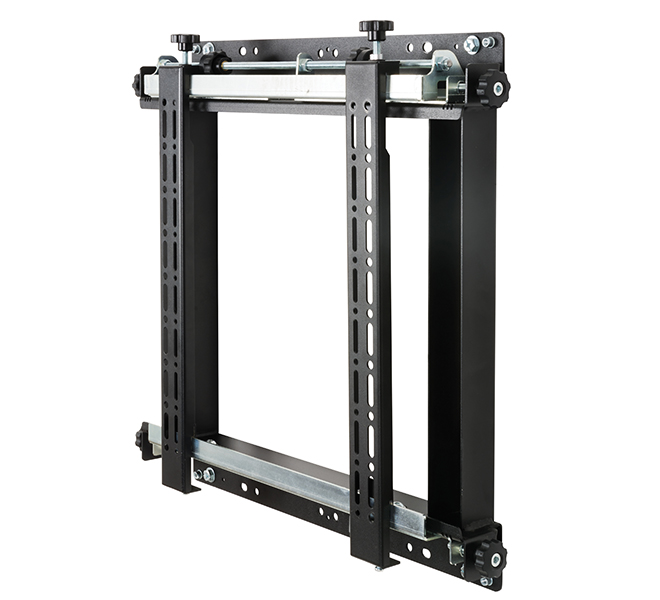

BT8311 Professional Video Wall Mount BT8311 Professional Video Wall Mount BT8311 Professional Video Wall Mount BT8311 Professional Video Wall Mount
BT8311 Professional Video Wall Mount BT8311 Professional Video Wall Mount BT8311 Professional Video Wall Mount BT8311 Professional Video Wall Mount
Screen specific spacer kit available (Available Separately)
VESA Adaptors and Spacers for BT8310
BrandModelScreen SizeSpacer Available
LG42WS50B*42" (961 x 555mm)BT8310-SP422/N*
PHILIPSBDL425242" (966 x 559mm)BT8310-SP423/N*
SAMSUNGUD46D46" (1022 x 577mm)BT8310-SP461/N
BARCOEVD-462146" (1024 x 578mm)BT8310-SP461/N
BARCONSL-462146" (1024 x 578mm)BT8310-SP461/N
CHRISTIEFHD461-X46" (1024 x 578mm)BT8310-SP461/N
SAMSUNGUD46C46" (1024 x 578mm)BT8310-SP461/N
NECX461UN46" (1026 x 580mm)BT8310-SP461/N
NECX462UN46" (1026 x 580mm)BT8310-SP461/N
NECX463UN46" (1026 x 580mm)BT8310-SP461/N
NECX464UN46" (1024 x 579mm)BT8310-SP461/N
NECX464UN-246" (1026 x 580mm)BT8310-SP461/N
ORION46RNCS46" (1026 x 580mm)BT8310-SP461/N
HANTAREX46-UNB46" (1026 x 580mm)BT8310-SP461/N
PHILIPSBDL467746" (1024 x 579mm)BT8310-SP461/N
PHILIPSBDL4675XU46" (1026 x 578mm)BT8310-SP461/N
PHILIPSBDL4681XU46" (1026 x 578mm)BT8310-SP461/N
SAMSUNG460UT-246" (1026 x 578mm)BT8310-SP461/N
SAMSUNGUD46A46" (1024 x 578mm)BT8310-SP461/N
SAMSUNGUD46C46" (1024 x 578mm)BT8310-SP461/N
SAMSUNGUE46A46" (1030 x 585mm)BT8310-SP462/N
SAMSUNGUE46C46" (1030 x 585mm)BT8310-SP462/N
SAMSUNGME46B46" (1056 x 612mm)BT8310-SP463/N
SAMSUNGUE46D46" (1031 X 585mm)BT8310-SP462/N
LG47WV3047" (1047 x 592mm)BT8310-SP471/N
LG4720C47" (1080 x 625mm)BT8310-SP472/N
LG55WV7055" (1215 x 686mm)BT8310-SP551/N
LG55LV35A-5B55" (1215 x 686mm)BT8310-SP551/N
LG55LV75A55" (1215 x 686mm)BT8310-SP551/N
LG55LV77A55" (1215 x 686mm)BT8310-SP551/N
LG47WV5047" (1045 x 590mm)BT8310-SP471/N
LG47LV35A-5B47" (1047 x 592mm)BT8310-SP471/N
BARCOMVD-552155" (1215 x 686mm)BT8310-SP551/N
BARCONSL-552155" (1215 x 686mm)BT8310-SP551/N
CHRISTIEFHD551-X55" (1215 x 686mm)BT8310-SP551/N
PANASONICTH-55LFV5W55" (1215 x 686mm)BT8310-SP551/N
PANASONISTH-47LFV5W47" (1047 x 592mm)BT8310-SP471/N
PHILIPSBDL5585XL55" (1215 x 686mm)BT8310-SP551/N
PHILIPSBDL558655" (1215 x 686mm)BT8310-SP551/N
NECX551UN55" (1215 x 686mm)BT8310-SP551/N
NECX554UN55" (1215 x 686mm)BT8310-SP551/N
ORION55RNCS55" (1215 x 686mm)BT8310-SP551/N
SAMSUNGUD55A55" (1215 x 686mm)BT8310-SP551/N
SAMSUNGUD55C55" (1215 x 686mm)BT8310-SP551/N
SAMSUNGUD55D55" (1215 x 686mm)BT8310-SP551/N
SAMSUNGUE55A55" (1222 x 693mm)BT8310-SP552/N
SAMSUNGUE55C55" (1222 x 693mm)BT8310-SP552/N
SAMSUNGUE55D55" (1222 x 693mm)BT8310-SP552/N
MITSUBISHIMDT552S55" (1248 x 719mm)BT8310-SP553/N
SHARPPN-V60060" (1336 x 755mm)BT8310-SP601/N
SHARPPN-V60160" (1336 x 755mm)BT8310-SP601/N
SHARPPN-V60260" (1336 x 755mm)BT8310-SP601/N

*This screen and spacer is not suitable for portrait mounting
