Double Arm Flat Screen Wall Mount
with UltraGlide Tilt & Swivel

BT8229

Ideal for screens up to 65"




Designed for medium to large screens, this universal double arm wall mount combines strength and versatility with effortless usability. B-Tech's UltraGlide Tilt technology allows users to reposition displays up to 35kg with a simple touch, securely holding the tilt in place. Featuring three swivel points at the wall, arm and interface, the mount enables quick and smooth screen adjustments, whether folded flat against the wall or fully extended. Compatible with 16" stud walls, brick, and concrete surfaces, this mount is engineered for both commercial and home installations.









  • B-Tech's UltraGlide Tilt technology allows easy, secure screen adjustment
  • Printed template for wall drilling makes installation quick and easy
  • Swivel points enables quick, smooth screen positioning
  • Ideal for mounting across 16" stud walls
  • Integrated cable management throughout the mount
  • Suitable for both landscape and portrait mounting
  • Tilt can also be fixed at selected angles of -2˚,0˚& 15˚
  • Slim-line design allows close-to-wall installation when folded flat
  • Lateral adjustment of screen after mounting
  • Safety screws to prevent unauthorised screen removal
  • Cover plates included for an attractive finish
  • Simple 'hook-on' installation with all mounting hardware included
  • 100% plastic free packaging
  • Recommended Screen Size: up to 65" (165cm)
  • Max load: 35kg (77lbs)
  • VESA® compatibility: up to 600 x 400
  • Tilt: +14°/-3°
  • Screen levelling: +/-3°
  • Swivel: 180° at wall & interface, 360° at central pivot
  • Lateral Adjustment: + / -20mm
  • Distance from wall: Min: 65mm (2.5") - Max: 591mm (23.2")
  • Colour: Black

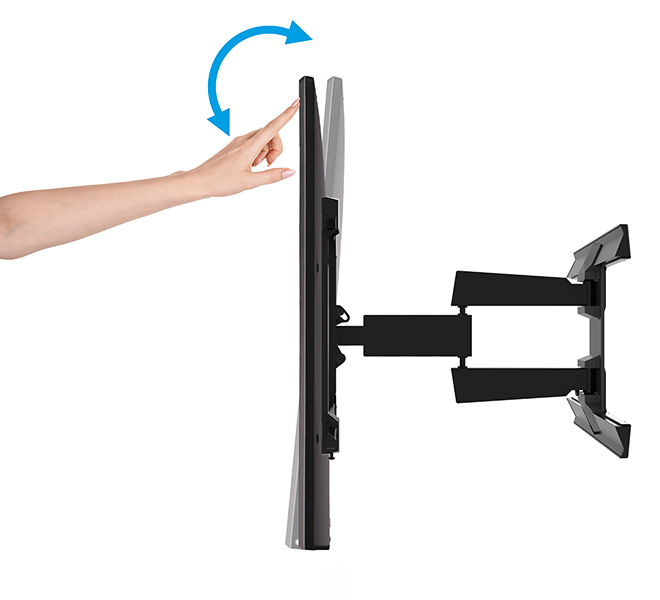

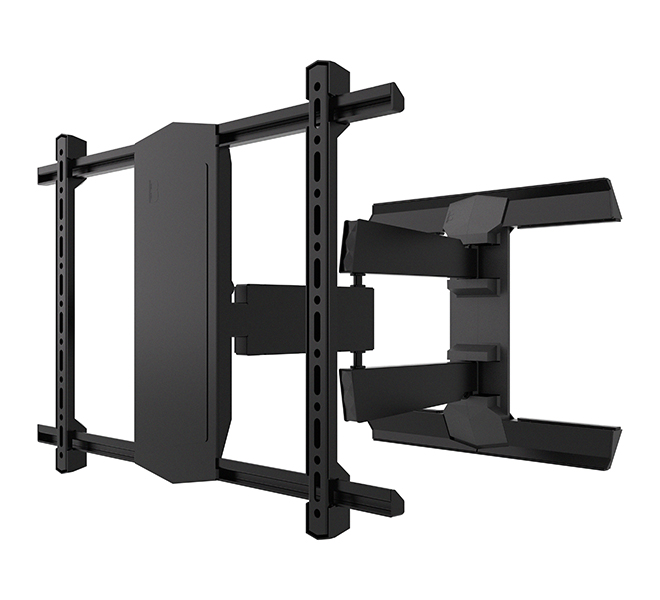

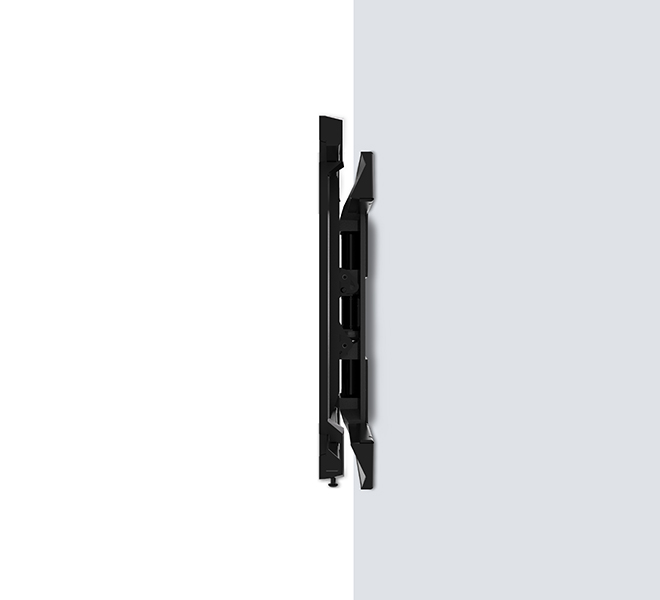

BT8229 - Front three-quarter view BT8229 - Slim side profile when folded flat against a wall BT8229 - Printed template for wall drilling makes installation quick and easy  BT8229 - UltraGlide Tilt technology allows easy, secure screen adjustment

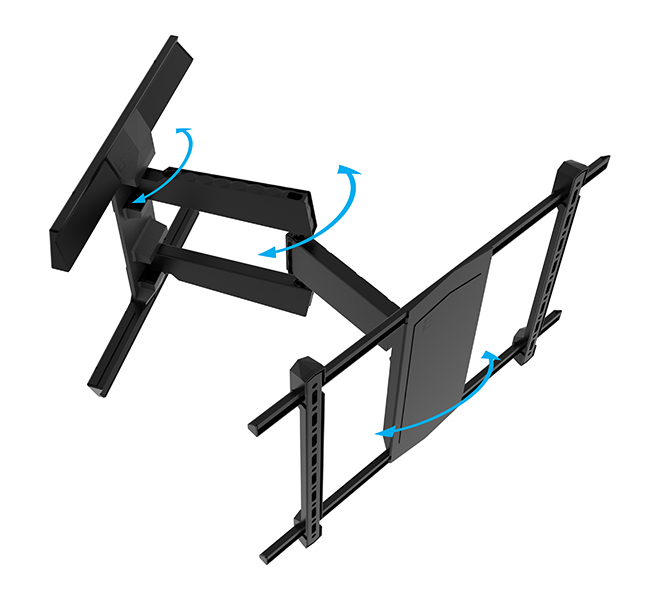

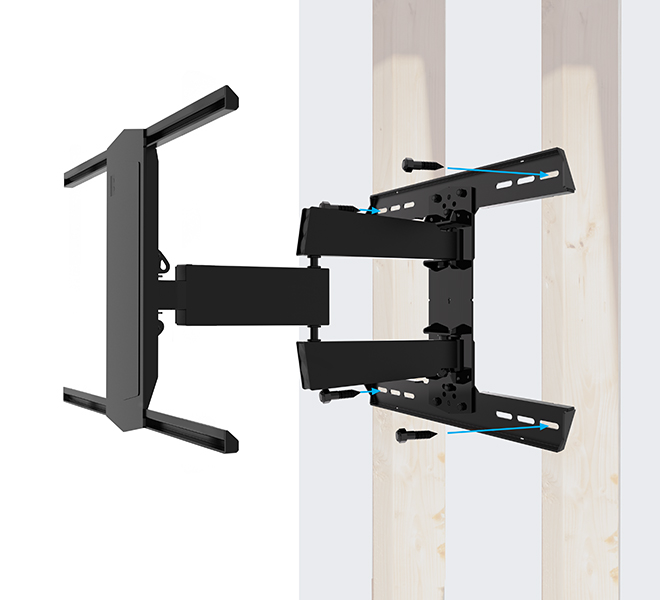

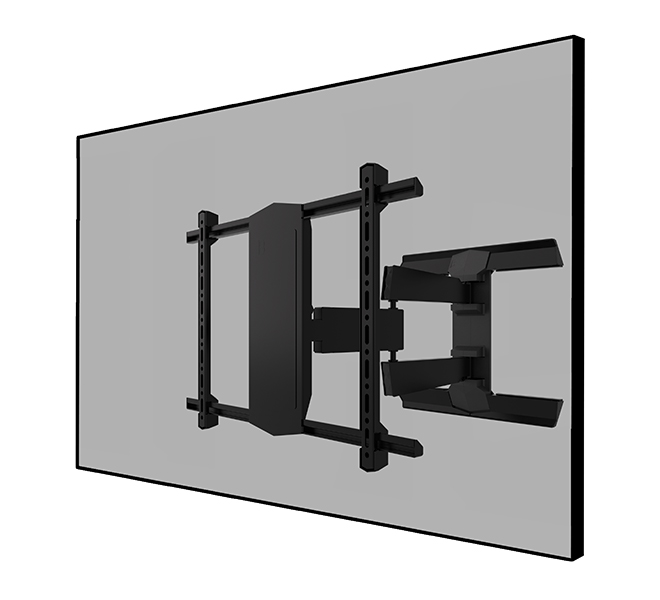

BT8229 - Screen and mount BT8229 - Lifestyle BT8229 - Swivel points enables quick, smooth screen positioning BT8229 - Ideal for mounting across 16

Specification Sheet

Specification Sheet - English (PDF)

Specification Sheet - US (PDF)



Installation Guide

Installation Guide (PDF)



Technical Drawing

Technical Drawing (PDF)
