Heavy Duty Twin Cantilever Arm Flat Screen Wall Mount

BT8228

With Tilt and Swivel




Designed to mount extra-large screens, this heavy-duty twin cantilever arm wall mount features an easy to tilt interface and three swivel points for quick, smooth repositioning of the screen - whether folded flat to the wall or at maximum extension. Featuring cover plates and integrated cable management for a tidy mounting solution, the BT8228 is ideal for both commercial and home installations.









BT8228


  • Easy toolless tilt and swivel adjustments
  • Printed template for wall drilling makes installation quick and easy
  • Integrated cable management
  • Attractive cover plates hide fixings
  • Slim-line design allows close to the wall installation when folded flat
  • Suitable for portrait and landscape mounting
  • Lateral adjustment of the screen once mounted
  • Toolless screen levelling
  • Safety screws help prevent unauthorised removal of screens
  • Simple 'hook-on' installation with all mounting hardware included
  • 100% plastic free packaging
  • Recommended screen size: 65" (165cm) up to 120" (305cm)
  • Max load: 125kg (275lbs)
  • VESA® compatibility: 300 x 200 up to 800 x 600
  • Tilt: -3°/+15°
  • Swivel: 180°
  • Distance from wall: Min: 90mm (3.5") - Max: 628mm (25")

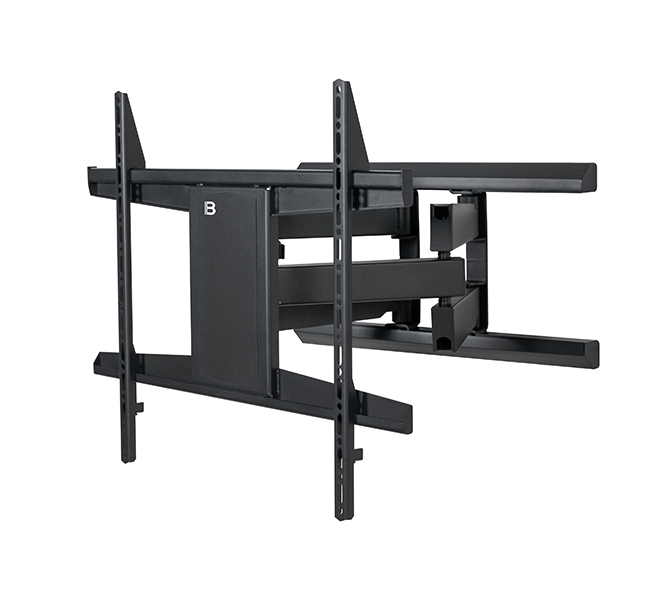

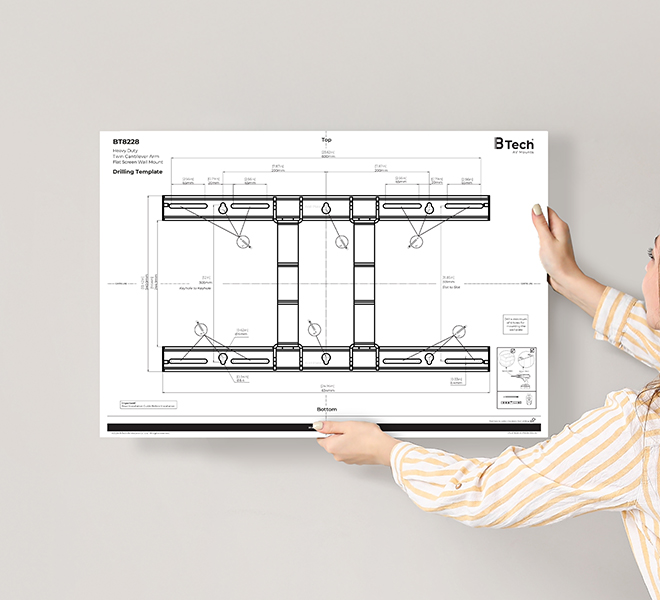

BT8228 - Font three-quarter view BT8228 - Space saving - folds flat to the wall BT8228 - Screen and mount BT8228 - Printed template for wall drilling makes installation quick and easy

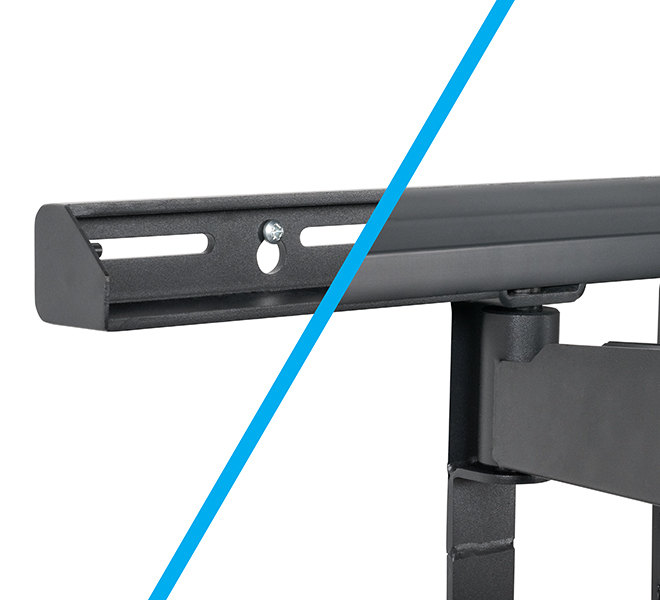

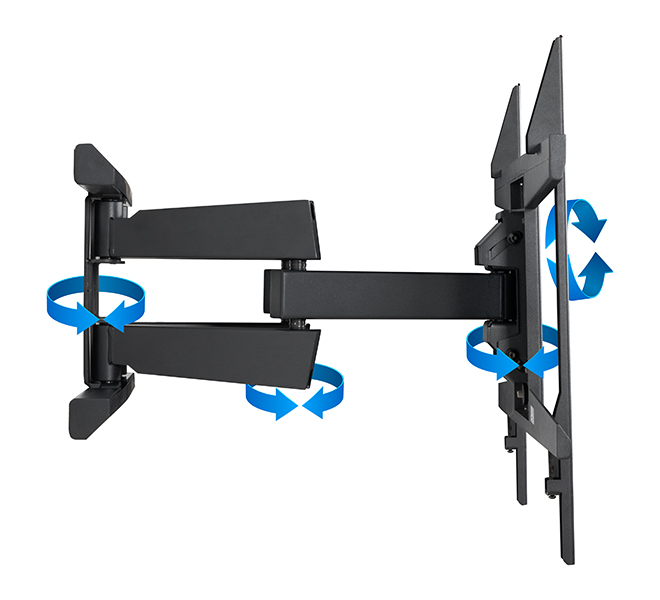

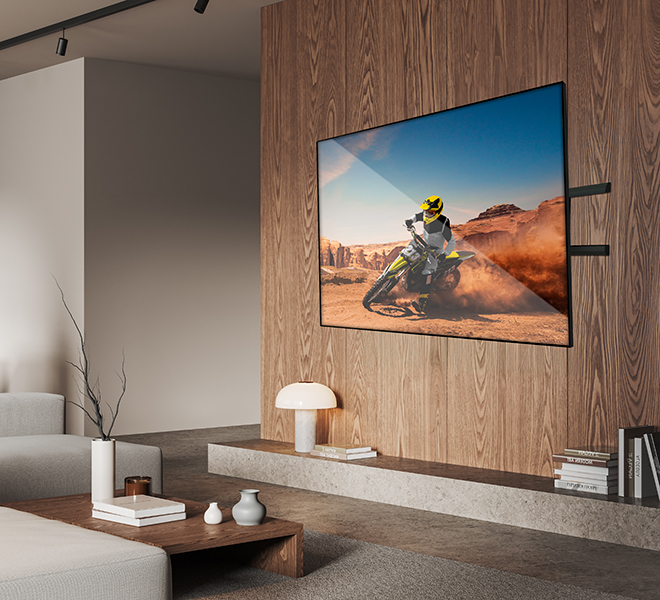

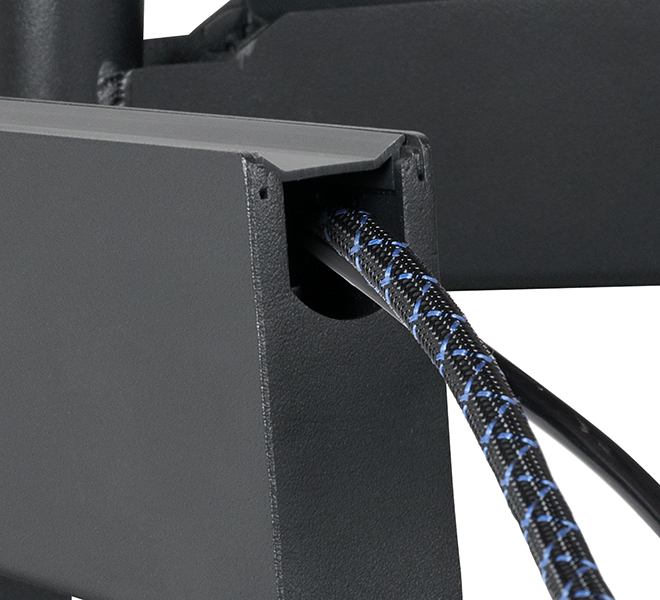

BT8228 - Attractive cover plates hide fixing BT8228 - Lifestyle BT8228 - Easy toolless tilt and swivel adjustments BT8228 - Integrated cable management

Product Overview Video



Produktübersichtsvideo

Specification Sheet

Specification Sheet (PDF)

Technisches Datenblatt - Deutsch (PDF)

Specification Sheet US (PDF)



Installation Guide

Installation Guide (PDF)



Technical Drawing

Technical Drawing (PDF)



Greensheet

Greensheet (PDF)
