Wall Mounted Slide-Out AV Storage Tray

BT7888

Easy Storage of AV Equipment




The BT7888 is the ideal solution for discreetly fixing AV equipment, such as power supplies, media players and video conferencing equipment behind a screen. The storage tray can be wall mounted by the side or below the screen mount and positioned in either a portrait or horizontal orientation. AV accessories are easily fitted to the retractable, quick-release storage tray using the supplied cable ties, which can also be used for cable management.







  • Wall mount designed for storing AV equipment behind a screen

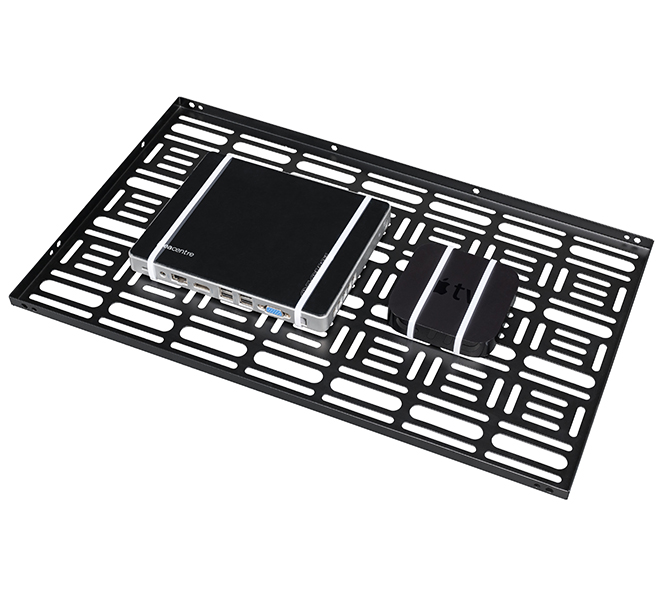

  • Suitable for a variety of different sized AV devices
  • Low profile design
  • Works in conjunction with a range of B-Tech flat screen wall mounts

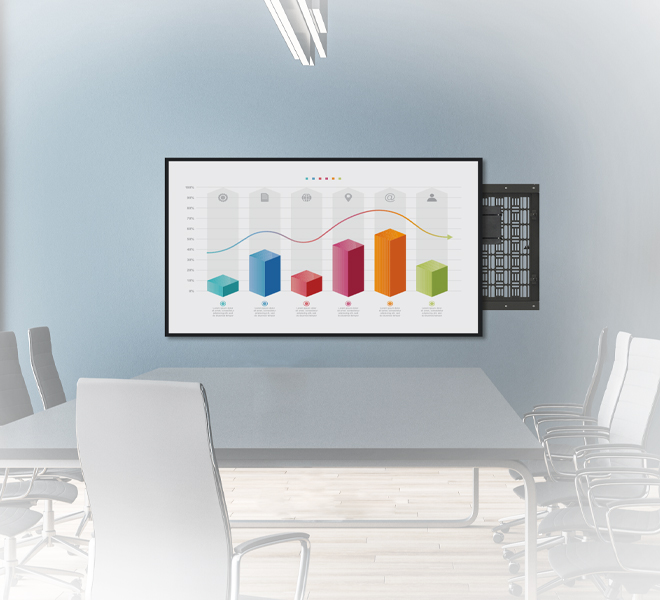

  • Mounts to the side or below a flat screen wall mount

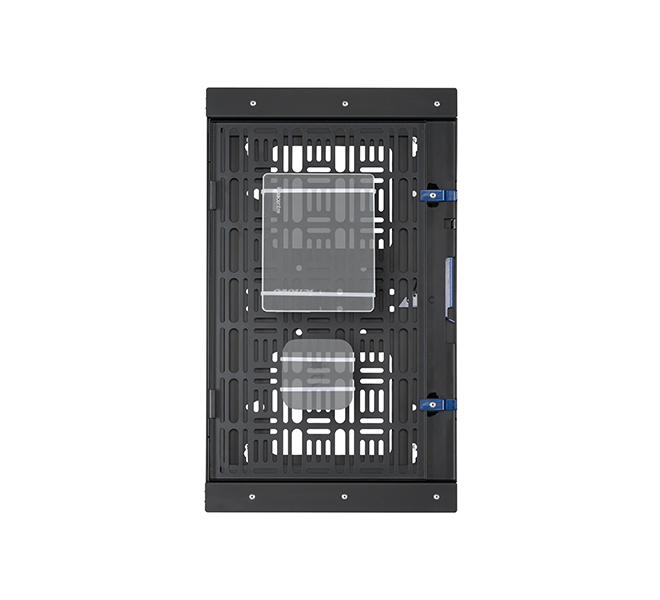

  • Suitable for a landscape or portrait installation

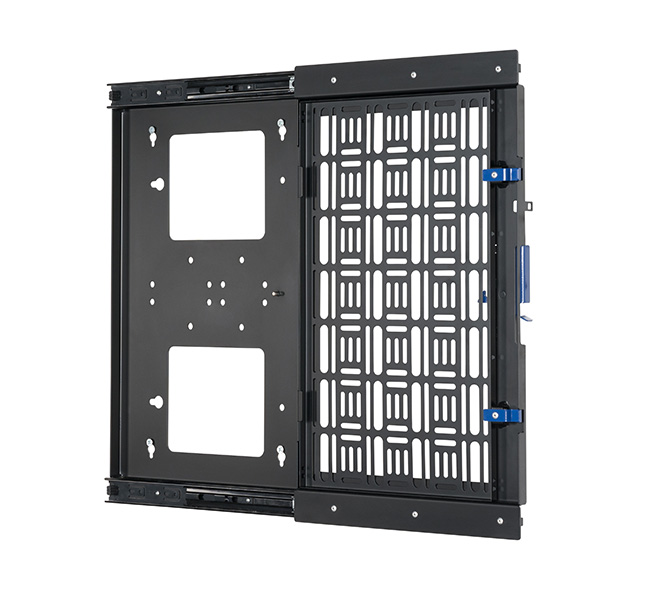

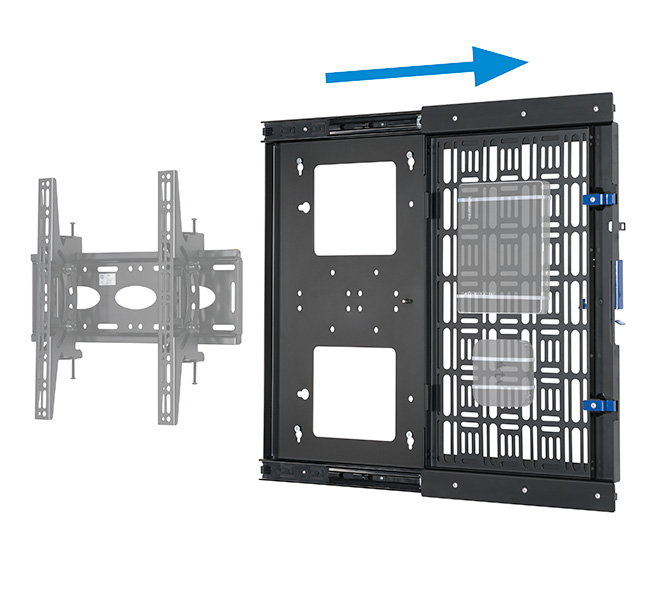

  • Tray can be mounted to slide out left, right or down which allows the tray to be accessed without screen removal

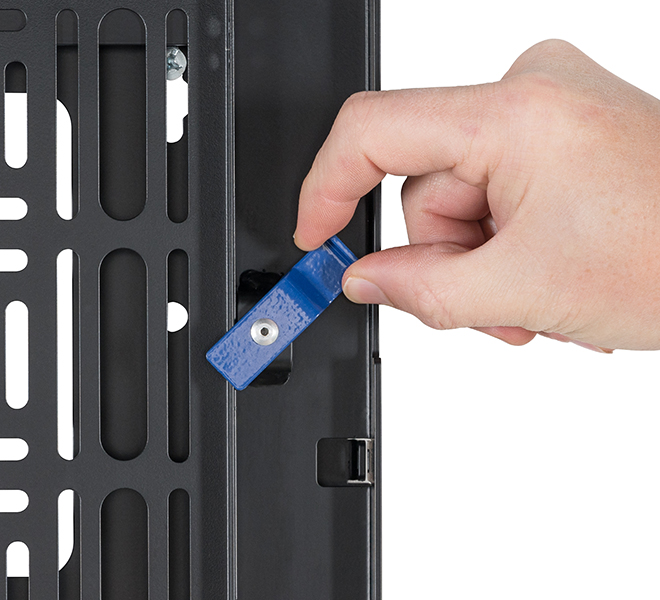

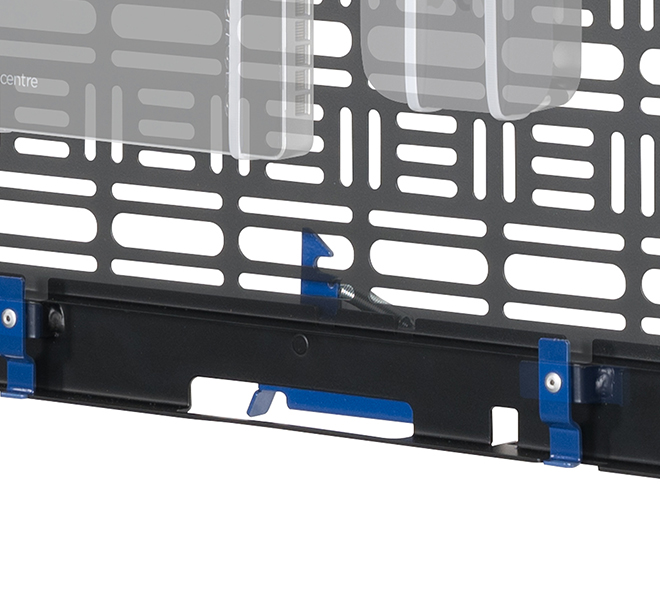

  • Removable tray with quick release
  • Features a handle for quick access and easy handling**
  • Also mounts to System X BT8390 mounting rails
  • Selection of cable ties supplied to secure AV equipment to tray and for cable management
  • Keyhole wall mounting for an easy installation

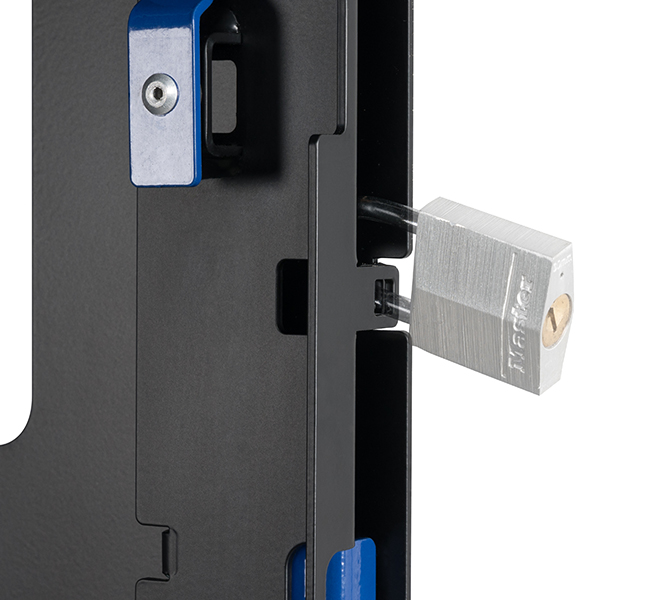

    ** Optional: A padlock (not supplied) can be added to mount to prevent easy removal of the tray from the wall mount
  • Max load: 10kg (22lbs)
  • Max AV equipment size: 450 x 250 x 50mm (19" x 10" x 2")
  • Bracket dimensions: 590 x 350 x 35mm (23.25" x 13.75" x 1.25")
  • Depth from wall: 35mm (1.4")
