BT7519 - Flat Screen Wall Mount with Tilt & Swivel

Flat Screen Wall Mount with Tilt & Swivel

BT7519

For screens up to 47"

The BT7519 is a versatile wall mount that allows flat screen displays to be securely installed just 70mm from the wall while still providing smooth tilt adjustment for optimal viewing. Featuring B-Tech’s UltraGlide Tilt technology, the screen angle can be adjusted easily without the need for tools. Cover plates are included to conceal fixings and create a clean, professional finish. Suitable for both commercial and home installations, the BT7519 can also be used with B-Tech’s System 2 poles and collars, offering additional mounting flexibility when required.

Features
Specifications
Photos
Downloads
For Dealers

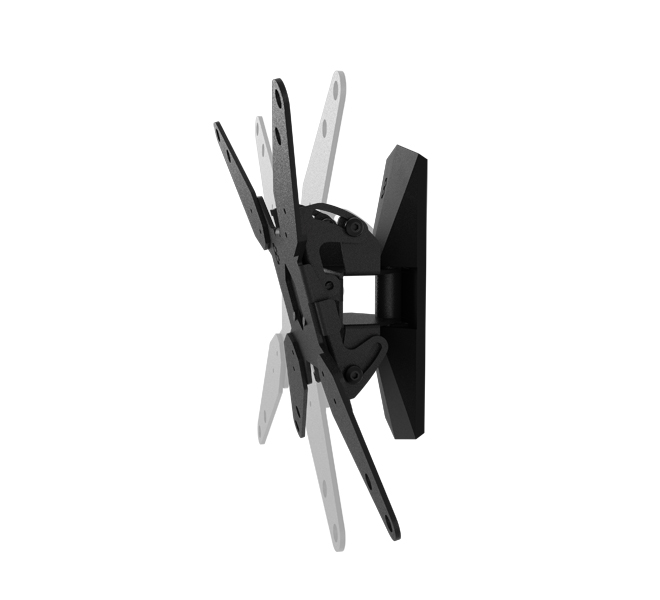

B-Tech's UltraGlide Tilt & Swivel technology provides smooth, tool-free tilt adjustment, allowing quick and easy changes to the viewing angle
Screen levelling after installation enables small adjustments to correct screen alignment once mounted

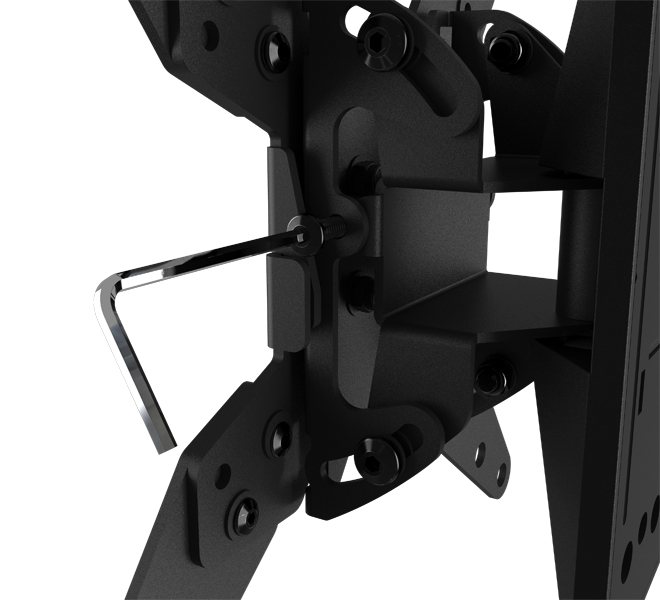

Security locking screws & Allen key provided for a secure installation

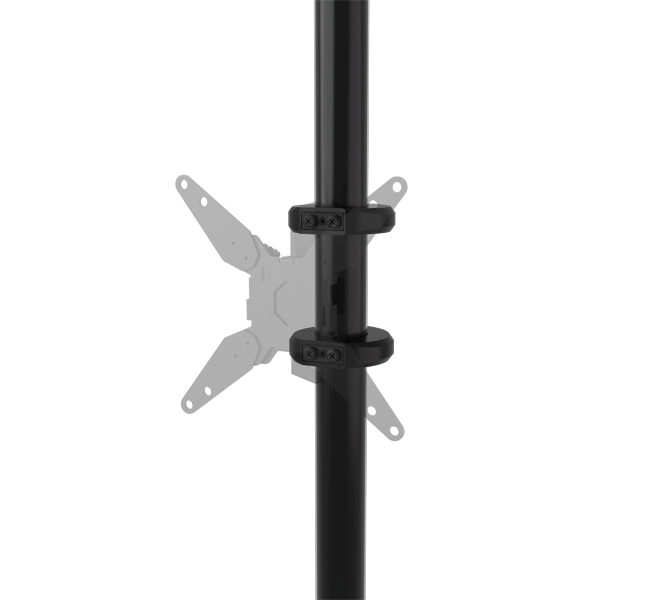

Compatible with B-Tech’s System 2 range, including direct mounting to BT7052 Collars for pole-mounted installations
Modern slimline design with cover plates included that conceal all fixings for a smart finish

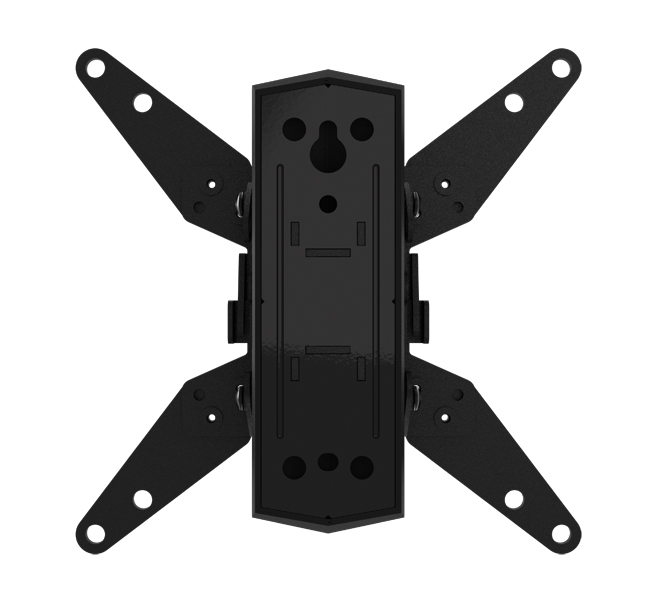

Keyhole wall plate fixings allow single-screw hanging for easy positioning before fixing into place with additonal screws
Wall plate designed with a flat edge for easy spirit-level alignment during installation
Simple 'hook-on' installation
All mounting hardware included
100% plastic free packaging

Recommended screen size: up to 47"
Max load: 30kg
VESA compatibility: up to 200 x 200
Tilt adjustment: +17° / -10°
Swivel at wall: +/- 40°
Screen levelling: +/- 6°
Distance from wall: 70mm
