Elements Extra - Double Arm Wall Mount with Tilt & Swivel

BT5229

Ideal for screens up to 65"




Designed to mount medium / large screens, this articulating wall mount features an easy to tilt interface and three swivel points for quick, smooth repositioning of the screen - whether folded flat to the wall or at maximum extension. Suitable for mounting across 16" stud walls, the bracket also features cable management for a tidy mounting solution. The BT5229 is ideal for both commercial and home installations.










  • Ideal for mounting across 16" stud walls
  • Slim-line design allows close-to-wall installation when folded flat
  • Easy tool- less tilt adjustment of the screen
  • Three points of swivel adjustments of the mount
  • Depth adjustment for close to wall and extension from the wall
  • Lateral adjustment of the screen once mounted
  • Suitable for portrait and landscape mounting
  • Screen levelling of up to 5° in either direction
  • Safety screws prevent unauthorised removal of screens
  • Cable management
  • Simple 'hook-on' installation with all mounting hardware included
  • 100% plastic free packaging
  • Recommended Screen Size: up to 65" (165cm)
  • Max load: 35kg (77lbs)
  • VESA® compatibility: up to 600 x 400
  • Tilt: 12° downward / 2° upward
  • Screen levelling: +/-5°
  • Swivel: 180°
  • Distance from wall: Min: 57.6mm (2.1") - Max: 497.8mm (19.5")
  • Colour: Black

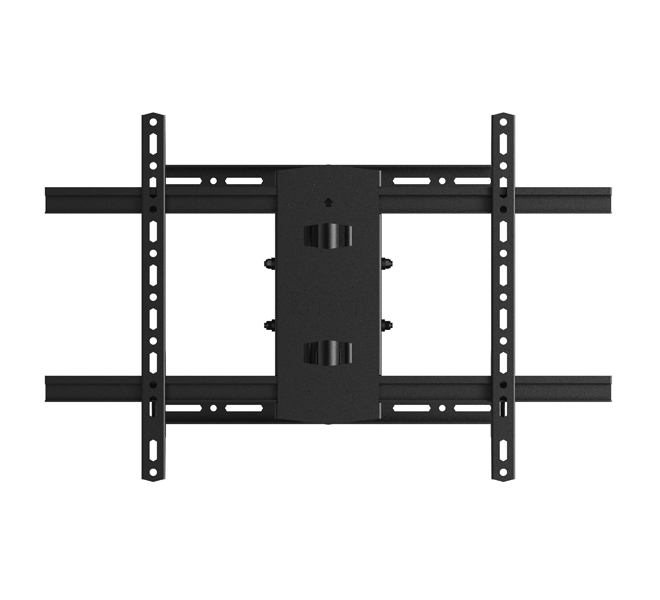

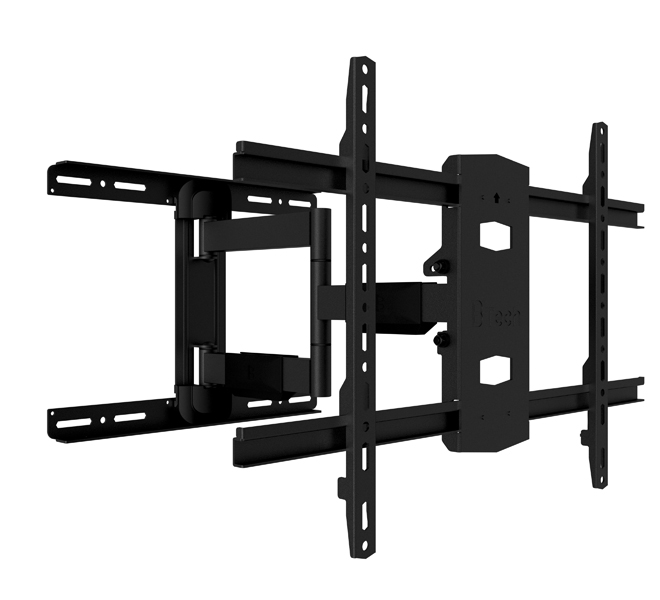

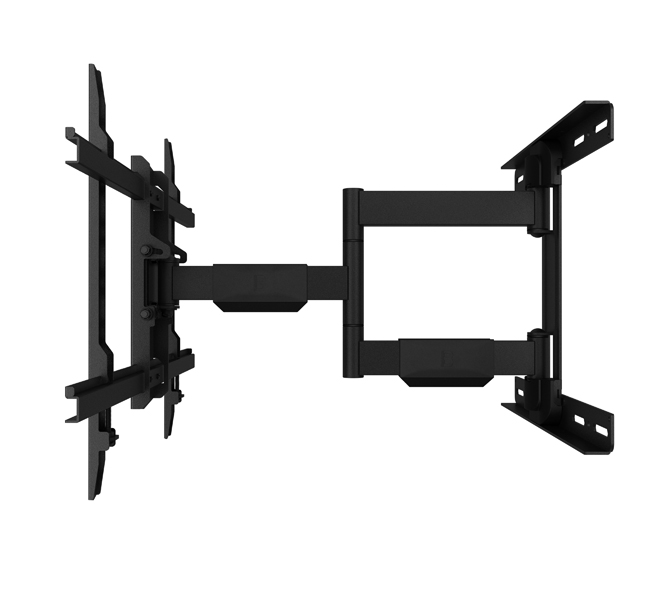

BT5229 - Double Arm Wall Mount BT5229 - Double Arm Wall Mount BT5229 - Double Arm Wall Mount  BT5229 - Double Arm Wall Mount
BT5229 - Double Arm Wall Mount BT5229 - Double Arm Wall Mount BT5229 - Double Arm Wall Mount BT5229 - Double Arm Wall Mount

Specification Sheet

Specification Sheet - English (PDF)

Specification Sheet - US (PDF)



Technical Drawing

Technical Drawing (PDF)
