BT8390-VESA400T - System X™ Universal Interface Arms With Tilt

System X™ Universal Interface Arms With Tilt

BT8390-VESA400T

For Medium / Large Screens

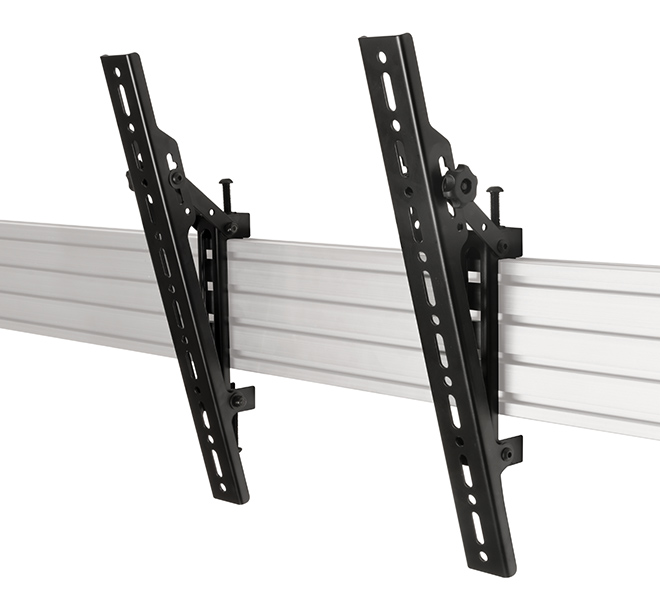

Ideal for single row, multi-screen installations, these interface arms are designed to mount small to medium sized screens in a tilted position along System X horizontal mounting rails. The universal design is compatible with a variety of different screens and allows them to be mounted in either landscape or portrait orientations. Levelling screws on each interface arm provide post installation height adjustment and thumbwheels allow easy tool-less adjustment of the tilt angle up to 20°.

TUV Logo

Features
Specifications
Photos
Downloads
For Dealers

Ideal for menu boards and other multi-screen installations
Universal design compatible with most screens
Suitable for landscape or portrait mounting

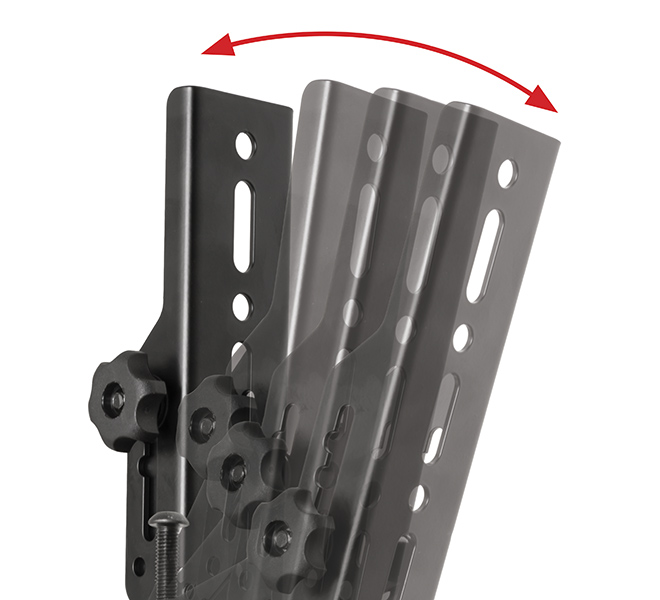

Tool-less thumbwheels for easy adjustment of the tilt angle
Lateral adjustment - position arms anywhere along the length of the rail
Includes levelling screws to adjust the screen height
Safety screws help prevent unauthorised removal of screens
Simple ‘hook-on’ installation
TUV certified

Recommended screen size: 39" (99cm) - 75" (190cm)
Max load: 70kg (154lbs)
VESA® & non-VESA fixings: up to 400mm* (vertical dimension)
Tilt adjustment: up to +20° (in increments of 5°)

*The VESA specification of the BT8390-VESA400T refers to the vertical dimension only. All System X interface arms can be positioned as far along the rail as necessary.
