Ø38mm Pole Adapter

BT5950

For Use With System 2 Ceiling Mounts




The BT5950 is a pole adaptor from B-Tech’s System V Range; a collection of components designed for the installation of CCTV and other ceiling mounted equipment. Designed for use with BT5935 ø38mm poles, the adaptor expands the mounting flexibilty of System V by allowing the use of specialist ø50mm System 2 mounts for angled ceilings, purlins, I-beams, girders and trusses. Adding compatible B-Tech mounting interfaces and accessory collars to mount CCTV dome cameras and other AV equipment such as flat screens, allows users of System V to create custom ceiling mounted solutions that suit their specific needs.





  BT5950 - Pole adaptor allows a System 2 ceiling mount to be fitted to a System V pole
  • Pole adaptor allows a System 2 ceiling mount to be fitted to a System V pole
  • Ideal for use with System 2 mounts such as BT7808, BT7012, BT7017 & BT7825
  • 4mm heavy duty steel supports substantial loads with minimal movement of mounted poles
  • Multiple grub screws allow micro-adjustment of the pole to ensure a perfectly angled drop
  • Allows cables to pass through the poles and adaptor
  • Safety bolt hole ensures a secure connection to System V poles and ceiling mounts
  • Create a variety of ceiling mounted CCTV installs using System V's range of components
  • External dimensions: 78.5mm (3") x 48.6mm (1.9")
  • Colour: White

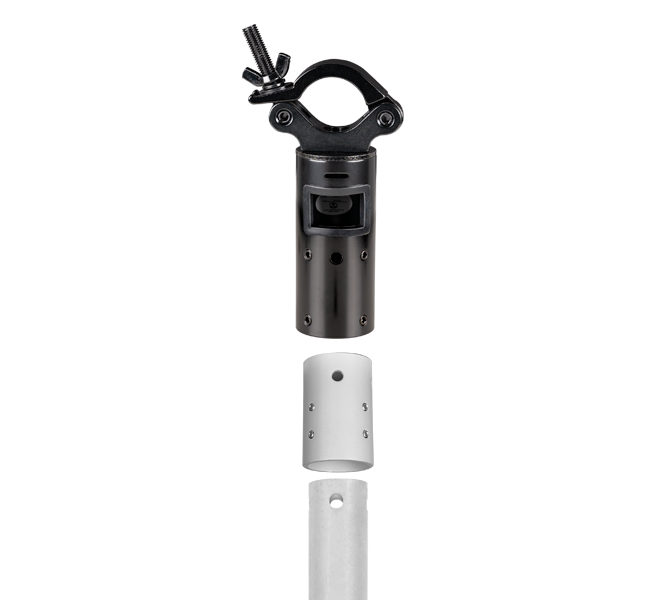

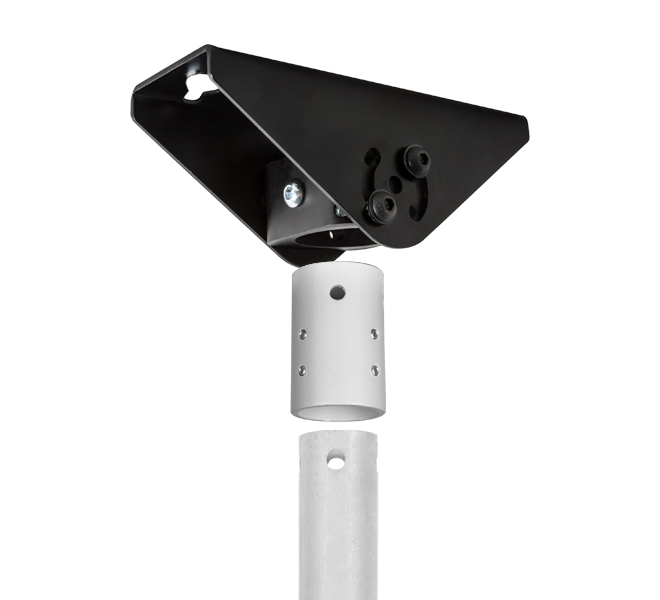

BT5950 - Ideal for use with System 2 mounts such as BT7808. BT7012, BT7017 & BT7825 (BT7017 displayed in image) BT5950 - Pole adaptor allows System 2 ceiling mounts to be used with System V poles (BT7808 displayed in image) BT5950 - 4mm heavy duty steel supports substantial loads with minimal movement (BT7825 displayed in image) BT5950 - Safety bolt and grub screws secures adaptor to poles and ceiling mount

Product Specification Sheets

Specification Sheet - English (PDF)

Fiche de Spécifications - Français (PDF)

Specificatieblad - Nederlands (PDF)

Hoja de Especificación - Español (PDF)

Spezifikationsblatt - Deutsch (PDF)



Installation Guides

Installation Guide (PDF)



Technical Drawings

Technical Drawing (PDF)
