System X™ Short Base

BT8380-SHB

For Floor Stands and Trolleys

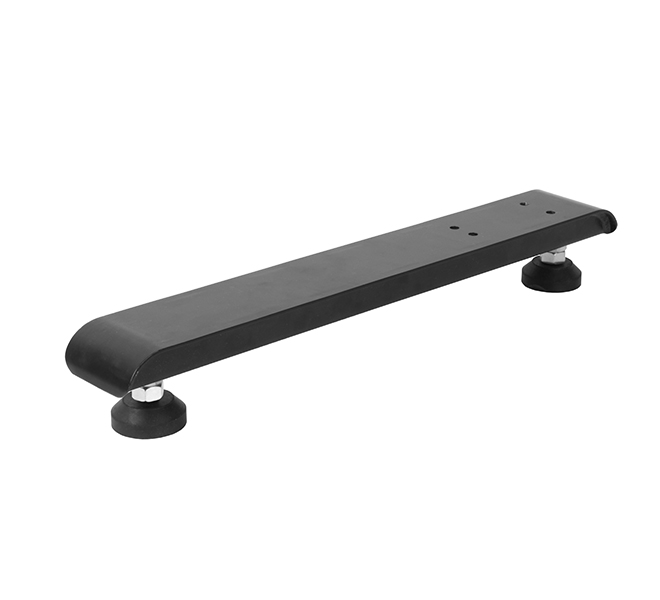

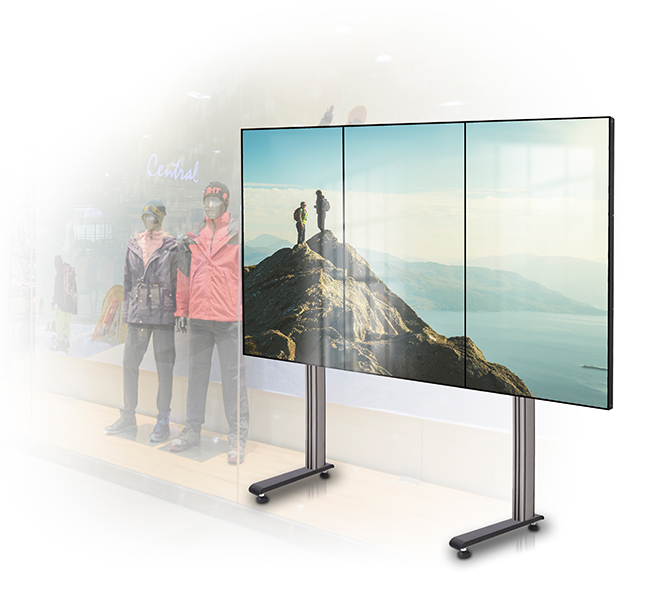

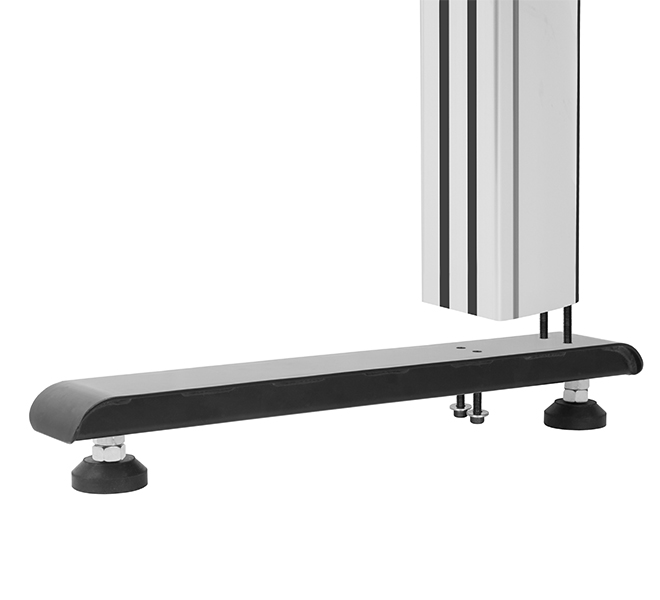

	As part of the System X range the BT8380-SHB attaches directly to BT8380 Vertical Support Columns providing a stable base for a freestanding screen mounting solution with a minimal footprint. The sturdy base is supplied with adjustable levelling feet to accommodate uneven floor surfaces and being 35cm shorter than the standard System X BT8380-BASE, the BT8380-SHB is ideal for installations where floor space may be limited.

Length: 600mm (23.6")
Width: 86mm (3.38")

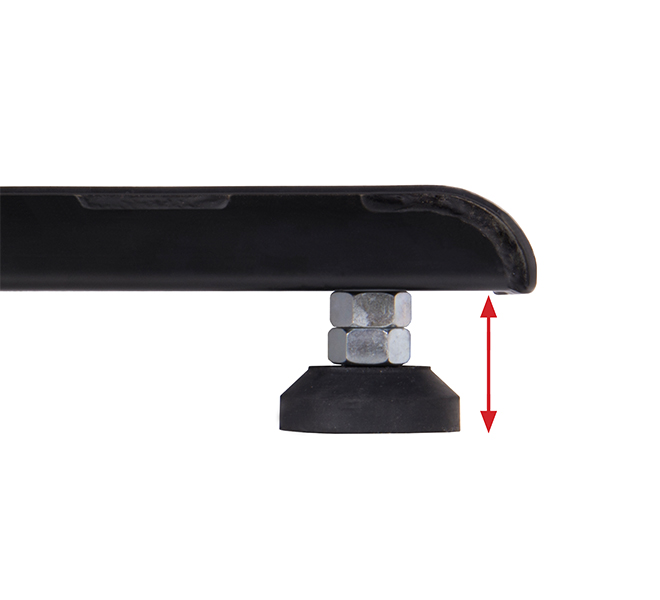

Height (with levelling feet): 87mm (3.42") - 105mm (4.1")
Max load (up to 1.8m (70.9") column height): 50kg (110lbs) (per screen)
Max load (up to 2.4m (94.5") column height): 50kg (110lbs) (per screen)*
Max load (up to 4.2m (165.5") column height): 25kg (55lbs) (per screen)*
Colour: Black

*The BT8380-WTB must be used when the base is used with vertical columns over 1.8m
