Single Screen Digital Signage Kiosk

BT7005






The BT7005 is a display kiosk designed to mount single screens up to 65". A rigid chassis is fixed to a heavy duty steel base which can be used freestanding or bolted to the floor and is finished stylishly with satin black or white outer covers. The internal mounting system is made up of parts from our System X range, allowing micro-adjustment to ensure the mounted screen sits perfectly level and flush with the front opening of the kiosk, which is laser cut to match your screen size.







BT7005



  • High-end aesthetic quality with a premium satin finish
  • Suitable for portrait mounting
  • Integrated cable management
  • 8mm thick heavy duty steel base
  • Can be used freestanding or bolted to the floor
  • Lockable top panel helps prevent unauthorised removal of the screen
  • Removable front and rear panels for easy installation and maintenance
  • Includes internal storage area in lower section for media players and devices
  • Vented top and rear panels allow airflow to and from the device
  • Simple ‘hook-on’ screen installation
  • Kiosks can be branded with your company logo if required
  • For indoor use only
  • Recommended screen size: up to 65" (165cm)
  • Max load: 50kg (110lbs)
  • VESA® compatibility: 200mm x 200mm up to 600mm x 400mm
  • Colour: Black or White

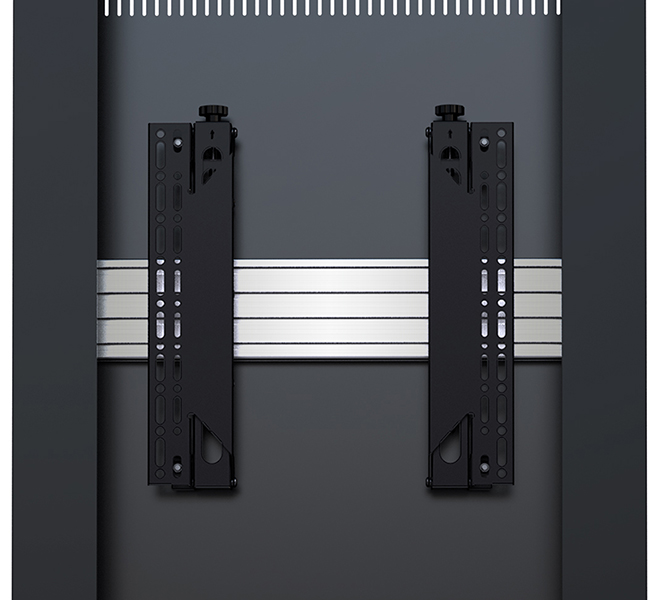

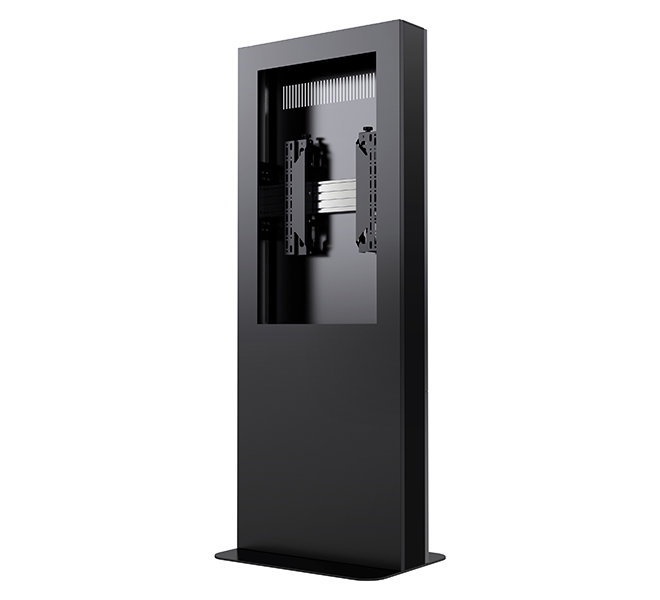

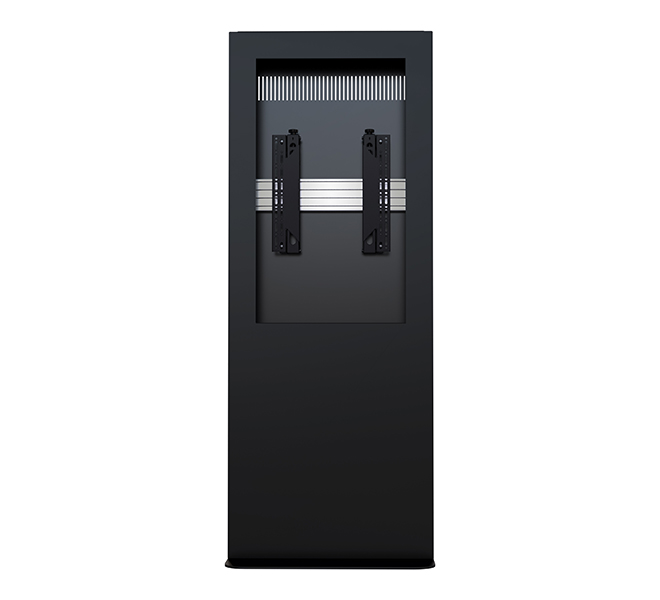

BT7005 - Black Single Screen Kiosk BT7005 - Black Single Screen Kiosk  BT7005 - White Single Screen Kiosk  BT7005 - System X Rail

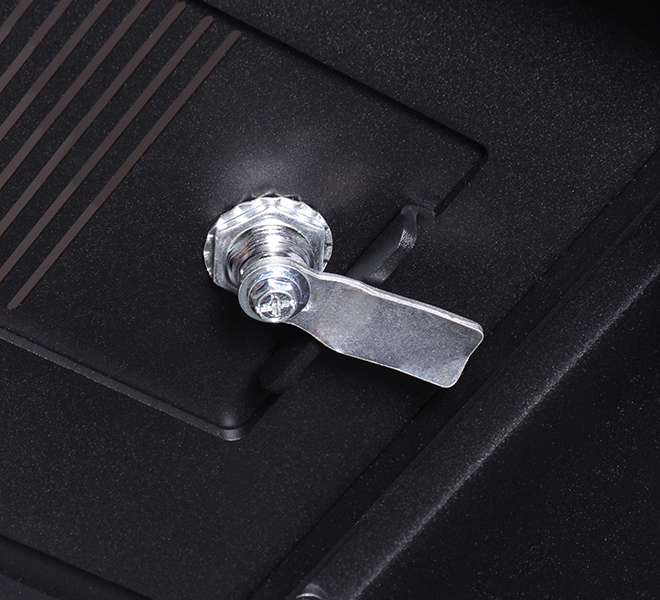

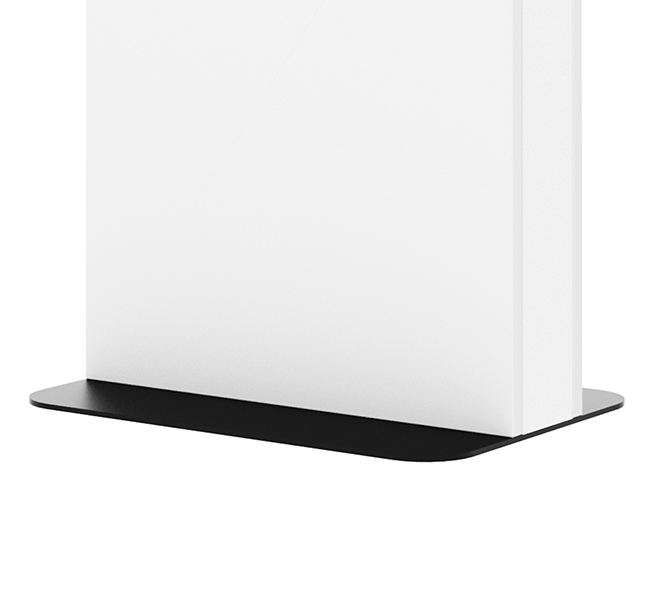

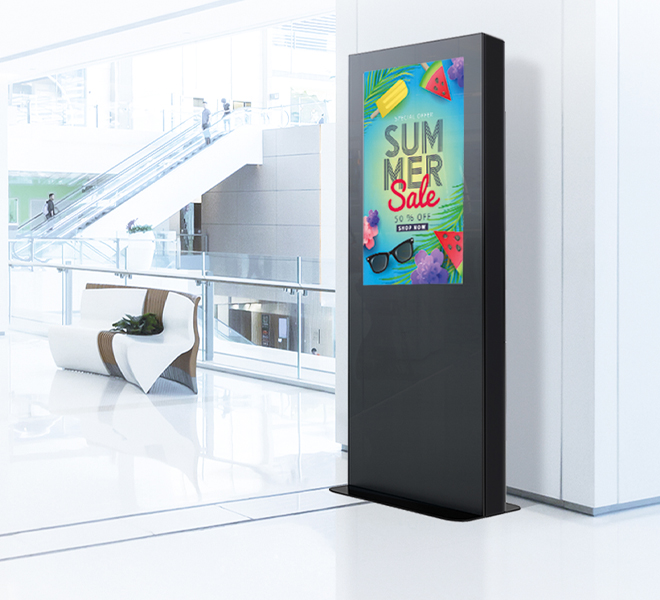

BT7005 - Locking mechanism BT7005 - 8mm Base  BT7005 - Custom logo  BT7005 - Lifestyle

Specification Sheet (PDF)

Installation Guide (PDF)

Technical Drawing (PDF)
