Full Motion Desk Mount

DS70-450BL1

Easy Screen Positioning

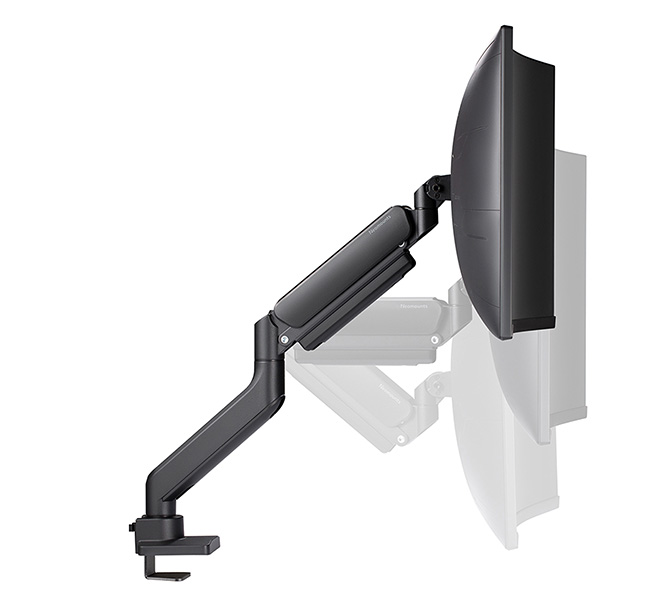

The DS70-450BL1 is a full motion single arm desk mount suitable for use with screens up to 42". The articulating arm features three pivot points, gas spring height adjustment and tilt adjustment allowing for easy screen positioning. Designed with an quick-release VESA system the mount also features a 180° stop mechanism, allowing you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The desk mount can be easily clamped to the rear or side of a desk or fixed through a grommet hole and the integrated cable management ensures a neat and tidy installation.


Neomounts is a specialist supplier of IT mounts and a sister company to B-Tech AV Mounts. This product is held in stock and sold in the US by B-Tech. For availability outside of the US, please contact Neomounts directly.






  • Full motion arm allows easy screen positioning
  • Gas sprint height adjustment
  • 3 pivot points at pole / arm / interface
  • Tool-less tilt and full screen rotation

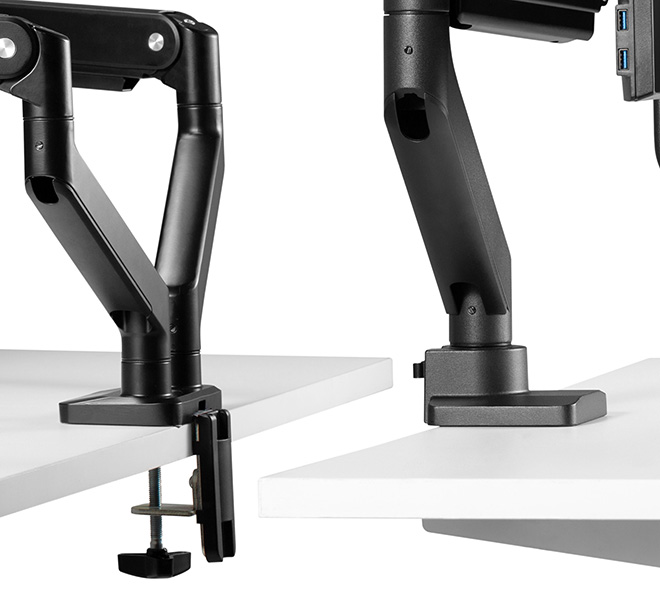

  • Supplied with both a desk clamp and grommet fixings

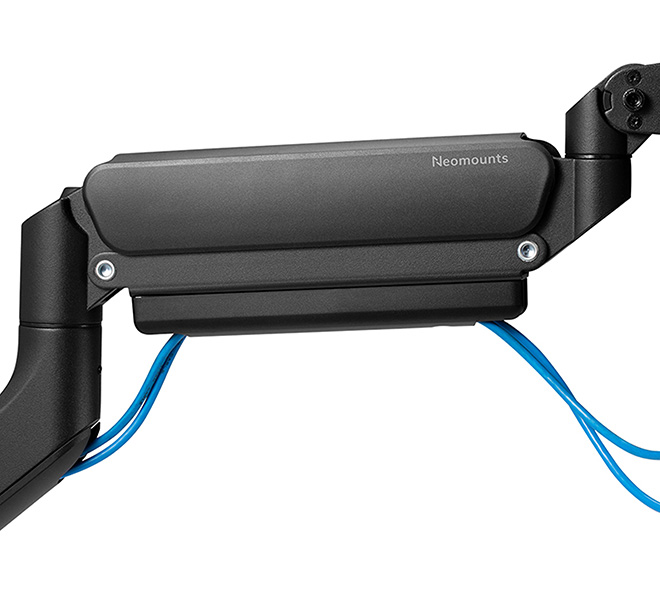

  • Integrated cable management
  • Simple installation with all fixings included
  • Recommended screen size: 17" up to 42"
  • Max load: 33lbs
  • VESA® compatibility: 75 x 75 & 100 x 100
  • Screens mounted: 1
  • Tilt: +/- 45°

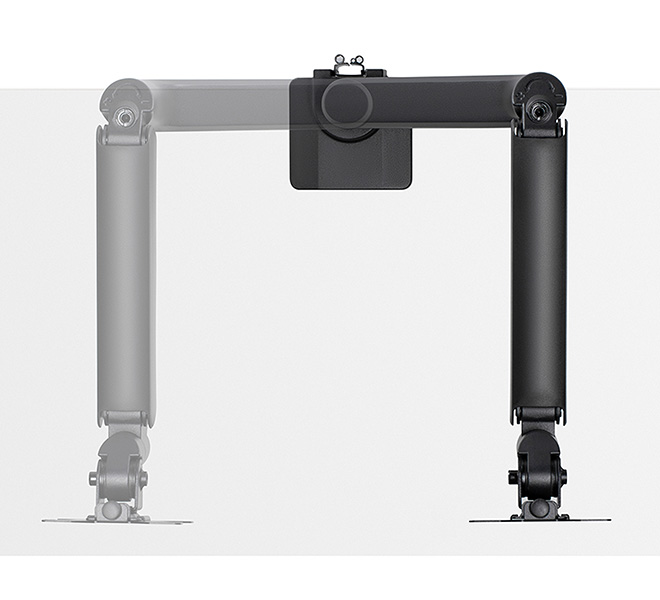

  • Swivel at pole / arm / interface: 360°/ 360°/ 90°
  • Screen rotation: 360°
  • Depth adjustment: 0 - 20.25"
  • Height adjustment: 10.25" - 21.65"
  • Clamp adjustment for desktop thickness: 0.4" - 1.75"
  • Colour: Black


Specification Sheet

Specification Sheet (PDF)



Installation Guide

Coming Soon



Technical Drawing

Technical Drawing (PDF)
