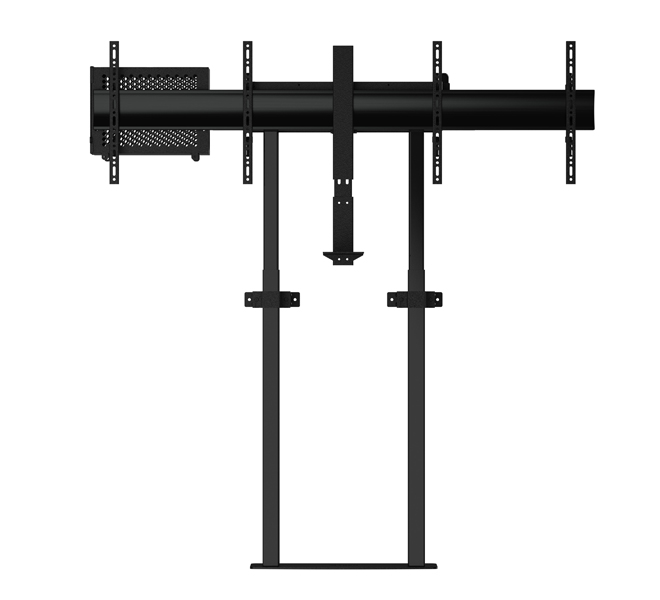

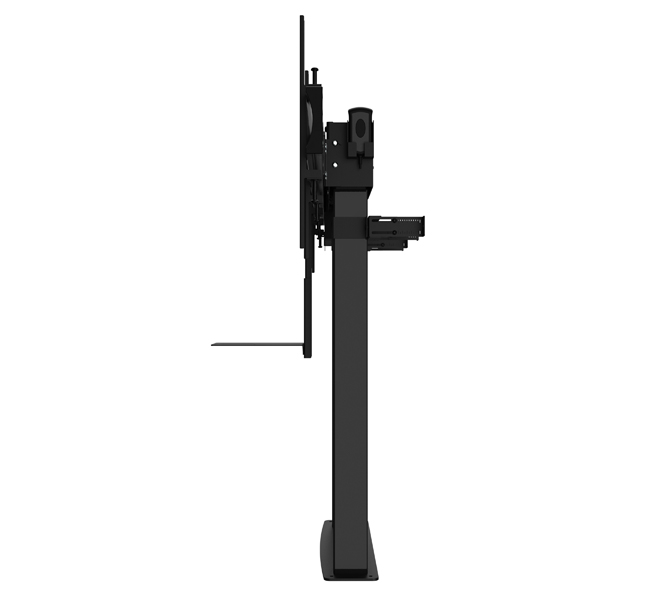

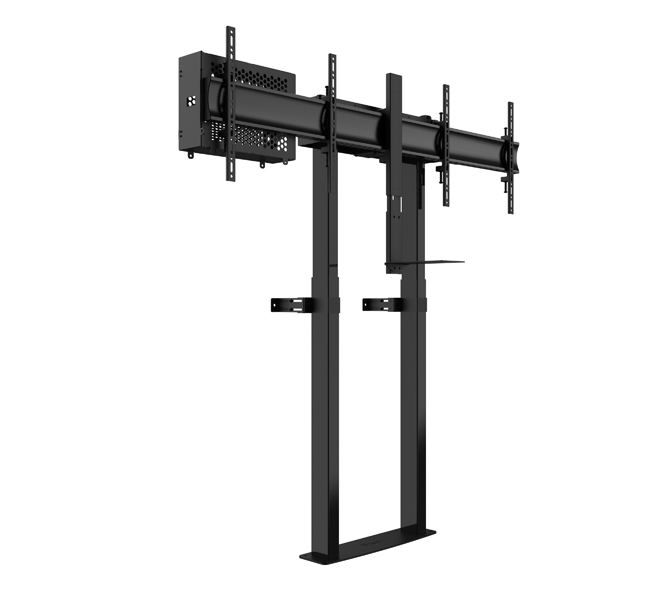

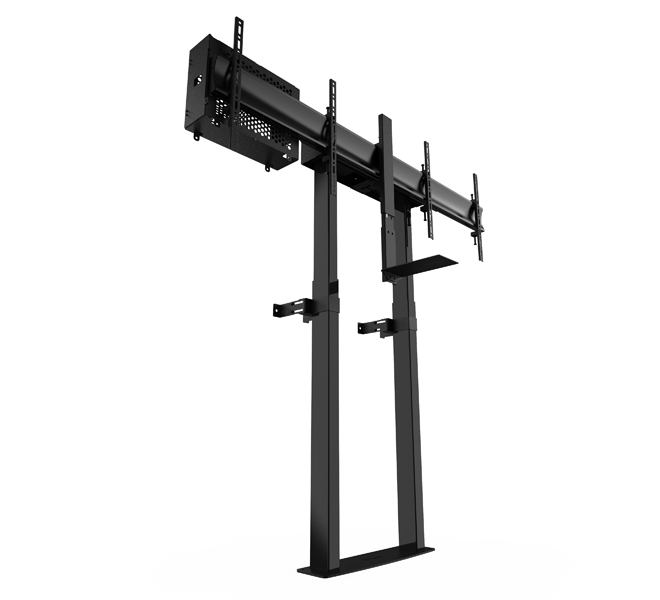

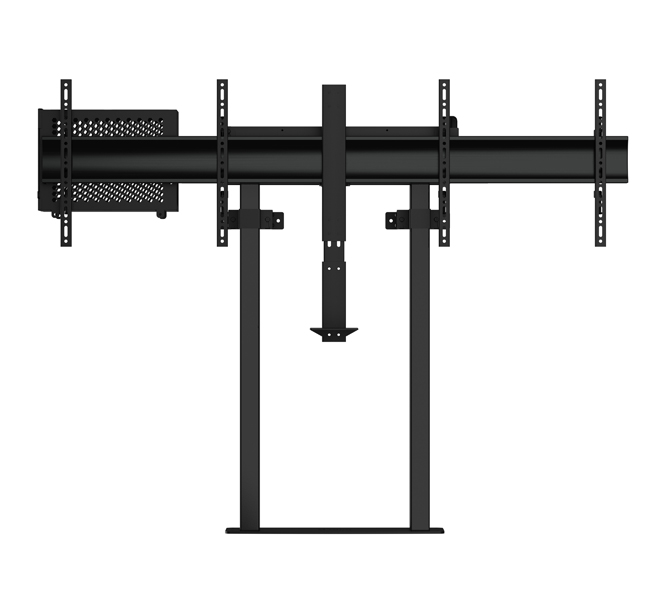

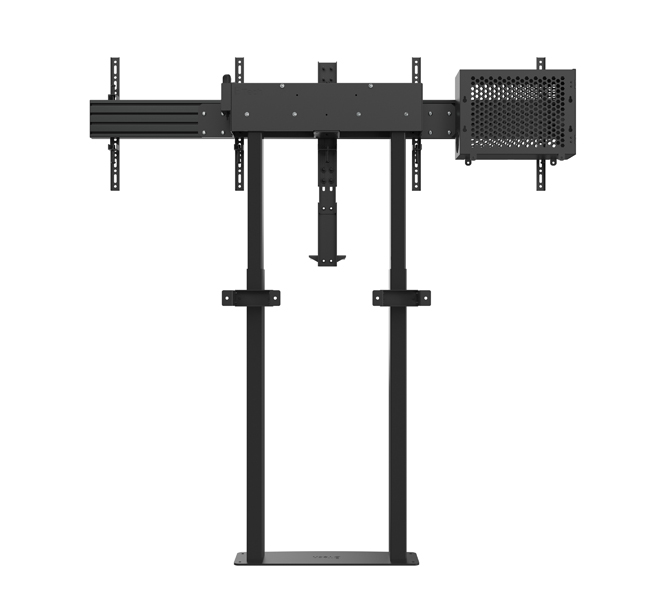

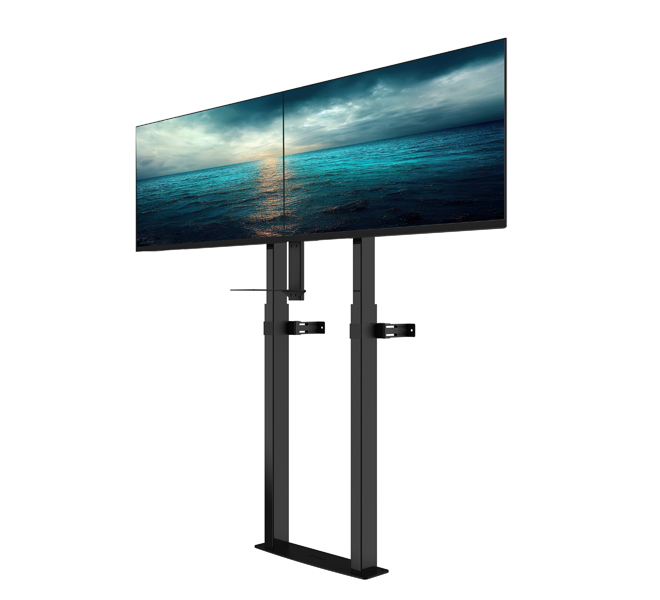

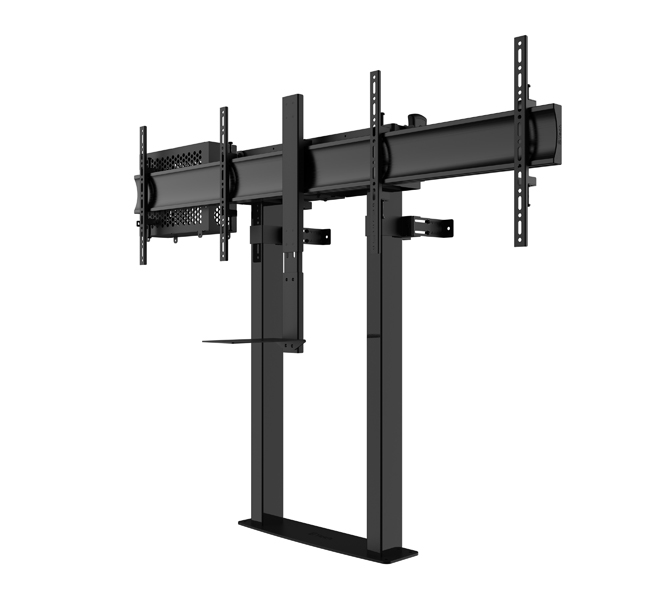

Momentum Elevate Duo Motorised Twin Screen VC Floor-to-Wall Stand

BT8555

For twin screens up to 46"




Part of B-Tech’s Momentum Range of display solutions, the BT8555 is a motorised, height-adjustable Floor-to-Wall Stand designed for twin displays up to 46" each. Its electronic height adjustment system allows for effortless raising and lowering of the screens via a wired control panel, with an adjustment range of up to 650mm that makes the display accessible to a variety of users. Capable of mounting dual screens up to 30kg and featuring a sleek and modern design aesthetic, quick assembly and ease of use. An integrated storage unit at the rear provides convenient space for cable management and AV equipment, making the complete AV setup both neat and practical.









BT8555



  • Motorised height-adjustment for precise screen positioning
  • Supplied with a wired control console for easy height adjustment

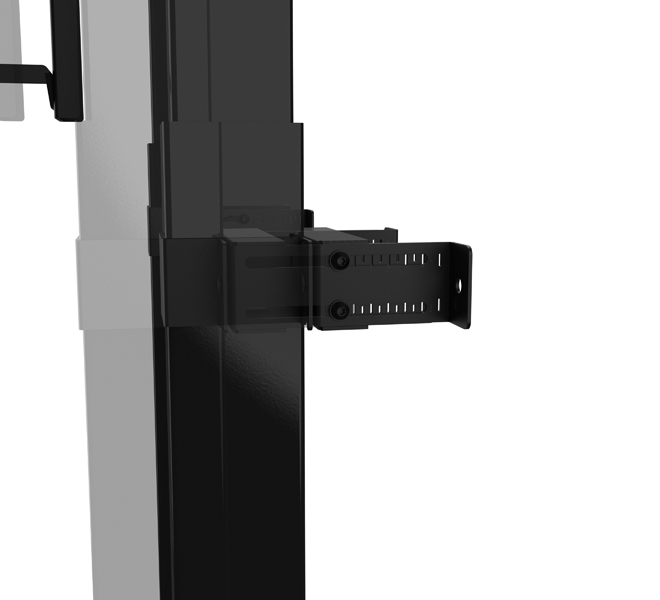

  • Adjustable depth to the wall

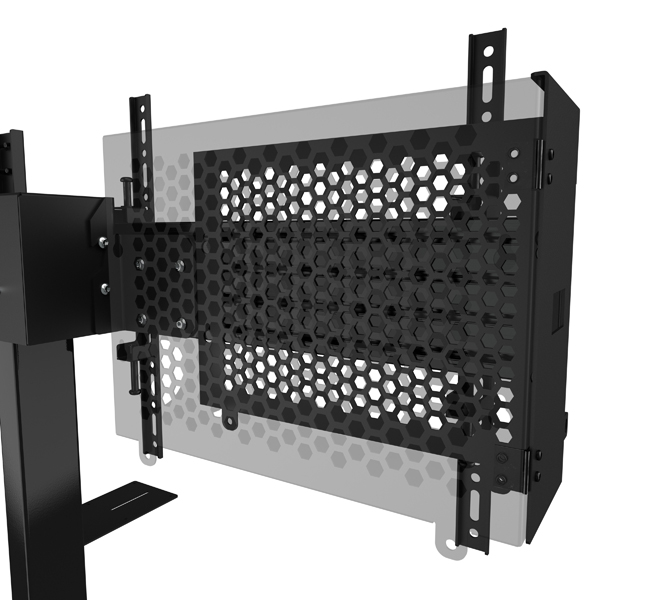

  • Storage compartment on the rear stores cables and AV equipment
  • Ideal for use with touchscreens and interactive displays
  • Universal design suitable for mounting two screens side by side

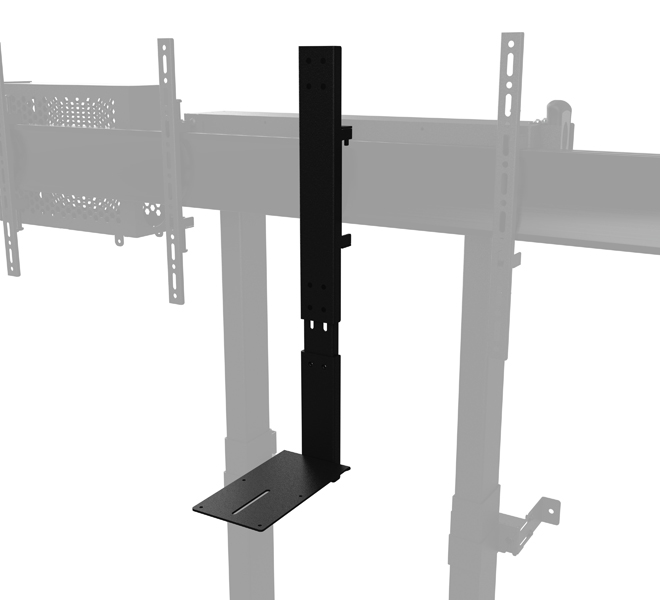

  • VC shelf for cameras with 1/4" thread and 100 x 100mm fixing pointst
  • Safety screws help prevent unauthorised removal of the screen
  • Simple hook-on screen installation
  • Recommended screen size: 39" (99cm) up to 46" (117cm)
  • Max load: 30kg (66lbs) per screen
  • VESA® & non-VESA fixings: up to 400 x 400
  • Dimensions (Cart): W:1504mm (59.2") H:1302.9mm (51.3") - 1952.9mm (76.9") D:832.8mm (32.8")
  • Dimensions (Inner Storage Box): H: 377mm (14.8") W: 257mm (10.1") D: 95.2mm (3.7")
  • Dimensions (VC Shelf): H: 3mm (0.11") W: 120mm (4.7") D: 235mm (9.2")
  • Height adjustment range: up to 650mm (25.6")
  • Height adjustment speed: 35mm (1.37") per second
