Universal Back-to-Back Flat Screen Floor Stand

BT8552

For Medium / Large Screens



Designed to mount two screens back-to-back in landscape or portrait orientation, the BT8552 is available in a choice of three heights; 1.1m, 1.5m and 2m. The stand features B-Tech's unique 'Torsion-Tilt' mechanism for easy tilt adjustment up to +/-15°. Levelling screws are included on the interface arms to finely adjust the screen height after installation. The heavy duty base can be bolted to the floor for permanent displays or alternatively used freestanding with the rubber feet supplied.

  BT8552 Large / Medium Flat Screen Back-to-Back Display Stand
  • Universal design suitable to mount 2 screens back-to-back
  • Can mount screens in a landscape or portrait orientation
  • Unique ‘Torsion-Tilt’ mechanism for easy tilt adjustment
  • Arms feature levelling screws to adjust the screen height
  • Heavy duty base can be used freestanding or bolted to the floor
  • Shelves and other accessories can be fitted to the poles using Ø60mm accessory collars (available separately)
  • Safety screws help prevent unauthorised screen removal
  • Integrated cable management for a neat and tidy installation
  • Simple ‘hook-on’ installation
  • All mounting hardware included
  • Recommended screen size: 39" - 65"
  • Max load: 35kg (77lbs) per screen
  • VESA Compatibility: up to 600 x 400
  • Tilt adjustment: +/-18°
  • Base dimensions: W: 890mm D: 850mm H: 22mm

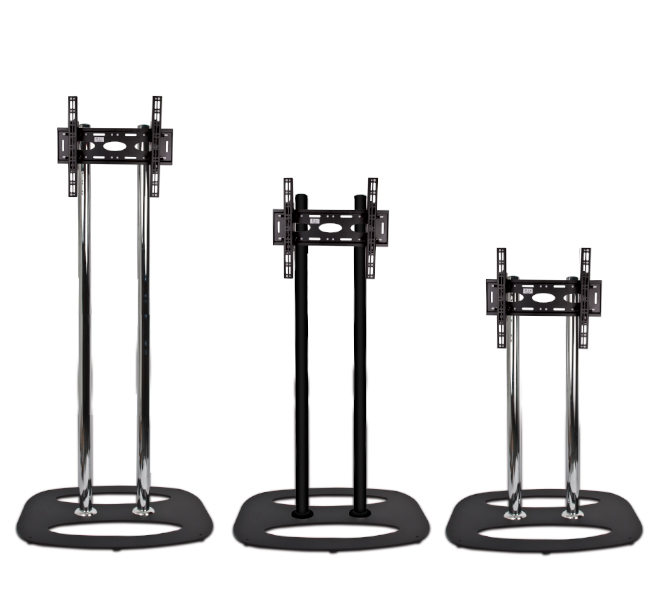

  • Pole lengths available: 1m, 1.5m and 2m
  • Colour option (Ø60mm poles): Black or Chrome

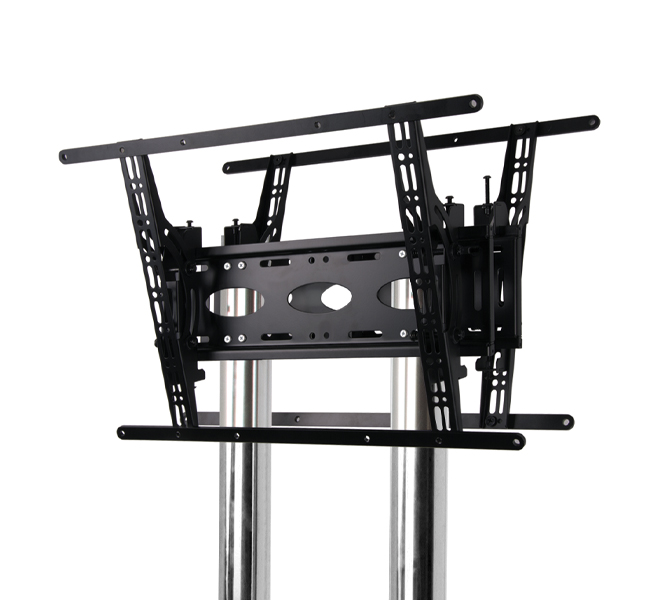

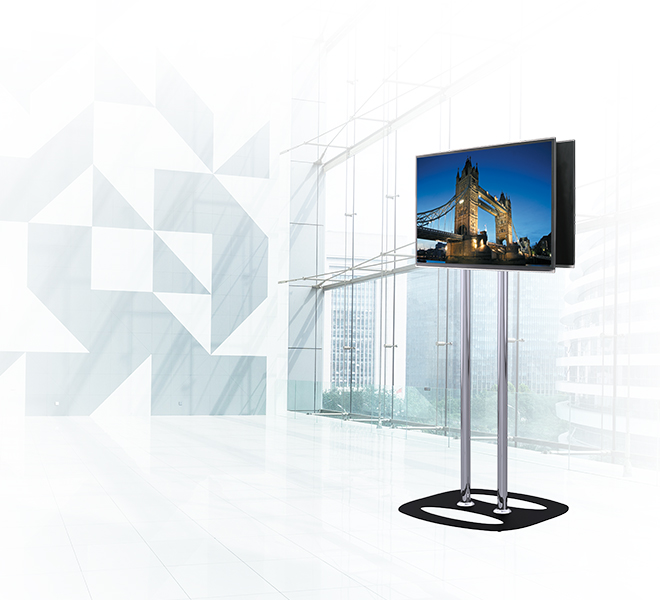

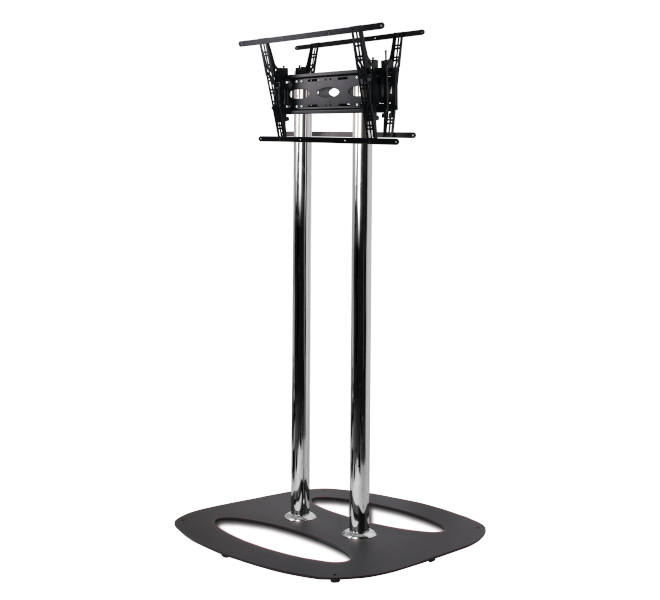

BT8552 Medium / Large Flat Screen Back-to-Back BT8552 Medium / Large Flat Screen Back-to-Back - Side View BT8552 Medium / Large Flat Screen Back-to-Back - with Screens Display Stand with Screens
